kWh to Ah Calculator for Batteries and Energy Storage

author: HT infinitepower

2026-09-24

⚡

kWh ↔ Ah Calculator

Calculation Mode

Energy (kWh)

Battery Voltage (V)

Capacity (Ah)

Quick Answer

kWh cannot be converted to Ah without knowing the battery voltage.
The conversion formula is:

Ah = kWh × 1000 V

Where:

Ah = Amp-hours
kWh = Kilowatt-hours
V = Battery voltage

Quick Examples

Battery Energy	Voltage	Capacity
10 kWh	48 V	208 Ah
10 kWh	51.2 V	195 Ah
10 kWh	400 V	25 Ah

The energy remains the same in every example. Only the voltage changes, which results in different Ah values.

Why kWh Cannot Be Converted to Ah Without Voltage

Many people assume there is a fixed conversion between kWh and Ah.
There is not.
Unlike simple unit conversions, battery voltage must be known before calculating amp-hours.

For example:

10 kWh at 12V
10000 ÷ 12 ≈ 833 Ah

10 kWh at 24V
10000 ÷ 24 ≈ 417 Ah

10 kWh at 48V
10000 ÷ 48 ≈ 208 Ah

10 kWh at 51.2V
10000 ÷ 51.2 ≈ 195 Ah

Although the battery stores the same 10 kWh of energy, the Ah value changes dramatically because the voltage changes.
This is why every accurate kWh-to-Ah calculator requires voltage as an input.

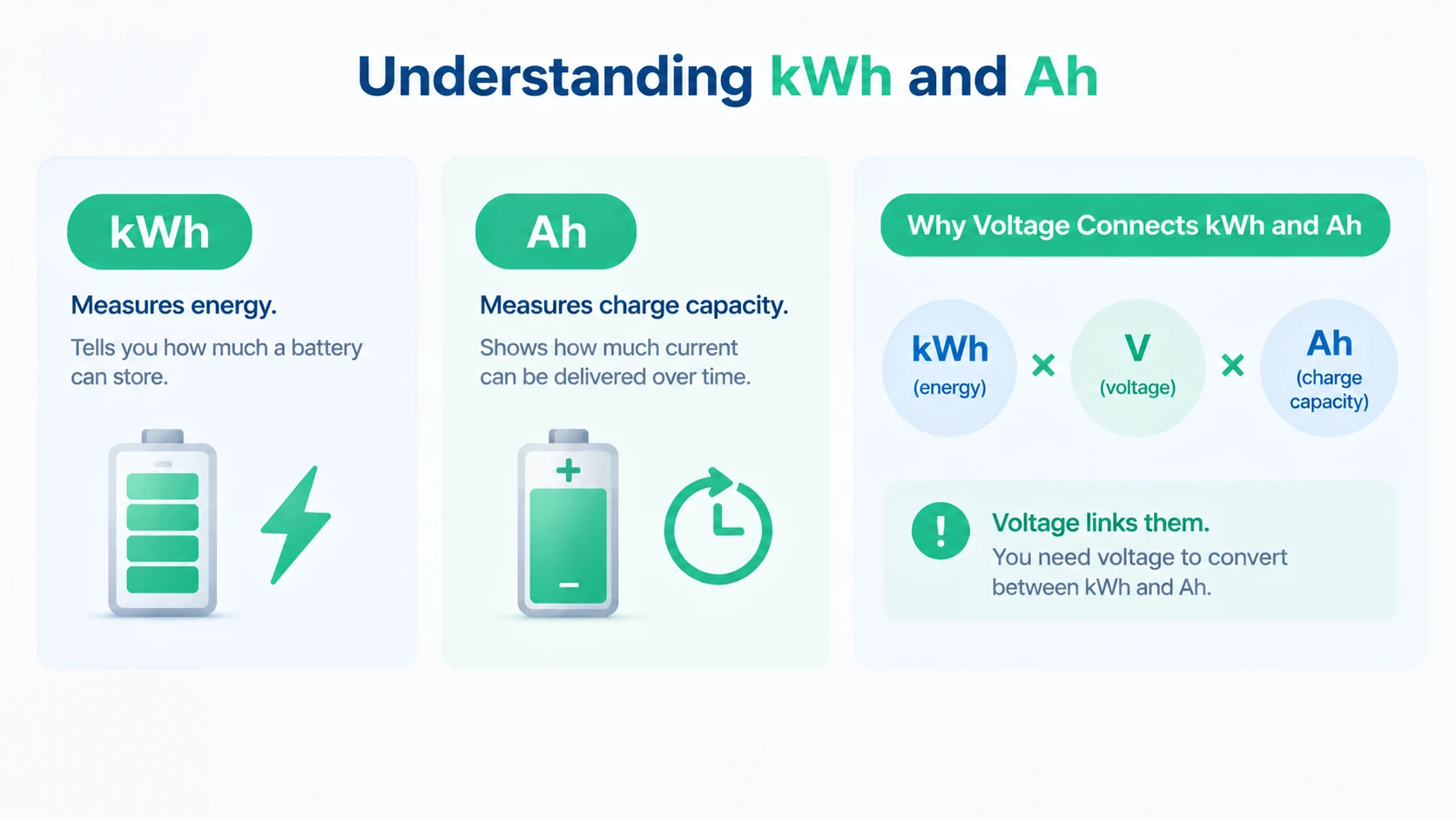

Understanding kWh and Ah

Before converting between these units, it helps to understand what they represent.

What Is kWh?

kWh (kilowatt-hours) measures energy.
It tells you how much electricity a battery can store.

For example:

A 5 kWh battery stores 5 kilowatt-hours of energy.
A 10 kWh battery stores 10 kilowatt-hours of energy.
A 100 kWh battery stores 100 kilowatt-hours of energy.

Modern energy storage systems are usually marketed using kWh because it directly reflects storage capacity.

What Is Ah?

Ah (amp-hours) measures electric charge capacity.
It indicates how much current can be delivered over time.

For example:

A 100 Ah battery can theoretically deliver 100 amps for one hour.
A 50 Ah battery can theoretically deliver 50 amps for one hour.

However, Ah alone does not tell you how much energy a battery stores.

Why Voltage Connects kWh and Ah

Voltage is the missing piece.
Without voltage:

Ah cannot determine energy.
kWh cannot determine charge capacity.

This is why a battery's voltage must always be known before converting between kWh and Ah.

kWh to Ah Formula

The standard formula is:

Ah = kWh × 1000 V

The calculation converts stored energy into amp-hour capacity based on battery voltage.

Example 1

5 kWh battery at 48V: 5000 ÷ 48 ≈ 104 Ah

Example 2

10 kWh battery at 51.2V: 10000 ÷ 51.2 ≈ 195 Ah

Example 3

20 kWh battery at 400V: 20000 ÷ 400 = 50 Ah

These examples show why the same energy capacity can correspond to very different Ah values.

How to Convert kWh to Ah

The conversion process is straightforward.

Step 1

Identify the battery energy in kWh.

Step 2

Determine the battery voltage.

Step 3

Apply the formula:

Ah = kWh × 1000 V

Example

A 15 kWh battery operating at 51.2V:

15000 ÷ 51.2 ≈ 293 Ah

Therefore, a 15 kWh battery at 51.2V has a capacity of approximately 293 Ah.

How Many Ah Is 1, 5, 10, 20 and 50 kWh?

The table below shows common conversions.

kWh	12V	24V	48V	51.2V
1	83 Ah	42 Ah	21 Ah	20 Ah
5	417 Ah	208 Ah	104 Ah	98 Ah
10	833 Ah	417 Ah	208 Ah	195 Ah
20	1667 Ah	833 Ah	417 Ah	391 Ah
50	4167 Ah	2083 Ah	1042 Ah	977 Ah

This table demonstrates how strongly voltage influences the final Ah value.

kWh to Ah Conversion Chart

Battery Energy	24V	48V	51.2V	96V
2 kWh	83 Ah	42 Ah	39 Ah	21 Ah
5 kWh	208 Ah	104 Ah	98 Ah	52 Ah
10 kWh	417 Ah	208 Ah	195 Ah	104 Ah
15 kWh	625 Ah	313 Ah	293 Ah	156 Ah
20 kWh	833 Ah	417 Ah	391 Ah	208 Ah
30 kWh	1250 Ah	625 Ah	586 Ah	313 Ah
50 kWh	2083 Ah	1042 Ah	977 Ah	521 Ah

This chart is useful when comparing batteries with different voltages but similar energy capacities.

Common Battery Voltage Examples

Battery voltage varies significantly across applications.

12V Batteries

Common in:

RV systems
Marine batteries
Small solar systems

A 12V battery generally requires large Ah ratings to achieve substantial energy capacity.

24V Batteries

Common in:

Small off-grid systems
Telecommunications
Backup power systems

Higher voltage reduces the required amp-hour capacity.

48V Batteries

Widely used in:

Solar storage
Residential energy storage
Off-grid power systems

Many modern battery systems use 48V because it balances safety, efficiency, and practicality.

51.2V Batteries

Now common in:

Rack batteries
Home ESS products
Lithium iron phosphate (LFP) systems

51.2V has become one of the most popular residential storage voltages.

High-Voltage Battery Systems

Commercial and utility-scale installations often operate at:

200V
400V
600V
800V+

Higher voltages dramatically reduce the Ah required for large energy capacities.

Why the Same kWh Can Produce Very Different Ah Values

This is the most important concept in the entire conversion.
Consider a 10 kWh battery:

Voltage	Ah
12V	833 Ah
24V	417 Ah
48V	208 Ah
51.2V	195 Ah
400V	25 Ah

The energy never changes.
Only the voltage changes.

Because higher voltage allows the same amount of energy to be delivered with lower current, the required Ah value decreases as voltage increases.
This principle explains why commercial energy storage systems use much higher voltages than small battery systems.

Why Battery Manufacturers Usually Advertise kWh Instead of Ah

Years ago, battery capacity was often marketed using Ah alone.
Today, most energy storage manufacturers advertise battery capacity using kWh.
The reason is simple:

Ah Can Be Misleading

100 Ah battery at 12V
100 Ah battery at 48V

have very different energy capacities.

kWh Shows Actual Energy Storage

A kWh rating directly tells users how much energy can be stored and used.
This makes system comparison much easier.
For this reason, residential and commercial energy storage systems are almost always marketed using kWh.

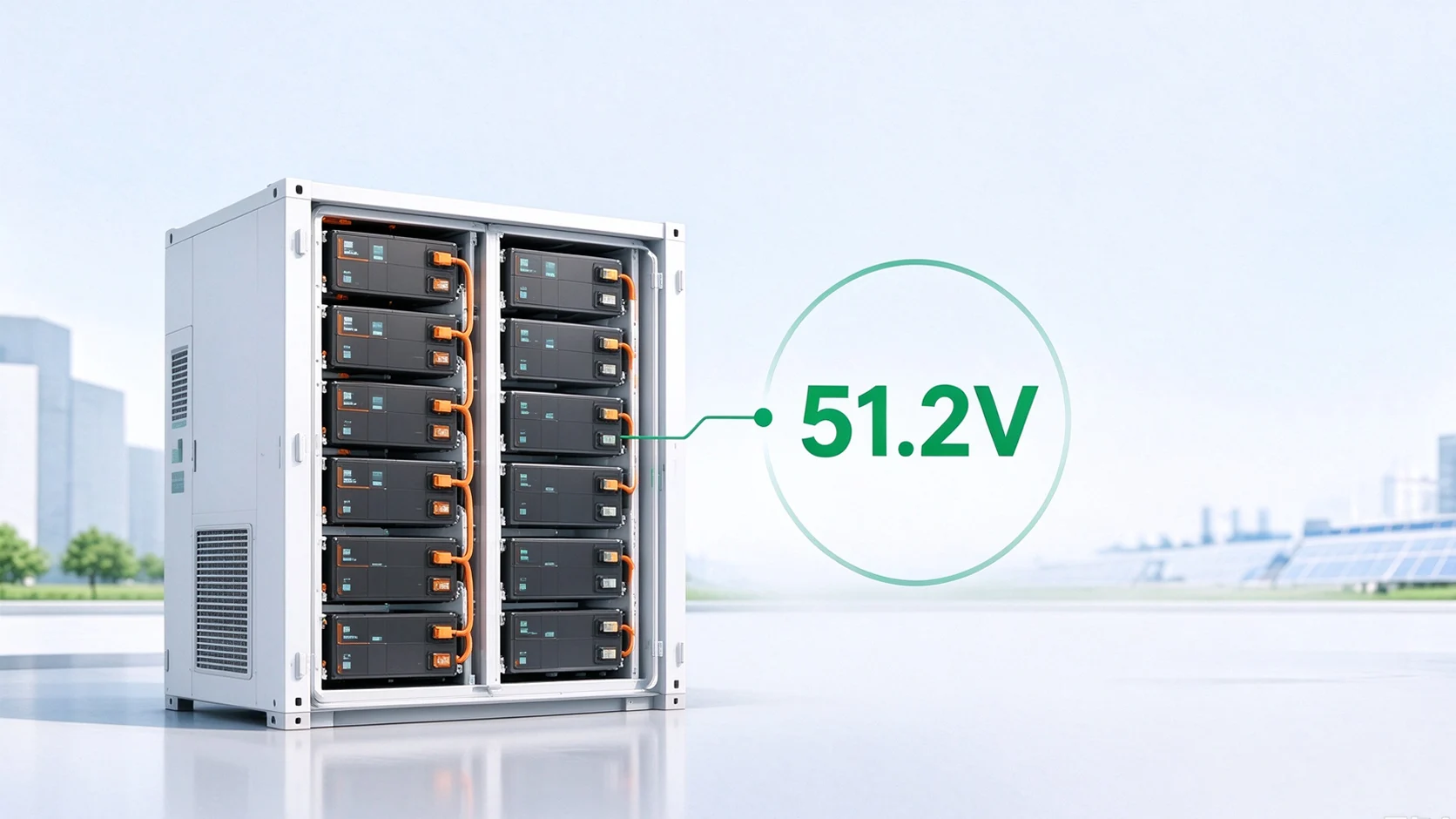

Why Most Energy Storage Systems Use 51.2V Batteries

The energy storage system uses 51.2v batteries.

One of the most common battery voltages in residential storage systems today is 51.2V.
This voltage is especially popular for LFP battery systems.

Example 1

51.2V × 100Ah = 5120 Wh = 5.12 kWh

Example 2

51.2V × 280Ah = 14336 Wh = 14.34 kWh

Example 3

51.2V × 314Ah = 16077 Wh = 16.08 kWh

These configurations are commonly used in home energy storage and rack battery applications.

Real-World kWh to Ah Examples

Home Energy Storage System

A homeowner installs a 10 kWh battery operating at 51.2V.

10000 ÷ 51.2 ≈ 195 Ah

The battery stores 10 kWh of energy while providing approximately 195 Ah of capacity.

Rack Battery System

A 51.2V 280Ah battery module stores:

51.2 × 280 = 14.34 kWh

This configuration is widely used in residential ESS applications.

Commercial Energy Storage System

A 100 kWh battery operating at 409.6V:

100000 ÷ 409.6 ≈ 244 Ah

Despite storing a large amount of energy, the required Ah remains moderate because the voltage is much higher.

kWh to Ah for Home Energy Storage

Residential storage systems are frequently sold in:

5 kWh
10 kWh
15 kWh
20 kWh

configurations.
Most modern systems use 48V or 51.2V battery architectures.
As a result, homeowners commonly see battery capacities ranging from approximately:

100 Ah
200 Ah
280 Ah
314 Ah

depending on the specific product design.

kWh to Ah in Commercial Battery Energy Storage Systems

Commercial battery energy storage systems often use significantly higher voltages.

100 kWh System

409.6V battery:

100000 ÷ 409.6 ≈ 244 Ah

215 kWh System

768V battery:

215000 ÷ 768 ≈ 280 Ah

418 kWh System

1331V battery:

418000 ÷ 1331 ≈ 314 Ah

These examples illustrate why commercial systems often focus on kWh and voltage rather than extremely large Ah values.

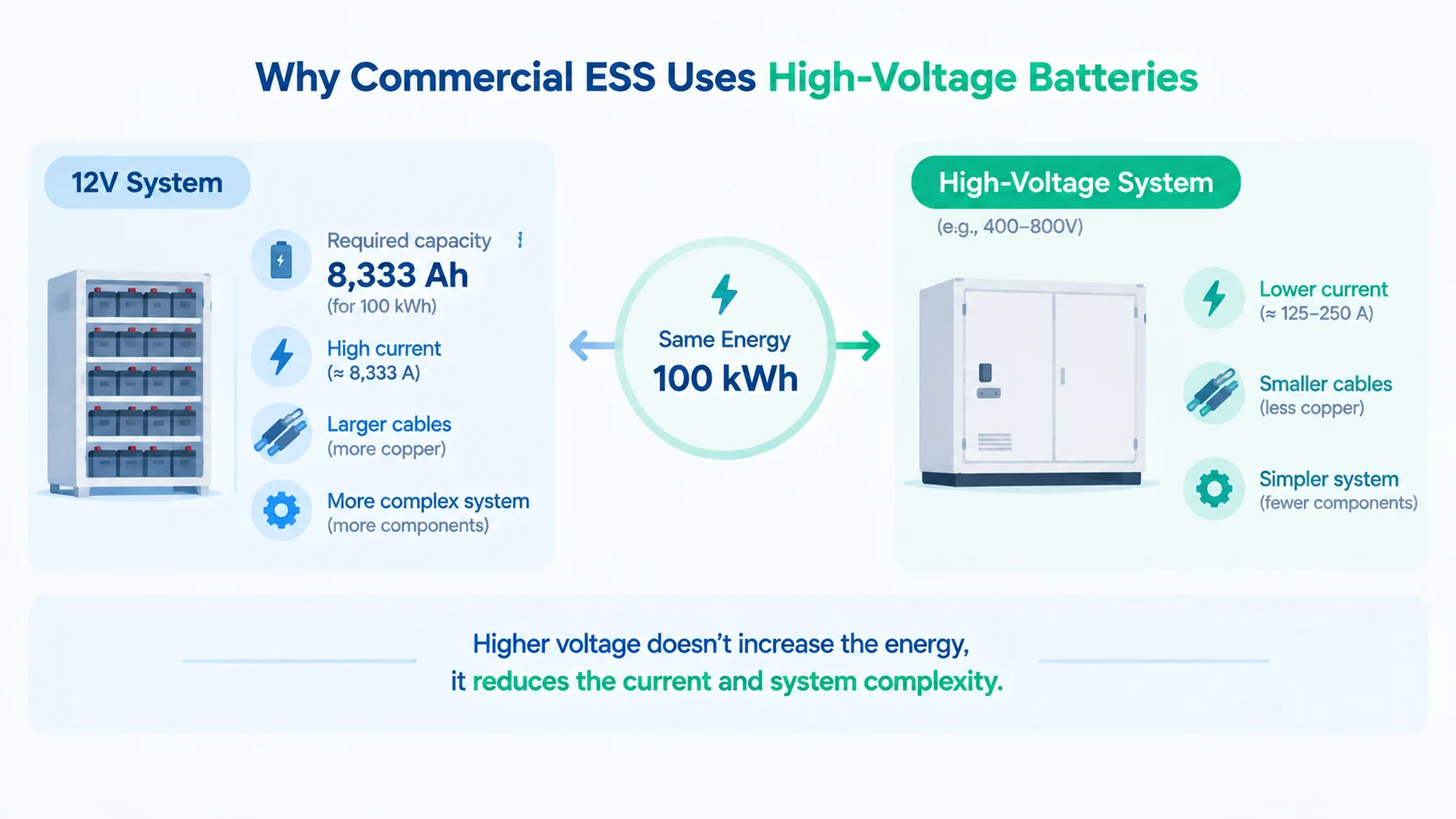

Why Commercial ESS Uses High-Voltage Batteries

Imagine trying to build a 100 kWh battery using only 12V.

100000 ÷ 12 ≈ 8333 Ah

This would be impractical.

By increasing voltage, engineers can dramatically reduce current levels, conductor sizes, and overall system complexity.
This is one reason most commercial ESS projects use high-voltage battery architectures.

Common Mistakes

Ignoring Voltage

Voltage is always required.

Confusing kWh and kW

kWh measures energy.
kW measures power.

Assuming Ah Represents Energy

Ah alone does not indicate stored energy.

Using Incorrect Battery Voltage

Always verify nominal system voltage.

Ignoring Usable Capacity

The entire battery capacity is not always available for use.

Conclusion

A kWh to Ah calculator helps convert battery energy into amp-hour capacity, but the conversion is impossible without knowing voltage. The same energy capacity can produce dramatically different Ah values depending on system voltage. This principle explains why modern energy storage systems are typically rated in kWh, why 51.2V batteries dominate residential storage, and why commercial ESS projects increasingly use high-voltage architectures. Understanding the relationship between kWh, Ah, and voltage makes it easier to compare batteries, size energy storage systems, and evaluate real-world battery performance.
