kVA to kW Calculator: Real Power Calculations for Inverters and Energy Storage

author: HT infinitepower

2026-09-22

⚡ kVA ↔ kW Calculator

Calculation Mode

Apparent Power (kVA)

Real Power (kW)

Power Factor (PF, 0–1)

Quick Answer

kVA cannot be converted to kW without knowing the power factor (PF).
The conversion formula is:

kW = kVA × PF

Where:

kW = Real Power
kVA = Apparent Power
PF = Power Factor

Quick Conversion Examples

kVA	PF	kW
10 kVA	1.0	10 kW
10 kVA	0.9	9 kW
10 kVA	0.8	8 kW
50 kVA	0.95	47.5 kW
100 kVA	0.8	80 kW

The same kVA rating can produce very different amounts of usable power depending on the power factor.

1. Why kVA Cannot Be Converted to kW Without Power Factor

Many people assume that kVA and kW are the same thing.
They are not.

A 100 kVA system does not necessarily deliver 100 kW of usable power. The actual real power depends on the power factor.

For example:

100 kVA × 1.0 = 100 kW
100 kVA × 0.9 = 90 kW
100 kVA × 0.8 = 80 kW

The apparent power remains 100 kVA in every case, but the usable real power changes significantly.
This distinction is critical when sizing generators, UPS systems, transformers, inverters, PCS units, and battery energy storage systems.

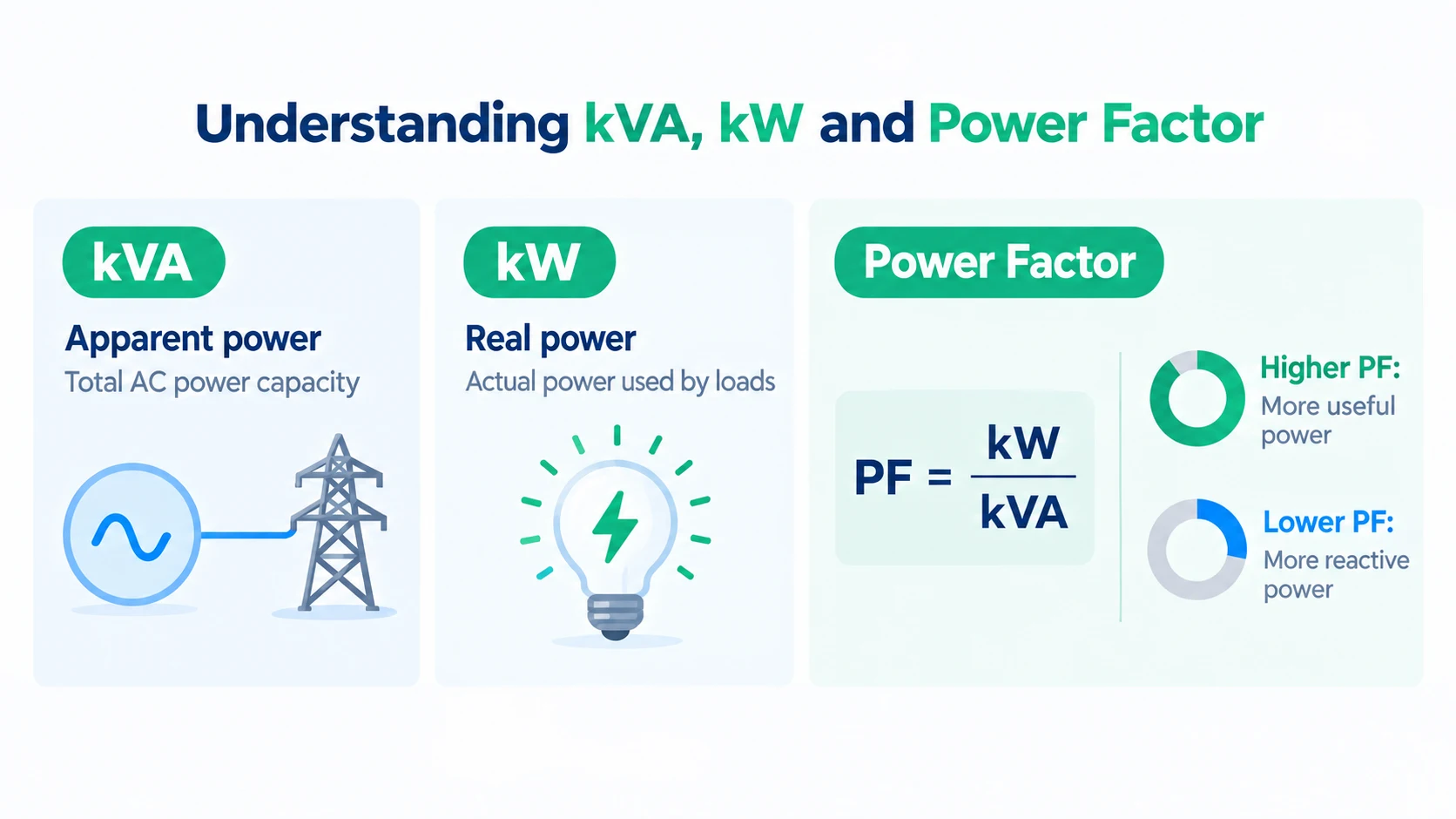

2. Understanding kVA, kW and Power Factor

Before converting kVA to kW, it helps to understand what these values represent.

What Is kVA?

kVA (kilovolt-amperes) measures apparent power.
It represents the total power an AC electrical system must supply.

Apparent power includes:

Real power
Reactive power

Because of this, kVA is commonly used when specifying generators, transformers, UPS systems, PCS units, and inverters.

What Is kW?

kW (kilowatts) measures real power.
This is the power that actually performs useful work, such as:

Running motors
Producing heat
Operating HVAC equipment
Powering industrial machinery
Charging batteries

When someone asks how much power a system can actually deliver, they are usually referring to kW.

What Is Power Factor?

Power factor describes how efficiently apparent power is converted into useful power.

PF = kWkVA

A higher power factor means a larger percentage of supplied power becomes useful output.
A lower power factor means more power circulates as reactive power rather than performing useful work.

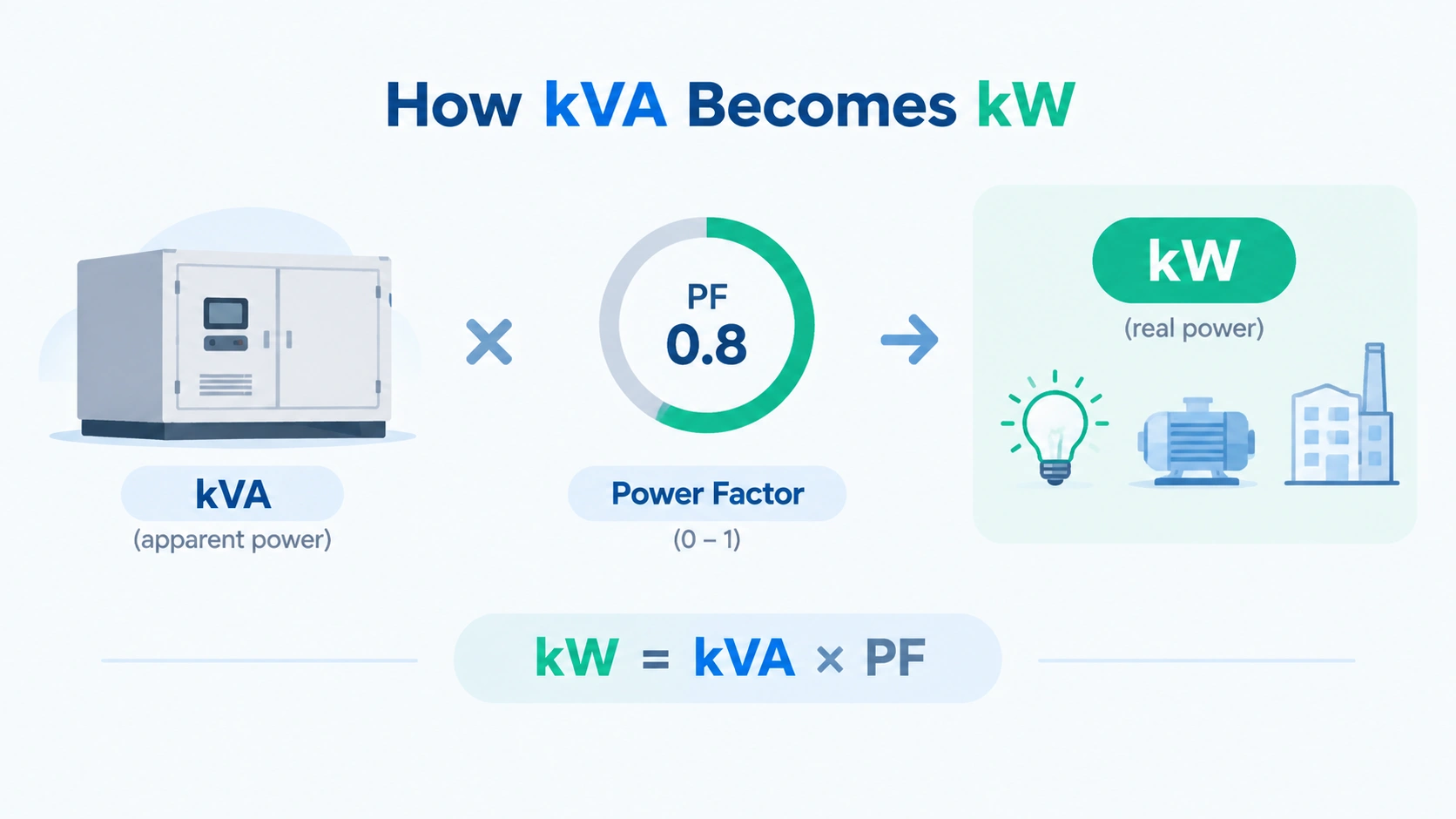

3. kVA to kW Formula

The standard formula is:

kW = kVA × PF

Although the formula itself is simple, selecting the correct power factor is essential.

Example 1

5 kVA × 0.8 = 4 kW

Example 2

20 kVA × 0.9 = 18 kW

Example 3

100 kVA × 0.95 = 95 kW

These examples demonstrate why power factor must always be considered when converting kVA into real power.

4. How to Convert kVA to kW

Converting kVA to kW requires only three steps.

Step 1

Identify the kVA rating.

Step 2

Determine the operating power factor.

Step 3

Multiply the two values.

Example

A 50 kVA PCS operating at PF 0.95:

50 × 0.95 = 47.5 kW

This means the PCS can deliver approximately 47.5 kW of real power under those operating conditions.

5. How Many kW Is 1, 5, 10, 20, 50 and 100 kVA?

The following table shows common conversions.

kVA	PF 1.0	PF 0.9	PF 0.8
1	1.0 kW	0.9 kW	0.8 kW
5	5.0 kW	4.5 kW	4.0 kW
10	10.0 kW	9.0 kW	8.0 kW
20	20.0 kW	18.0 kW	16.0 kW
50	50.0 kW	45.0 kW	40.0 kW
100	100.0 kW	90.0 kW	80.0 kW

This table clearly shows how power factor influences usable output power.

6. kVA to kW Conversion Chart

kVA	PF 1.0	PF 0.95	PF 0.9	PF 0.85	PF 0.8
1	1.00	0.95	0.90	0.85	0.80
5	5.00	4.75	4.50	4.25	4.00
10	10.00	9.50	9.00	8.50	8.00
20	20.00	19.00	18.00	17.00	16.00
30	30.00	28.50	27.00	25.50	24.00
50	50.00	47.50	45.00	42.50	40.00
100	100.00	95.00	90.00	85.00	80.00

For larger electrical systems, even a small decrease in power factor can significantly reduce available real power.

7. Typical Power Factor Values by Equipment Type

The following power factor values are commonly used for estimation purposes.

Equipment Type	Typical PF
Resistive Heater	1.0
Incandescent Lighting	0.95–1.0
Quality LED Lighting	0.90–0.98
Small Motors	0.80–0.90
Large Industrial Motors	0.75–0.90
HVAC Systems	0.75–0.90
UPS Systems	0.80–0.95
Industrial Equipment	0.80–0.95
PCS Equipment	Depends on operating conditions

Actual power factor values vary by manufacturer, operating mode, and system design.

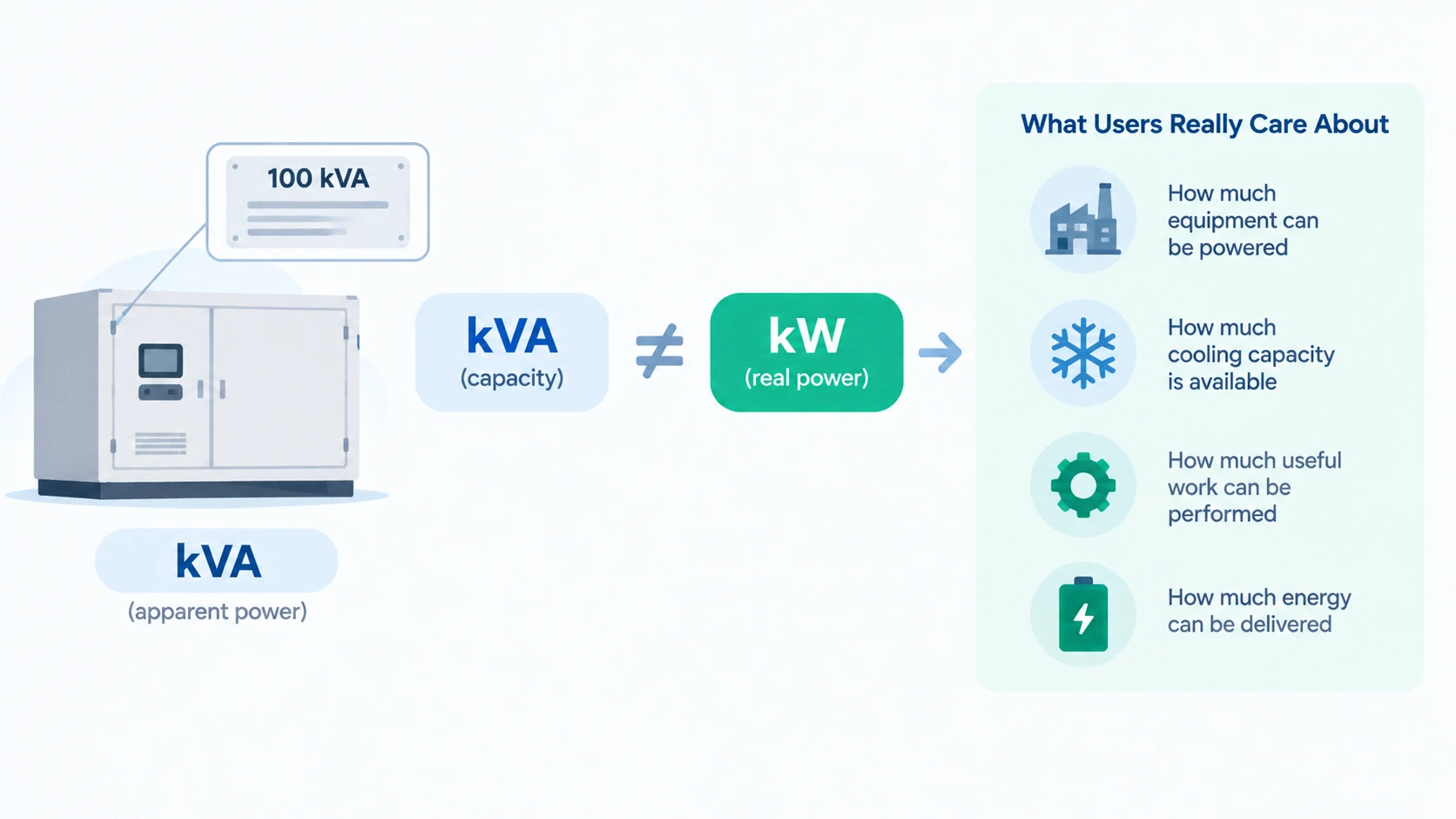

8.Why Real Power Matters More Than Apparent Power

Many equipment nameplates display kVA ratings because they describe system capacity.
However, most users ultimately care about real power.

A facility owner is usually interested in:

How much equipment can be powered
How much cooling capacity is available
How much useful work can be performed
How much energy can be delivered

All of these are determined by kW, not kVA.

For example, a 100 kVA system operating at PF 0.8 only provides:

100 × 0.8 = 80 kW

That means 20% of the apparent power is not converted into useful output.
This distinction becomes especially important in industrial facilities, commercial buildings, solar projects, and battery energy storage systems.

9. Real-World kVA to kW Examples

Commercial HVAC System

A commercial HVAC system may be rated at 50 kVA with a power factor of 0.85.

50 × 0.85 = 42.5 kW

Although the apparent power rating is 50 kVA, the actual real power consumption is approximately 42.5 kW.

Industrial Motor Installation

An industrial motor system rated at 100 kVA operating at PF 0.8 provides:

100 × 0.8 = 80 kW

This example demonstrates why engineers carefully evaluate power factor when designing electrical infrastructure.

UPS Backup System

A 20 kVA UPS operating at PF 0.9 delivers:

20 × 0.9 = 18 kW

The UPS can support 20 kVA of apparent load, but only 18 kW of real power output.

EV Charging Infrastructure

An EV charging installation may have a 100 kVA electrical connection.
However, the usable charging power depends on the operating power factor and the design of the charging equipment.
Understanding kVA-to-kW conversion helps planners estimate real charging capacity more accurately.

10. Why Modern Inverters Display Both kVA and kW Ratings

Many inverter datasheets display both kVA and kW ratings, which often causes confusion.
The reason is simple:

kVA represents apparent power capability.
kW represents real usable output power.

For example:

A 100 kVA inverter operating at PF 1.0 can deliver: 100 kW

At PF 0.9: 100 × 0.9 = 90 kW

Both values are useful because they describe different aspects of inverter performance.
Manufacturers therefore publish both ratings so system designers can evaluate inverter capability under different operating conditions.

11. Why a 100 kVA Inverter Is Not Always a 100 kW Inverter

A common misunderstanding is that a 100 kVA inverter automatically provides 100 kW of usable power.
In reality, the available real power depends on the operating power factor.

At PF 1.0: 100 × 1.0 = 100 kW
At PF 0.9: 100 × 0.9 = 90 kW
At PF 0.8: 100 × 0.8 = 80 kW

This explains why some inverter datasheets show ratings such as:

100 kVA / 90 kW
125 kVA / 100 kW

The kVA rating remains constant, but the real output power changes depending on the specified operating power factor.

12. kVA to kW for Energy Storage Systems

Power factor is equally important in battery energy storage systems.

Consider a 50 kVA PCS operating at PF 0.95:

50 × 0.95 = 47.5 kW

Likewise, a 100 kVA PCS operating at PF 0.9 provides:

100 × 0.9 = 90 kW

Although energy storage projects are often discussed in terms of battery capacity (kWh), the AC side of the system is frequently specified using kVA and kW ratings.
Understanding the relationship between these values helps engineers select appropriately sized PCS equipment and evaluate system performance.

13. Real Energy Storage System Sizing Example

Consider a commercial battery energy storage project that must export 100 kW of real power.
Assume the PCS is expected to operate at PF 0.9.

The required apparent power rating is:

kVA = kWPF

kVA = 1000.9

kVA ≈ 111.1

This means a PCS rated at only 100 kVA would not be sufficient.
A PCS with an apparent power capacity of approximately 111 kVA or higher would be required to reliably deliver 100 kW of real power.
This example demonstrates why engineers consider both kVA and kW during system design.

14. Why Power Factor Matters in Energy Storage Systems

Modern battery energy storage systems do much more than store and release energy.
Many projects also provide:

Voltage regulation
Reactive power compensation
Grid support services
Frequency regulation
Power quality improvements

Because of these functions, a PCS may operate below unity power factor.
When power factor decreases, the amount of real power that can be exported may also decrease.
As a result, a PCS rated at 100 kVA will not always deliver 100 kW of real power.
Understanding this relationship is essential when designing utility-scale, commercial, and microgrid energy storage systems.

Modern battery energy storage systems frequently participate in grid-support functions such as voltage regulation and reactive power compensation. During these operating modes, part of the PCS capacity may be allocated to reactive power rather than real power delivery.
This is one reason system designers carefully evaluate kVA, kW, and power factor when planning large-scale energy storage projects.

15. Common Mistakes

Assuming kVA Always Equals kW

This is only true when the power factor is 1.0.

Ignoring Power Factor

Without power factor, an accurate conversion cannot be performed.

Using PF = 1.0 for Every Load

Many real-world systems operate below unity power factor.

Confusing Apparent Power and Real Power

kVA and kW measure different components of electrical power.

Misinterpreting Equipment Ratings

Always check whether a specification refers to kVA or kW before sizing or comparing equipment.

Conclusion

A kVA to kW calculator helps convert apparent power into real usable power. While the mathematical relationship is simple:

kW = kVA × PF

the real challenge is understanding the role of power factor. The same kVA rating can produce very different amounts of usable power depending on operating conditions.
For generators, UPS systems, inverters, PCS equipment, and battery energy storage systems, understanding the relationship between kVA, kW, and power factor is essential for proper sizing and performance evaluation. By applying the correct power factor and considering real-world operating conditions, you can make more informed decisions when designing, selecting, or operating modern power systems.
