True rack-mount modularity
Integrated battery management
IP54 protection for indoor/outdoor racks
Wide –20°C to +60°C operating window
Cell-level safety and balancing
Technical Specifications of the 86–215 kWh High Voltage Battery Pack
Rated capacity:
Factory voltage:
Voltage at end of discharge:
Charging voltage:
Internal lmpedance:
Max charging current(Icm):
imited charging voltage(Ucl):
Discharge cut-off voltage(Udo):
Operation Temperature Range:
Storage Temperature Range:
Main control boxsize/weight:
Single module Size/weight:
System size/weight:
Typical:280Ah Min:276Ah
307.2-316.8V
≤259.2V
336V
≤100mΩ
140A
350.2V
240V
Charge:0~55°C Discharge: -20~55°C
-20°C~25°C
620*442*222mm/About 22Kg
778.5*442*230 mm/About125Kg
550*776*1985mm/About850Kg
Applications for the High Voltage Battery Pack
●Solar+Storage Projects
Buffer PV output for peak-time discharge.
●Telecom Backup Power
Keep critical links live during outages.
●Data Center UPS Expansion
Extend runtime without extra cabinets.
●Industrial Load Shifting
Absorb off-peak energy and shave peaks.
Reliability and Sustainability of High Voltage Battery Pack

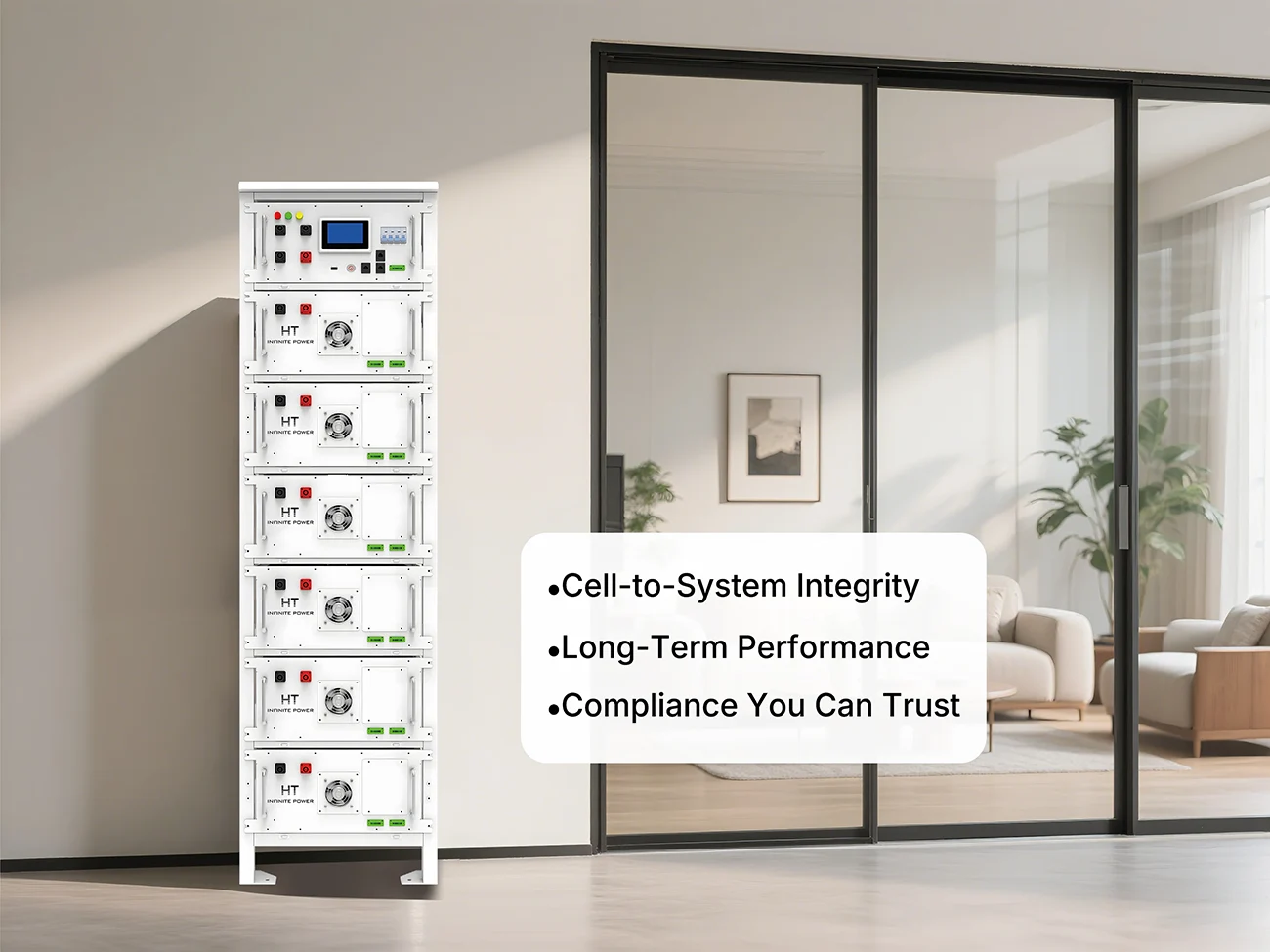

●Cell-to-System Integrity
Every pack integrates cells, modules, and a built-in BMS to ensure precise cell balancing, over-/under-voltage protection, and thermal management for consistent, long-term operation.
●Long-Term Performance
Designed for up to 8,000 cycles at 90% depth of discharge, these racks maintain high capacity retention and deliver reliable energy for years.
●Compliance You Can Trust
Engineered to meet IP54 enclosure requirements and built in accordance with international safety standards, ensuring both performance and peace of mind.
FREQUENTLY ASKED QUESTIONS
─── About 86kWh–215kWh high voltage battery pack rack mount energy storage ───
Choose anywhere from 86kWh up to 215kWh in a single rack-mount pack.
Yes—each high voltage battery pack has a built-in management system for cell monitoring, balancing, and protection.
Absolutely. Parallel-ready design lets you combine packs for higher storage without rewiring.
Direct DC bus connections via standard HV cables—no external DC combiner boxes needed.
Yes. The IP54-rated casing and wide temperature range mean it works reliably in both indoor and sheltered outdoor racks.
