Product Features

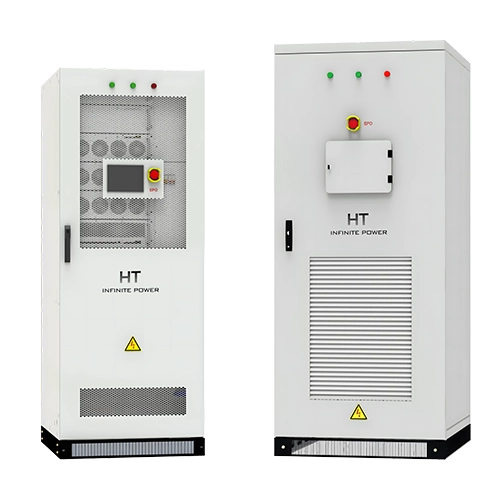

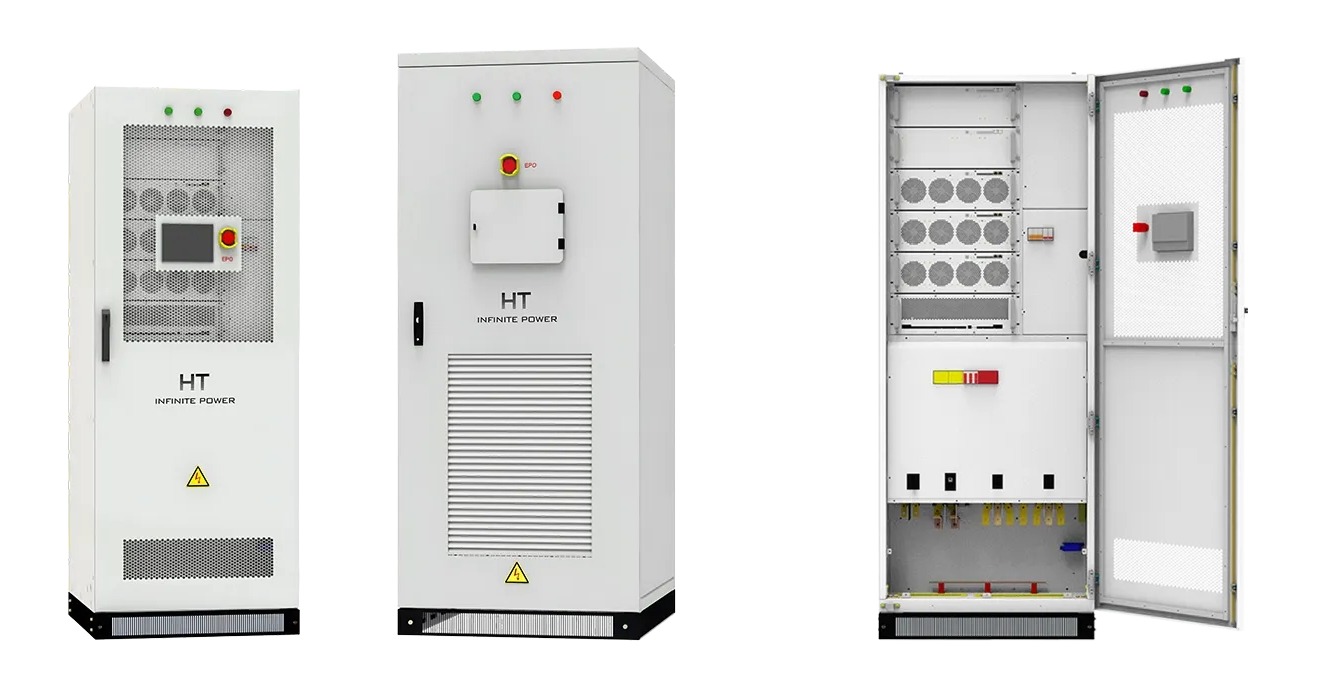

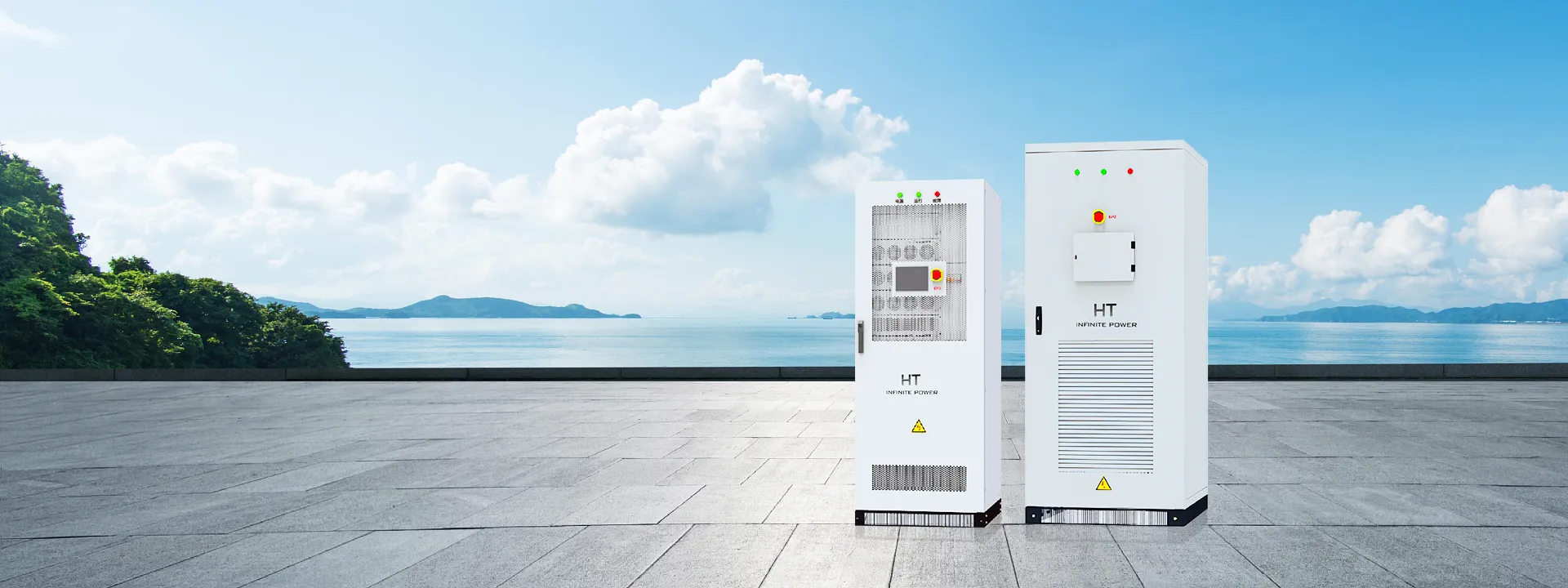

There are two types of cabinets for indoor and outdoor use, meeting the needs of various installation sites.
Three-level circuit design of the power module, with high conversion efficiency and improved power utilization.
The local control panel can realize various functions such as converter operation monitoring,energy management strategy development, and remote equipmentupgrading.
The HT series Solar & Energy Storage PCS adopt advanced digital control technology and are equipped with the independently developed microgrid management system,which optimizes control performance and improves system reliability to meet the needs of multiple application scenarios.

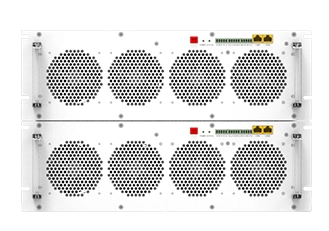

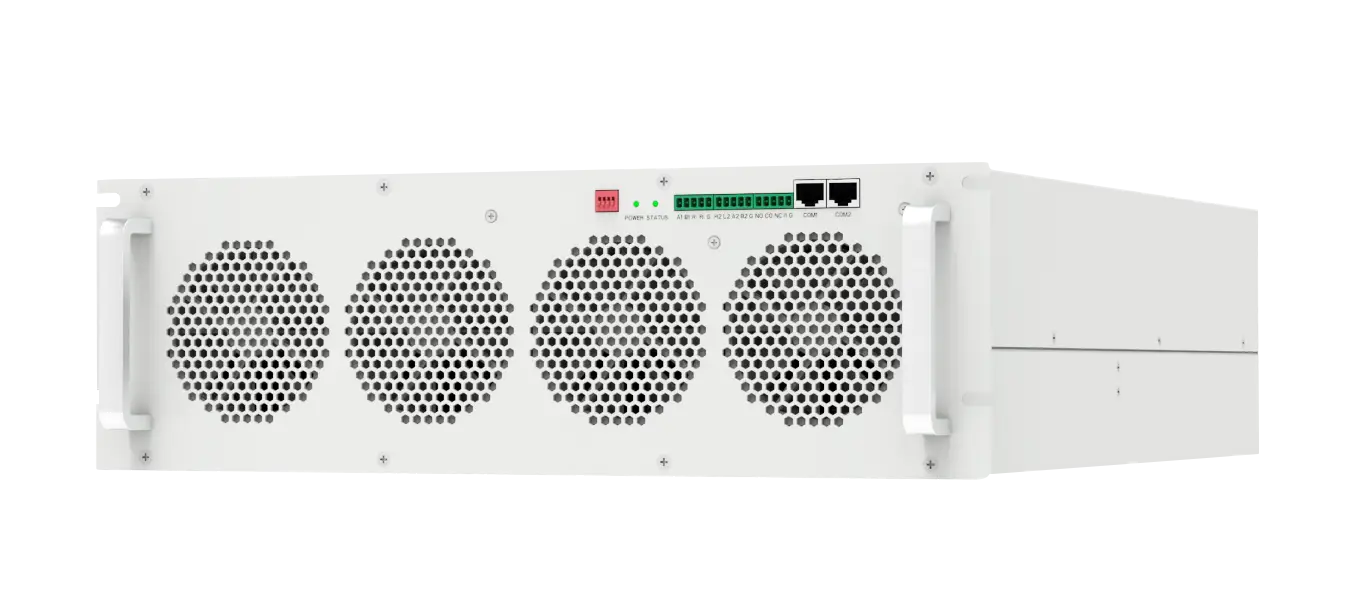

Modular rack design, with flexible configuration, convenient expansion and maintenance.
A single solar & energy storage PCS cabinet can be expanded to 300kW◥
Model Description

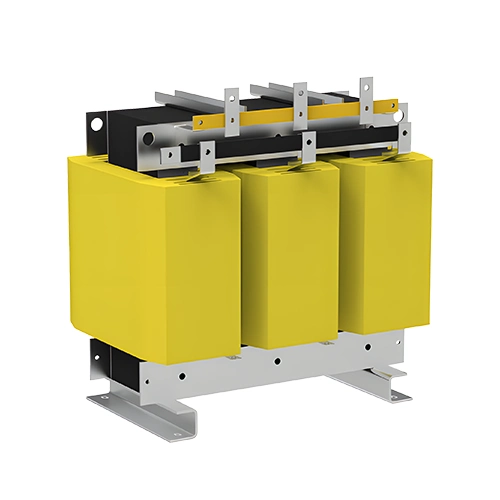

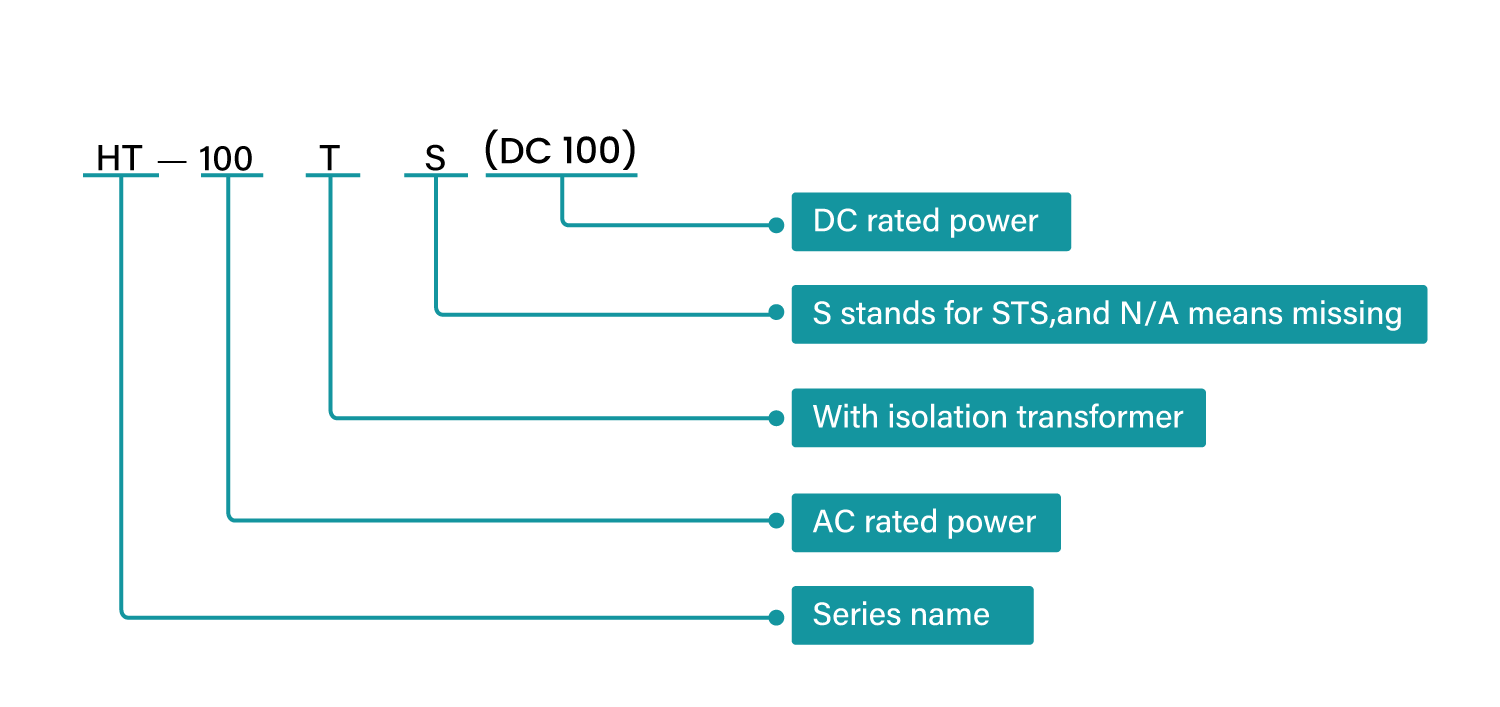

HT-100TS(DC100)represents an Solar&Energy Storage PCS with 100kW AC power module,isolation transformer, STS, and 50 DC power module
Notes:The isolation transformer, STS, and DC power module◥ are optional components, and the rated output power and battery capacity can be flexibly configured according to project reguirements.
Product Parameters
Certifications: CE IEC50549 IEC61000 IEC64233
Grid Port
Rated power：
Max.power：
Rated current：
Max.current：
Rated voltage：
Rated frequency：
Photovoltaic(PV) Port
Max.PV input voltage：
Max.PV input power：
MPPT quantity：
Battery Port
Battery voltage range：
General Parameters
Degree of protection：
Protective Class：
Power Factor：
THDU：
Isolation mode：
Shutdown self-discharge：
Display：
Relative humidity：
Noise：
Ambient temperature：
Cooling mode：
Altitude：
BMS Communication：
EMS Communication：
Weight (approx.)：
Dimensions（W*D*H）：
50kW
55kW
72A
79A
400Vac，3W+N+PE
50/60Hz(±5Hz)
Minimum battery voltage -50V
50kW
1/2
600~950V
IP21（Indoor）/IP54（Outdoor）
/
-1 leading to+1 lagging
＜3%（Rated power）
Transformer isolation
＜100W（Without transformer）
LCD
0 ~ 95% (No condensation)
＜78dB
-25℃ to +60℃(Derating above 45℃)
Intelligent air-cooled
3000m (> 2000m reduction)
CAN
RS485 / CAN/Ethernet
1200kg/1350kg
800*800*2100mm（Indoor）；900*1000*2150mm（Outdoor）
The following are the typical configuration parameters of the HT series of integrated Solar&Energy Storage System. The actual supply shall be subject to the technical agreement
Electrical Wiring Diagram of Solar & Energy Storage PCS
The system solution includes grid-connected and off-grid modes, isolation transformers, and photovoltaic inputs. Configurations may vary depending on the project, and the wiring may differ slightly. The actual wiring should be based on the accompanying drawings provided with the shipment.
Solar & Energy Storage PCS Product Function
▶ The use of modular PCS facilitates maintenance and expansion.
▶ Front maintenance can reduce floor space and maintenance access.
▶ It is characterized by safety, reliability, rapid deployment,low cost, high energy efficiency, and intelligent management.
▶ HT Series Solar&Energy Storage PCS integrates modular pcs, local energy management monitoring system, power distribution system, environmental control system etc.
Solar & Energy Storage PCS Human-Machine Interface lntroduction

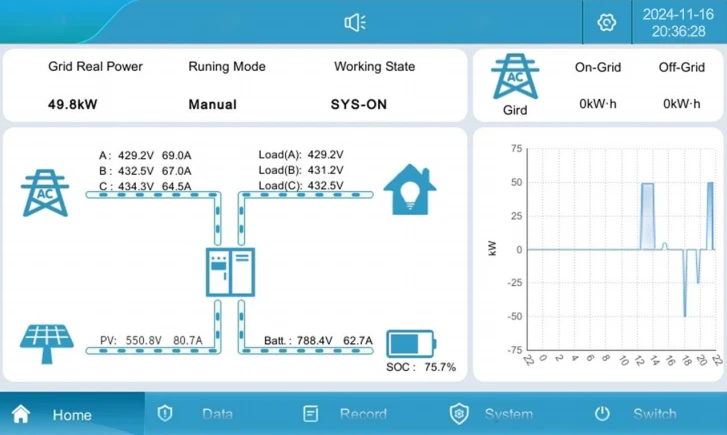

The home page interface displays real-time power, voltage, current, generated energyoperation mode, working status and other information of the system
FREQUENTLY ASKED QUESTIONS
─── About Solar & Energy Storage PCS Cabinet ───
Yes, HT series Solar & Energy Storage PCS Cabinet support function and capacity customization. The largest single cabinet can support 300KW AC and 300KW PV capacity. The cabinet supports parallel expansion
We provide a 3-year free warranty, and we can also extend the warranty period according to your needs. Please contact us for more information
