Energy Storage System Isolation Transformer

lsolation Transformer Application Scenarios

On & Off-Grid

Off-Grid

Features Of Isolation Transformers

▶ Electrical isolation: Electrically isolates the energy storage system from the grid or other equipment.

▶ Customised design: lt meets the requirements of different energy storage systems according to the specific needs of the customer.

▶ Voltage conversion: According to the demand of the energy storage system, convert theinput voltage to a suitable output voltage to meet the working requirements of various devices.

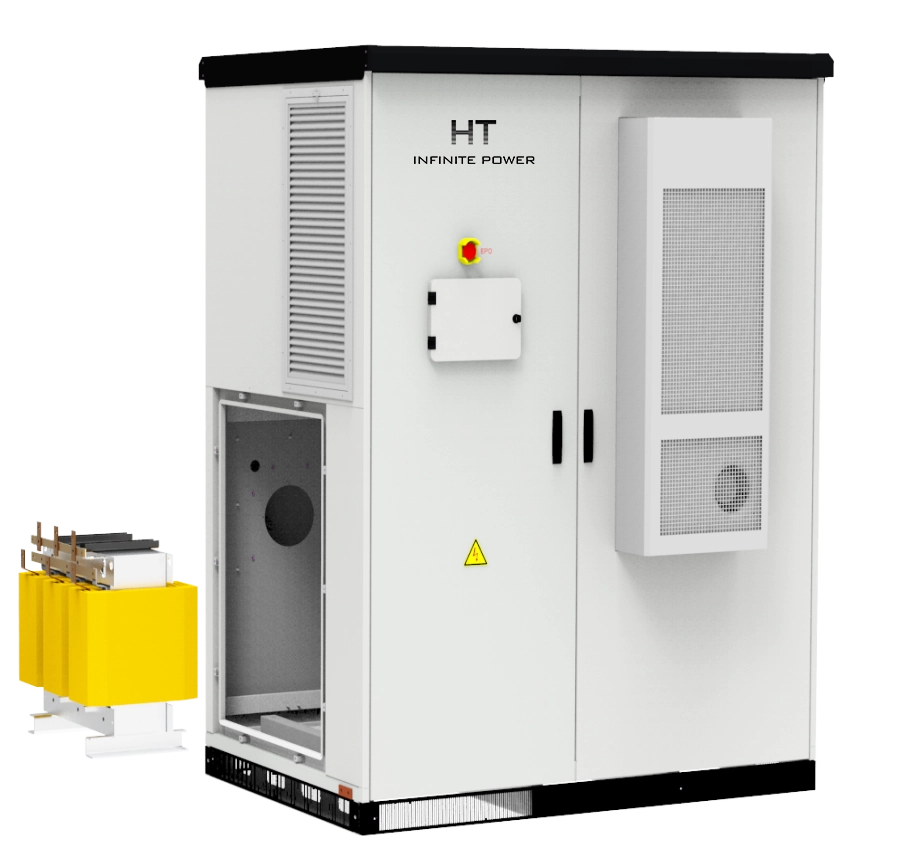

The Isolation Transformer is installed in the energy storage cabinet

Download ↓

100kVA lsolation Transformer Parameters

The following are typical configuration parameters for a 100kVA isolation transformer, the actual supply is subject to the technical agreement.

Model：

Rated power:

Insulation class:

Connection group:

Input voltage:

Input current:

Output voltage:

Output current:

Rated frequency:

Operating temperature:

Storage temperature:

Relative humidity:

No-load Loss:

Efficiency：

Impedance:

Installation Location:

Altitude:

Dimensions (W*D*H):

Weight (approx.)

100kVA isolation transformer

100kVA

H

Dyn11

400V

144A

400V

144A

50Hz

-40~50℃

-40~70℃

10~90% (no condensation)

≤670W

>97.5%

2.8%

Indoor

>3000m(>2000m reduction)

650*430*665MM

400KG

◎lsolation Transformer Model Description

※Note: The rated output power of the isolation transformer can be flexibly configured according to project requirements.

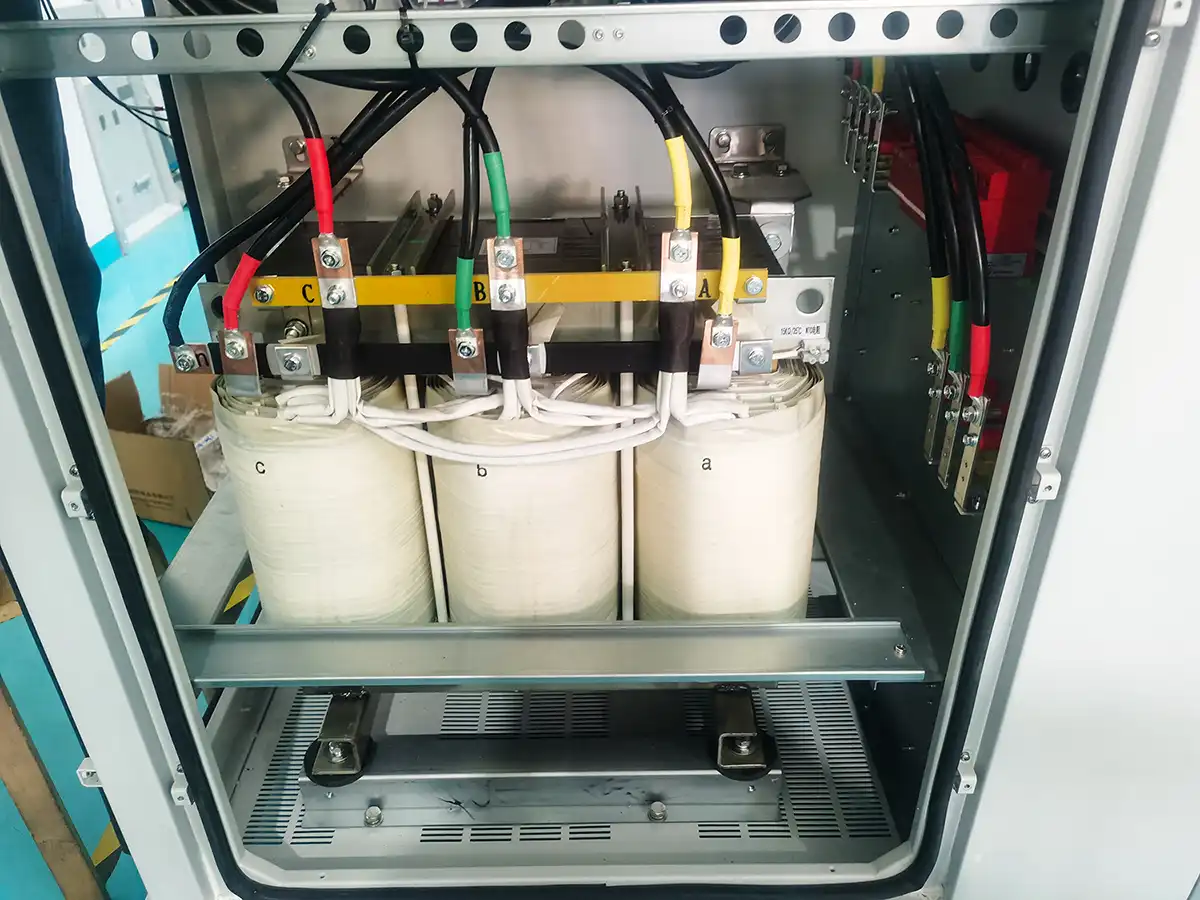

◎Isolation Transformer Application Scenario Diagram

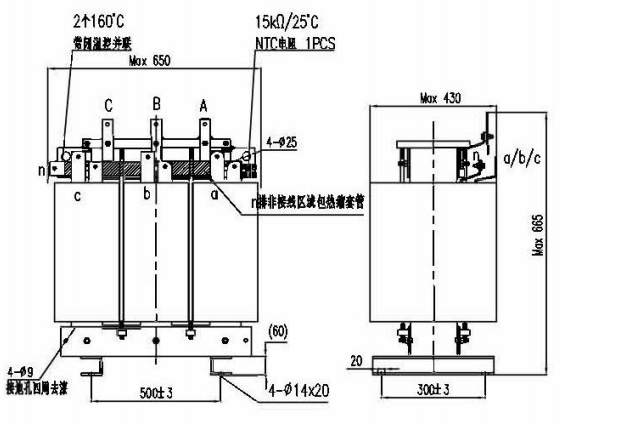

◎Isolation Transformer Shape And Installation Dimensions

FREQUENTLY ASKED QUESTIONS

─── About 100kVA Isolation Transformer ───

When is an isolation transformer needed?

-

In a purely off-grid state, when starting equipment with large current, such as central air conditioners, heaters, solar water pumps, etc., an isolation transformer is required. This not only protects the electrical equipment from damage, but also protects the safety of operators

What is the warranty period for the isolation transformer?

-

We provide a 5-year warranty, and can extend the warranty period according to your needs

What capacity of isolation transformer do I need?

-

This depends on the power of your electrical equipment. The greater the power of the equipment, the greater the capacity of the isolation transformer
