HT 50KW DC DC Converter Module Product Description
HT 50kW DC DC Converter Module Product Features
●Using three-level topology, the maximum efficiency can reach 99%
●Ultra-wide voltage range, suitable for a variety of photovoltaic panels
●The power quality is better, supporting constant current, constant power, constant voltage, and MPPT control
●Flexible battery configuration adapts to a variety of batteries including lithium batteries/lead-acid/photovoltaic modules/DC bus
●Standard rack-mounted modular design, flexible configuration, convenient maintenance, and convenient expansion, such as
Certifications:CE ；EN IEC 62109 ；EN IEC 61000
50kW DC DC Converter Module Parameter Table
Model:
Rated power:
Maximum power:
Maximum DC voltage:
Working voltage range-high voltage side:
Working voltage range-low voltage side:
Full load voltage range-high voltage side:
Full load voltage range - low voltage side:
Maximum DC current - high voltage side:
Maximum DC current - low voltage side:
Battery type:
Charging method:
Maximal efficiency:
Isolation method:
Dimensions(W*D*H):
Weight:
Working mode:
HT-50DC
50kW
55kW
1000V
250V~950V
200V~900V
500V~950V
345V~950V
110A
160A
Lithium battery/lead acid /other DC bus line
According to the BMS instruction /three-stage /MPPT
98.8%
Non-isolation
483(excluding 444)*600*150MM
25KG
Constant current, constant power, constant voltage,
and MPPT

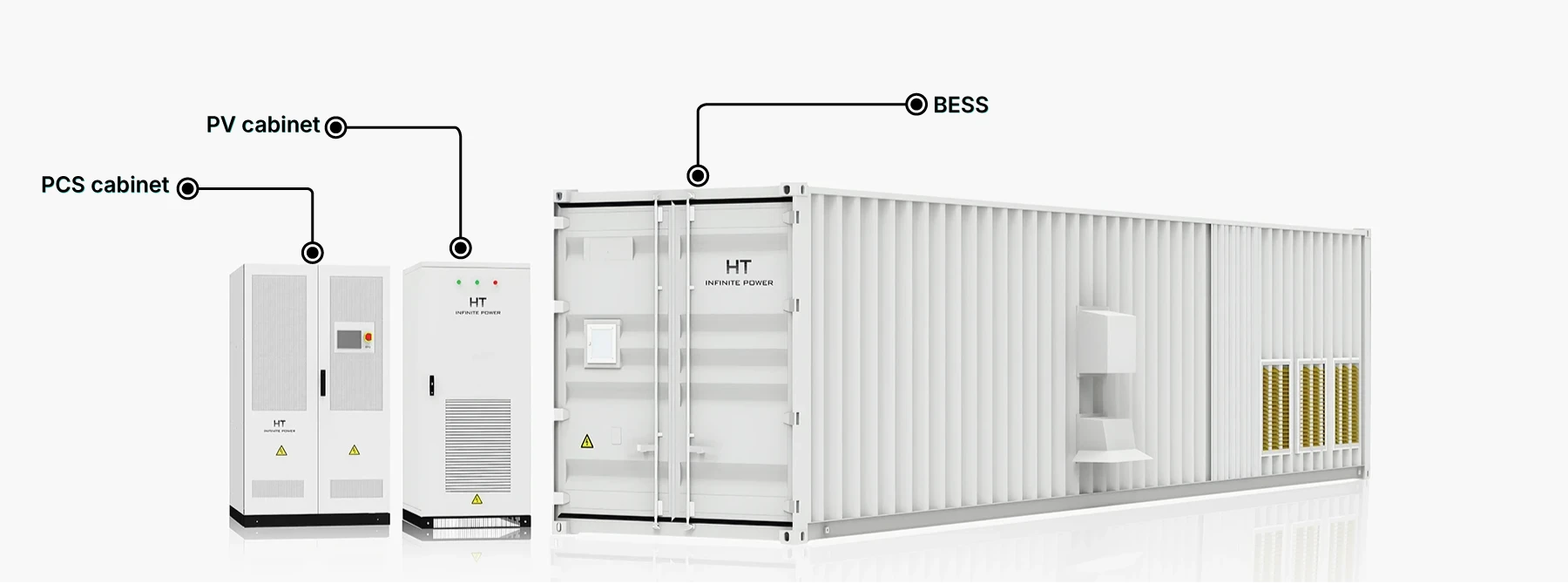

HT 50kW DC DC Converter Module Applications
── For Industrial and commercial energy storage ──

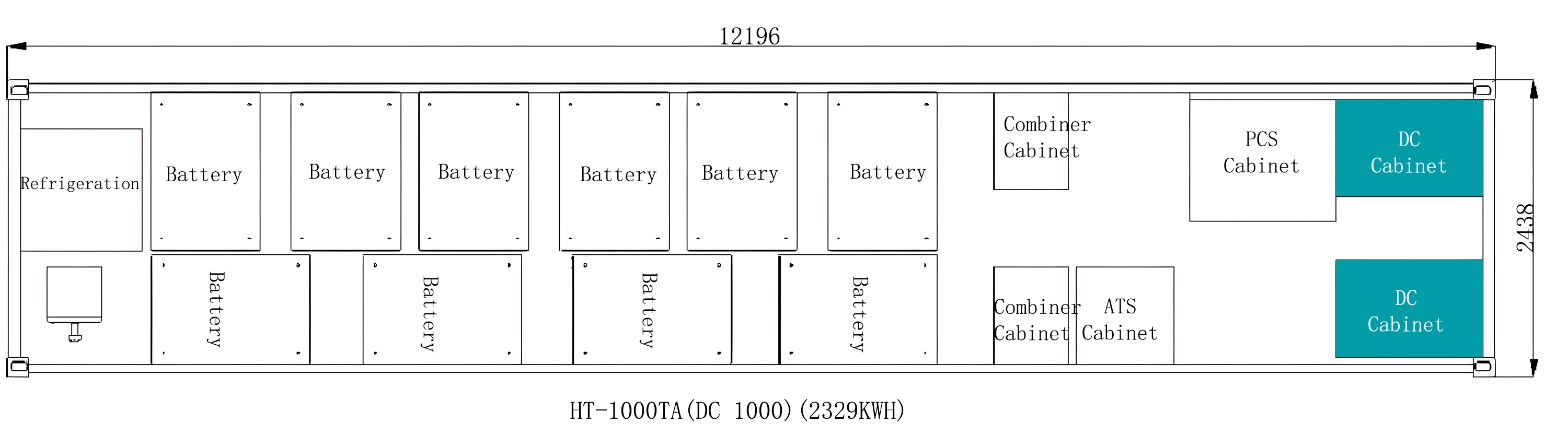

◎Photovoltaic + energy storage, high energy storage ratio capacity

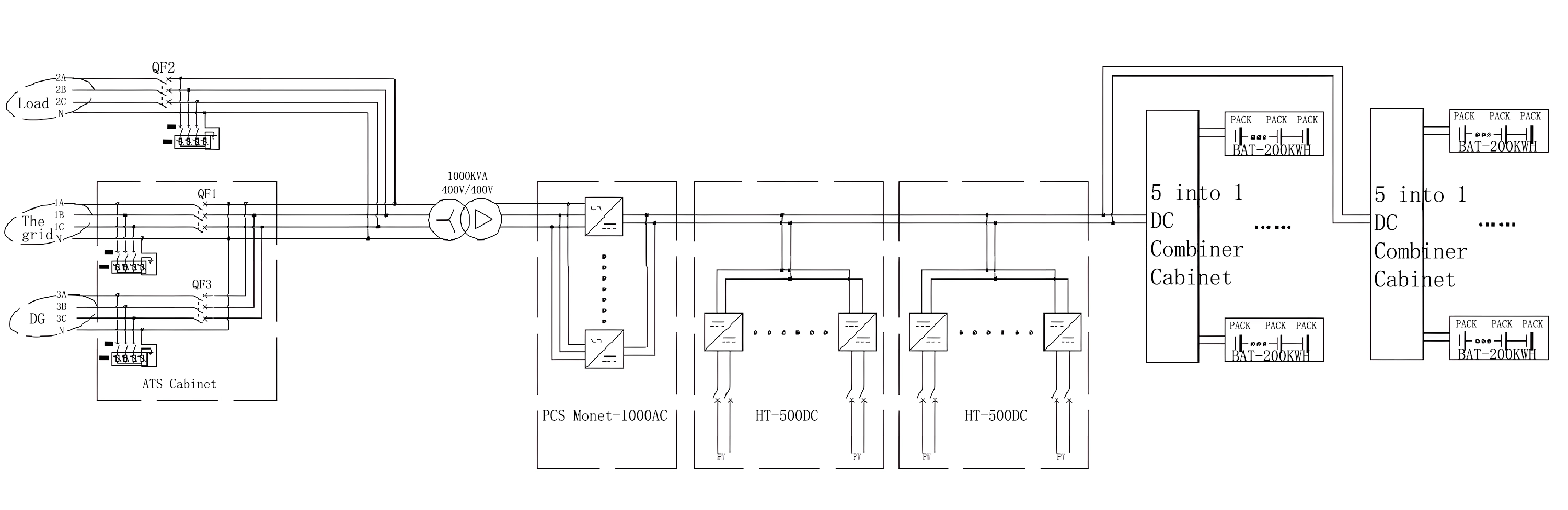

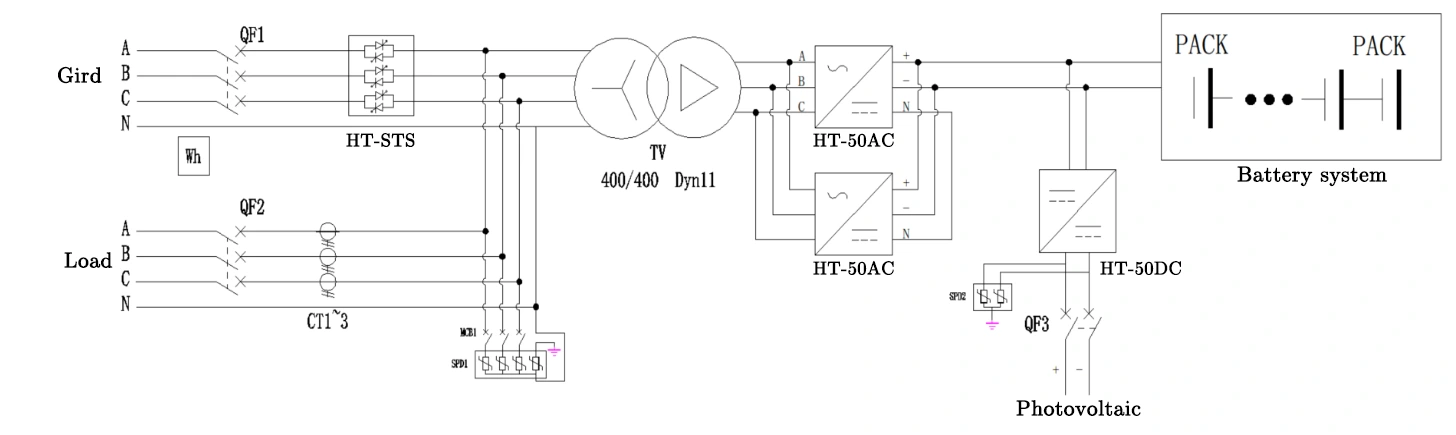

◎AC and DC dual busbars, photovoltaic DC side coupling
01
For more information about HT INFINITEPOWER industrial and commercial energy storage batteries, please refer to HT commercial energy storage battery◥
02
For more information about AC DC modules, please refer to HT 50kW AC DC module◥ , HT 125kW AC DC module◥ product parameters.
03
For more information about STS modules, please refer to HT STS module◥ product parameters

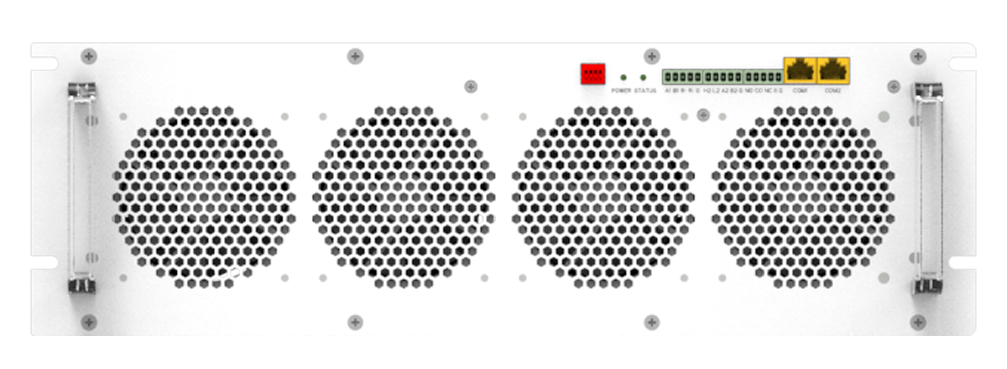

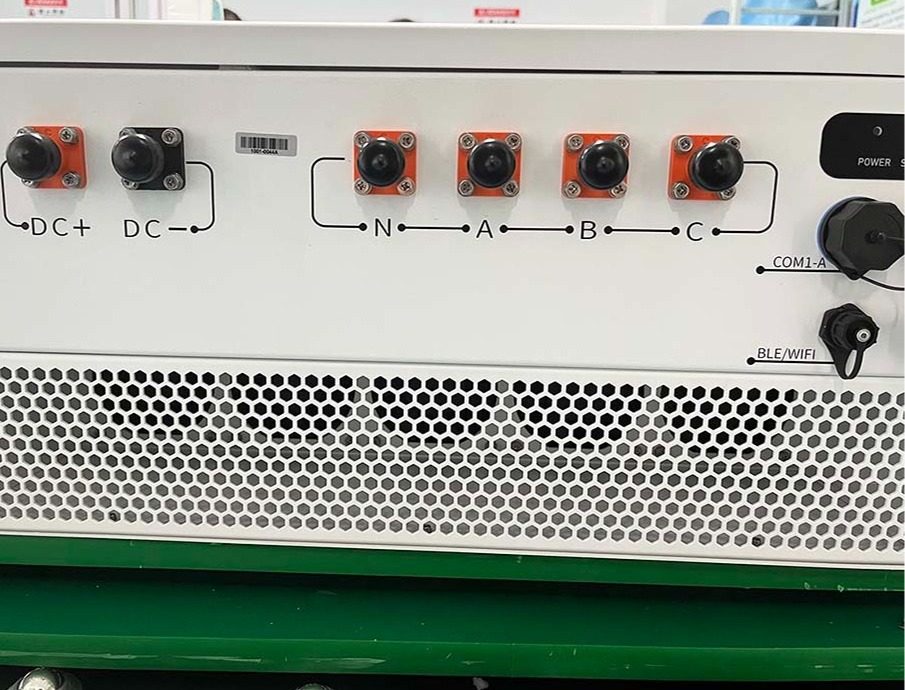

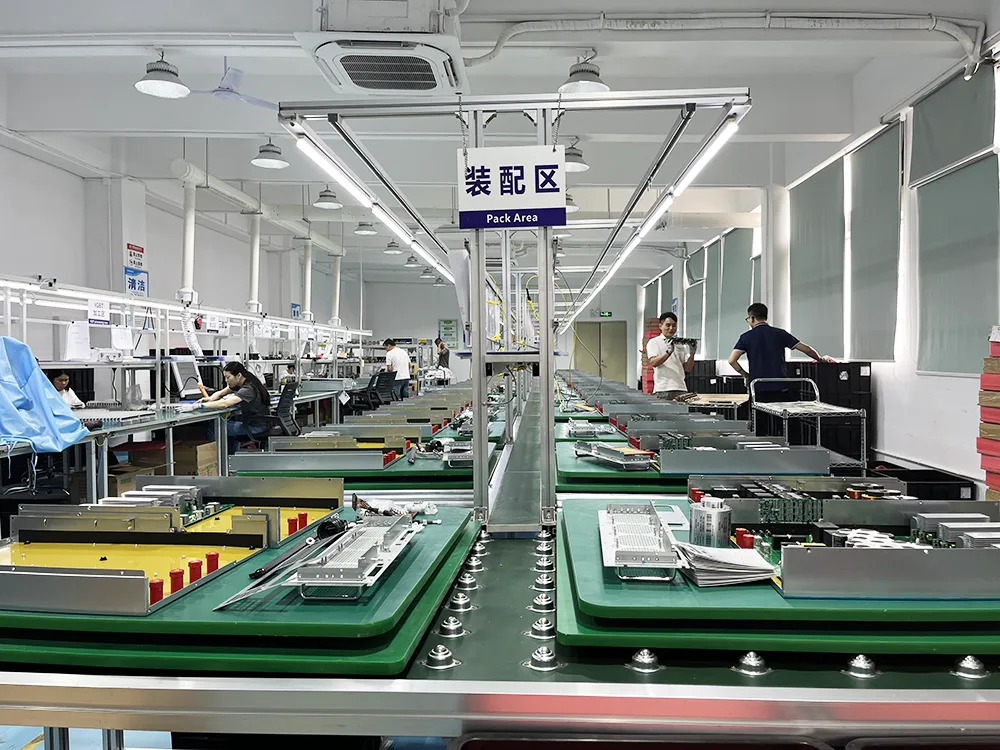

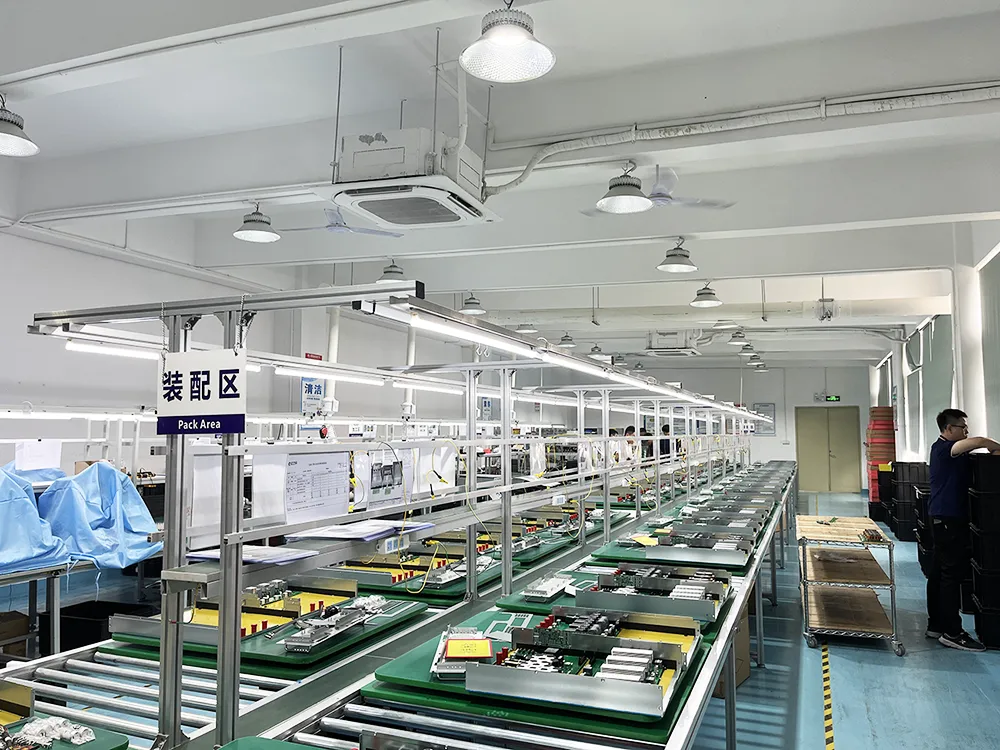

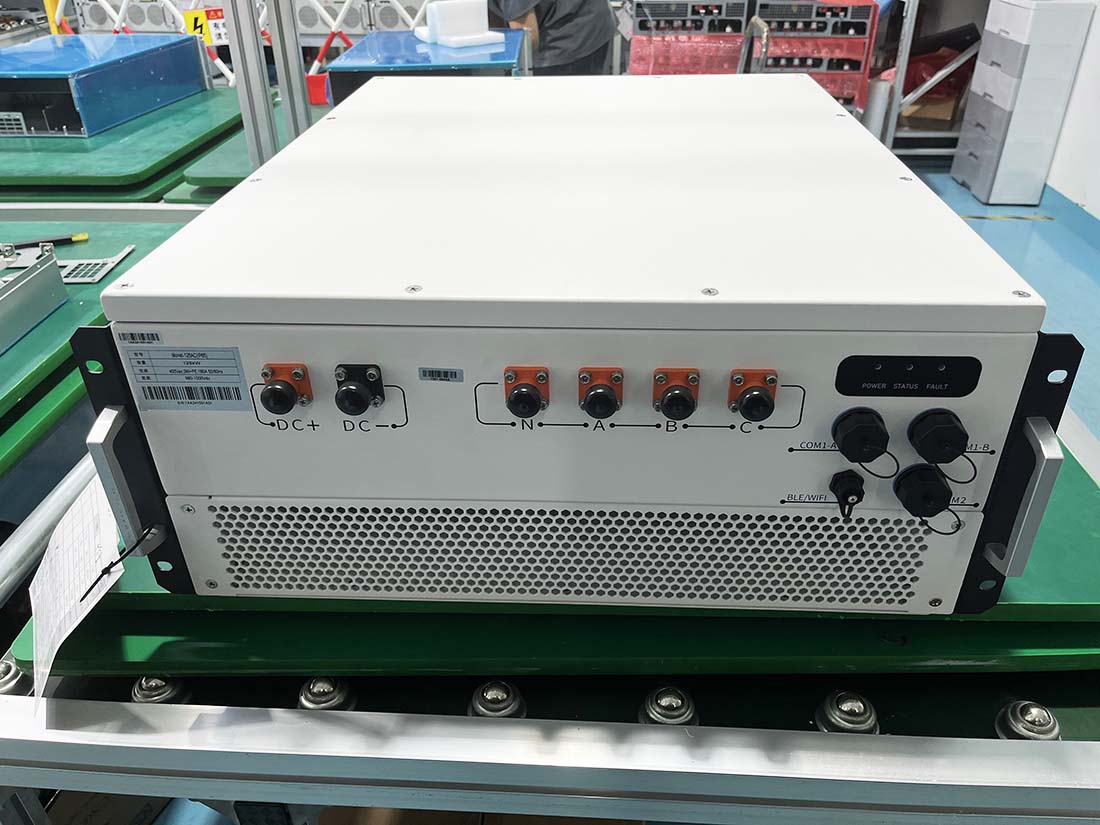

HT 50kW DC DC Converter Module Production And Physical Pictures.
For more HT 50kW dc dc converter module composed of photovoltaic converter outdoor cabinets, such as 200kW 350kW 500kW 1MW photovoltaic inverter cabinets, please refer to HT DC DC converter cabinet◥ product parameters.
FREQUENTLY ASKED QUESTIONS
─── About 50kW DC DC converter module ───
Yes. Please tell us your capacity and function requirements, we can customize it for you
We provide 3 years free warranty
Compared with traditional photovoltaic inverters, DC DC converter modules are more flexible in layout and simpler in maintenance
