IP55
On/Off Grid
Switching Function
Space-Saving
Supports 1C charging
and discharging
Easy Installation And Maintenance

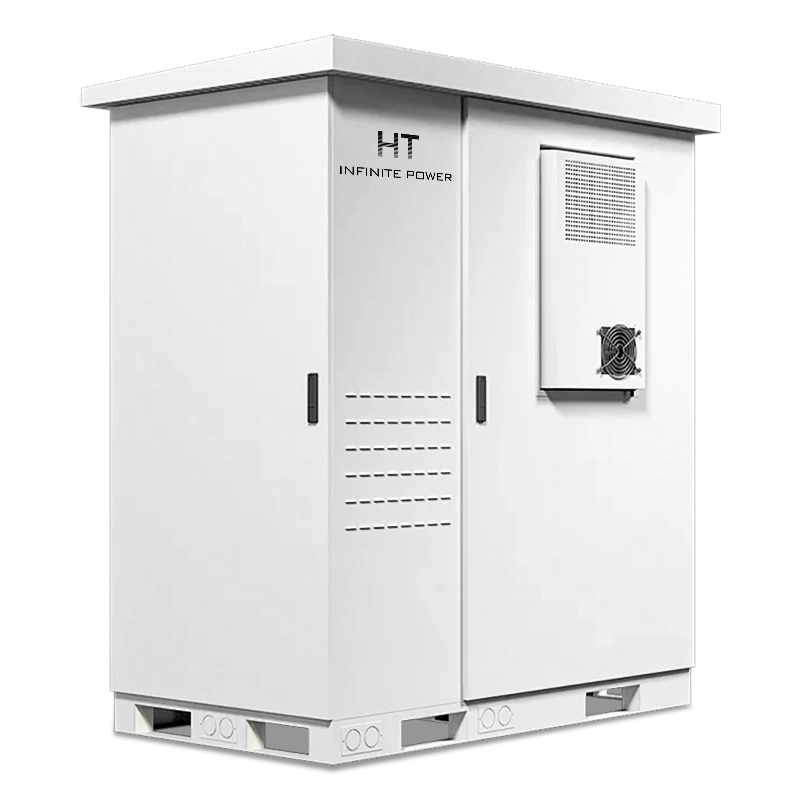

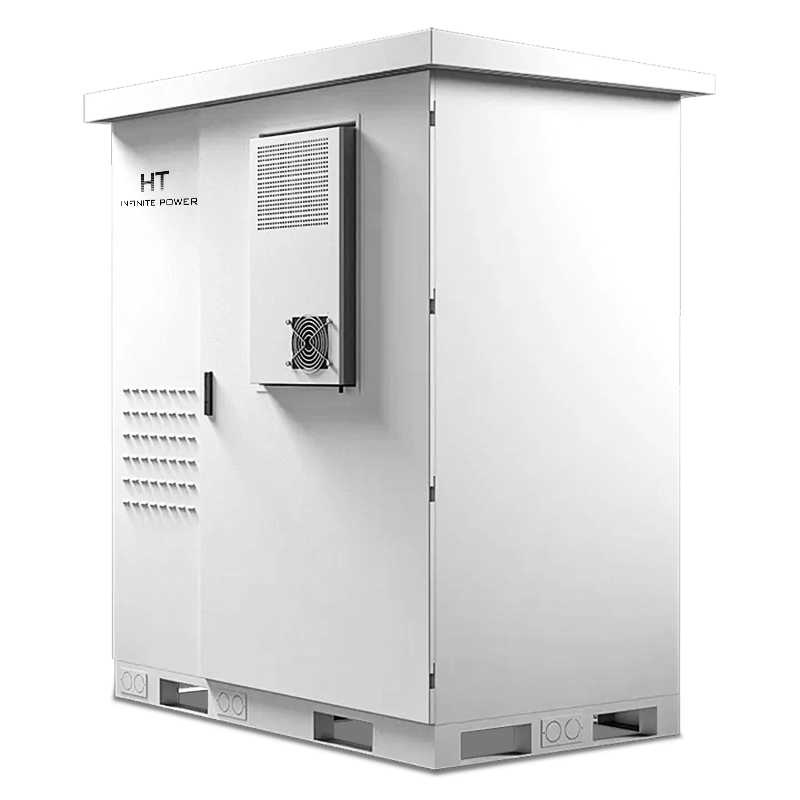

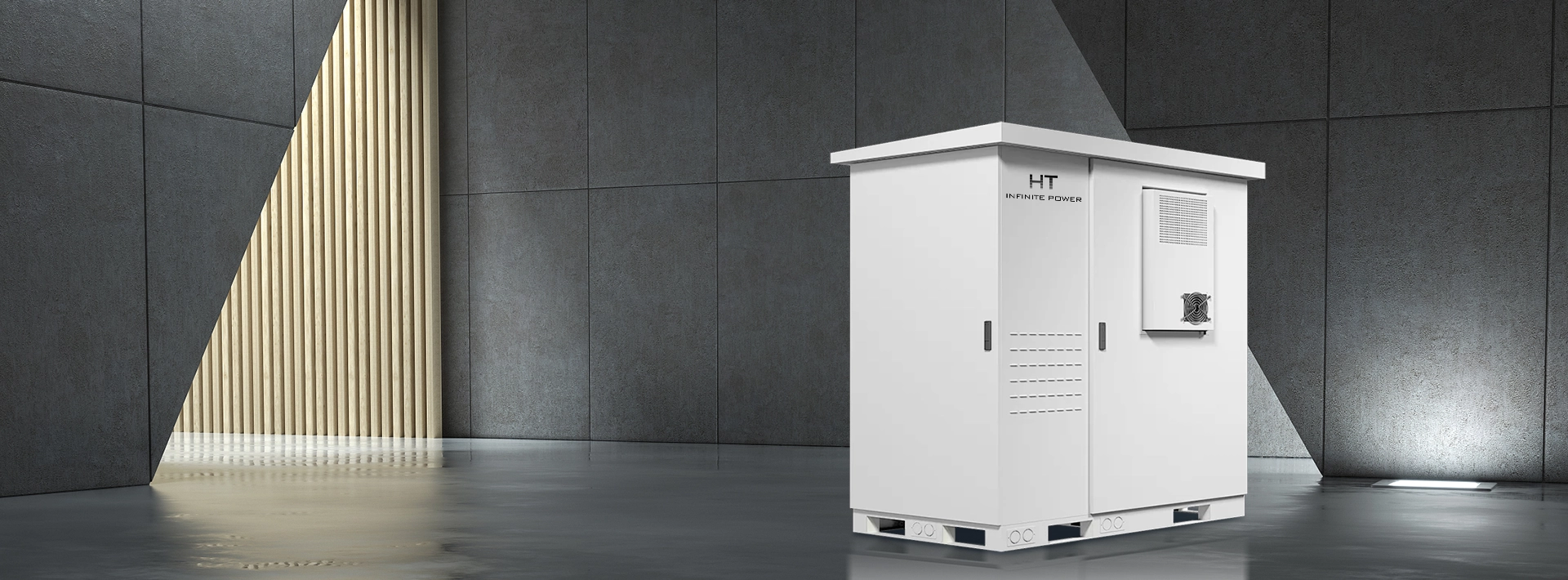

What is HT Air cooling 50kW 106 kWh lithium ion battery storage systems?
HT Infinite Power 50kw 106 kWh lithium ion battery storage outdoor cabinet integrated with Inverter, BMS, fire protection system, temperature control system, distribution system. Built-in high-voltage battery cluster, high-voltage box. It can connect to the solar panels.In the 50kW 106 kWh lithium ion battery storage system, regulating the temperature of the batteries by air conditioner. With integrated and modular designs, it is easy for installation and maintenance. The matching and performance tests have been completed before the system is shipped out which can let you install it easier and save your installation cost.
50kW/ 106 kWh BESS
Air-Cooling System
Model: HT 50kW-106kWh-A
Protection level: IP55
Grid Type: Three phase
Rated Capacity: 106 kWh
MPPT Range(V): 150-850V
Max. PV input power: 65kW
Max. AC Output Power (W): 55KW
AC Output Rated Current (A): 72A
Rated AC Output and UPS Power (W): 50KW
Max. Three-phase Unbalanced Output Current: 83A
Battery type: Lithium iron phosphate battery 104Ah(LFP)
Output Frequency and Voltage: 50/60Hz; 3L/N/PE 220/380, 230/400Vac
How to get a suitable BESS project ？
Collect projets information
Contact Us
our engineers make solutions and quotation for you
Install
Use
FREQUENTLY ASKED QUESTIONS
Air conditioner cooling technology reduces battery temperature and improves battery performance and life by cooling the battery system. In the 50kw 106 kWh lithium ion battery storage system, the air conditioner cooling technology can make the battery continue to do its best performance and improve energy storage efficiency.
The 50kw 106 kWh lithium ion battery storage system adopts integrated design, saving the cost of installation and debugging, and the system is more cost saving than the traditional solutions.
The 50kw 106 kWh lithium ion battery storage system uses a safe and environmentally friendly lithium iron phosphate battery, which will not cause environmental pollution
50kw 106kWh lithium ion battery storage systems are suitable for many different fields, such as hotels,hospitals,farms,commercial ares and data center backup power systems, etc. 50kw 106kWh
lithium ion battery storage system can supply stable and efficiency power for commercial use.
Yes,sure ,we are the manufacturer of solar energy storage batteries. The 50kw 106 kWh lithium ion battery storage system is one of our recommend products.
For More Questions Please Contact Us
