Expandable to 2330 KWH
Convenient transportation
Space-Saving
EMS Local Data Management
Easy Installation And Maintenance
● The ess cooling system commercial ess system has been commercialized, integrating energy storage batteries, energy storage converters, photovoltaic converters, energy management monitoring systems, power distribution systems, environmental control systems, and fire control systems. It can fully control the operation status and risks of the system.
● The protection level of the ess cooling system commercial ess is IP54, which can perfectly cope with various types of weather in the outdoor environment.
● Real-time acquisition of local load power, photovoltaic power generation priority is self-generation and self-use, and surplus electricity storage; When the power generated by photovoltaic power generation is insufficient to provide local load, the battery storage is prioritized.
● The local control screen of the ess cooling system commercial ess can achieve diversified functions such as system operation monitoring, energy management strategy development, equipment remote upgrading, etc.

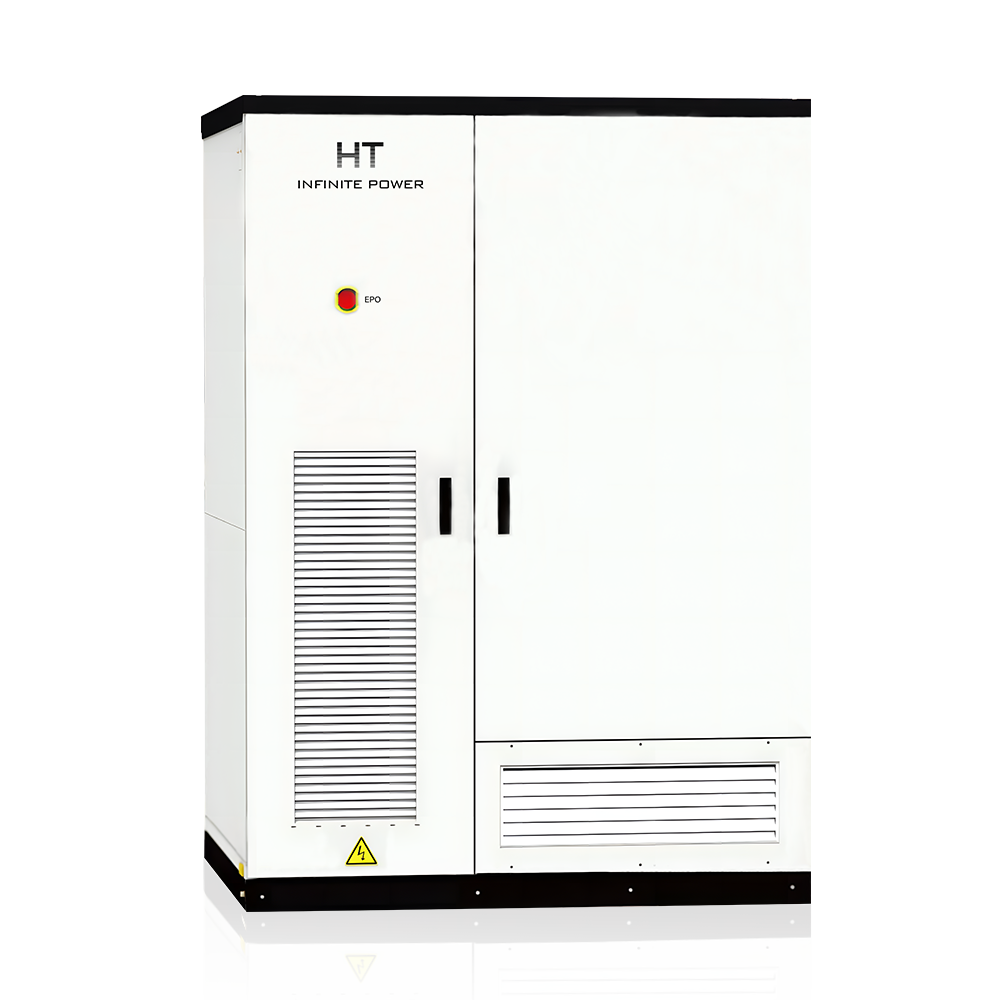

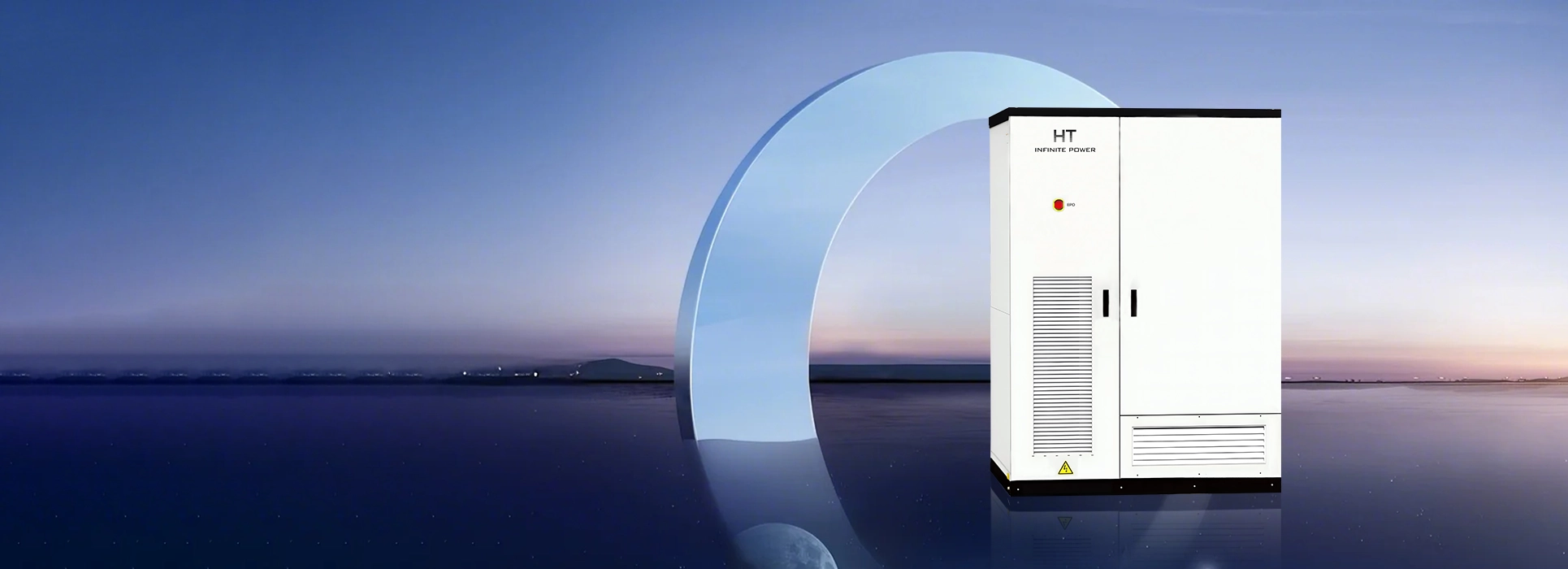

100kW/233kWh
Liquid Cooled Battery Outdoor Cabinet
Capacity :
Adaptable voltage range:
Charge and discharge rate :
Cell :
Module parameters :
Cycle life :
Cycle efficiency :
BMS :
Communication Interface :
Temperature control solution :
Protection level :
Rated AC power :
Rated AC voltage :
Rated AC frequency :
Noise :
Size:
Weight :
233kWh Battery
728V~936V
0.5C
LFP-3.2V-280Ah
1P*52S*5S
8000 times（90%DOD，≥70%EOL）
≥95%（DC）
Active balancing + three-level architecture
Ethernet/RS-485/CAN
Smart liquid cooling
IP55
100kW
400V, 3W+PE
50/60Hz
<75dB
1612(L)*1350(W)*2300(H)mm
3025 KG
Structure Introduction
── 233 kWh Liquid Commercial ESS ──

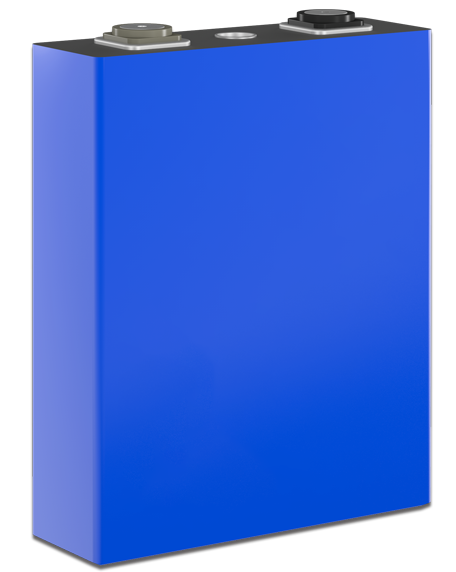

Cell
●Material: LFP
●Voltage: 3.2V
●capacity: 280Ah
●Cycle: 8000 times @80%
Liquid Module 1P52S (cell)
Voltage: 166.4V Capacity: 46.59kWh
●Thermal simulation extremely optimized flow channel design.
●The temperature difference is within 2℃, the cell is stable and reliable.
●Metal shell thermal barrier, no heat diffusion at 1000℃.
●Thermal isolation between cells to achieve no heat diffusion.
●Precise fire protection design, fire suppression inside the package.

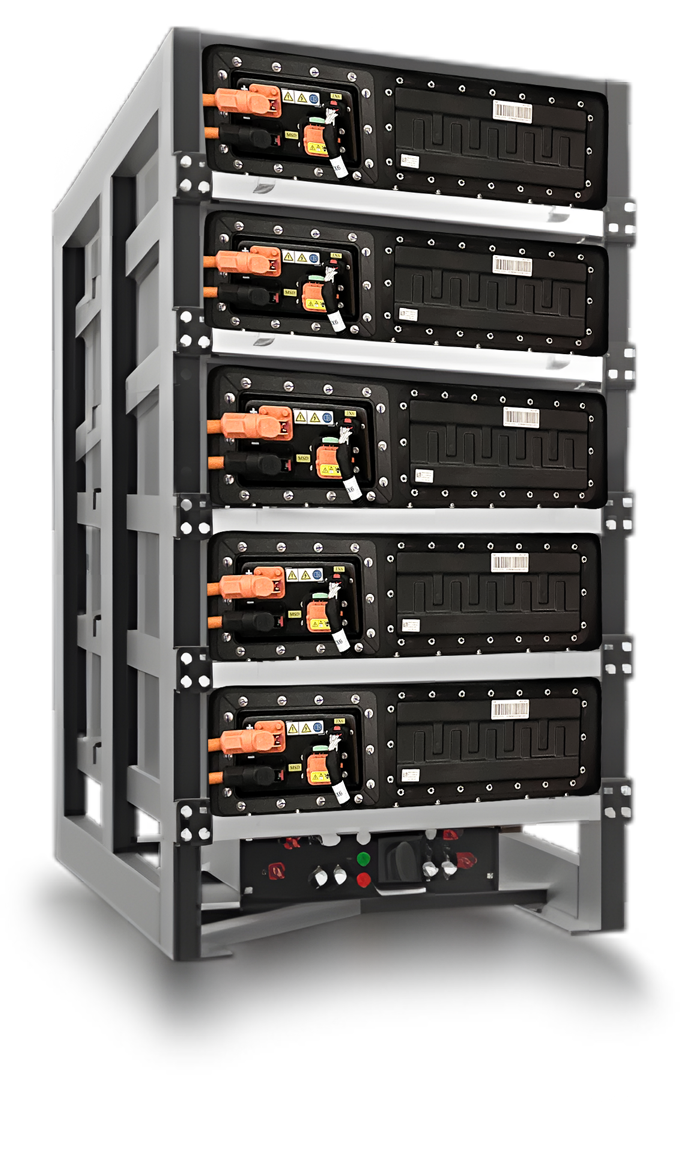

Liquid Rack 1P5S (Module)
●Modular design, easy to expand.
●High safety, thermal runaway will not spread.
●Battery Pack Level Fire Suppression.
●The temperature difference is <2°C, the cell working temperature is suitable, and the cycle life is 20% longer than that of air cooling.
●Wide temperature design, can work normally at -40~60℃.
●IP67 protection level, no fear of condensation.

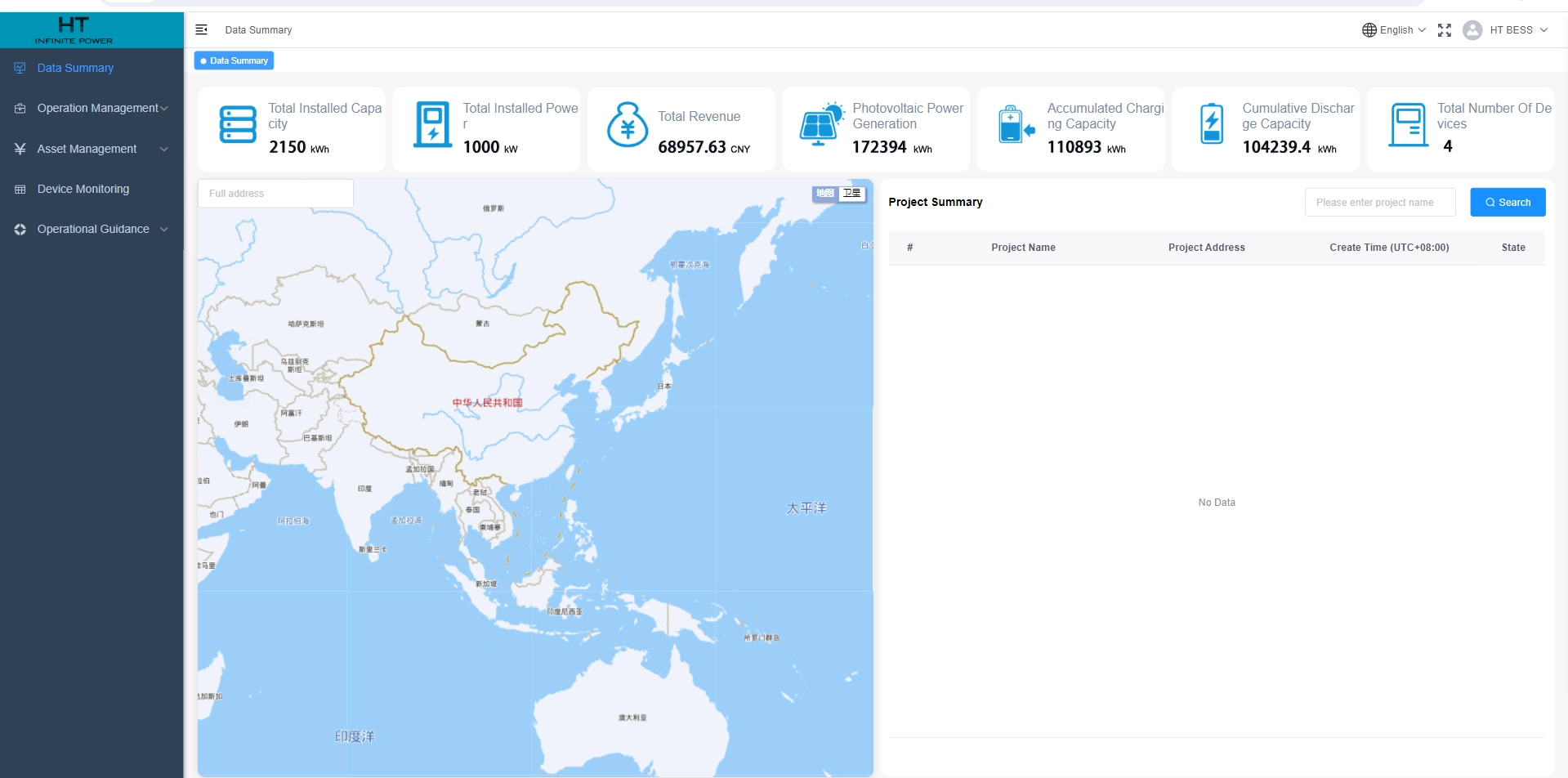

EMS
●Integrated power station data communication collection and operation control
●Local screen display of power plant data and operating status
●Mainly used in applications of energy storage power stations of various capacities and integrated photovoltaic, storage and charging power stations.
●Remote upload of power plant data

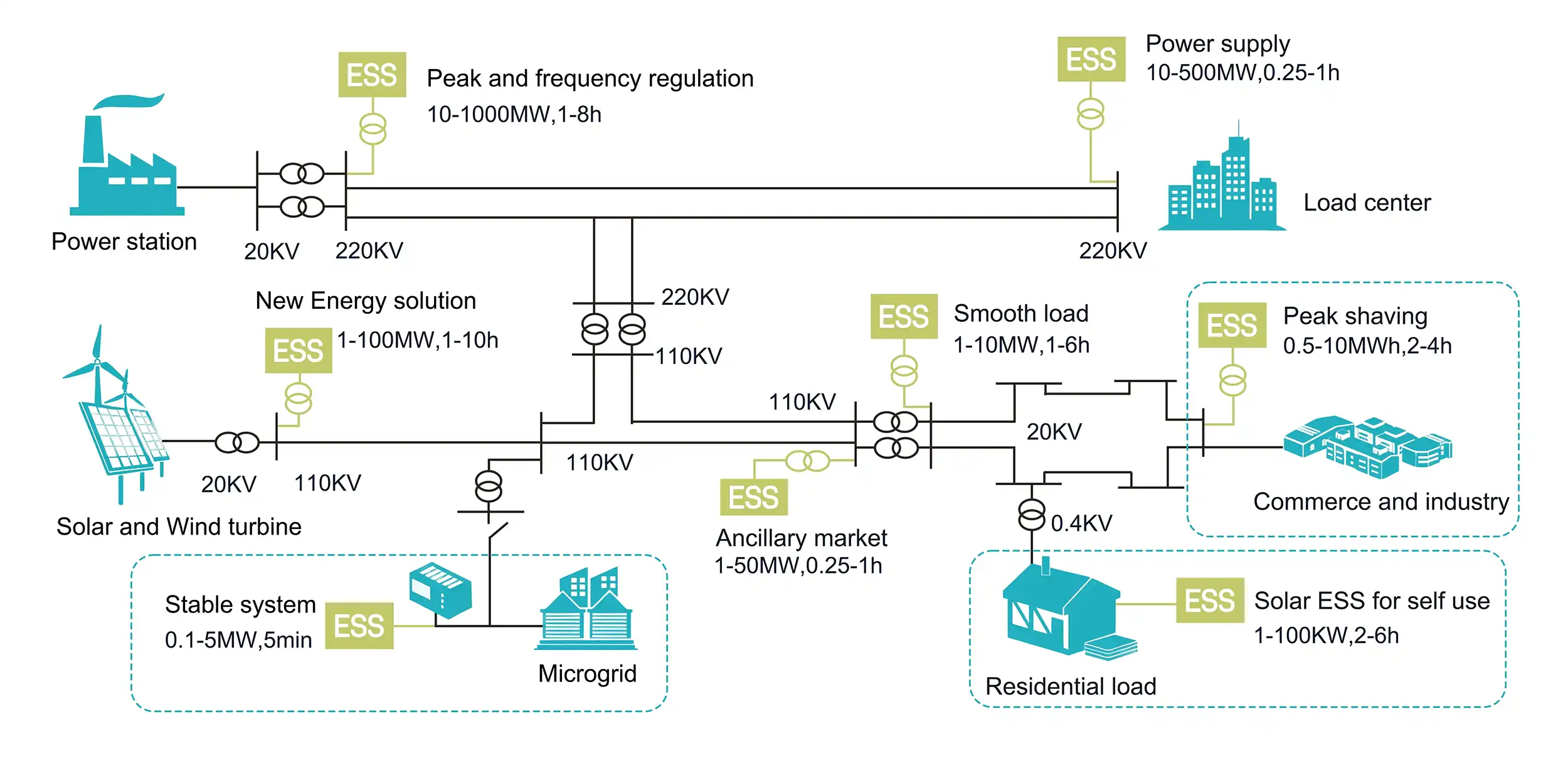

Application Scenarios
── 233 kWh Liquid Commercial ESS ──

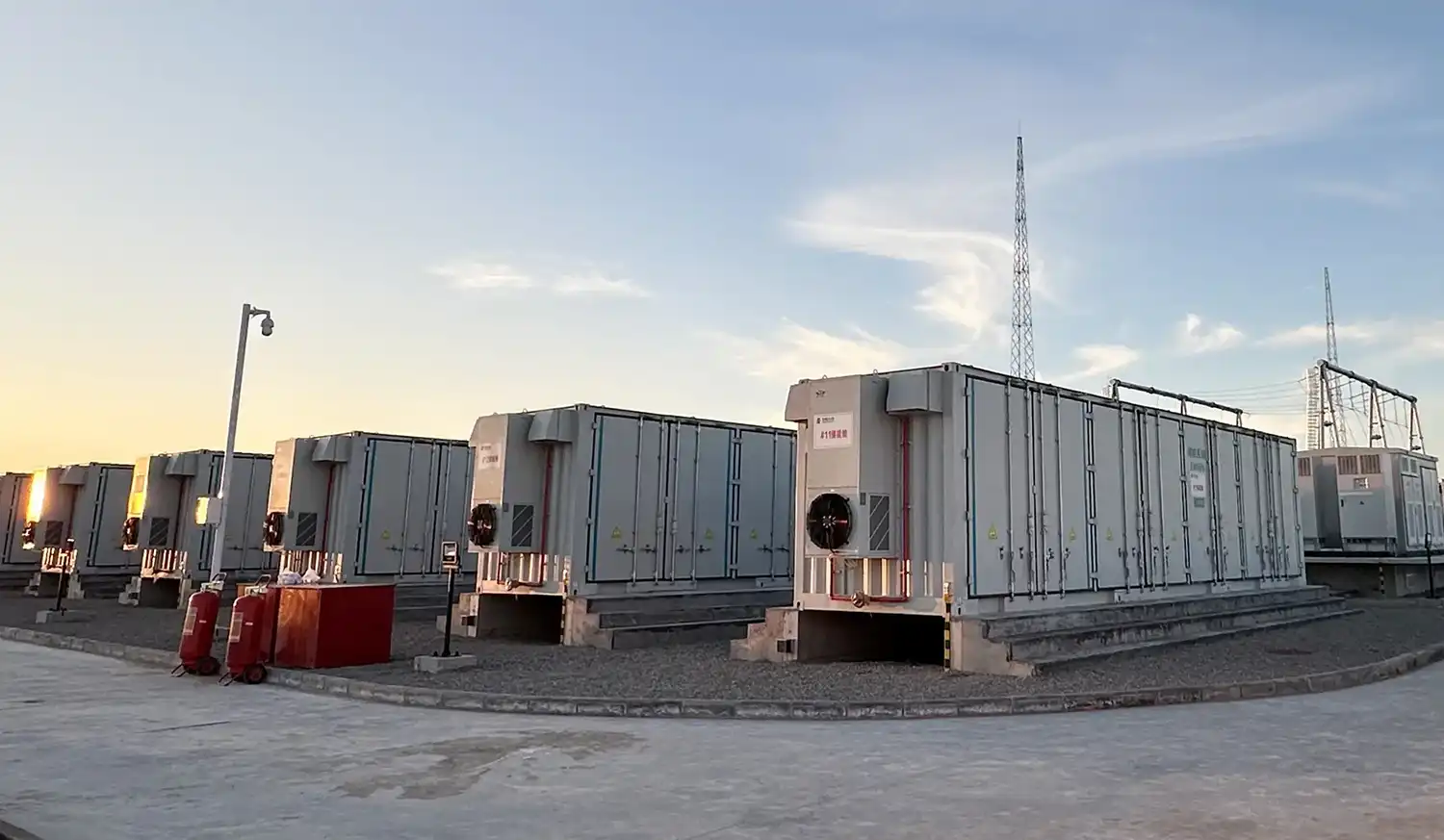

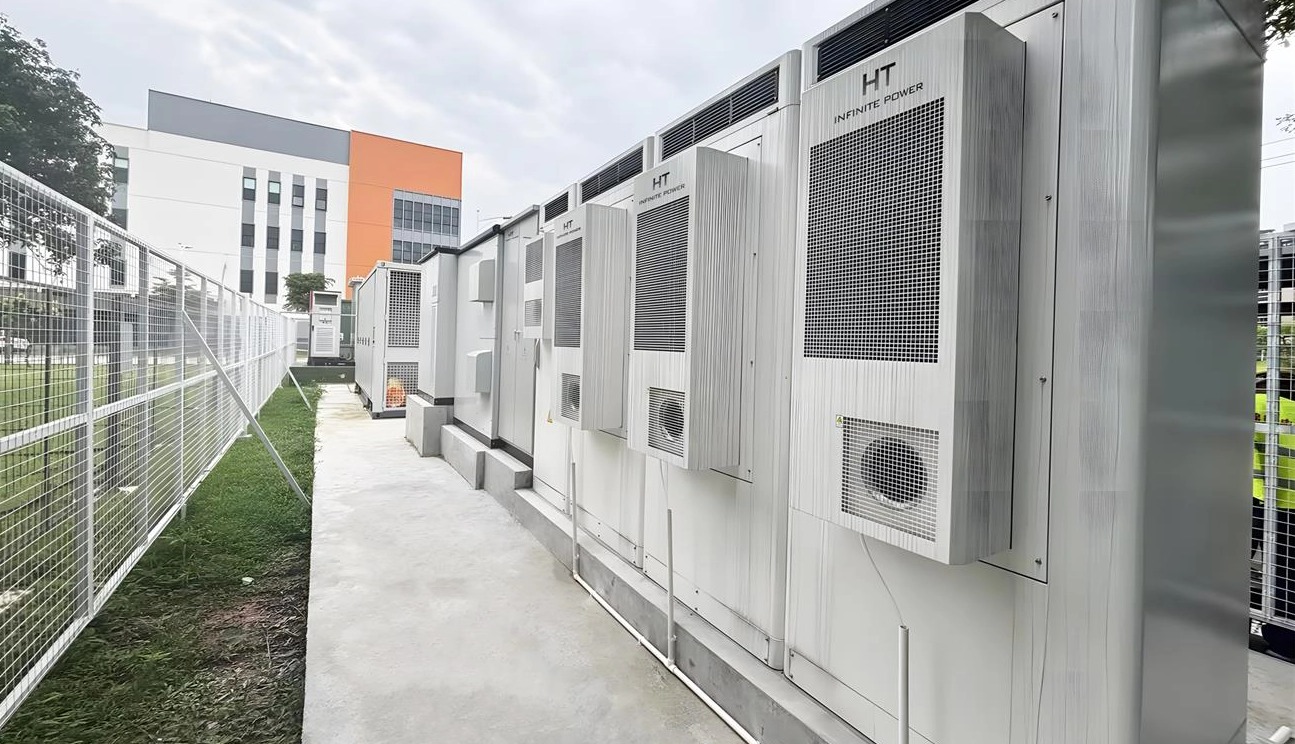

China
Energy storage system: 33MW solar panel +30MW pcs+100MWh liquid cooling battery container
Application scenario：Power station
Date of shipment:May，2024
Application:power station peak regulation frequency regulation, power supply.

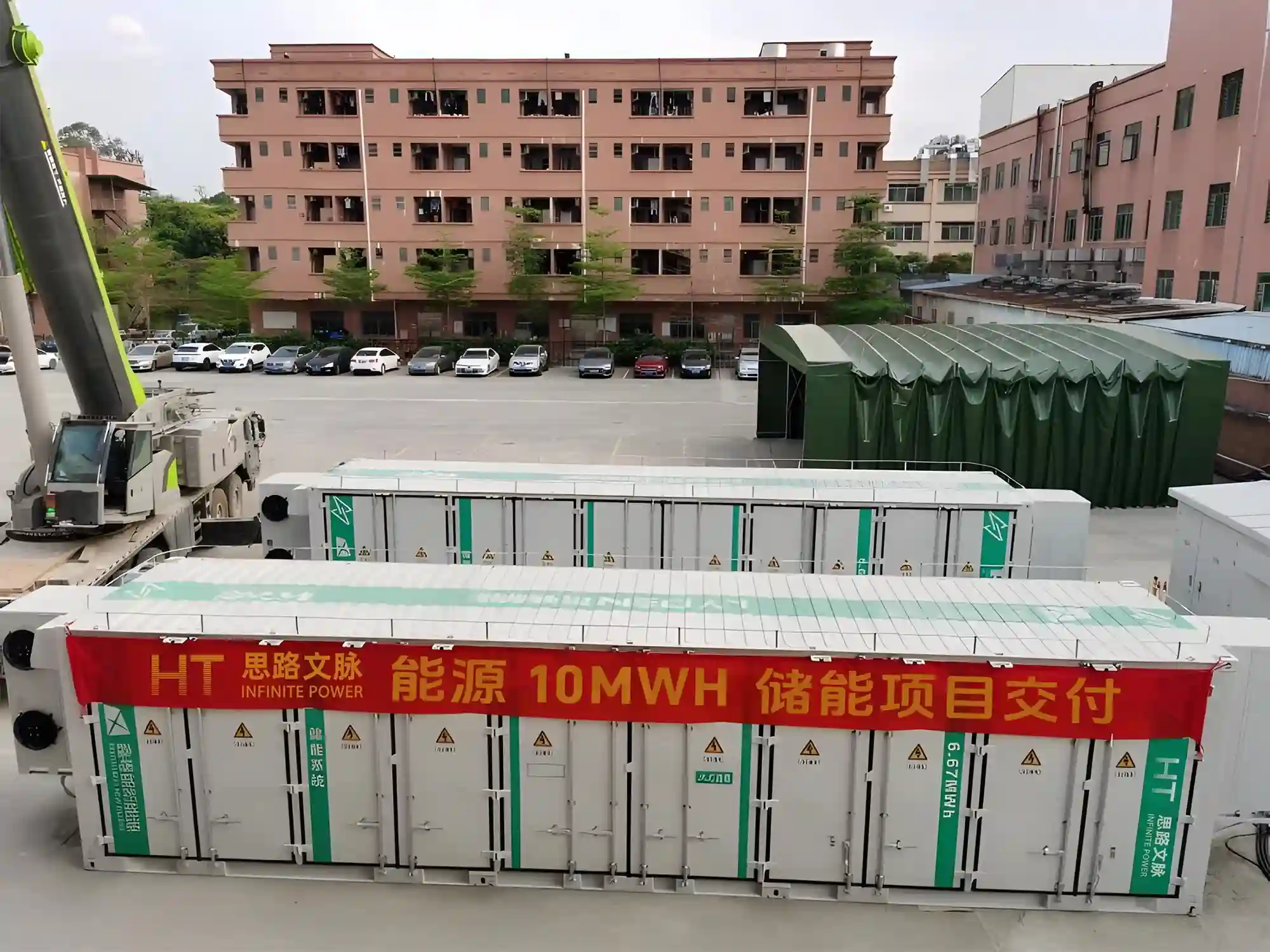

Huizhou China
Energy storage system: 4MW pcs+9MW DC moudular+10MWh liquid cooling battery
Application scenario:Industrial Park + EV Charger
Delivery data:May,2023
Application:Integrated solar+storage+ev charging system to improve solar utilization efficiency. Saving electricity and getting benefits from this system.

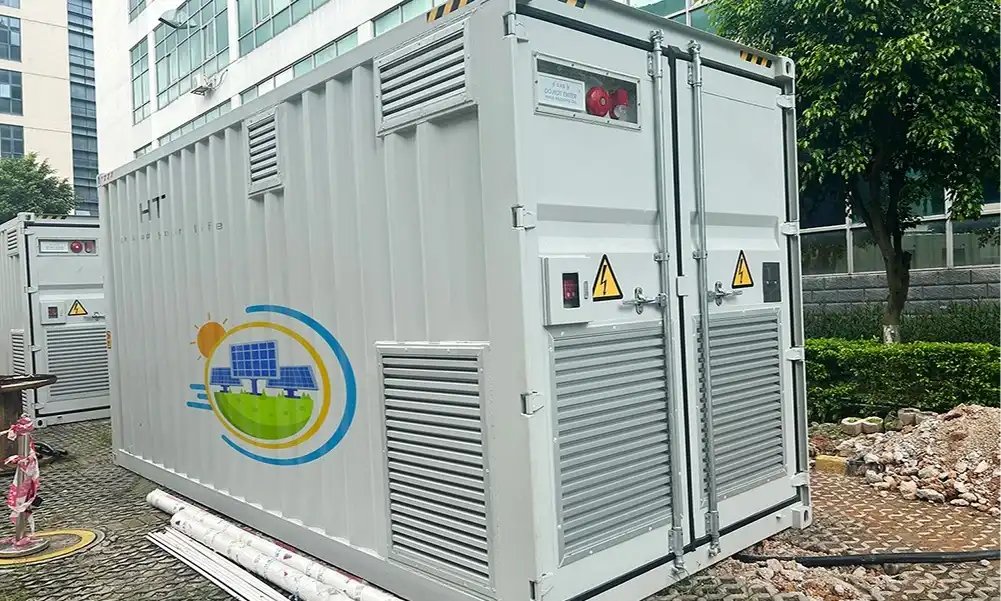

Sweden
Energy storage system:1sets 0.5MW/1.075MWh
Application scenario :Commercial residential building
Delivery data:Sep,2023
Application:Achieve the function of cutting peak and filling valley, reduce the difference between peak and valley of load, and obtain considerable economic benefits through the peak valley price difference.

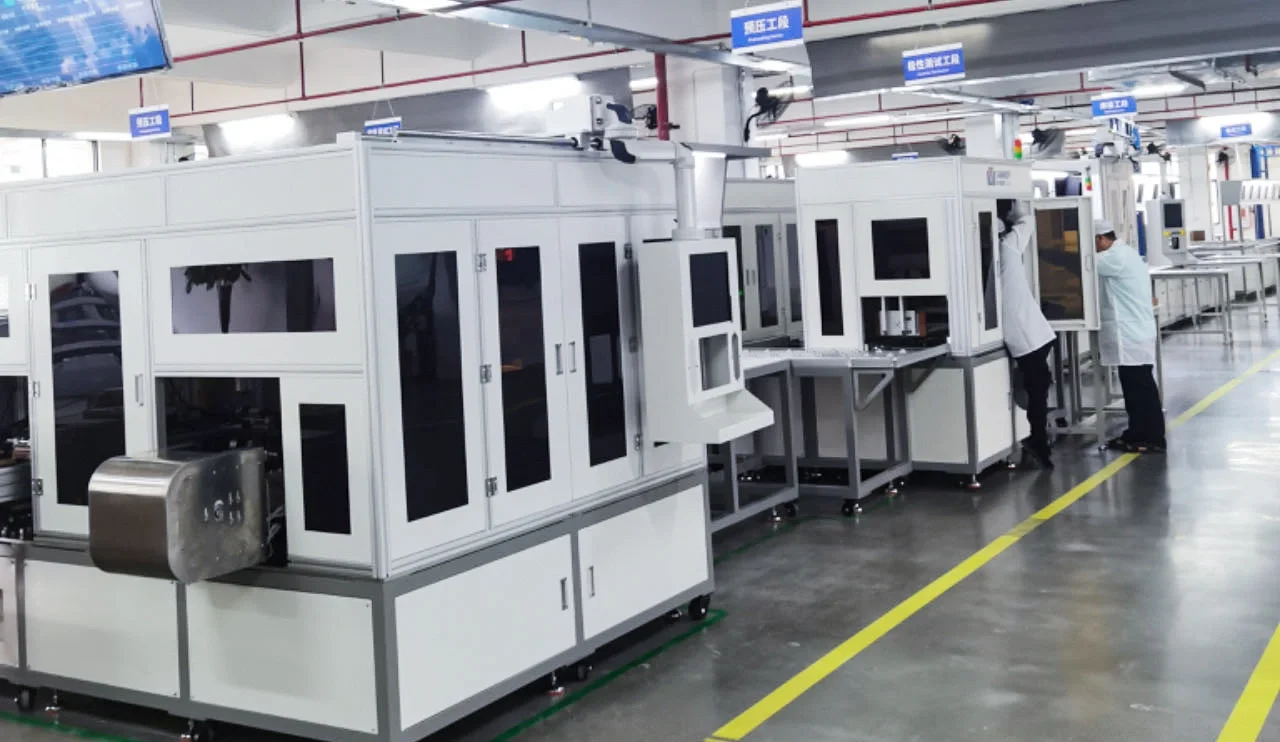

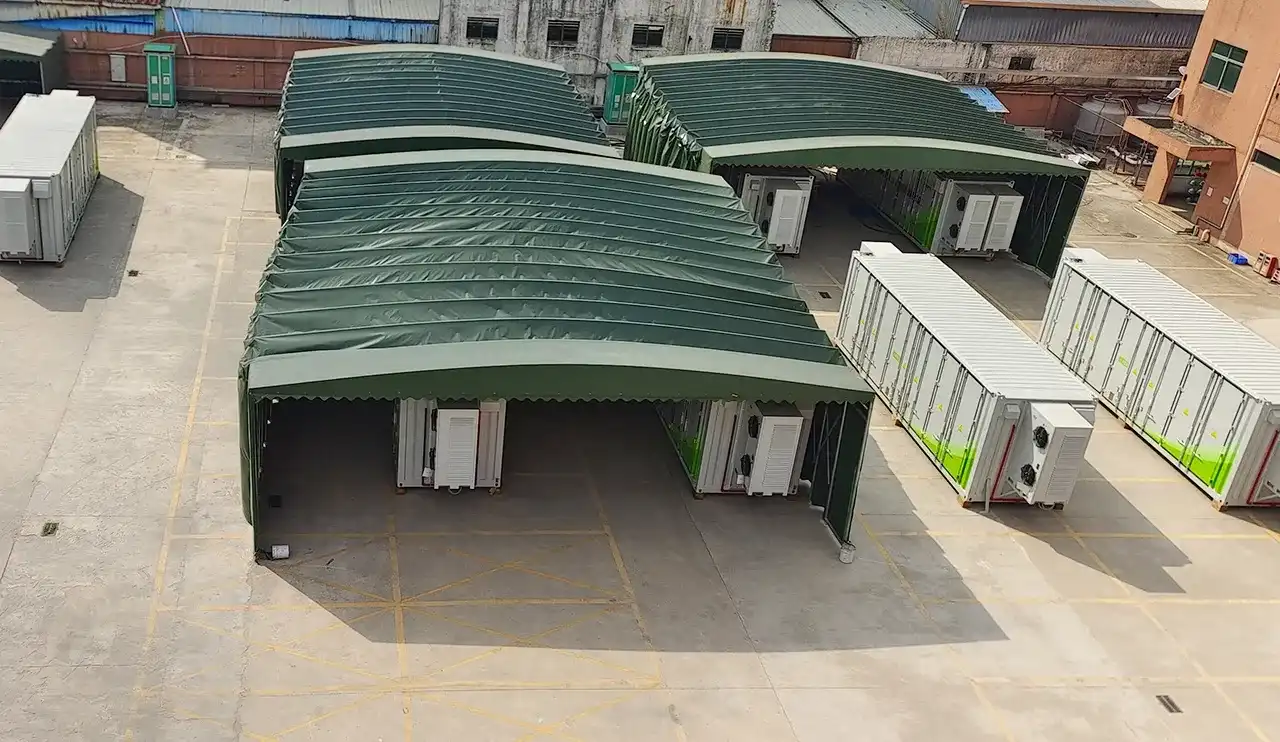

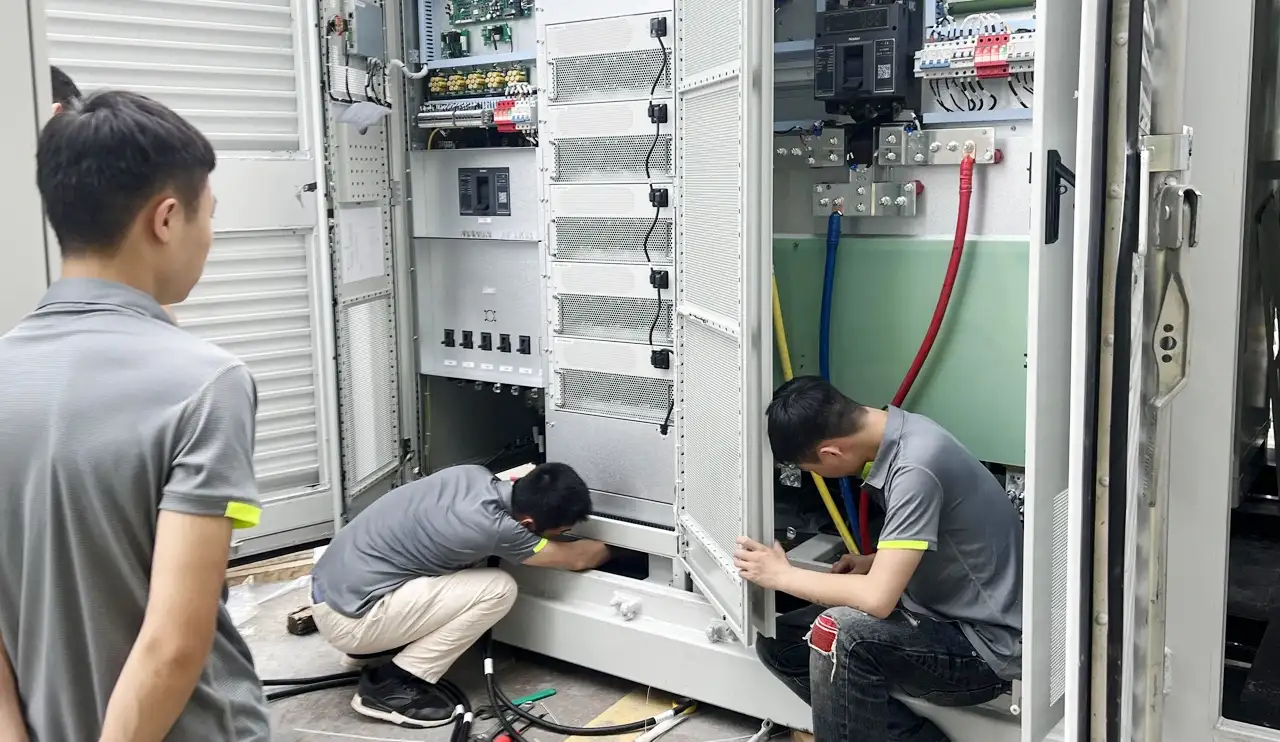

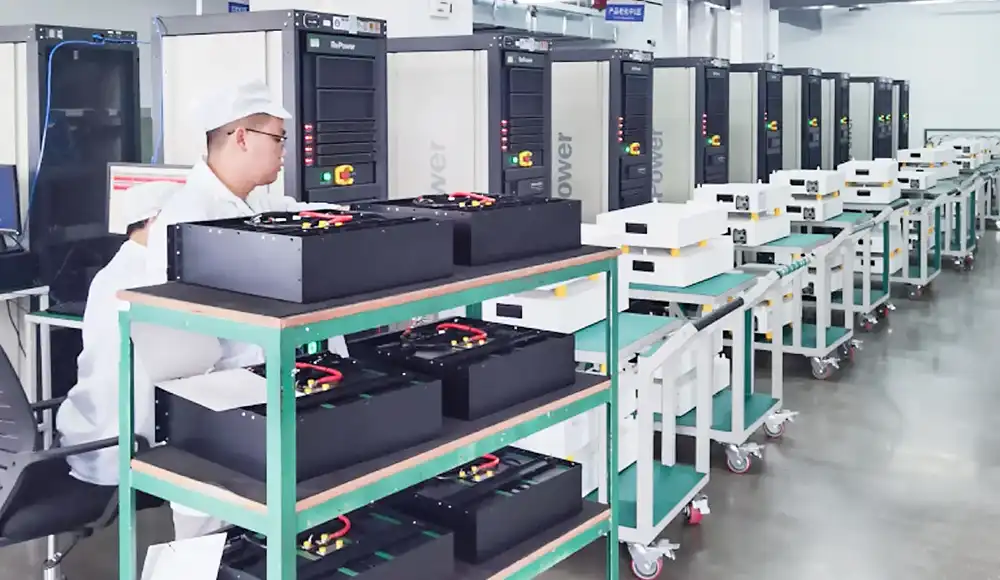

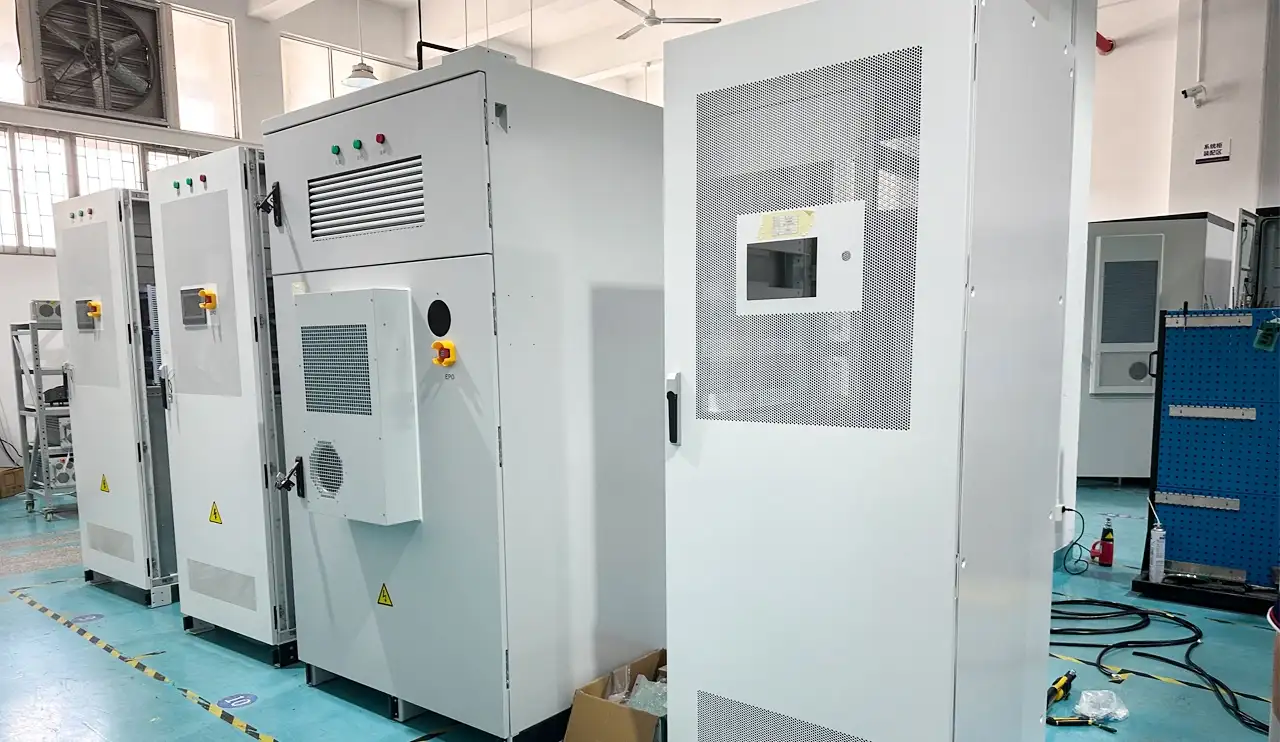

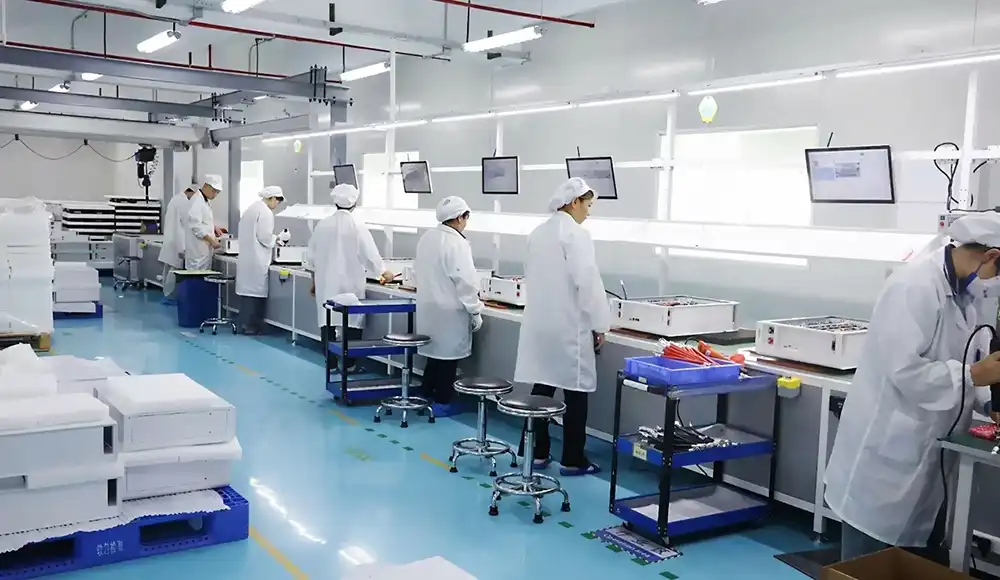

Our Factory
── 233 kWh Liquid Commercial ESS ──

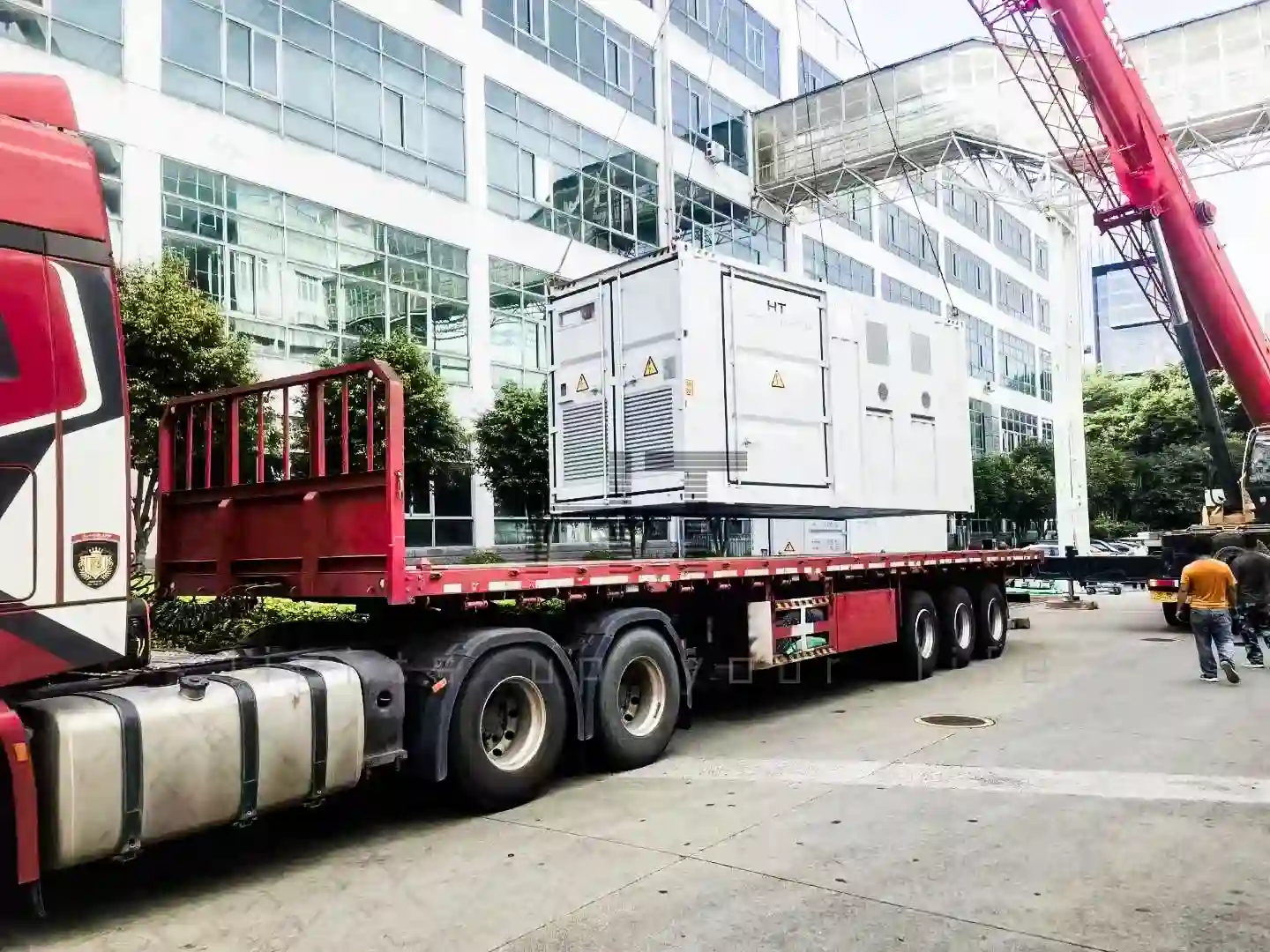

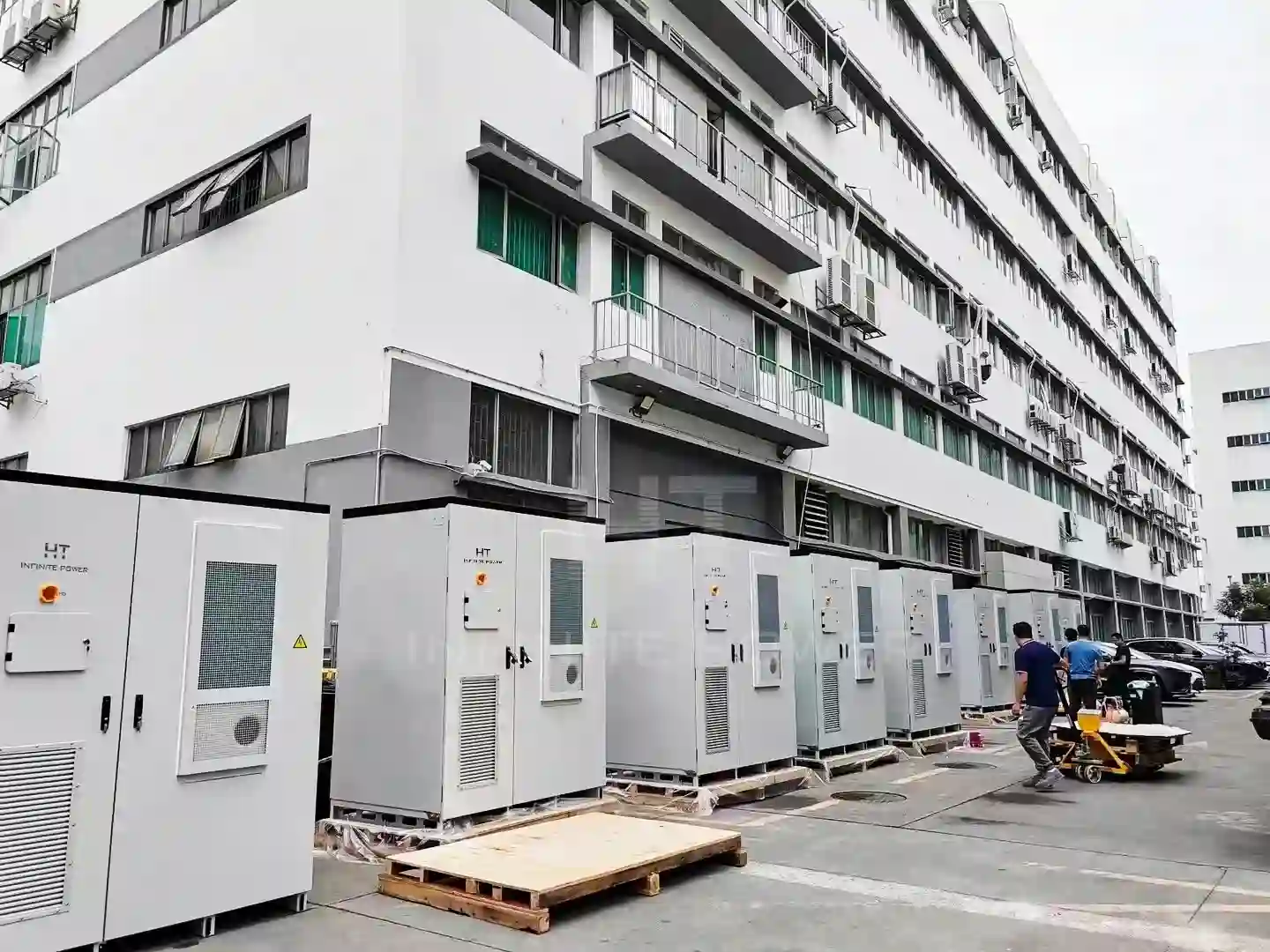

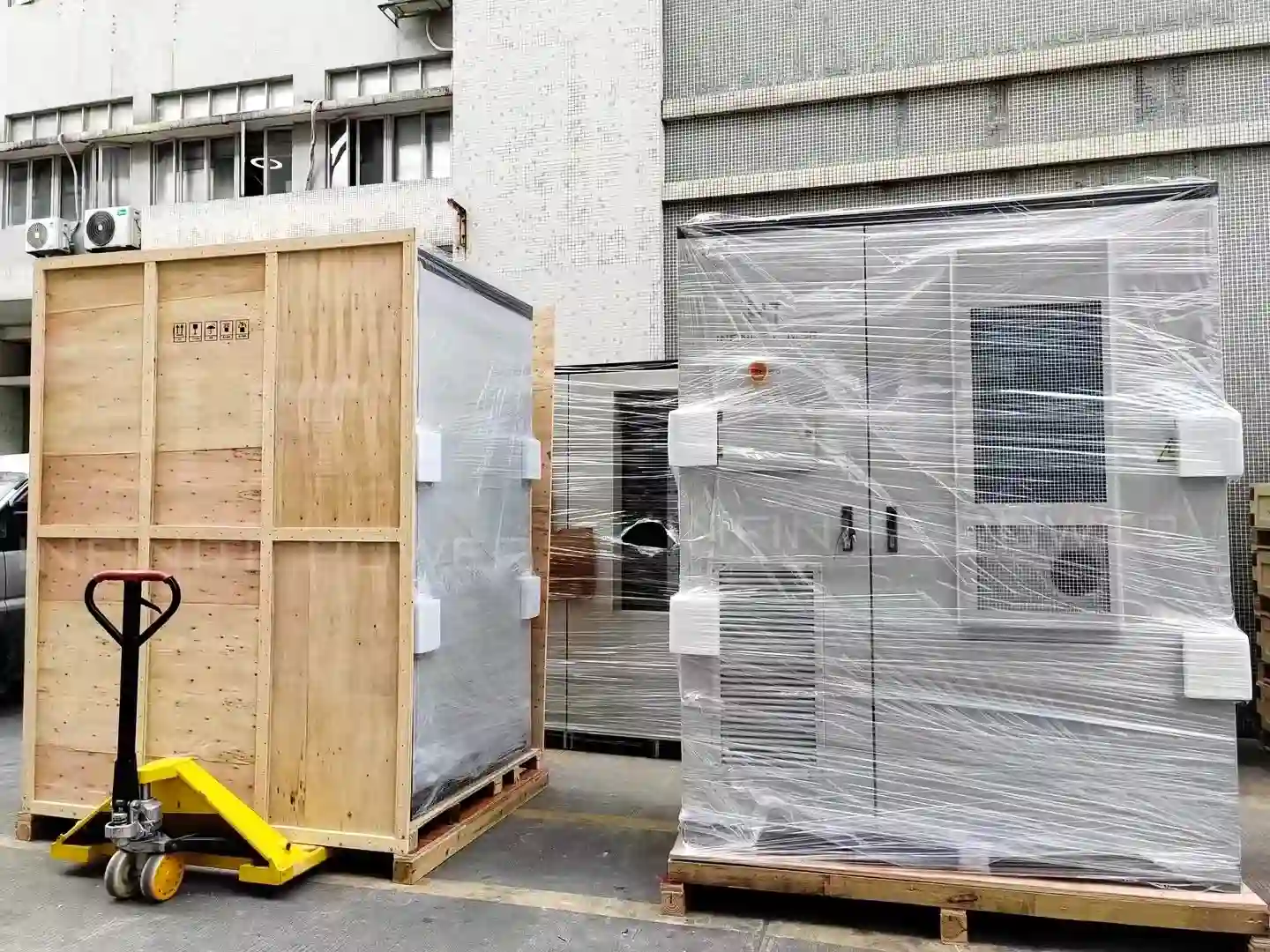

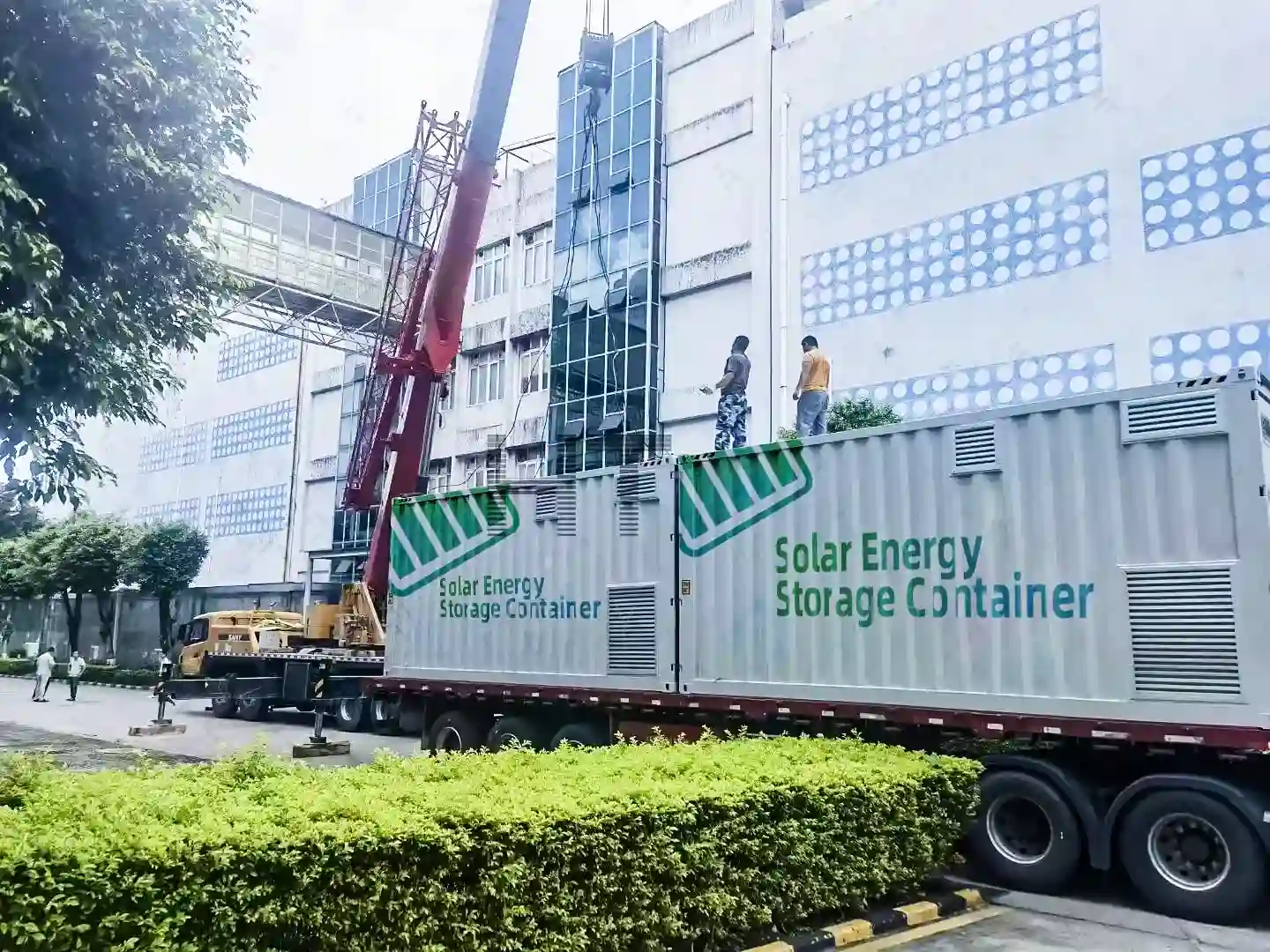

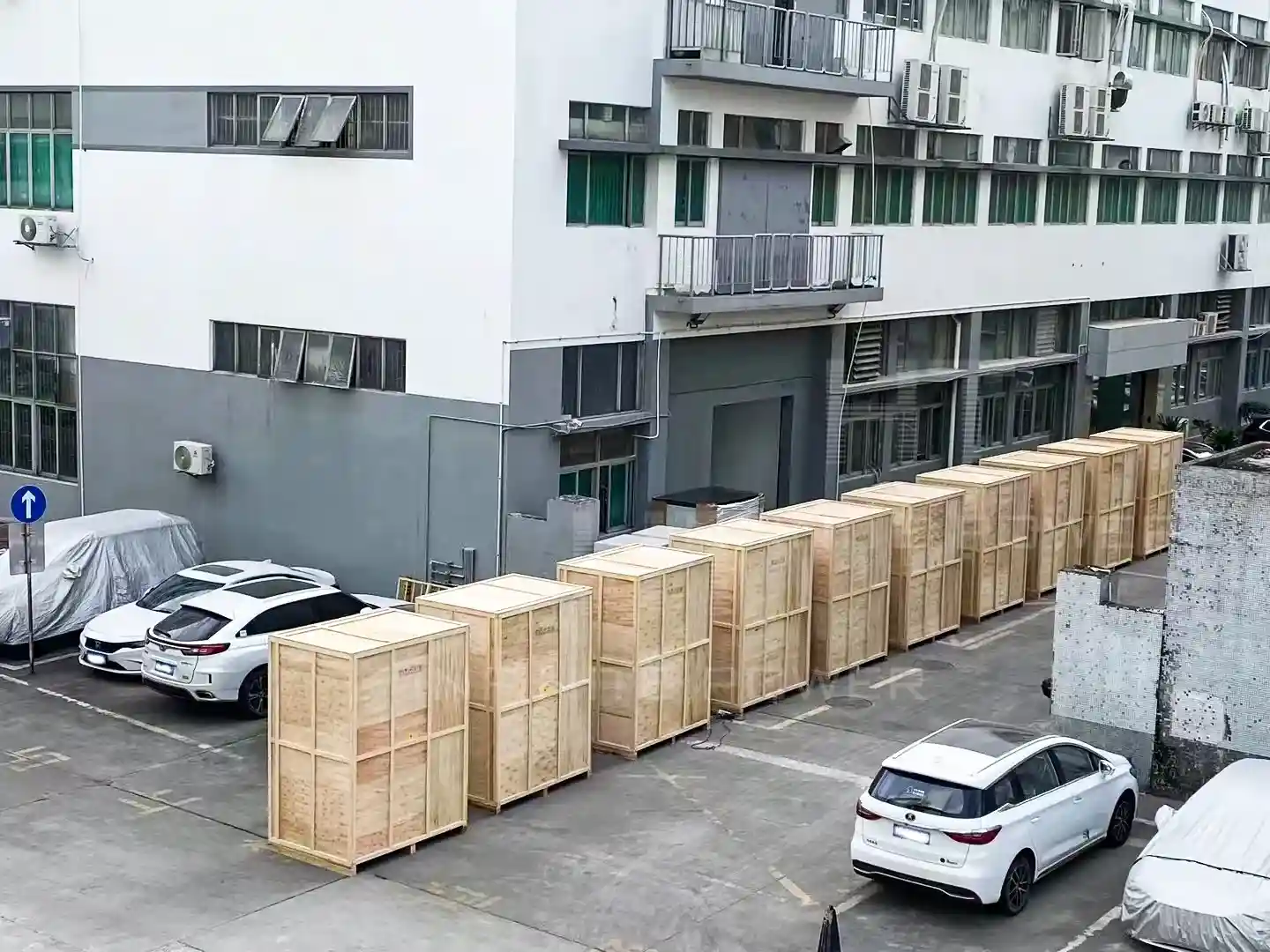

Delivery process
── 233 kWh Liquid Commercial ESS ──
How To Get A Suitable BESS Project
Collect Projets Information
Contact Us
Our Engineers Make Solutions And Quotation For You
Install
Use
FREQUENTLY ASKED QUESTIONS
When your project information and requirements are confirmed, we will start to arrange production. The production cycle is about 30 to 40 days
Usually, we can do that for you. But in order to make sure all the system work safty, please contact our professional engineer to check it.
We supply 5 years warranty for the liquid cooled battery commercial ess. After that, we will still provide you with paid after-sales service.
The design life of the whole system is 15 years, cycled once a day, and the battery EOH 70% after 15 years. Of course, the actual using life of the battery is also affected by the environment, temperature, charge and discharge current size and other factors.
As a professional commercial ess manufactuing company, Our products are pre-installed and shipped as a whole. You only need to make simple connections according to the user manual. Of course, we will also assist you remotely.
Yes, we are a professional commercial ess manufacturing company over 10 years.
