PCS Power Conversion System Features
▶ Diverse functions: It can accept grid dispatching, and has primary frequency/voltage regulation, black start and other functions; there are two types of cabinets for indoor and outdoor use, which can meet the needs of various installation sites
▶ Intelligent management: It adopts patented harmonic technology and intelligently adapts to various scenarios such as microgrids and substations; the local control panel can realize various functions such as converter operation monitoring, energy management strategy formulation, and remote equipment upgrade
▶ Flexible expansion: Modular rack design, flexible configuration, convenient expansion and maintenance
▶ Safe and reliable: Optional power frequency isolation transformer, strong impact resistance, higher safety, suitable for microgrid systems that need to operate off-grid
PCS Power Conversion System Parameter
DC side parameters
Operating voltage range
Full load voltage range
Maximum DC current
Number of input channels
Compatible batteries
Charging method
Working Mode
AC side parameters (on grid)
Maximum AC power
Rated AC power
Rated AC current
Rated AC voltage
AC voltage range
Frequency
THD
Power factor range
AC side parameters (off-grid)
Rated AC voltage
Voltage distortion
Rated frequency
Overload capacity
Protection function
DC inputpro tection
AC inputpro tection
Over voltage protection
Over current protection
Residual current detection
Anti-islanding protection
General
Maximum Non-isolated
Dimension
Weight about
lsolation method
Ingress Protection
Operating temperature
Relative humidity
Cooling method
Noise
Altitude
Communication interface
Certification
500~1000V
600~950V
100A*2
1/2
Lithium /lead-acid/ photovoltaic modules/liquid flow
According to BMS instructions/three-stage MPPT
Constant voltage/Constant current/Constant power/AC voltage source /Dc voltage source/ VSG
110kWA
100kW
144A
400VAC，3W+N+PE/3W+PE
400V(-15%~+10%)
50/60Hz,(±5Hz)
<3%(frequency)
-1 leading to+1 lagging
400V
< 3%(Linear load)
50/60Hz
110% Long-term operation;120% 1 minute
Load switch+fuse
Breaker+fuse
DC type ll/AC typel
Yes
Yes
Yes
97.5%
1200*1000*2100MM
240KG
Non-isolated
Indoor:IP21;outdoor:lP54
-25°C~60°C(45°C derating above 45 degrees celsius)
0~95%(Not dew)
Air Cooling
<70DB
3000M(>3000M derating)
RS485/CAN 2.0/Ethernet
CE,IEC 62477,IEC 61000,IEC60068,IEC61683,IEC61727.IEC62116.CGC
Note: The above models are typical configurations. In actual applications, the number and type of modules can be flexibly adjusted according to battery configuration and power requirements.
The modules in this model are composed of HT-50AC modules in parallel. The equipment protection level is IP65/IP21 and can be selected according to needs.
For an introduction to the HT-50AC module, please refer to the HT-50AC◥ product details.
Solution of PCS Power Conversion System for Bess

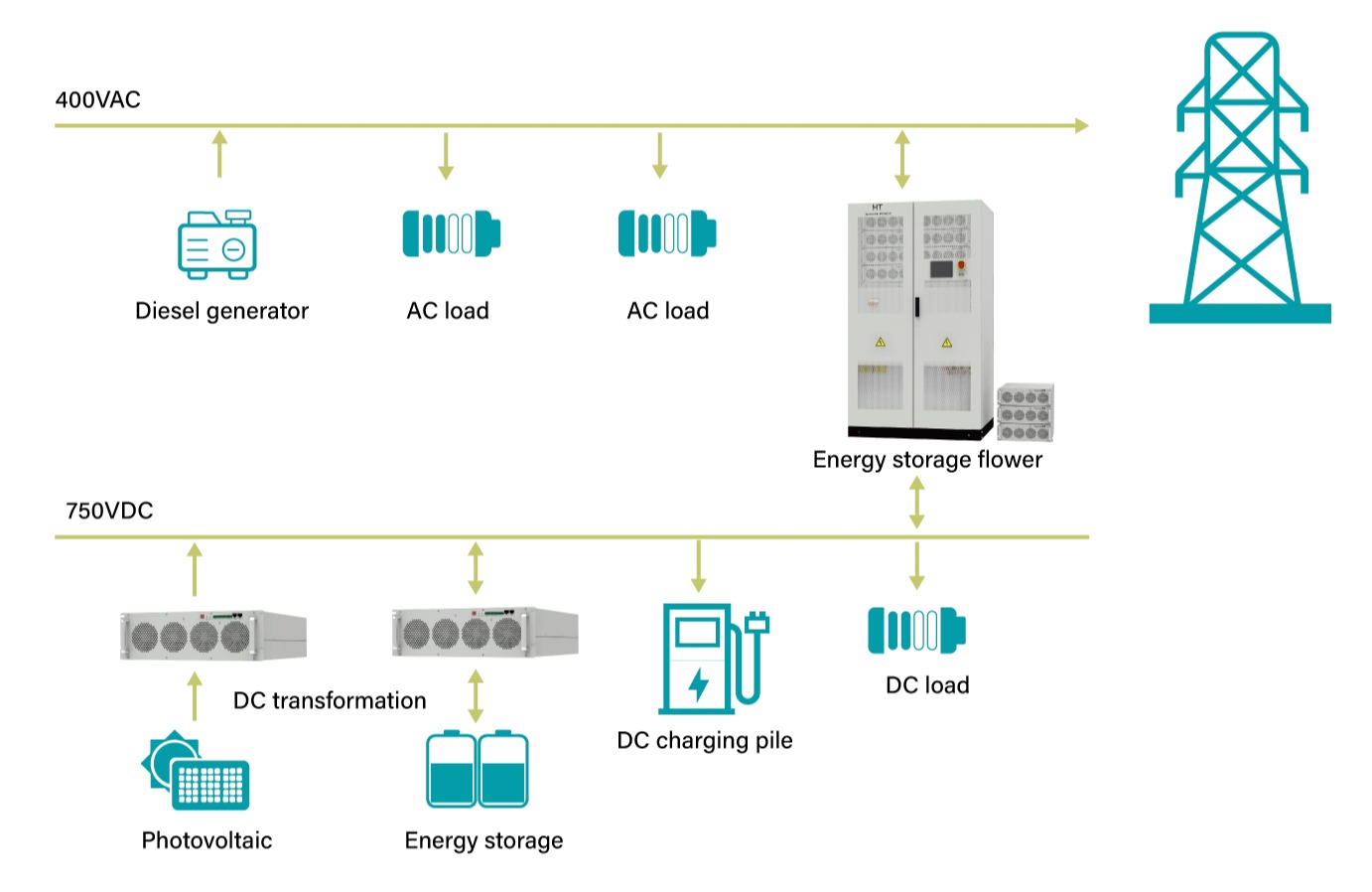

In a multi-energy complementary power supply system including photovoltaic, wind, diesel or public power grid, the power balance and stable operation control of the microgrid system can be achieved through the supporting energy storage system, which is suitable for islands, mountainous areas, border outposts and other remote areas or areas with unstable power supply, and is also suitable for the energy optimization system of photovoltaic storage and charging in newly built science and technology parks
Typical Configuration and Recommended Products of PCS Power Conversion System
Recommended Products
Core Advantages
HT series energy storage converter
● Built-in power frequency transformer, strong impact resistance and stability;
● Grid-connected, off-grid, VSG and multiple operation modes to meet the diverse needs of microgrids
HT series DC converter
● Supports access to photovoltaic modules and various types of energy storage batteries, one machine for multiple uses;
● Wide voltage input range design, flexible selection and configuration of photovoltaic modules and energy storage batteries
● Two-way input independent control, higher photovoltaic power generation efficiency, refined management of energy storage batteries
HT series automatic switching cabinet
● Dual-way power supply, fully automatic control;
● With RS485 communication and dry contact control ports, remote control can be realized
FREQUENTLY ASKED QUESTIONS
─── About HT PCS Power Conversion System For BESS ───
Yes, we use a modular solution, and the module power sizes are 50kW 100kW, 125kW. You can customize the size of the PCS power conversion system according to actual conditions
Increase availability + improve flexibility The modular design not only improves system efficiency and reduces subsequent maintenance costs, but also enables flexible expansion according to customer needs
HT PCS power conversion system has been listed in the Netherlands, Thailand, Belgium, South Africa, and Hungary. Listings for more countries will be updated soon. Please consult our marketing staff
