What is a liquid cooling energy storage system and its advantages?
2024-10-28
Battery thermal runaway is the biggest problem affecting battery thermal safety. It refers to the situation where the battery generates too much heat during operation or storage, which exceeds its design or safety limit, and runs out of control due to excessive charging and discharging or improper storage. In order to prevent safety hazards caused by thermal runaway, effective thermal management of the energy storage system is required. At present, there are two main thermal management methods on the market: air cooling energy storage system and liquid cooling energy storage system.
In this article, we will explain in detail the advantages, structure, operation and maintenance of liquid cooling energy storage system.
1. What is a liquid cooling energy storage system?
A liquid cooling energy storage system is a system that uses liquid as a cooling medium to remove heat generated by the equipment through circulation. In an energy storage system, the main function of the liquid cooling system is to ensure the stable operation of core equipment such as batteries and improve energy efficiency. Liquid cooling energy storage systems have been widely used in the energy storage industry due to their advantages such as better heat dissipation, stability and reliability, and long service life, and have gradually become the mainstream cooling method.
2. Advantages of liquid cooling energy storage system
(1).Efficient heat dissipation:

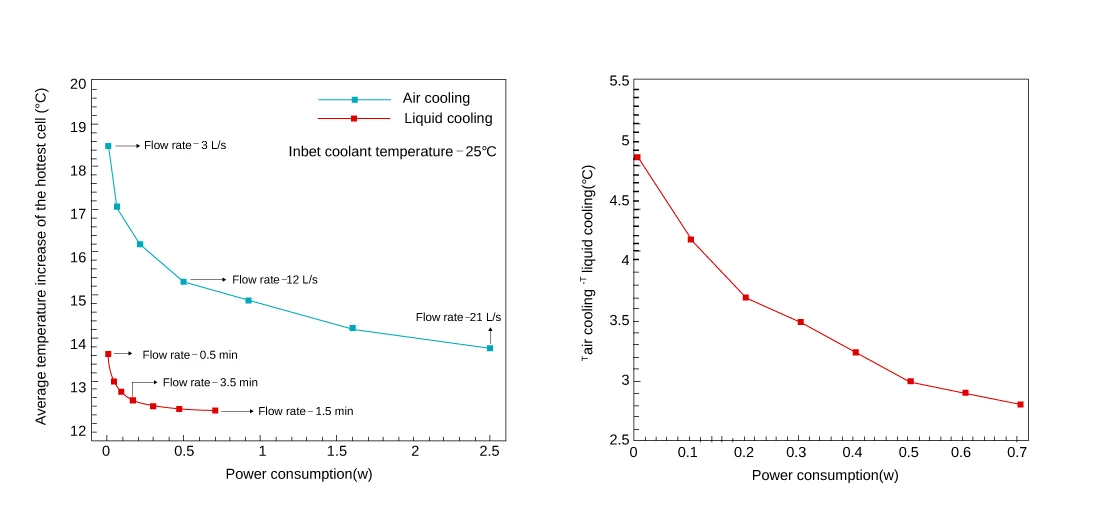

Liquid cooling energy storage system uses liquid as a cooling medium. The specific heat capacity of liquid is larger than that of air, and it can absorb and release heat faster. Therefore, the Liquid cooling energy storage system can quickly and effectively transfer the heat generated by the battery to the radiator, improving the heat dissipation efficiency.
(2).Uniform temperature:
The liquid cooling energy storage system can evenly distribute the heat generated by the battery on the radiator through the circulation of the liquid cooling plate to ensure the uniformity of the battery temperature. This balanced temperature control effect helps to maintain the consistency of battery performance and avoid the degradation of battery performance due to uneven temperature.
(3).Improve safety:
The cooling system of the liquid cooling energy storage system can export the heat generated by the battery in time, reducing the risk of battery overheating or even fire. In addition, some advanced liquid cooling energy storage systems are also equipped with multiple safety protection measures to further improve safety.
(4).Small footprint:
Compared with the air cooling energy storage system, the liquid cooling energy storage system has a more compact structure, a higher system integration, and a relatively small footprint. This is of great significance for improving the space utilization of the energy storage system and reducing costs.
(5).Low noise:
Compared with air cooling energy storage system , liquid cooling energy storage system produces lower noise and is more suitable for places that require a low noise environment.
(6). Strong compatibility:
Liquid cooling energy storage system can adapt to various complex cooling requirements, especially for high power density and compact design equipment, and can achieve higher heat dissipation performance in a limited space.
3. Structure of liquid cooling energy storage system
Liquid cooling energy storage system is generally composed of coolant, liquid cooling plate, liquid cooling pump, liquid cooling pipe, condenser, evaporator, etc. Liquid cooling plate and accessories are important components of the system. Their main function is to carry equipment such as batteries and ensure good contact with cooling liquid. According to different needs, liquid cooling plates can be divided into various types, such as flat type, box type, etc.
Liquid cooling pipes are channels for conveying cooling liquid in liquid cooling systems. According to different working environments and requirements, liquid cooling pipes can be divided into various types such as metal pipes and plastic pipes. The main function of liquid cooling pumps is to drive the circulation of cooling liquid. According to different requirements, liquid cooling pumps can be divided into various types, such as centrifugal pumps, plunger pumps, etc.
Liquid cooling energy storage system control and monitoring device The Liquid cooling system control and monitoring device is an important device to ensure the stable operation of the Liquid cooling system. The device is mainly composed of a temperature controller, a pressure controller, a flow meter, a liquid level meter, etc. During installation, attention should be paid to correctly wiring and installing sensors according to design requirements to ensure the accuracy of data collection and control.
4. Application scenarios of Liquid cooling energy storage systems
(1). High-power, high-density energy storage equipment
• Large scale energy storage power stations
Such as 5000 kwh battery storage: In large energy storage power stations, outdoor energy storage containers need to provide long-term energy storage services for the power grid to ensure the stability of local power supply. These energy storage devices usually have the characteristics of high power density and high energy density, so liquid cooling technology is widely used due to its efficient heat dissipation performance.
• Wind farms and solar power stations
In wind farms and solar power stations, outdoor energy storage containers need to store a large amount of electricity to balance the fluctuations in power generation. Since the energy storage equipment in these scenarios is often high-power and high-density, liquid cooling energy storage system has become the first choice.
(2). Environments with high requirements for temperature control
• Data center
As one of the places with extremely high requirements for temperature control, data center energy storage equipment also needs to adopt efficient heat dissipation technology. Liquid cooling technology can provide precise temperature control to ensure the stable operation of equipment in the data center.
• Power system
In the power system, energy storage outdoor containers need to provide peak load regulation, frequency regulation and other services for the power grid. These services have extremely high requirements for the stability and reliability of energy storage equipment, so liquid cooling technology is widely used due to its superior heat dissipation performance and temperature control accuracy.
(3).Reduce energy costs and optimize energy management
• Peak-valley arbitrage
The liquid cooling energy storage system can be charged during the low electricity price period and discharged during the peak period, thereby avoiding the high electricity price period and reducing the electricity cost of the enterprise. This is the most direct economic benefit of the industrial and commercial Liquid cooling energy storage system.
• Reduce electricity demand costs
The liquid cooling energy storage system can smooth the electricity demand curve, reduce the electricity demand costs, and reduce the electricity costs of enterprises. In addition, the liquid cooling energy storage system can also store and utilize cheap clean energy, such as solar energy and wind energy, to further reduce the company's electricity procurement costs.
• Backup power supply
The liquid cooling energy storage system can be used as a backup power supply, which can be quickly started in the event of a grid failure or power outage, provide continuous power supply for key equipment and production lines, and reduce production losses caused by power outages.
• Demand-side response
The Liquid cooling energy storage system can help industrial and commercial users achieve grid demand response, participate in grid services such as peak-to-valley shifting and frequency regulation, and provide support for the stable operation of the grid.
5. Transportation and operation and maintenance issues of Liquid cooling energy storage systems.
(1).Manufacturing Cost
Although liquid cooling energy storage system has many advantages, it still faces some challenges in actual application. First, the manufacturing cost of the liquid cooling energy storage system is relatively high, and the liquid circulation system needs to be designed and manufactured.
(2).Maintenance Complexity
Second, the maintenance of the liquid cooling energy storage system is also relatively complicated, and the amount and quality of the coolant and the sealing of the system need to be checked regularly.
(3).Coolant Leakage Risk
In addition, the risk of leakage of the coolant is also one of the issues that need to be paid attention to in liquid cooling technology.
(4).Lack of Professional Personnel
If the customer does not have professional operation and inspection personnel, it will cause many problems for the customer's use in the later use process.
(5).Overseas Transportation and Installation Challenges
For overseas markets, liquid cooling energy storage systems often have higher energy density, so the weight per unit volume will be heavier. For example, the weight of a 5000 kwh battery storage container can reach 38 tons, which brings certain difficulties to long-distance transportation and customer installation overseas.
In order to solve this problem, HT INFINITEPOWER has specially developed and produced a 100KW 233KWH liquid-cooled energy storage outdoor integrated cabinet. It is small in size, light in weight, easy to transport and install. It can be connected to photovoltaic power generation and diesel generators at the same time.
In the future, with the continuous advancement of technology and the reduction of costs, liquid cooling energy storage systems are expected to be used in a wider range of fields, especially large-scale energy storage power stations, such as 5000 kwh battery storage and above. Liquid cooling energy storage as one of the key technologies in the future energy storage field, liquid cooling technology has broad application prospects and important strategic significance. We have reason to believe that in the near future, with the continuous advancement of technology and the continuous expansion of the market, Liquid cooling energy storage system technology will make greater contributions to the global energy revolution and sustainable development.
