IP55
On/Off Grid Switching Function
Space-Saving
EMS Local Data Management
Easy Installation and maintenance
● AC and DC integrated dual power supply system
● Two-way active balancing
● High-precision battery SOX estimation
● Modular design, flexible capacity configuration
● The system can expand to 100 MWh
● Intelligent dynamic constant temperature design
● Full life cycle quality tracking and quality analysis
● Pack level detection protection, multi-level gas + water fire
protection Automatic fire extinguishing system

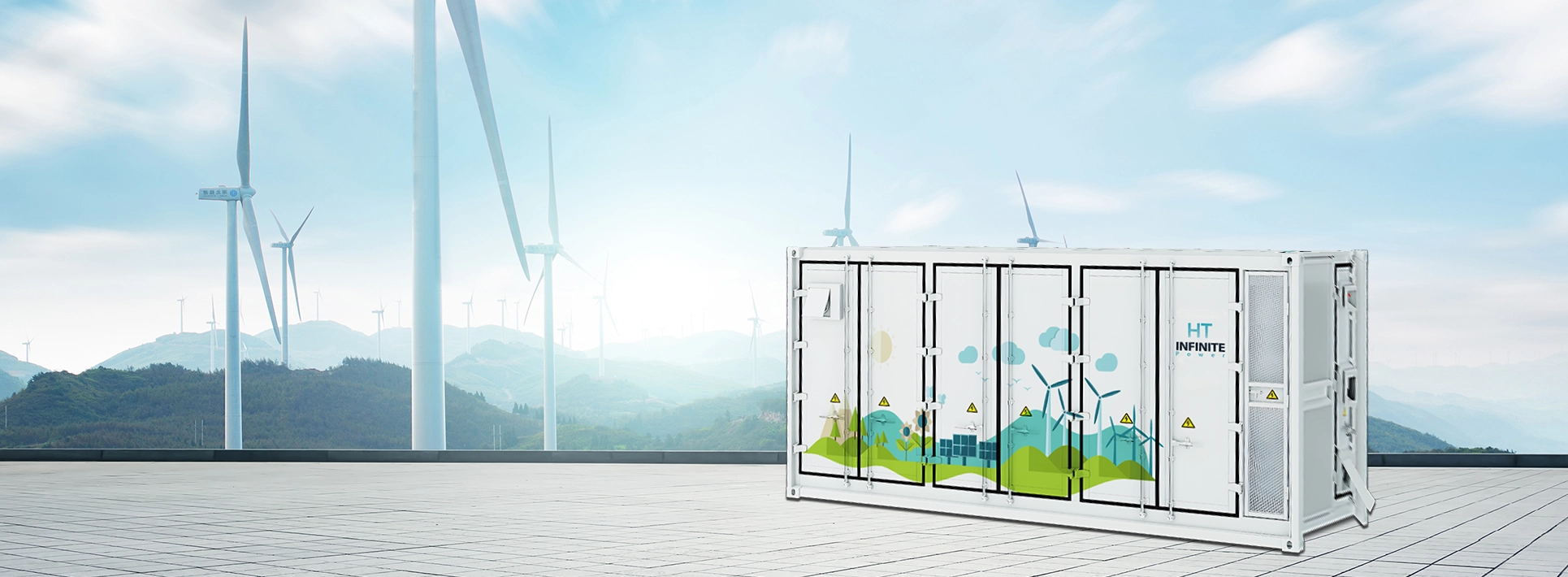

5000 kWh.
Battery Ess Container
Model ： HT06ESS 2L5000NA
Capacity: 5 MWh Battery
Adaptable Voltage Range ： 1000-1500V
Charge and Discharge Rate ： 0.5C
Cell: LFP-3.2V-314Ah-1004.8Wh
Module Parameters: LFP-166.4V-314Ah-52.25kWh
Cycle Life: 8000 Times（90%DOD，≥70%EOL）
Cycle Efficiency: ≥94%（DC）
BMS: Active Balancing + Three-Level Architecture
Communication Interface: Ethernet/RS-485/CAN
Temperature Control Solution: Smart Liquid Cooling
Protection Level: IP55
Anti-Corrosion Level: C4 (Optional for C5)
Size: L*W*H: 6058*2438*2700mm
Weight: 35T

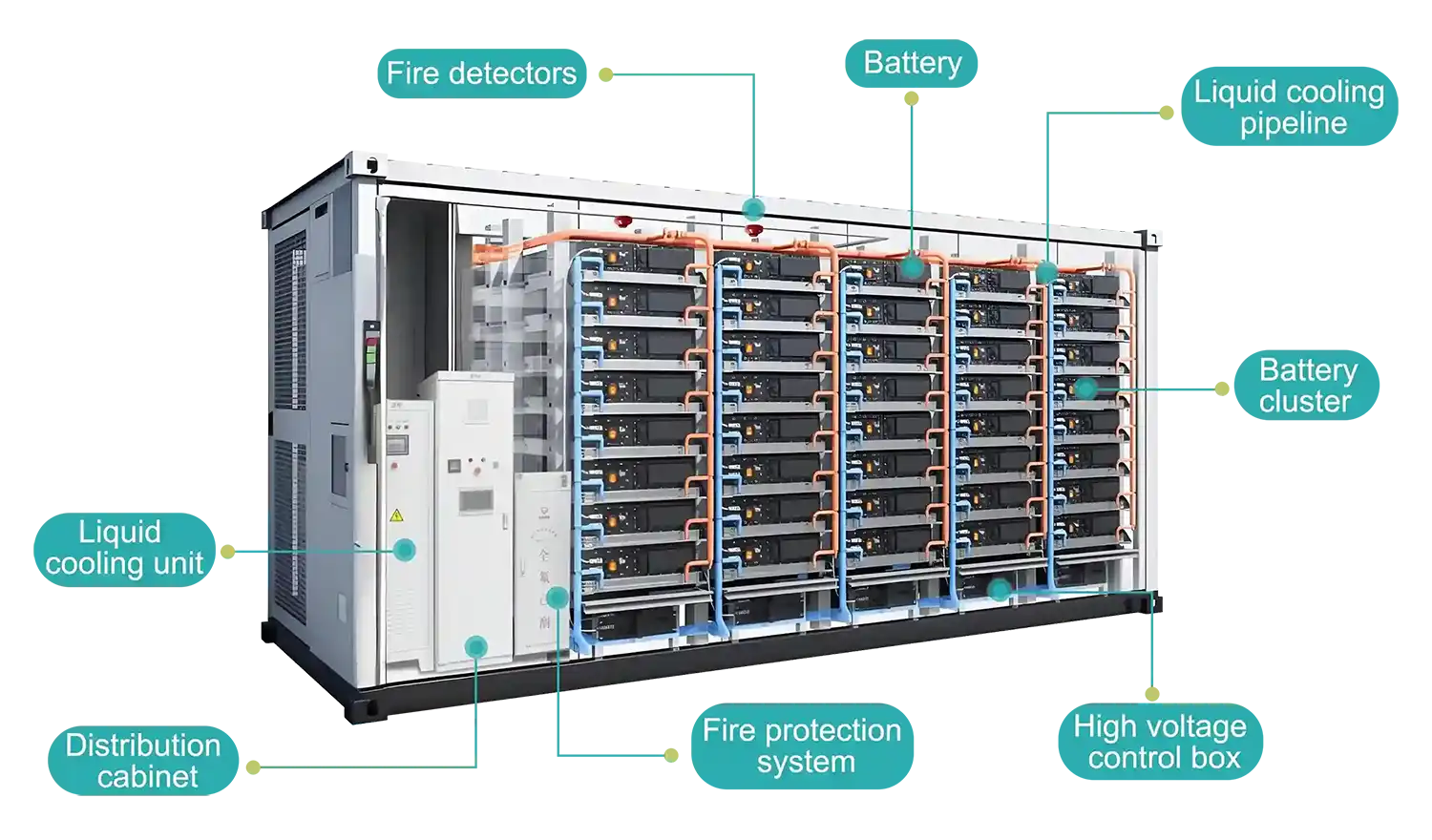

Structure Introduction
── 5000 kWh Battery Ess Container ──

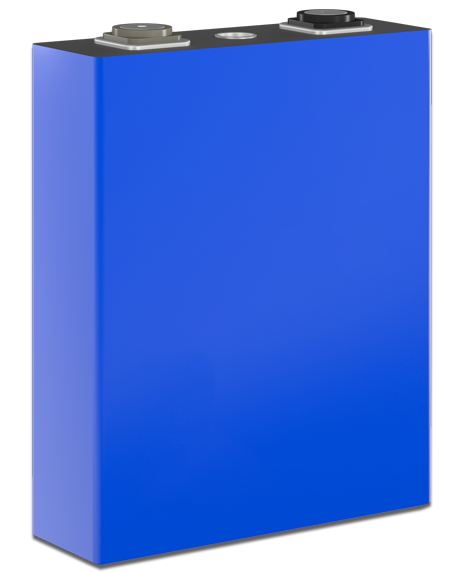

Cell
●Material: LFP
●Voltage: 3.2V
●capacity: 314Ah
●Cycle: 8000 times @80%

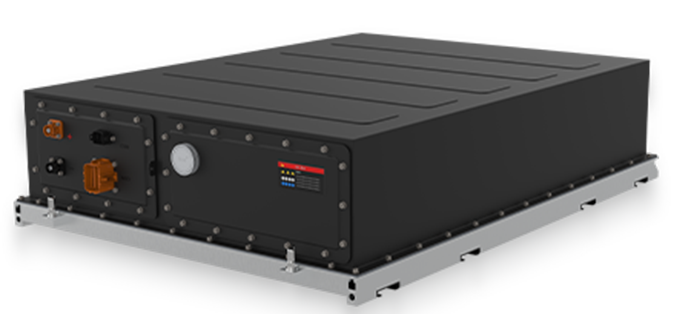

Liquid Module 1P52S (cell)
Voltage: 166.4V
●Thermal simulation extremely optimized flow channel design.
●The temperature difference is within 2℃, the cell is stable and reliable.
●Metal shell thermal barrier, no heat diffusion at 1000℃.
●Thermal isolation between cells to achieve no heat diffusion.
●Precise fire protection design, fire suppression inside the package.

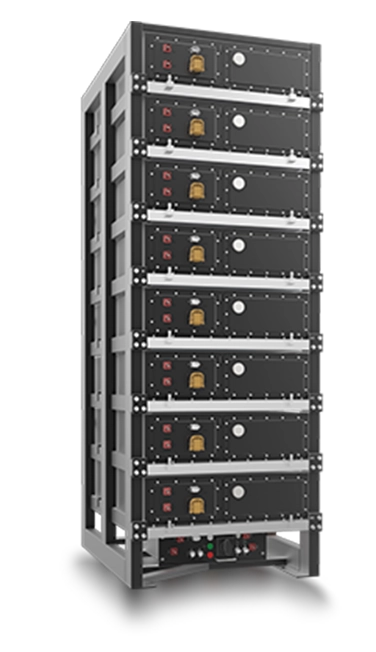

Liquid Rack 1P8S (Module)
●Modular design, easy to expand.
●High safety, thermal runaway will not spread.
●Battery Pack Level Fire Suppression.
●The temperature difference is <2°C, the cell working temperature is suitable, ●and the cycle life is 20% longer than that of air cooling.
●Wide temperature design, can work normally at -40~60℃.
●IP67 protection level, no fear of condensation.

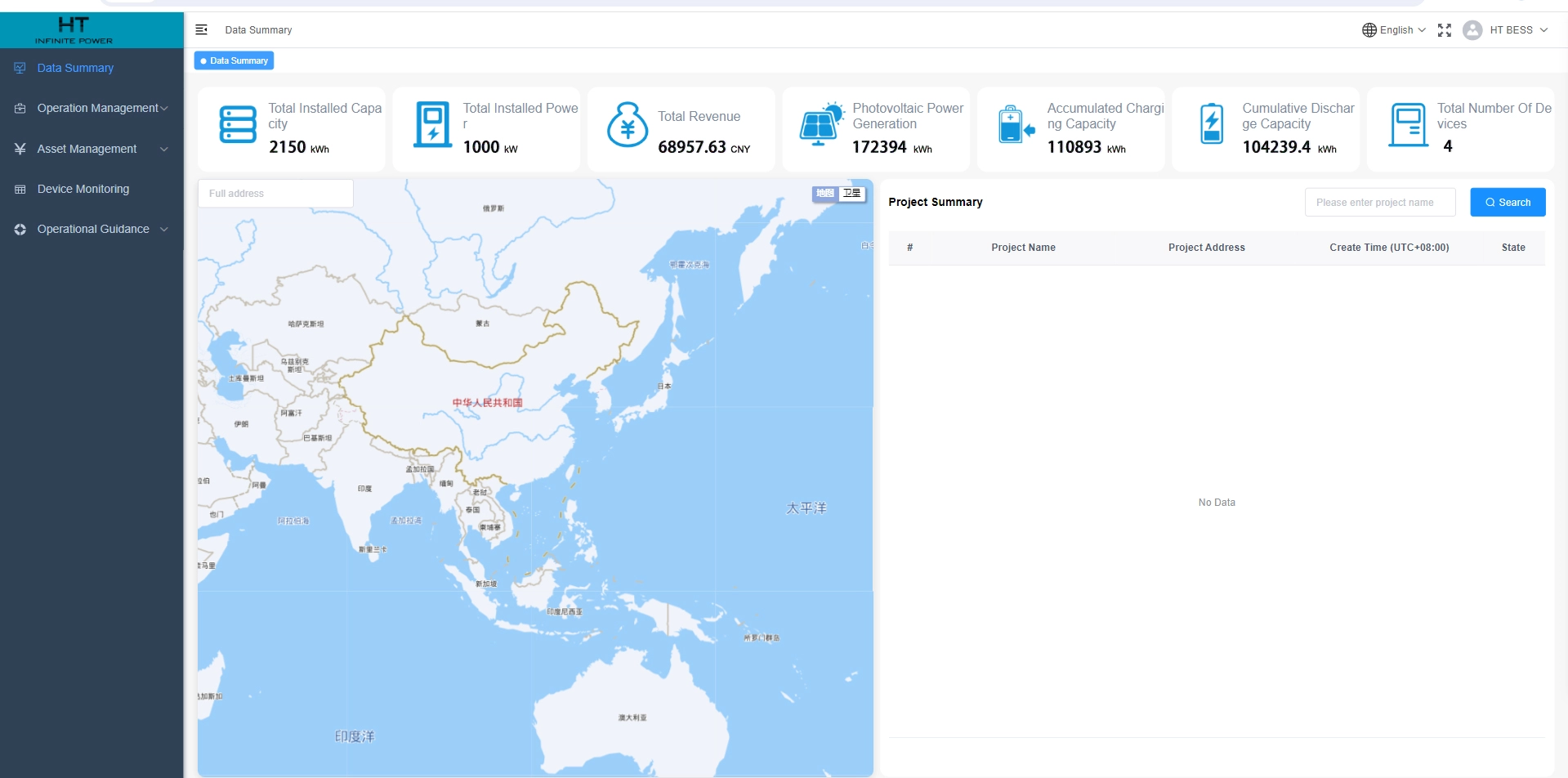

EMS
●Integrated power station data communication collection and operation control
●Local screen display of power plant data and operating status
●Mainly used in applications of energy storage power stations of various capacities and integrated photovoltaic, storage and charging power stations.
●Remote upload of power plant data

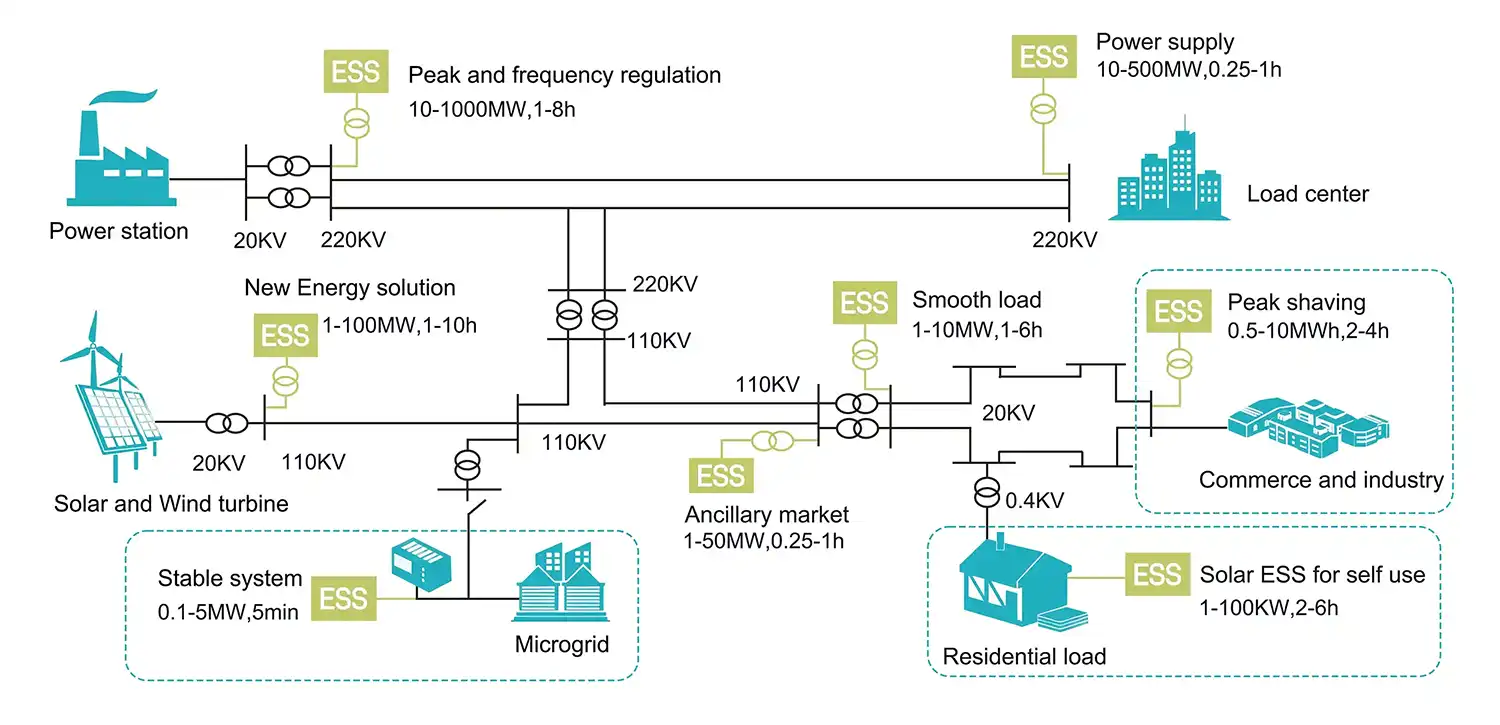

Application Scenarios
── 5000 kWh Battery Ess Container ──

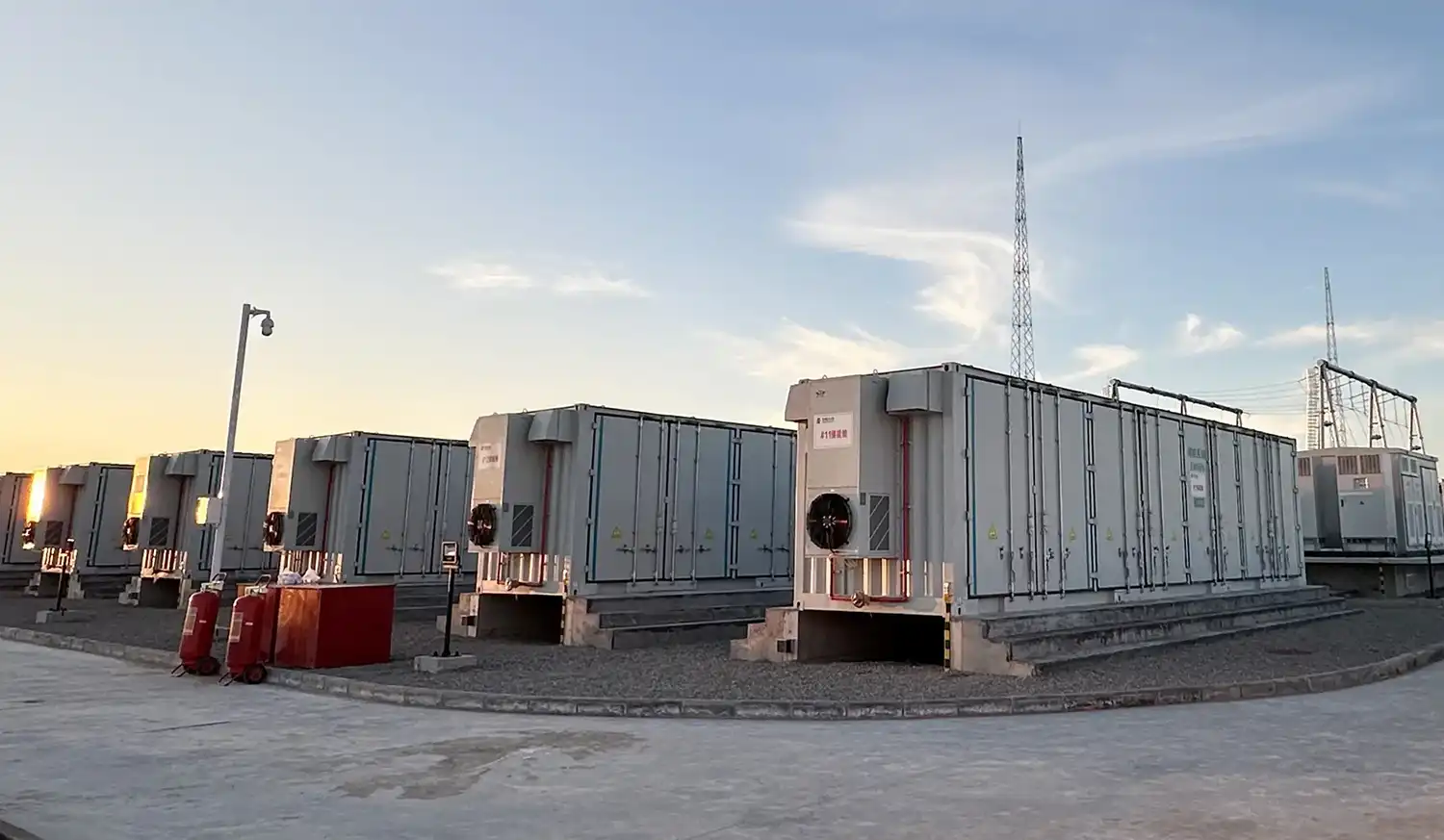

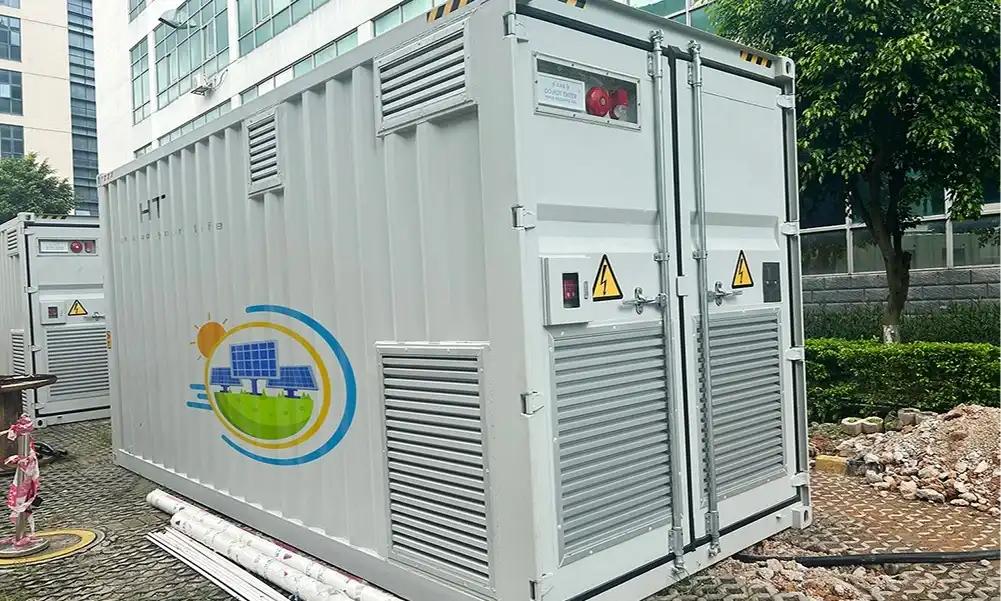

Project Case
── 5000 kWh Battery Ess Container ──

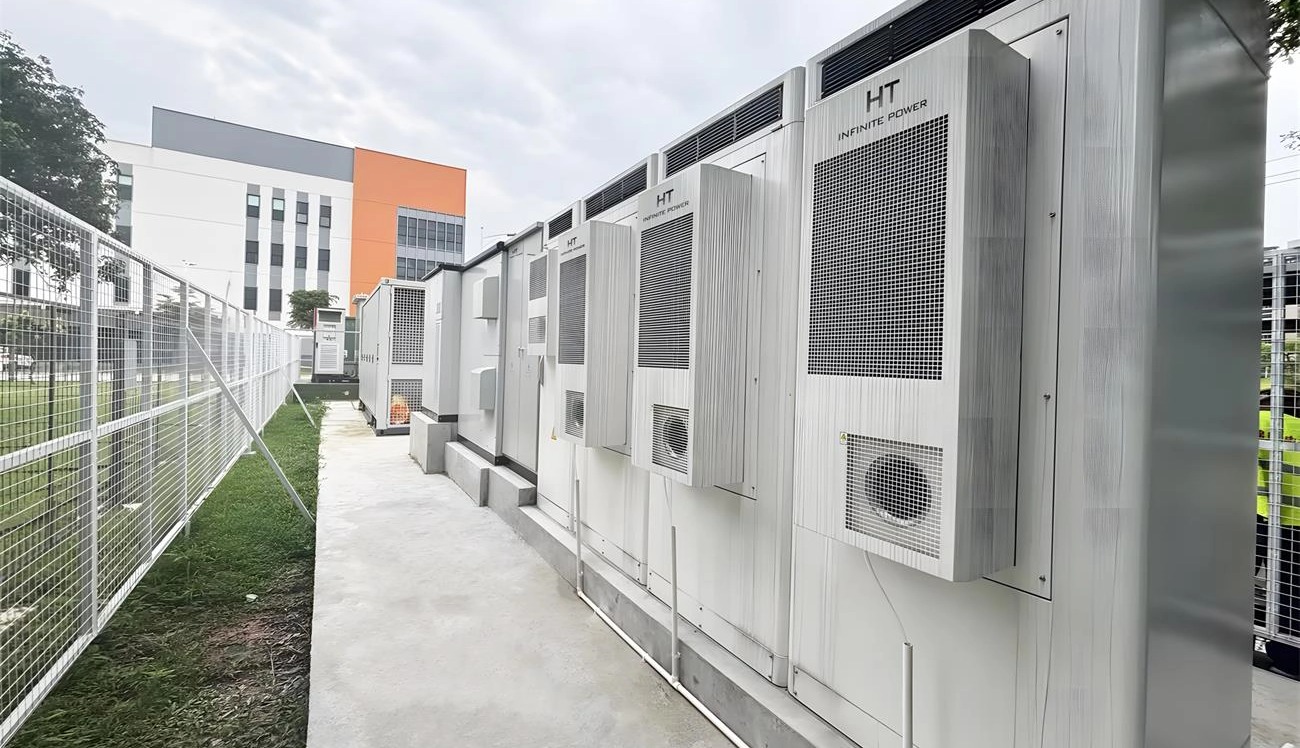

China
Energy storage system: 33MW solar panel +30MW pcs+100MWh liquid cooling battery container
Application scenario：Power station
Date of shipment:May，2024
Application:power station peak regulation &frequency regulation, power supply.

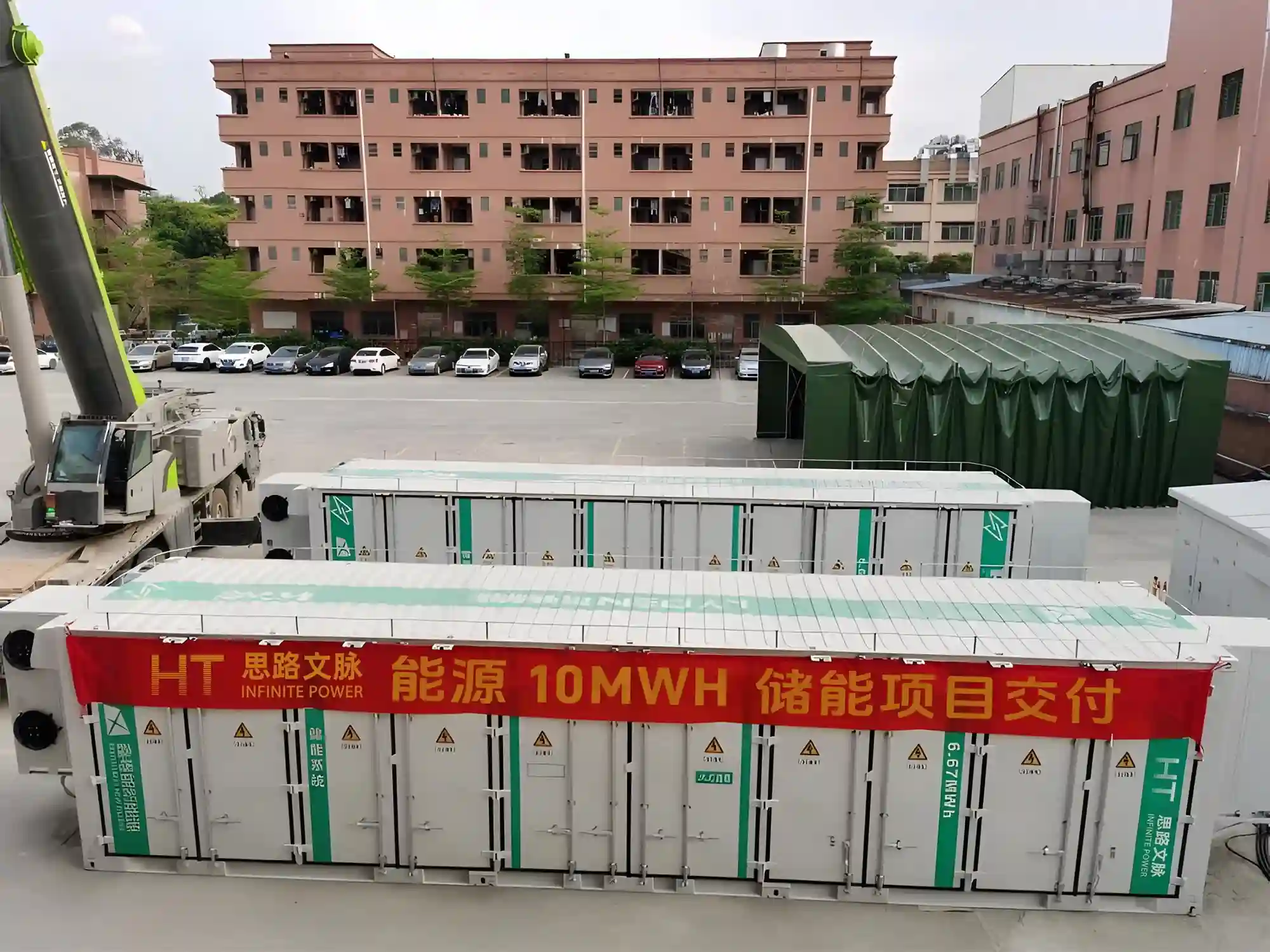

Huizhou China
Energy storage system: 4MW pcs+9MW DC moudular+10MWh liquid cooling battery
Application scenario:Industrial Park + EV Charger
Delivery data:May,2023
Application:Integrated solar+storage+ev charging system to improve solar utilization efficiency. Saving electricity and getting benefits from this system.
Sweden
Energy storage system:1sets 0.5MW/1.075MWh
Application scenario :Commercial residential building
Delivery data:Sep,2023
Application:Achieve the function of cutting peak and filling valley, reduce the difference between peak and valley of load, and obtain considerable economic benefits through the peak valley price difference.

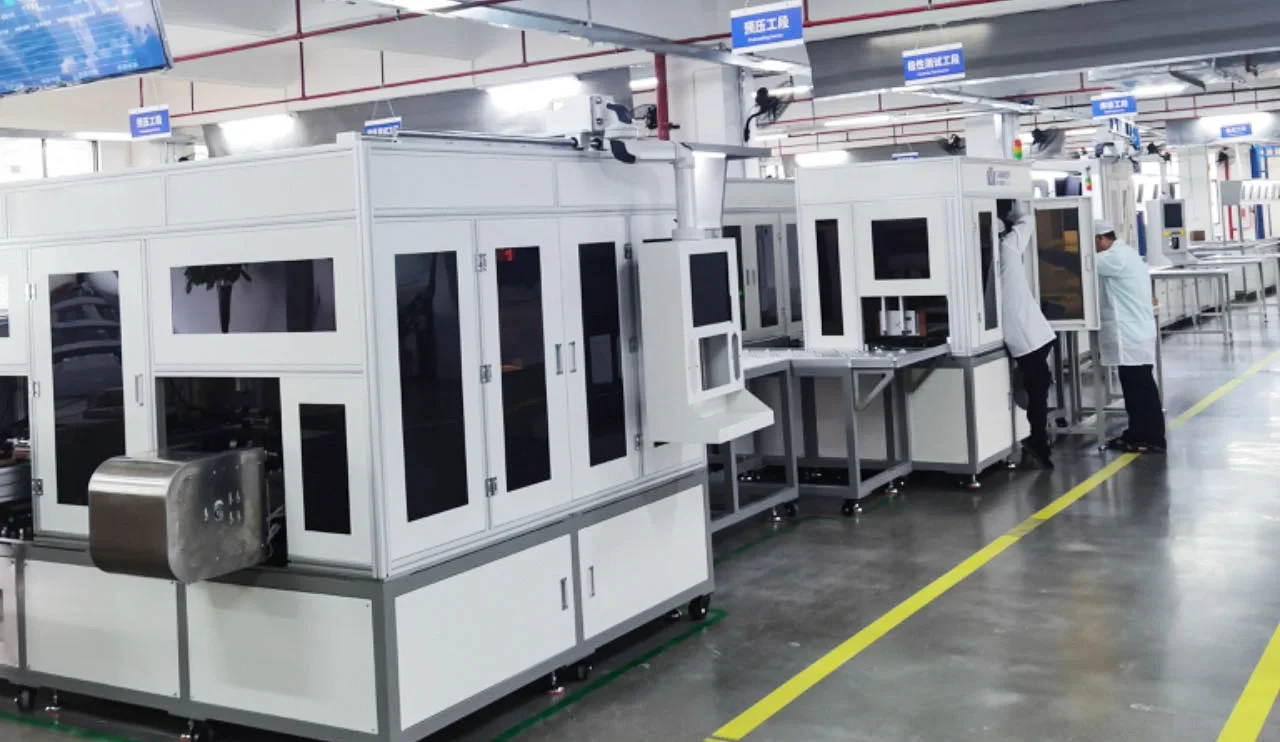

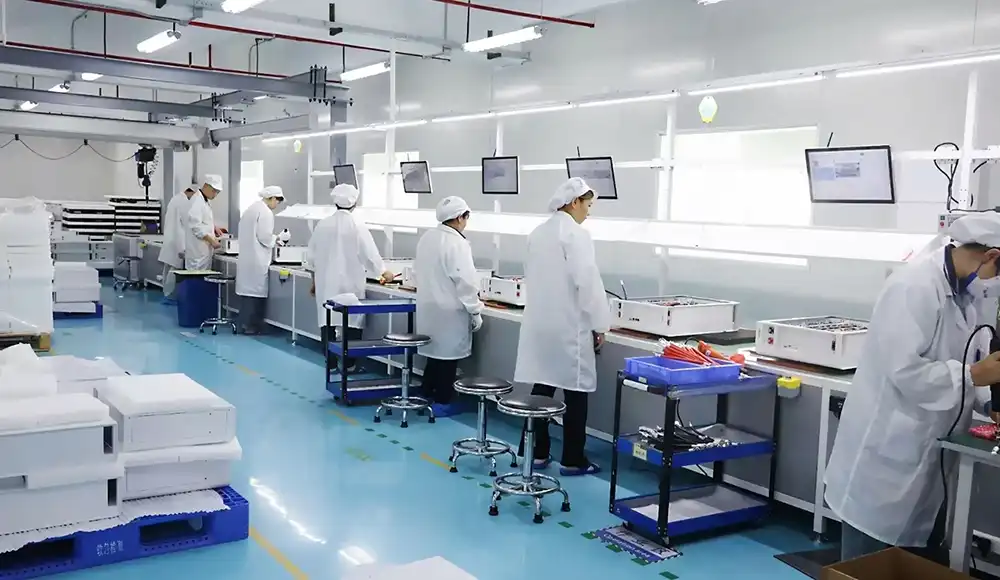

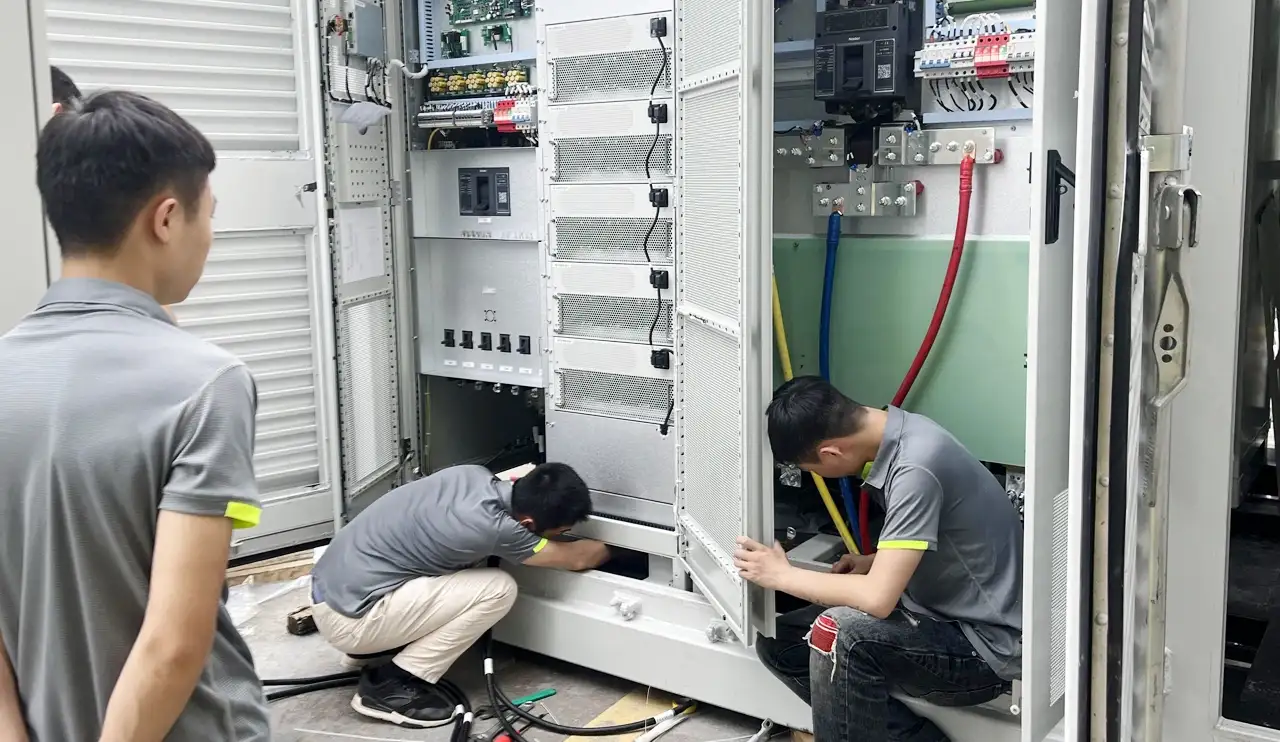

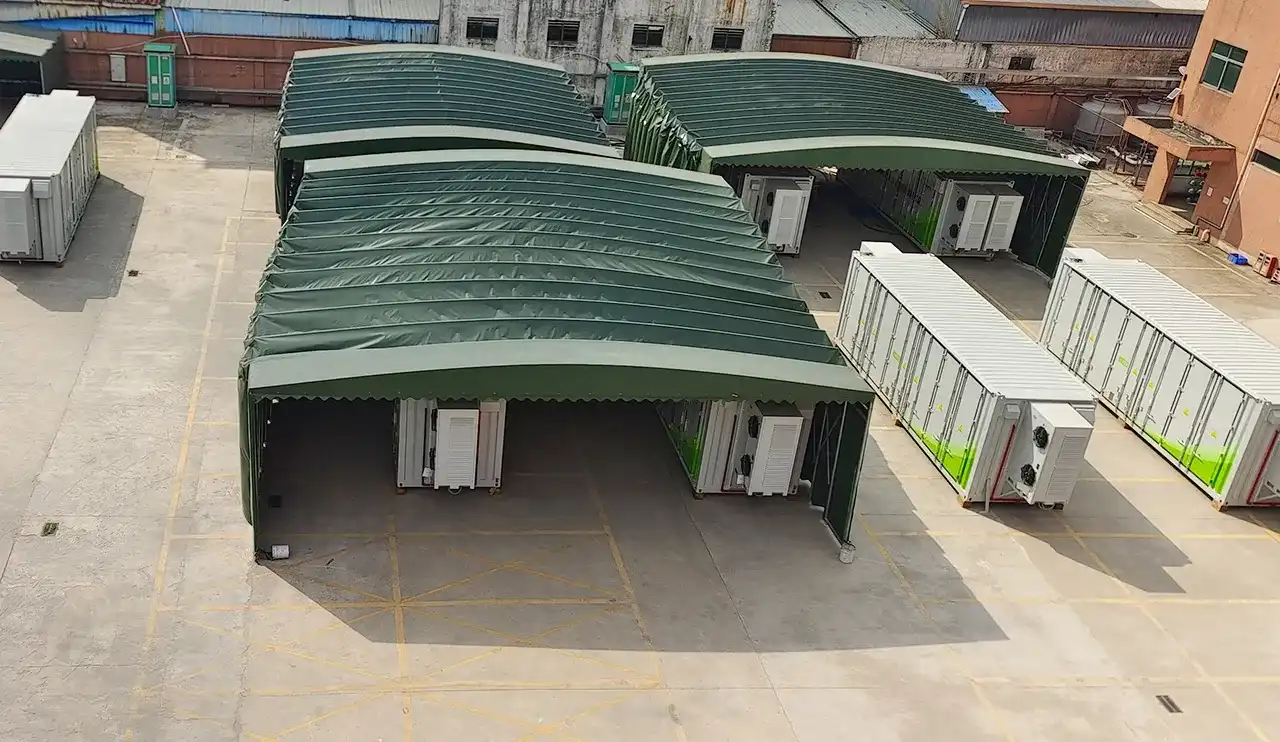

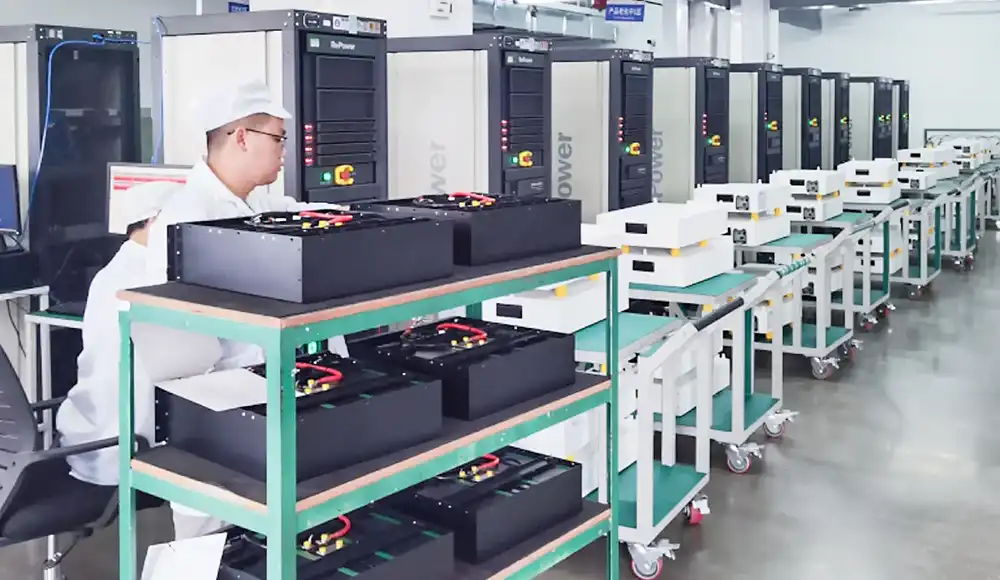

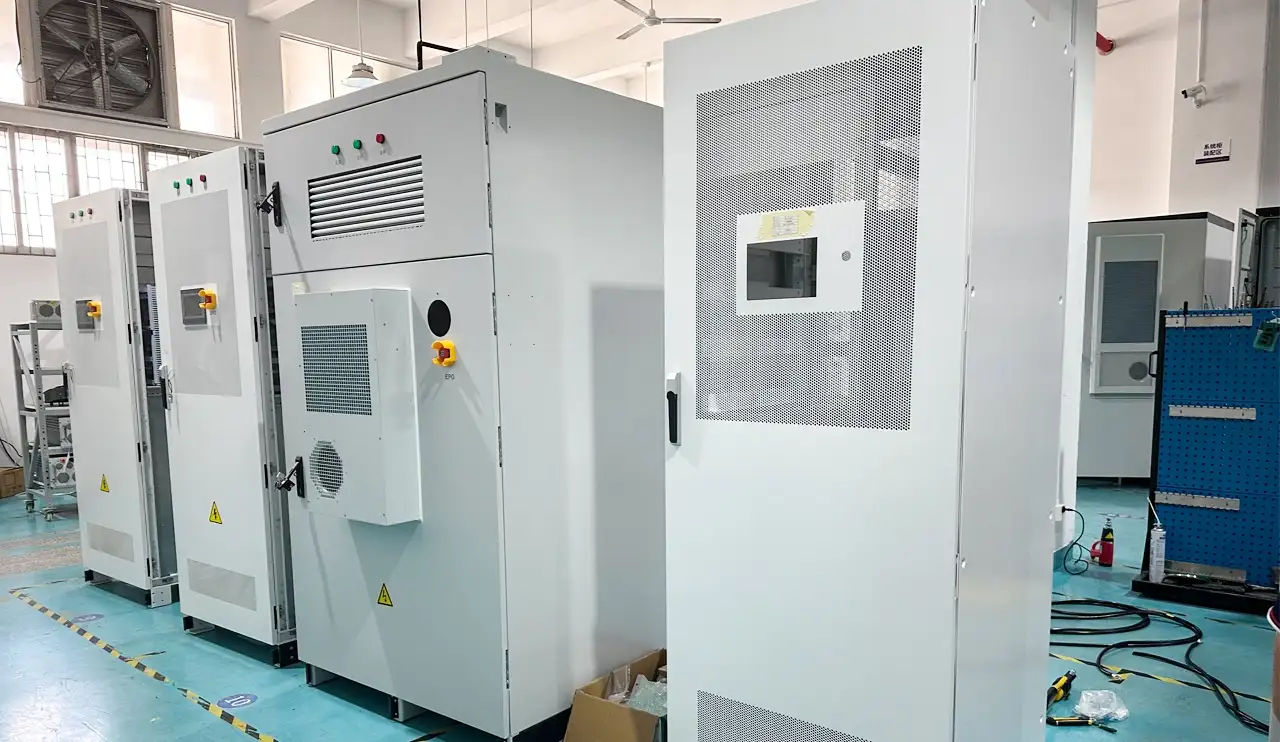

Our Factory
── 5000 kWh Battery Ess Container ──

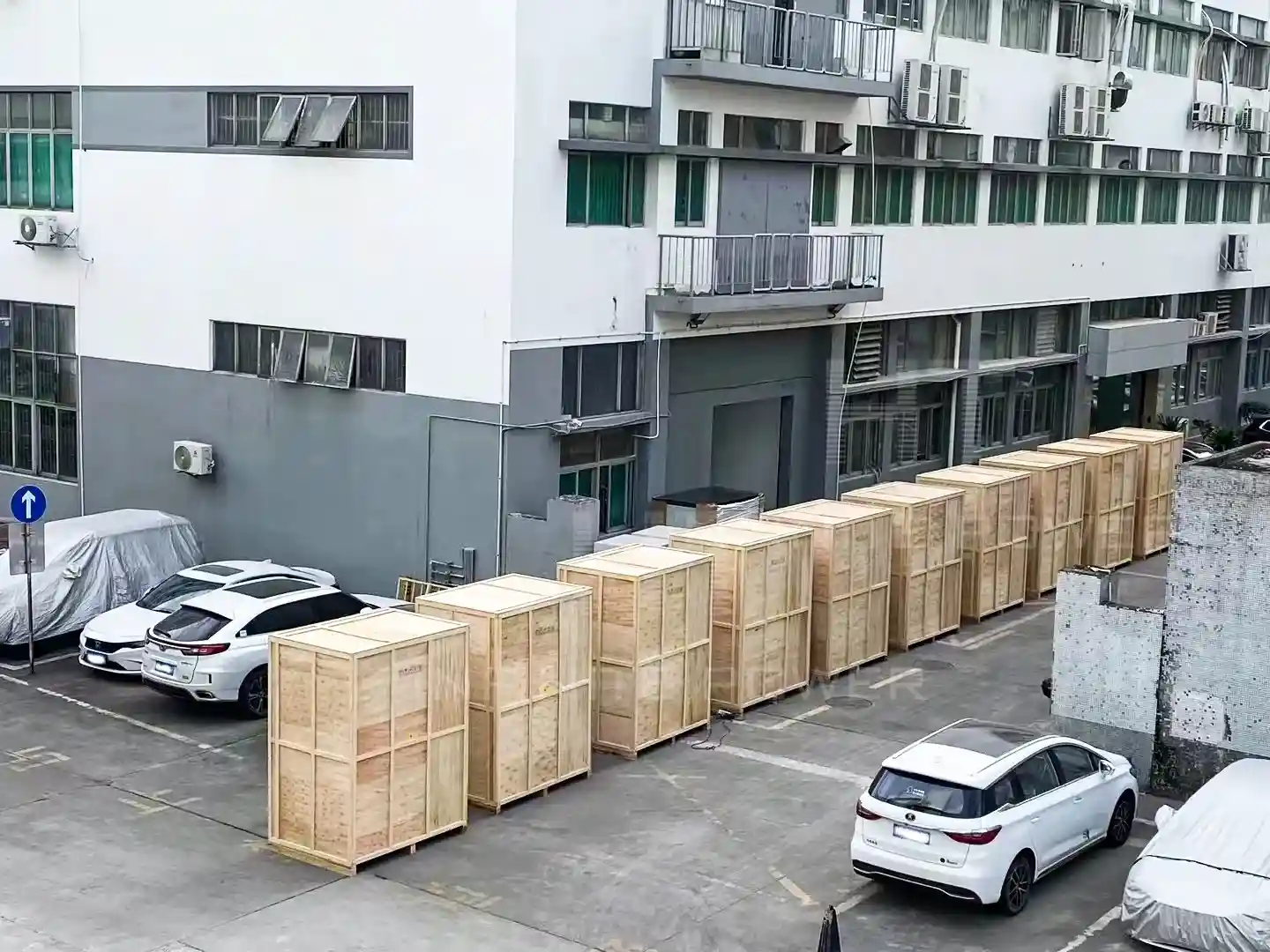

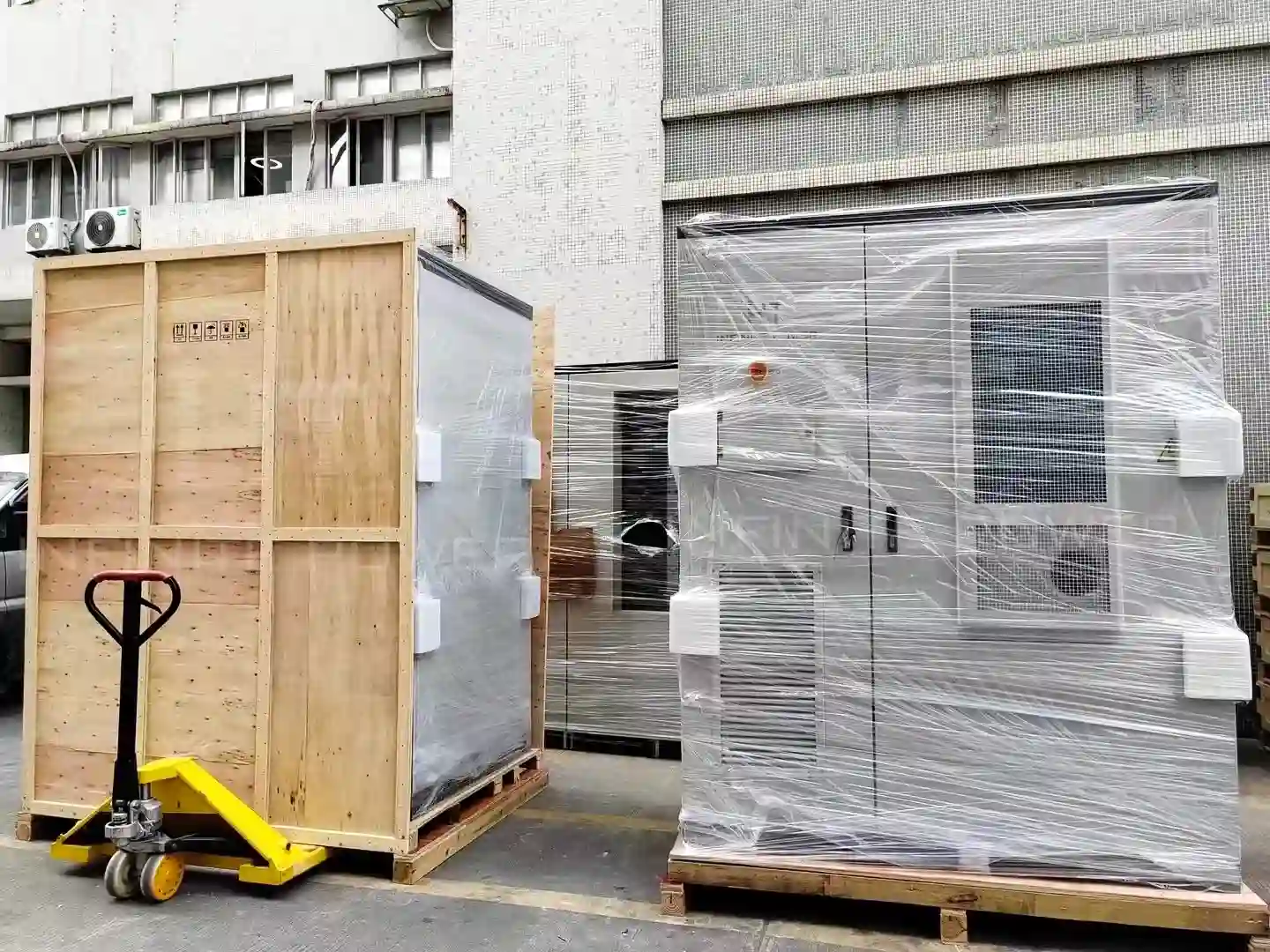

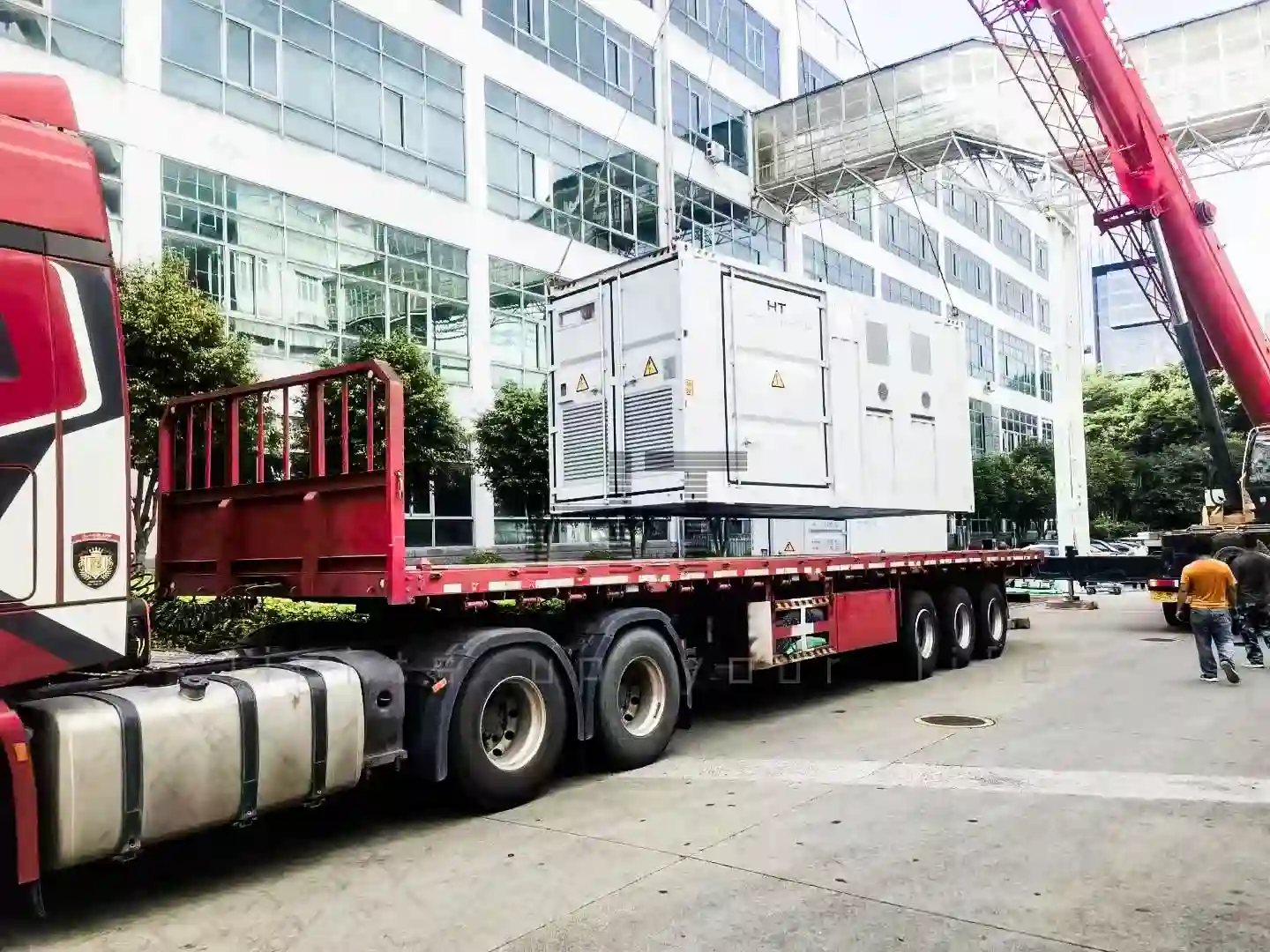

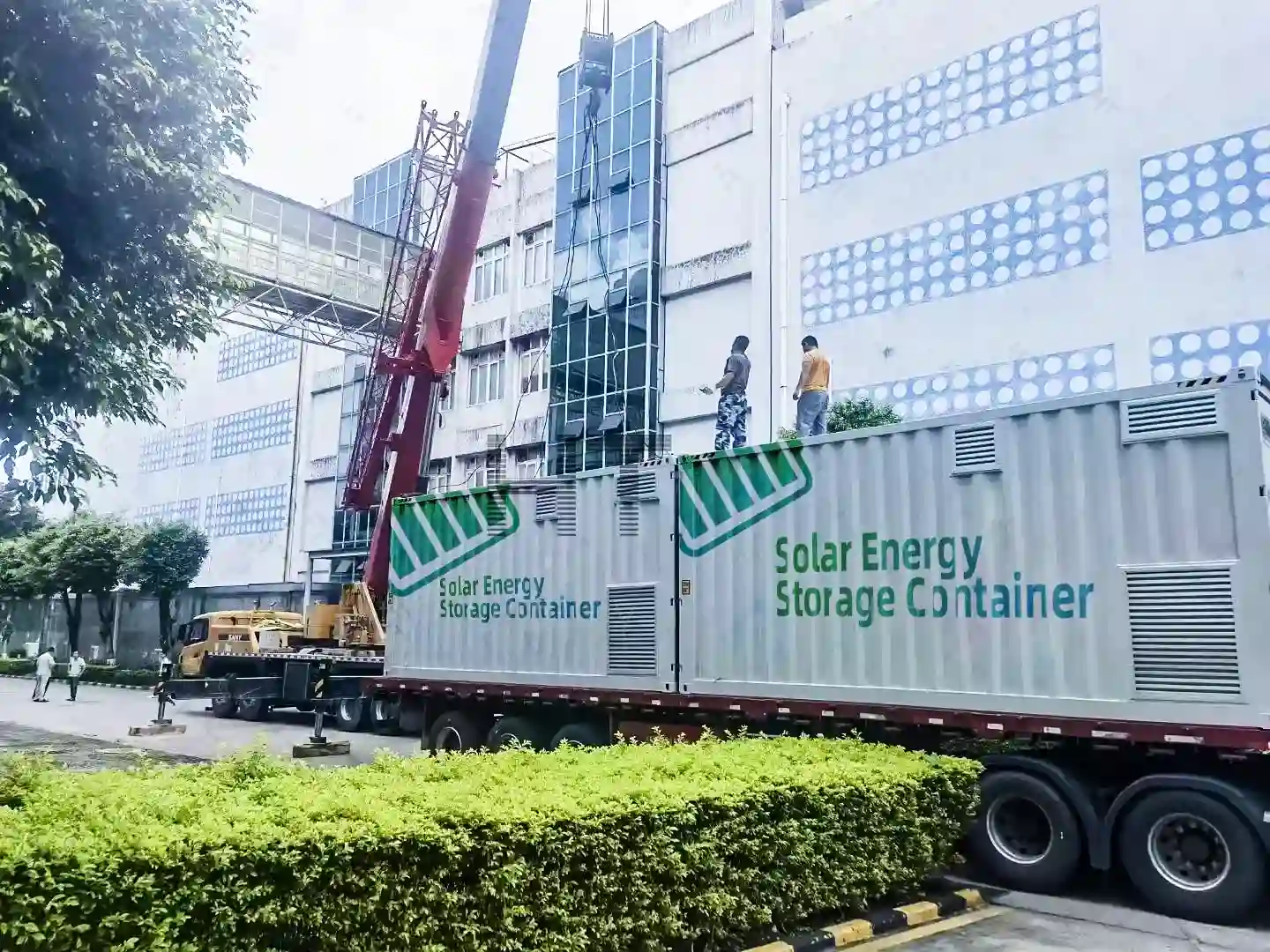

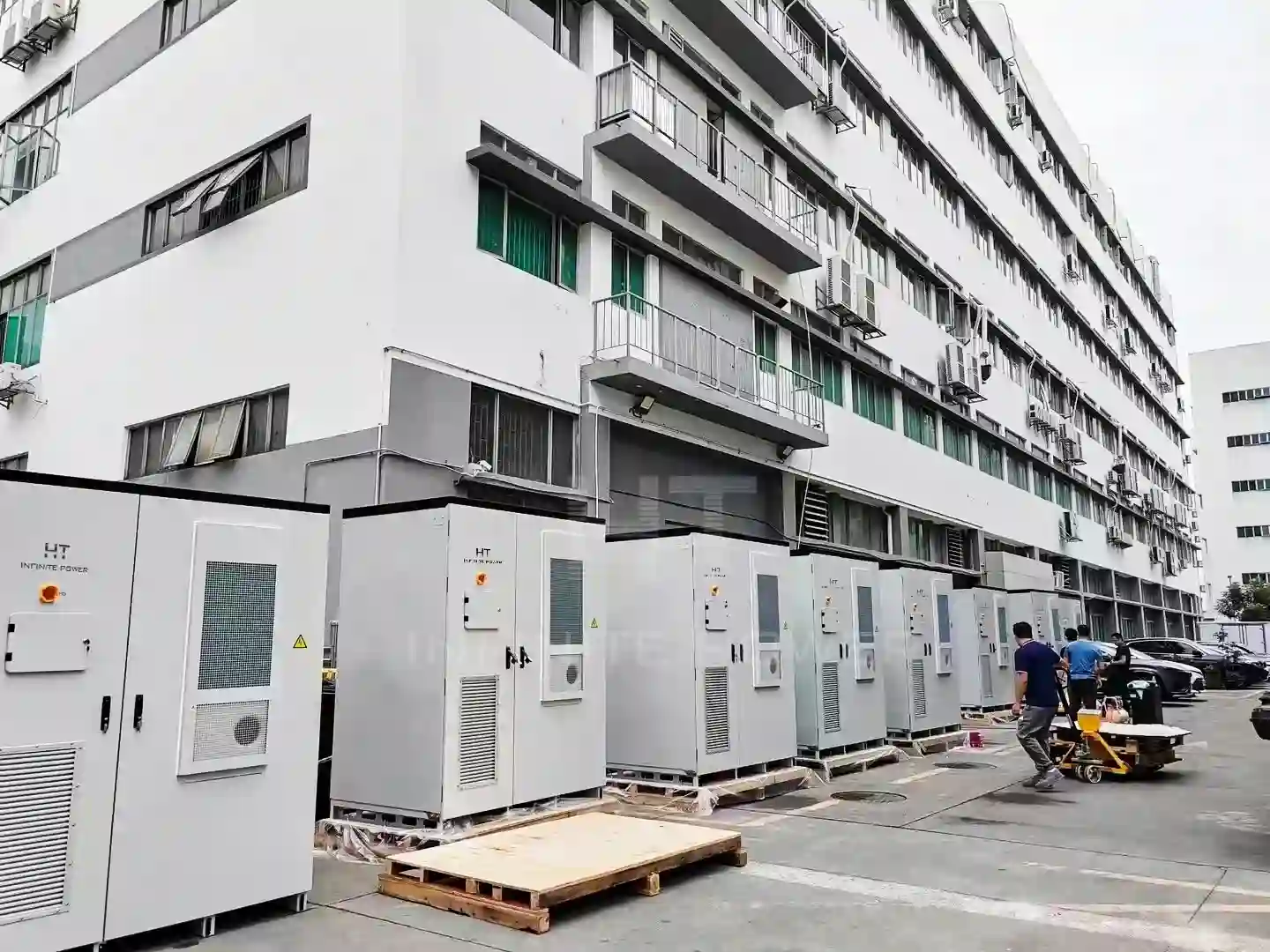

Delivery process
── 5000 kWh Battery Ess Container ──
How To Get A Suitable BESS Project ？
Collect Projets Information
Contact Us
Our Engineers Make Solutions And Quotation For You
Install
Use
FREQUENTLY ASKED QUESTIONS
── 5000 kWh Battery Ess Container ──
When your project information and requirements are confirmed, we will start to arrange production. The production cycle is about 45 to 55 days
Usually, we can do that for you. But in order to make sure all the system work safty, please contact our professional engineer to check it.
We supply 5 years warranty for the 5000 kWh ess container. After that, we will still provide you with paid after-sales service.
The design life of the whole system is 15 years, cycled once a day, and the battery EOH 70% after 15 years. Of course, the actual using life of the battery is also affected by the environment, temperature, charge and discharge current size and other factors.
Yes, We can provide on-site installation services for a fee. Free remote installation guidance is also available.
