How to Select the Right PCS for Commercial Battery Storage
author: HT infinitepower
2026-07-21
Introduction: PCS Selection Is Not Simply Matching Battery Size
In commercial BESS projects, one of the most common misunderstandings during early system discussions is:
“If we have a 500 kWh battery, should we select a 500 kW PCS?”
“If we have a 500 kWh battery, should we select a 500 kW PCS?”
This approach is often incorrect because battery capacity and PCS power rating represent different design parameters.
Battery capacity defines:
How much energy can be stored.
How much energy can be stored.
PCS power rating defines:
How much power the system can exchange between the battery and the grid at a specific moment.
How much power the system can exchange between the battery and the grid at a specific moment.
A 500 kWh battery could be paired with a 100 kW PCS, a 250 kW PCS, or a 500 kW PCS depending on the actual application requirement.
The appropriate configuration depends on:
- Required power output
- Application objective
- Operating profile
- Battery characteristics
- Grid requirements
During commercial BESS engineering evaluations, PCS selection is not performed after the battery has already been selected.
Instead, PCS and battery capacity are evaluated together because the system must satisfy both:
- How much energy needs to be stored
- How much power needs to be delivered
For example, a peak shaving project may require a high-power response for a short period, while an energy shifting project may require longer discharge duration with a different power-to-energy ratio.
The battery provides stored energy.
The PCS determines how effectively that energy can be transferred to and from the electrical system.
For this reason, PCS selection is a system-level engineering decision rather than a simple equipment matching exercise.
For this reason, PCS selection is a system-level engineering decision rather than a simple equipment matching exercise.

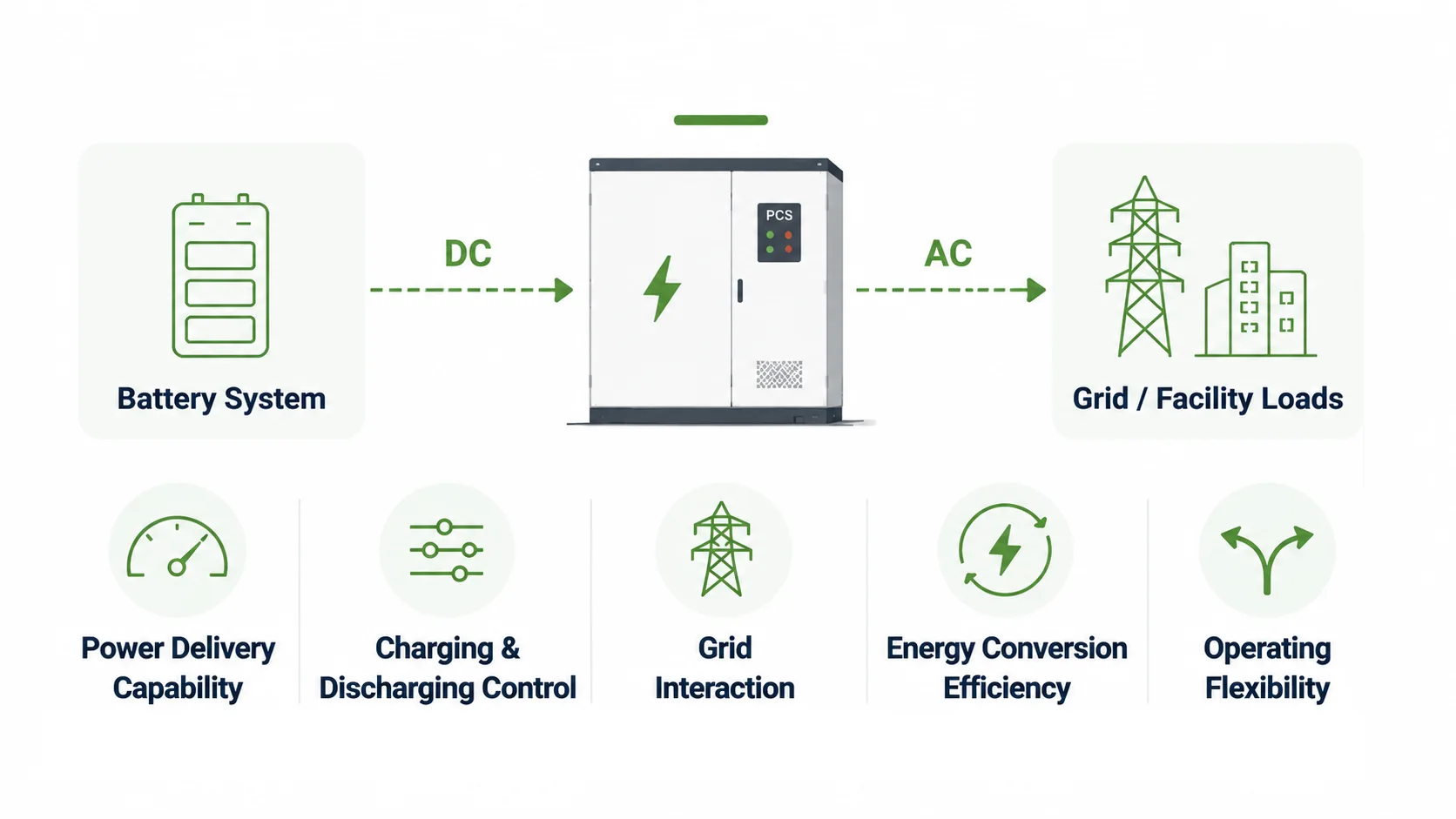

1. The Real Role of PCS in Commercial BESS Design
In a commercial battery storage system, the PCS serves as the electrical interface between the battery system and the grid or facility loads.
However, its role is much broader than basic DC-to-AC energy conversion.
During BESS system design, engineers evaluate PCS performance based on how effectively it manages energy flow between different parts of the system.
However, its role is much broader than basic DC-to-AC energy conversion.
During BESS system design, engineers evaluate PCS performance based on how effectively it manages energy flow between different parts of the system.
Key functions include:
- Power delivery capability
- Charging and discharging control
- Grid interaction
- Energy conversion efficiency
- Operating flexibility
PCS Determines Whether Stored Energy Can Be Used Effectively
A battery may contain significant stored energy, but that energy only creates value when the system can deliver it according to the project requirement.
For example, a facility may need the BESS to reduce demand by 300 kW during a short peak period.
A battery with sufficient energy capacity but insufficient PCS power cannot achieve this objective.
The stored energy exists, but the system cannot release it quickly enough.
A battery with sufficient energy capacity but insufficient PCS power cannot achieve this objective.
The stored energy exists, but the system cannot release it quickly enough.
During engineering reviews, system integrators often focus on one key question:
Can the PCS provide the required power response when the facility needs it?
This is particularly important because different applications place different demands on PCS performance.
A short-duration peak shaving project may require high power output.
A longer-duration energy shifting project may prioritize different power and energy characteristics.
The PCS therefore determines whether the stored energy in the battery can actually support the intended operating strategy.
A short-duration peak shaving project may require high power output.
A longer-duration energy shifting project may prioritize different power and energy characteristics.
The PCS therefore determines whether the stored energy in the battery can actually support the intended operating strategy.
2. Why Battery Capacity and PCS Rating Cannot Be Selected Independently
One of the most common design errors in commercial BESS projects is evaluating battery capacity without considering PCS power capability.
Battery energy and PCS power solve different engineering problems.
Battery energy and PCS power solve different engineering problems.
Consider two systems:
System A
Battery:500 kWh
PCS:100 kW
PCS:100 kW
System B
Battery:500 kWh
PCS:250 kW
PCS:250 kW
Both systems contain the same amount of stored energy.
However, their performance in a peak shaving application is completely different.
However, their performance in a peak shaving application is completely different.
Assume the facility requires: 250 kW demand reduction
System A
- Battery energy is available
- PCS output is insufficient
- Cannot achieve the required demand reduction
System B
- Battery energy is available
- PCS output matches the required power
- Can provide the required peak shaving response
The limitation in System A is not battery capacity.
The limitation is power capability.
Increasing battery size does not solve an undersized PCS.
The limitation is power capability.
Increasing battery size does not solve an undersized PCS.
During commercial BESS design, engineers evaluate:
- Required power response
- Battery discharge capability
- PCS output rating
as one integrated system decision.
A commercial battery storage system with excessive energy capacity but insufficient power capability may fail to deliver the expected application performance.

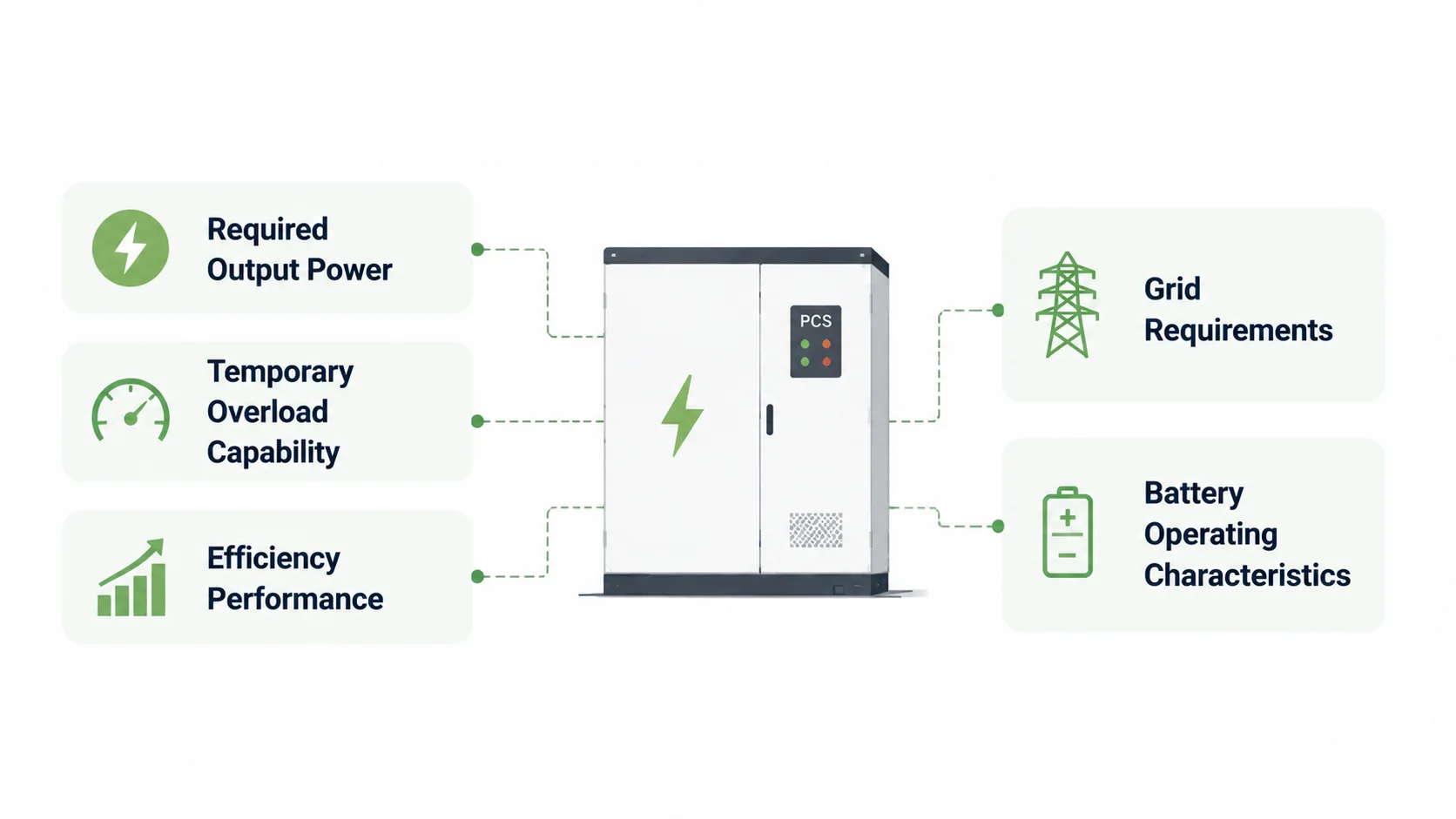

3. Key Parameters Engineers Consider When Selecting PCS
PCS selection for BESS projects requires more than choosing a rated power value.
Engineers typically evaluate:
Engineers typically evaluate:
- Required output power
- Temporary overload capability
- Efficiency performance
- Grid requirements
- Battery operating characteristics
3.1 Rated Power Capacity
The PCS rated power should be determined by the actual application requirement.
Engineers typically consider:
Engineers typically consider:
- Required peak reduction
- Maximum charging/discharging power
- Operating strategy
- Grid interaction requirements
The PCS rating should not be selected simply by matching the battery kWh value.

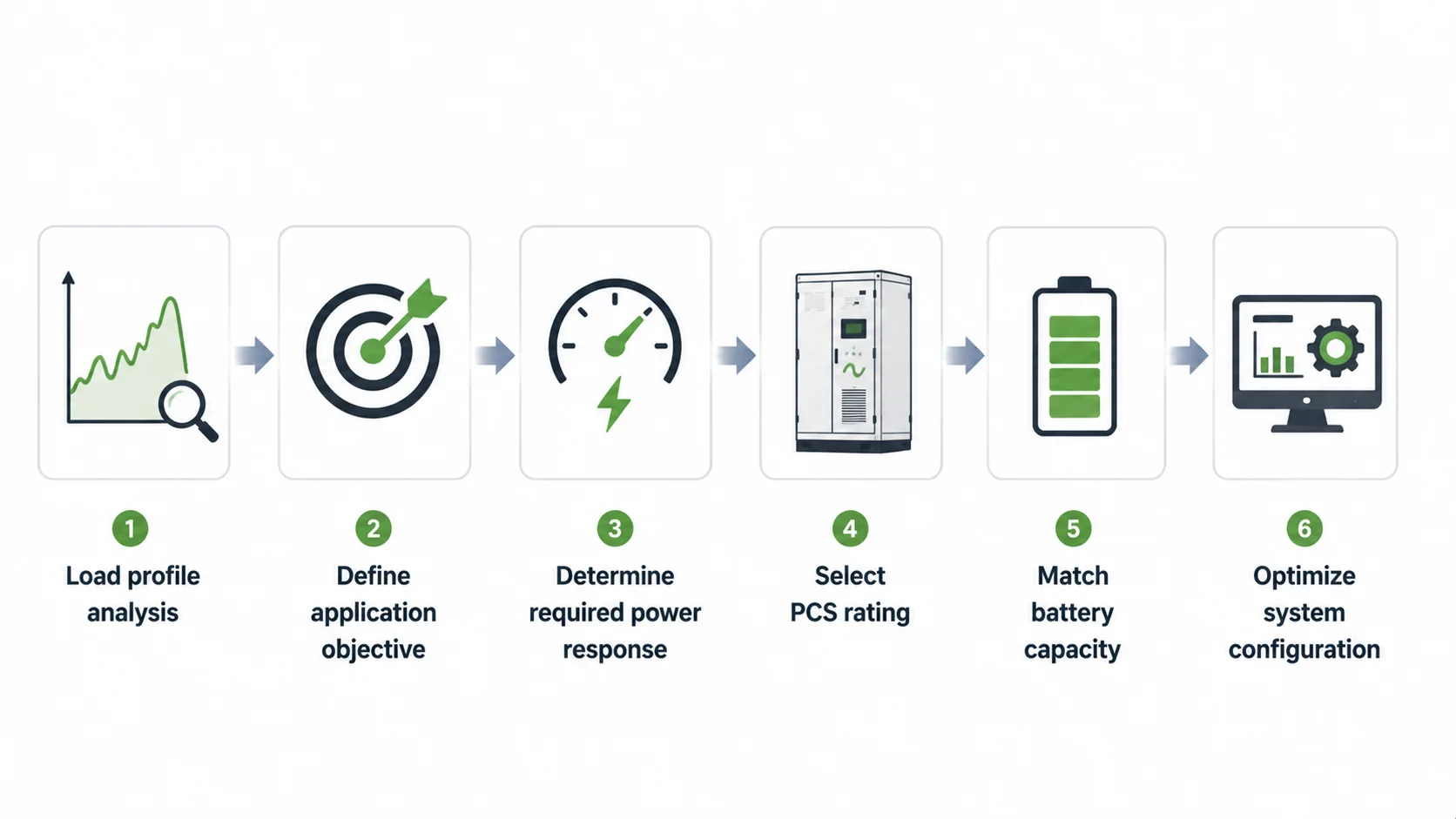

Instead, engineers first determine the required power response identified during load profile analysis and then select a PCS capable of delivering that response under real operating conditions.
For example:
A 1 MWh battery does not automatically require a 1 MW PCS.
The appropriate PCS size depends on how the system will operate.
A peak shaving application may require a higher power rating for a shorter duration, while an energy shifting application may use a different power-to-energy configuration.
During engineering evaluation, the required power response is defined first, and the PCS rating is selected to satisfy that requirement.
A 1 MWh battery does not automatically require a 1 MW PCS.
The appropriate PCS size depends on how the system will operate.
A peak shaving application may require a higher power rating for a shorter duration, while an energy shifting application may use a different power-to-energy configuration.
During engineering evaluation, the required power response is defined first, and the PCS rating is selected to satisfy that requirement.
3.2 Overload Capability
Commercial BESS projects may occasionally experience short-duration power requirements above normal operating levels.
For this reason, engineers evaluate PCS overload capability.
For this reason, engineers evaluate PCS overload capability.
Important factors include:
- Maximum overload percentage
- Allowable overload duration
- Thermal limitations
- mpact on equipment lifetime
Overload capability can provide additional flexibility during temporary operating events.
However:
Overload capability should be considered as a temporary performance margin rather than a replacement for proper PCS sizing.
A PCS should not be selected below the required continuous power level simply because it can temporarily operate above its rated output.
During system design, engineers first determine the required rated power and then evaluate whether overload capability provides additional operational value.
A PCS should not be selected below the required continuous power level simply because it can temporarily operate above its rated output.
During system design, engineers first determine the required rated power and then evaluate whether overload capability provides additional operational value.
3.3 Efficiency Performance
PCS efficiency is often compared using the maximum efficiency value shown in technical specifications.
However, real commercial projects rarely operate continuously at maximum load.
However, real commercial projects rarely operate continuously at maximum load.
During PCS selection, engineers evaluate efficiency performance under realistic operating conditions, including:
- Partial-load operation
- Typical daily operating range
- Annual operating hours
- Expected charging and discharging patterns
For example, a PCS operating most of the time at low or medium load may experience different energy losses compared with a system operating near rated power.
Therefore, engineers review efficiency curves rather than only comparing the highest efficiency percentage.
Therefore, engineers review efficiency curves rather than only comparing the highest efficiency percentage.
Partial-load efficiency affects:
- Annual energy losses
- Operating cost
- Long-term system economics
For a commercial battery storage system, a PCS with suitable efficiency performance across the expected operating range may provide better lifecycle performance than one selected only for its maximum efficiency rating.
3.4 Grid Requirements and Control Capability
Depending on the project requirements, commercial BESS applications may require additional PCS functions.
These may include:
- Grid synchronization capability
- Reactive power control
- Power factor adjustment
- Grid support functions
For industrial and commercial facilities, these capabilities influence how effectively the BESS interacts with the electrical infrastructure.
During project development, engineers evaluate both:
- The energy storage objective
- The electrical requirements of the site
The PCS must satisfy both aspects to ensure reliable system operation.

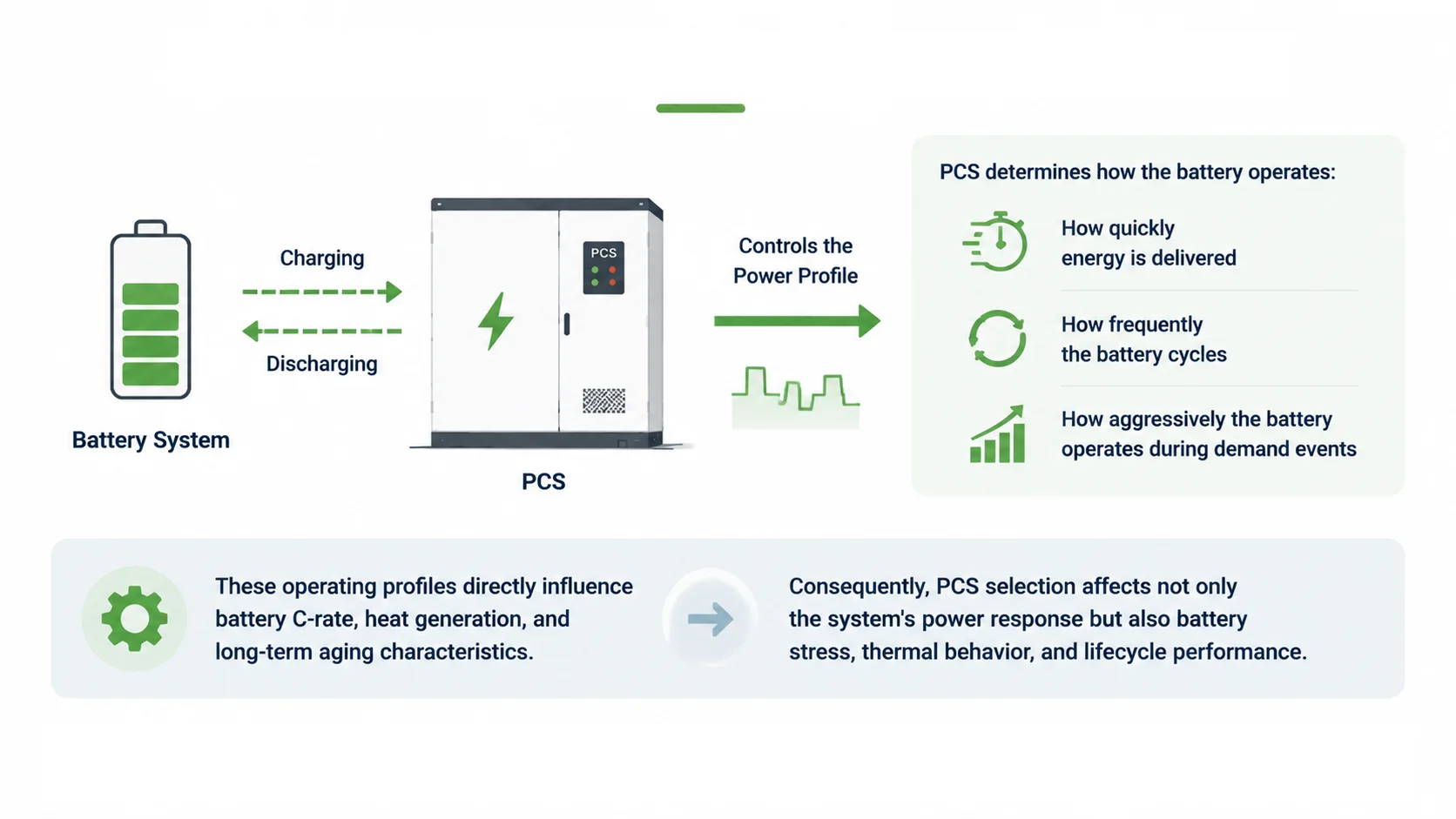

4. How PCS Selection Affects Battery Performance and System Lifetime
PCS selection directly influences how the battery operates throughout its lifecycle.
The PCS controls the actual charging and discharging power profile of the battery, including:
- How quickly energy is delivered
- How frequently the battery cycles
- How aggressively the battery operates during demand events
These operating profiles directly influence battery C-rate, heat generation, and long-term aging characteristics. Consequently, PCS selection affects not only the system's power response but also battery stress, thermal behavior, and lifecycle performance.
C-Rate Operation and Battery Stress
The same battery capacity can experience very different operating conditions depending on the PCS rating.
For example, a battery connected to a higher-power PCS may experience higher discharge rates during operation.
For example, a battery connected to a higher-power PCS may experience higher discharge rates during operation.
A higher C-rate can affect:
- Battery temperature rise
- Internal cell stress
- Available cycle life
- Long-term capacity retention
This does not mean a higher-power PCS is always unsuitable.
Rather, engineers need to ensure that the PCS output capability matches the battery characteristics and the expected operating strategy.
Rather, engineers need to ensure that the PCS output capability matches the battery characteristics and the expected operating strategy.
Thermal Stress and Degradation
Charging and discharging power directly influence heat generation inside the battery system.
An improperly matched PCS can result in:
- Higher thermal load
- More frequent high-power operation
- Increased degradation rate
During commercial BESS engineering, the battery and PCS are evaluated together to ensure that the system can achieve the required performance without creating unnecessary operational stress.
A well-designed system balances:
- Required power response
- Battery operating limits
- Expected cycle frequency
- Lifetime performance requirements
The PCS is not only a power conversion device.
It is one of the main components controlling how the battery is used throughout the project lifecycle.
It is one of the main components controlling how the battery is used throughout the project lifecycle.

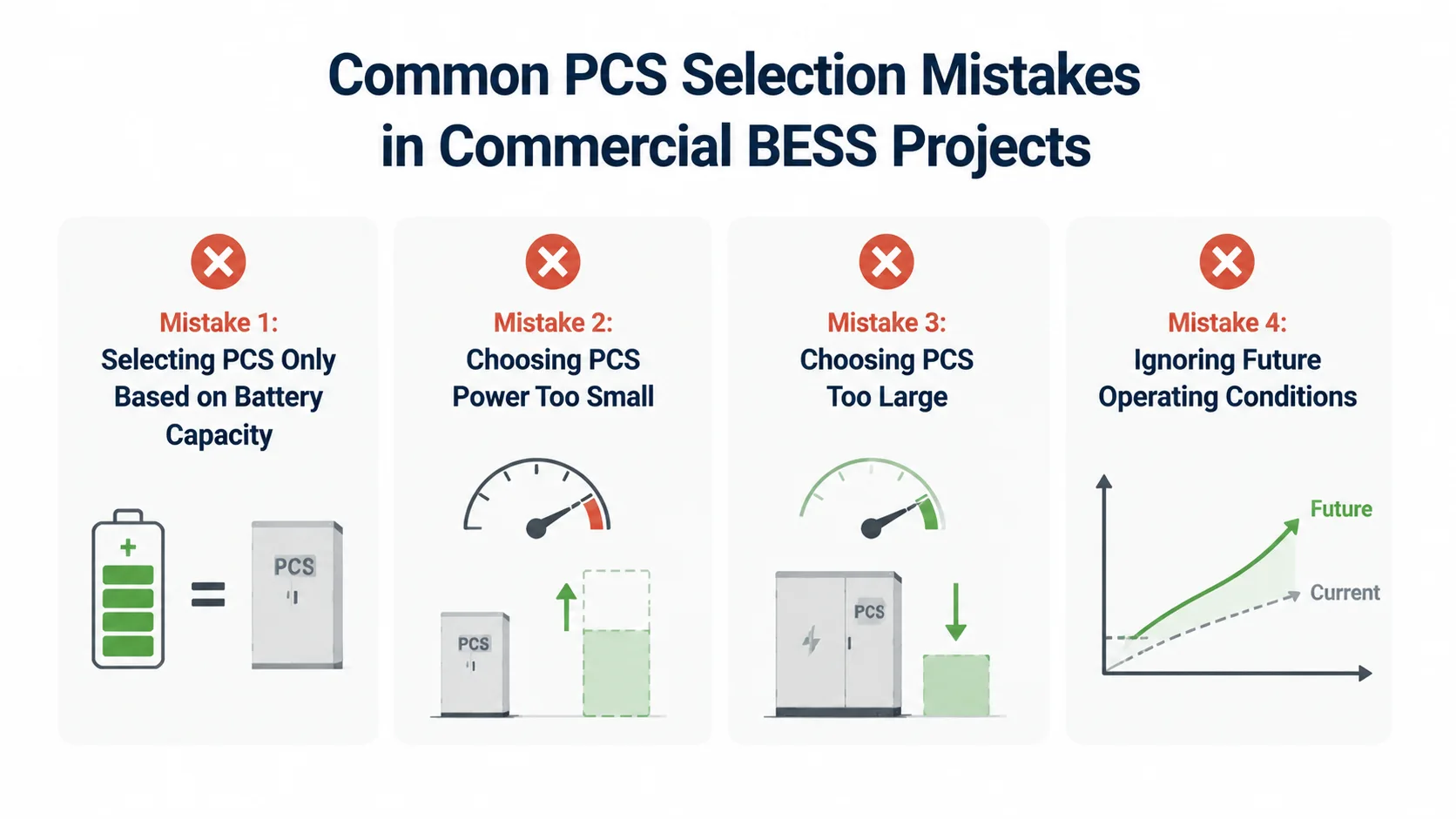

5. Common PCS Selection Mistakes in Commercial BESS Projects
Although PCS technology has become increasingly mature, incorrect sizing decisions still occur in commercial BESS projects.
Most problems come from treating PCS selection as an equipment purchase decision rather than a system engineering decision.
Most problems come from treating PCS selection as an equipment purchase decision rather than a system engineering decision.
Mistake 1: Selecting PCS Only Based on Battery Capacity
A common assumption is:
500 kWh battery = 500 kW PCS
However, battery capacity only describes stored energy.
It does not define the required power output.
500 kWh battery = 500 kW PCS
However, battery capacity only describes stored energy.
It does not define the required power output.
A system designed for:
- Peak shaving
- Energy shifting
- Backup power
- Grid support
may require completely different PCS ratings even with the same battery capacity.
The PCS should be selected based on what the system needs to do, not only how much energy the battery stores.
The PCS should be selected based on what the system needs to do, not only how much energy the battery stores.
Mistake 2: Choosing PCS Power Too Small
An undersized PCS may limit the entire BESS performance.
Potential consequences include:
- Unable to achieve required peak reduction
- Limited application capability
- Lower project value
For example, if a facility requires 250 kW demand reduction but the PCS can only deliver 100 kW, increasing battery capacity will not solve the problem.
The system has energy available but cannot provide sufficient power output.
The system has energy available but cannot provide sufficient power output.
Mistake 3: Choosing PCS Too Large
Oversizing PCS capacity can also create disadvantages.
Potential issues include:
- Higher equipment cost
- Lower utilization rate
- Reduced economic efficiency
A larger PCS provides additional power capability, but that capability only creates value when the project actually requires it.
During engineering evaluation, designers balance future flexibility with current project requirements.
During engineering evaluation, designers balance future flexibility with current project requirements.
Mistake 4: Ignoring Future Operating Conditions
Commercial energy projects may change over time.
Future conditions may include:
- Production expansion
- Different electricity tariff structures
- Additional energy management functions
However, future planning does not mean simply selecting the largest available PCS.
Engineers evaluate realistic future requirements and select a configuration that provides appropriate flexibility without unnecessary oversizing.
Engineers evaluate realistic future requirements and select a configuration that provides appropriate flexibility without unnecessary oversizing.
6. Engineering Logic: PCS Selection Starts From Application Requirements
The correct PCS selection process begins with understanding what the BESS must achieve.
A typical engineering sequence is:
Load profile analysis
↓
Define application objective
↓
Determine required power response
↓
Select PCS rating
↓
Match battery capacity
↓
Optimize system configuration
A typical engineering sequence is:
Load profile analysis
↓
Define application objective
↓
Determine required power response
↓
Select PCS rating
↓
Match battery capacity
↓
Optimize system configuration
Load profile analysis provides more than information about energy consumption patterns.
It also helps determine the required power response of the BESS.
For example:
A facility with short-duration demand peaks may require:
A facility with short-duration demand peaks may require:
- Higher PCS power capability
- Shorter discharge duration
- Different battery configuration
A facility performing longer-duration energy shifting may require:
- Different power-to-energy ratio
- Longer battery discharge duration
- Different PCS operating strategy
Therefore, load profile analysis and battery capacity sizing provide the input conditions, while PCS selection translates those requirements into actual power capability.
The incorrect approach is:
Choose battery first → Add PCS later
The engineering approach is:
Define application requirement → Determine power requirement → Select PCS → Match battery energy
This ensures that the PCS and battery operate as one coordinated system.
Define application requirement → Determine power requirement → Select PCS → Match battery energy
This ensures that the PCS and battery operate as one coordinated system.
7. Scenario Example: Selecting a PCS for a 250kW Peak Shaving Project
Consider an industrial facility evaluating a commercial BESS installation.
Site conditions:
Site conditions:
Current peak demand:1,500 kW
Target demand reduction:250 kW
Required peak shaving duration:2 hours
Target demand reduction:250 kW
Required peak shaving duration:2 hours
The engineering objective is to reduce grid demand by approximately 250 kW during peak periods.
Step 1: Determine Required PCS Power
Required demand reduction:250 kW
Therefore, the BESS requires approximately:250 kW power output capability
Therefore, the BESS requires approximately:250 kW power output capability
The PCS must be capable of delivering this power level.
Step 2: Determine Battery Energy Requirement
Required duration:2 hours
Battery usable energy calculation:250 kW × 2 hours=500 kWh usable energy
Battery usable energy calculation:250 kW × 2 hours=500 kWh usable energy
This represents the required usable energy needed to maintain the peak shaving function.
However, it should not automatically be considered the final installed battery capacity.
However, it should not automatically be considered the final installed battery capacity.
The actual battery configuration may need additional capacity depending on:
- DoD limitations
- System efficiency
- Battery degradation allowance
- Operating margin
Why a 100 kW PCS Is Not Suitable
A 100 kW PCS paired with a 500 kWh battery would provide:
- Sufficient stored energy
- Insufficient power output
The system would not be able to achieve the required 250 kW peak reduction.
The limitation comes from PCS power capability rather than battery capacity.
The limitation comes from PCS power capability rather than battery capacity.
Why a Much Larger PCS May Not Provide Additional Value
A larger PCS could provide more power capability.
However, if the facility only requires 250 kW demand reduction, excessive PCS capacity may result in:
- Higher equipment cost
- Lower utilization
- Reduced economic efficiency
Additional PCS capacity should be justified by actual operating requirements.
Engineering Decision
For this project scenario:
Required PCS power:Approximately 250 kW
Required usable battery energy:Approximately 500 kWh
Required PCS power:Approximately 250 kW
Required usable battery energy:Approximately 500 kWh
Final system configuration:
Determined after considering:
Determined after considering:
- Battery characteristics
- DoD
- Efficiency
- Degradation
- Project operating requirements
The PCS manages the power response.
The battery provides the required operating duration.
The two components must be selected together to achieve the intended BESS performance.
This example illustrates why engineers begin with the required power response and operating duration rather than selecting battery capacity or PCS size independently.
The battery provides the required operating duration.
The two components must be selected together to achieve the intended BESS performance.
This example illustrates why engineers begin with the required power response and operating duration rather than selecting battery capacity or PCS size independently.
Conclusion
PCS selection for commercial BESS projects is not a simple equipment matching decision.
A battery capacity value alone does not determine the correct PCS size.
A battery capacity value alone does not determine the correct PCS size.
Engineers select PCS based on:
- Required power capability
- Application objective
- Operating conditions
- Battery characteristics
- Grid requirements
A successful commercial BESS design requires coordination between:
Load requirement
+
PCS power capability
+
Battery energy capacity
+
Operating strategy
Load requirement
+
PCS power capability
+
Battery energy capacity
+
Operating strategy
The correct PCS is not the largest available option.
It is the PCS configuration that matches the actual operational requirements of the project while maintaining efficient and reliable performance.
PCS selection is only one stage of complete commercial BESS design.
It is the PCS configuration that matches the actual operational requirements of the project while maintaining efficient and reliable performance.
PCS selection is only one stage of complete commercial BESS design.
A fully engineered system also requires coordination with:
- Load profile analysis
- Battery capacity sizing
- EMS strategy
- Cooling design
- Safety engineering
Each element affects the final system performance. PCS, battery, and other subsystems must operate together as one integrated energy storage solution.
Selecting the right PCS is not an isolated equipment decision. It is one step in the complete commercial battery storage system design process, where load profile analysis, battery sizing, EMS strategy, cooling design, and safety engineering all work together to determine overall system performance.
FAQ
1. How do engineers select PCS size for commercial BESS projects?
Engineers select PCS size based on the required power output of the application, including peak reduction requirements, energy shifting needs, and grid interaction requirements.
Battery capacity alone does not determine PCS rating.
Battery capacity alone does not determine PCS rating.
2. Can a larger battery compensate for an undersized PCS?
No.
A larger battery increases stored energy, but it cannot increase the maximum power output of an undersized PCS.
If the PCS cannot deliver the required power, the system cannot achieve the intended application performance.
A larger battery increases stored energy, but it cannot increase the maximum power output of an undersized PCS.
If the PCS cannot deliver the required power, the system cannot achieve the intended application performance.
3. What factors affect PCS selection?
Key factors include:
- Required power output
- Application objective
- Efficiency performance
- Overload capability
- Grid requirements
- Battery operating characteristics
4. How does PCS rating affect peak shaving performance?
PCS rating determines how much power the BESS can deliver during demand peaks.
If PCS output is below the required demand reduction level, the system cannot achieve the expected peak shaving result, regardless of battery capacity.
If PCS output is below the required demand reduction level, the system cannot achieve the expected peak shaving result, regardless of battery capacity.
5. Should PCS power always match battery capacity?
No.
PCS power should match the application requirement rather than directly matching battery kWh.
Different commercial BESS applications may require different power-to-energy ratios depending on operating objectives.
PCS power should match the application requirement rather than directly matching battery kWh.
Different commercial BESS applications may require different power-to-energy ratios depending on operating objectives.
6. Can one PCS support multiple battery capacities?
Yes. In many commercial BESS projects, the same PCS power rating can be paired with different battery capacities depending on the required discharge duration. For example, a 250 kW PCS may be used with a 500 kWh battery for approximately two hours of operation or with a larger battery for longer-duration applications. The appropriate configuration depends on the project's load profile and operating objectives.
Why Cooling Is a System-Level Engineering Decision
How to Size Battery Capacity for Peak Shaving Projects
