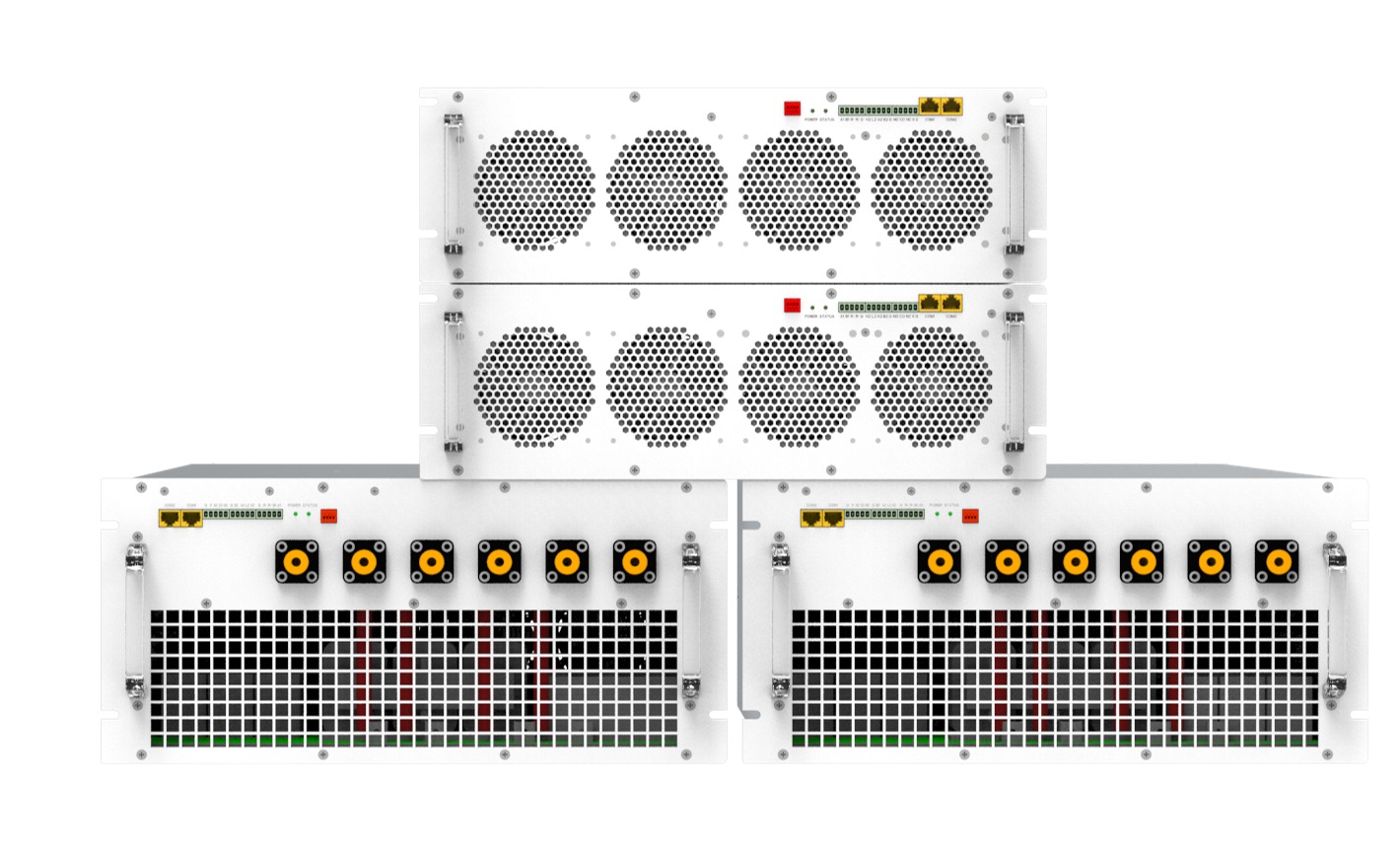

125kW AC DC Power Module Features
● Adopting a three-level topology, the maximum efficiency can reach 99% and the power quality is better
● lt supports constant current, constant power, MPPT, AC voltage source control, and has a black start function
● Adopting a standard rack-mounted modular design, it is flexible in configuration,convenient in maintenance, and easy to expand
● Compatible with three-phase four-wire systems, it can meet both off-grid and grid-connected requirements
● Adopting patented harmonic suppression technology, it is suitable for diversified scenarios such as industrial parks and micro-grids
● It is suitable for 52s Pack and can meet various battery pack requirements.Modular design allows for easy parallel operation, facilitating the formation of 250kW, 500kW, and 1MW multi-cluster management solutions with convenient expansion
Certifications
IEC50549；IEC62109；IEC61000；IEC61683；IEC60068；IEC62477；EN62477；IEC61727；IEC62116；NRS097
125kW AC DC Power Module Parameter
Model:
Rated Power:
Max. Power:
DC operating voltage range:
DC side full load voltage range :
Max.direct current:
Rated AC voltage:
Rated frequency:
Rated AC current:
Overload capacity :
Current distortion :
Power Factor Adjustment Range:
Adapts battery:
Charging mode:
Mode of operation:
Max. efficiency:
Dimensions (W*D*H):
Weight (approx):
Isolation Mode:
Anti-corrosion grade:
Application environment protection level:
Ingress Protection:
Ambient temperature：
Relative humidity：
Cooling mode：
Noise：
Altitude：
Communication interface：
HT-125AC
125kW
137kW
580~1000V(3W+PE);680~1000V(3W+N+PE)
625~1000V(3W+PE);680~1000V(3W+N+PE)
200A
400VAC,3W+PE/3W+N+PE
50/60Hz(±5Hz)
180A
110%,normal operation;120%,1 minute
<3% (Rated power)
-1 leading to+1 lagging
Lithium/Lead-acid/Photovoltaic module/DC busbar
BMS command/Tri-stag/MPPT
Constant current constant power, MPPT,AC voltage source
99%
566(Mounting lug 520 not included)*680*245mm
68kg
No isolation
C3
Module built into outdoor cabinet lP55
IP65 Optional
-30℃ to+60℃(derate above 45℃)
0 to 100% (no condensation）
Intellgent air-cooled
<70db
3000m(＞3000m reduction,Not recommended for use at altitudes above 4000m）
RS485/CAN2.0/Dry contact
125kW AC DC Power Module Topology

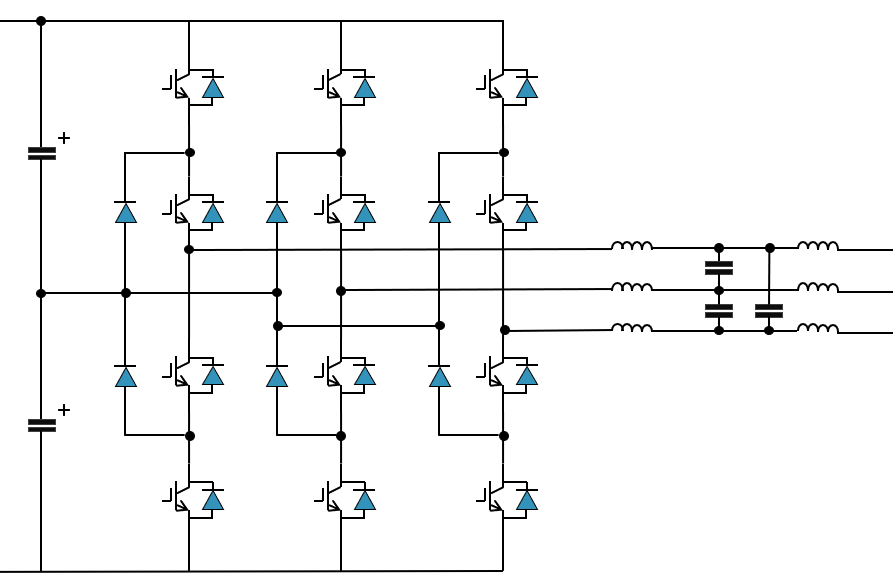

◎Three-level circuit design, high conversion efficiency, improved energy utilization
◎Supports parallel expansion of multiple 125kW AC DC power modules
125kW AC DC Power Module Application Scenario Diagram
◎AC/DC Multi-port Three-phase unbalance control
For more information about DC DC modules, please refer to
For more information about STS modules, please refer to

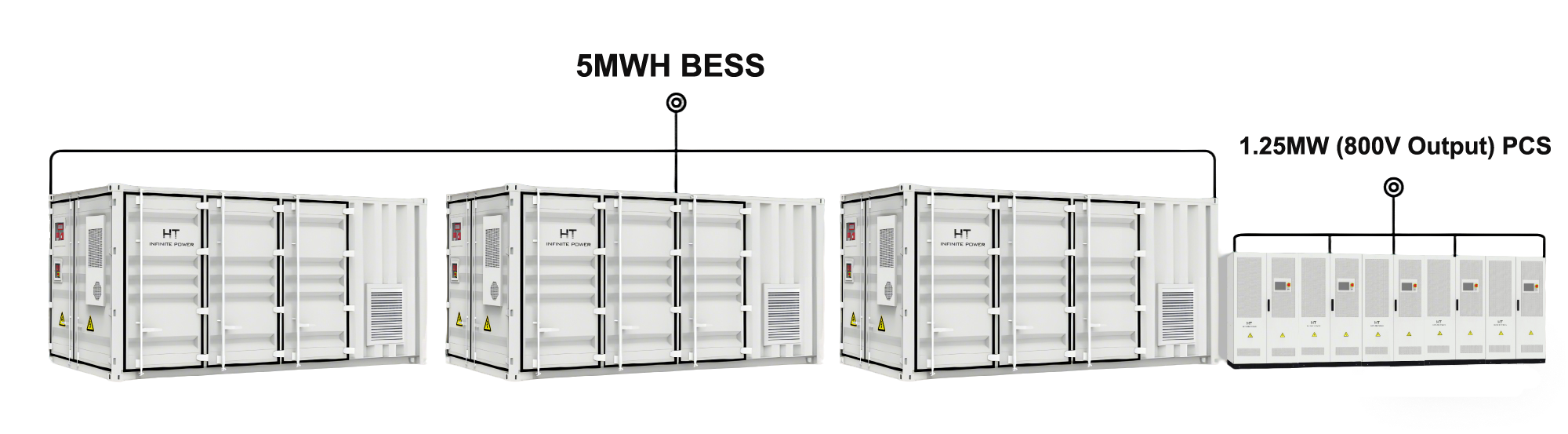

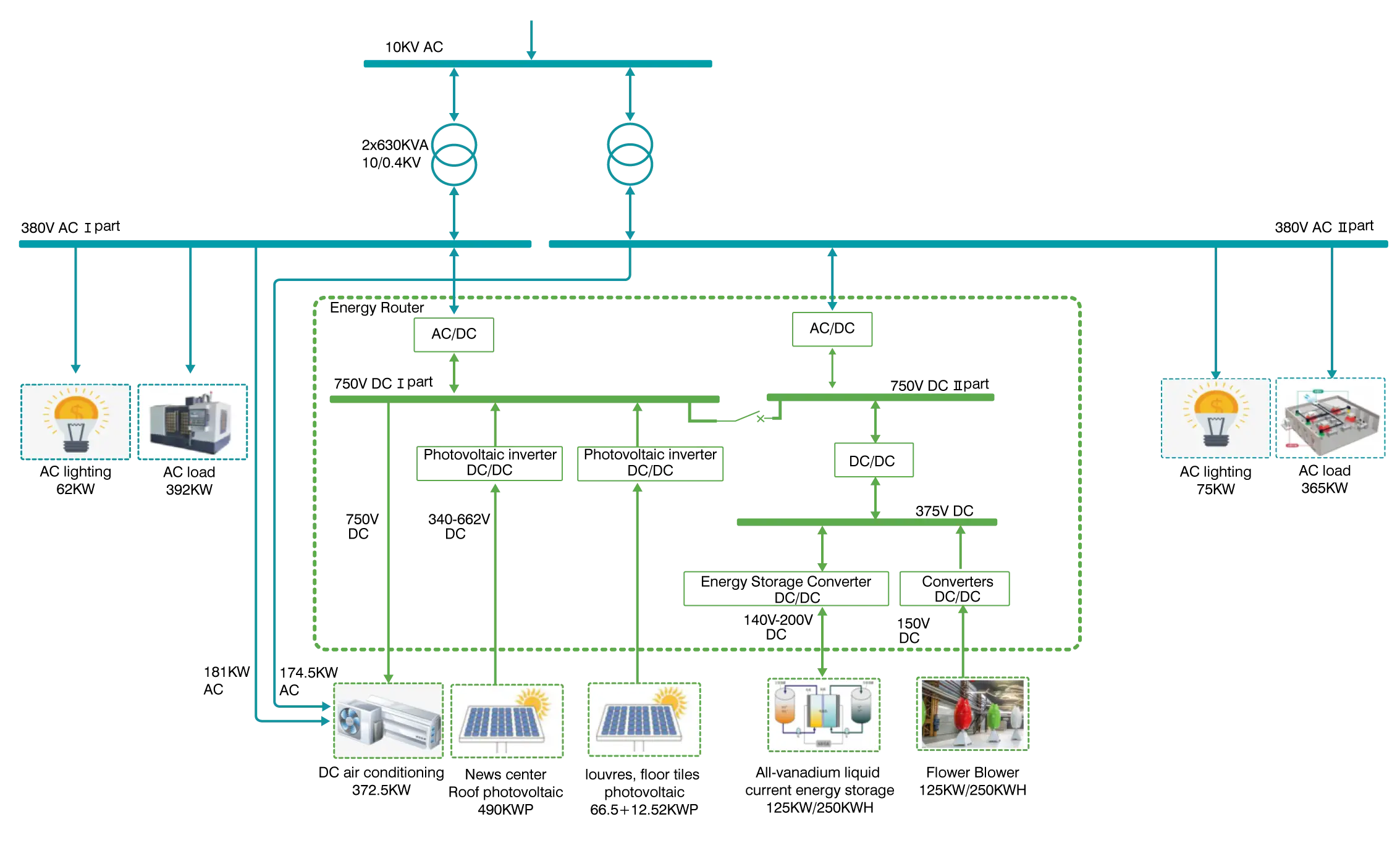

Application of 125kW AC DC Power Modules
─── In the construction of zero-carbon buildings/zero-carbon parks/zero-carbon towns ───
●Photovoltaic + energy storage, high energy storage ratio capacity
●AC and DC double busbars, photovoltaic DC side coupling
For more energy storage batteries, please refer to
HT 125kW AC DC Power Module Product Details
FREQUENTLY ASKED QUESTIONS
─── About 125kW AC DC Power Module ───

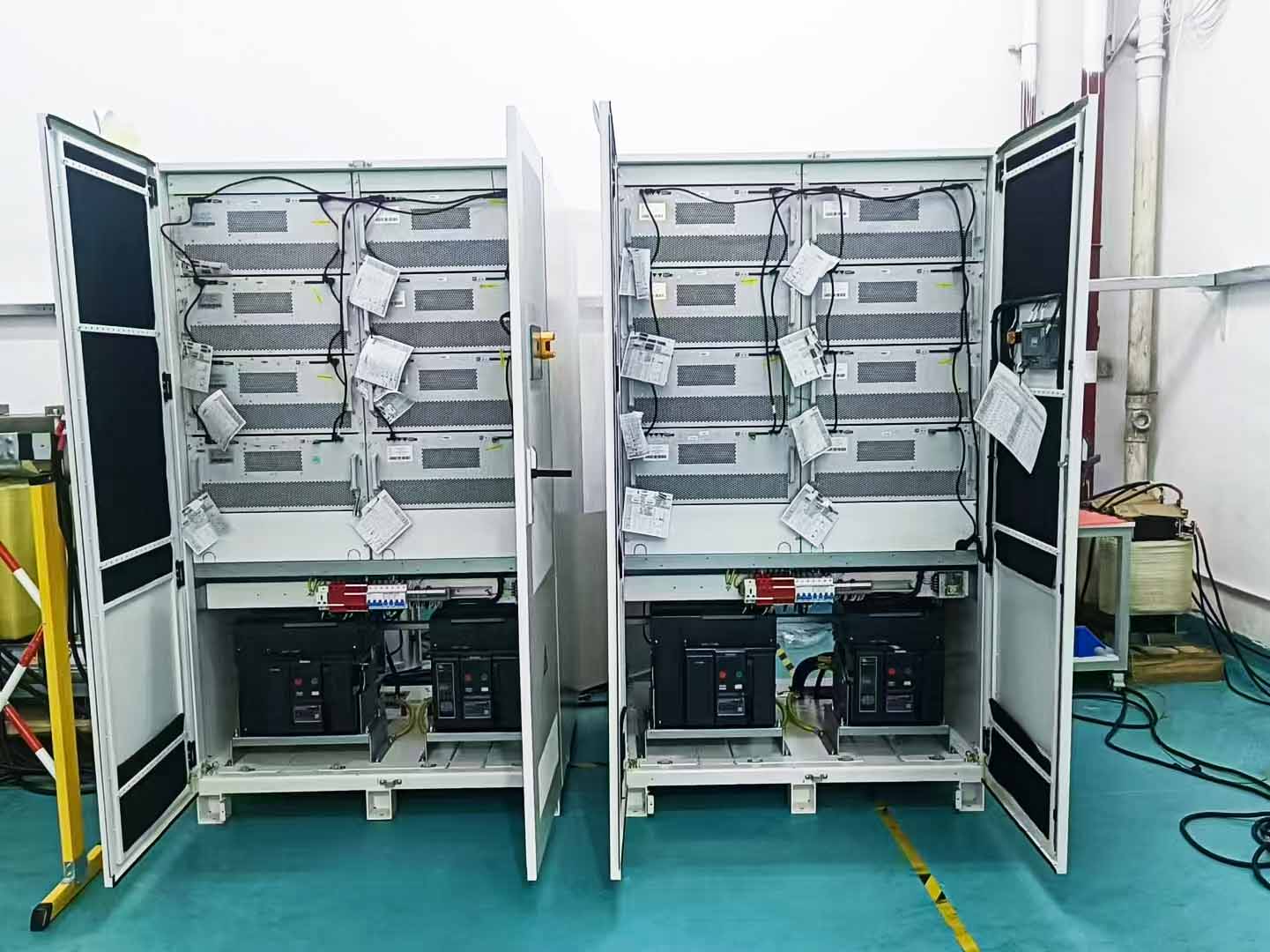

Support expansion to 5MW ac dc power module cabinet
Standard output 400V, supports customized 690V or 800V output
Maximum conversion efficiency 99%
The maximum supported power output is 110%, 137kW for long-term operation, and 150KW for 10 minutes
Standard warranty is 2 years, which can be extended to 5 years
Yes, the 125Kw ac dc power module supports access to the photovoltaic system and can output a standard 400V voltage to power the load
Yes, our 125Kw ac dc power module supports function customization, welcome to consult
Our 125kw ac dc power module has been listed in Belgium, Netherlands, South Africa, Hungary, Thailand, UK, Italy, Poland. More countries are in progress. Please consult our sales staff for your country's listing
Yes. We have IP65 125kW ac dc power modules that meet outdoor use conditions. When you use IP20 125kW ac dc power modules for parallel expansion, we can also integrate them in outdoor cabinets to meet outdoor use conditions
