HT STS Power Module
HT STS Power Module Characteristics
The maximum efficiency can reach 99%, and the power quality is better
Intelligent grid-connected and off-grid switching, switching time <10ms
Standard rack-mounted modular design, flexible configuration, convenient maintenanceand easy expansion
HT STS Power Module Parameters
The parameters of the STS power module are as follows
Rated power：
Maximum power：
Rated AC voltage：
Rated frequency：
Rated AC current：
Switching time：
Size (W * D * H)：
Weight (approx.)：
Protection level：
Operating temperature：
Relative humidity：
Cooling mode：
Noise：
Altitude：
Communication interface：
150kW
165kW
400Vac，3W+PE
50/60Hz（±5Hz）
216A
＜10ms
483*600*150mm
25kg
IP20
-25℃~+60℃（with derating at temperatures above 45℃）
0~95%（No condensation）
Intelligent air cooling
＜70dB
3000m（> 3000m reduction）
CAN
HT STS Power Module Function Introduction

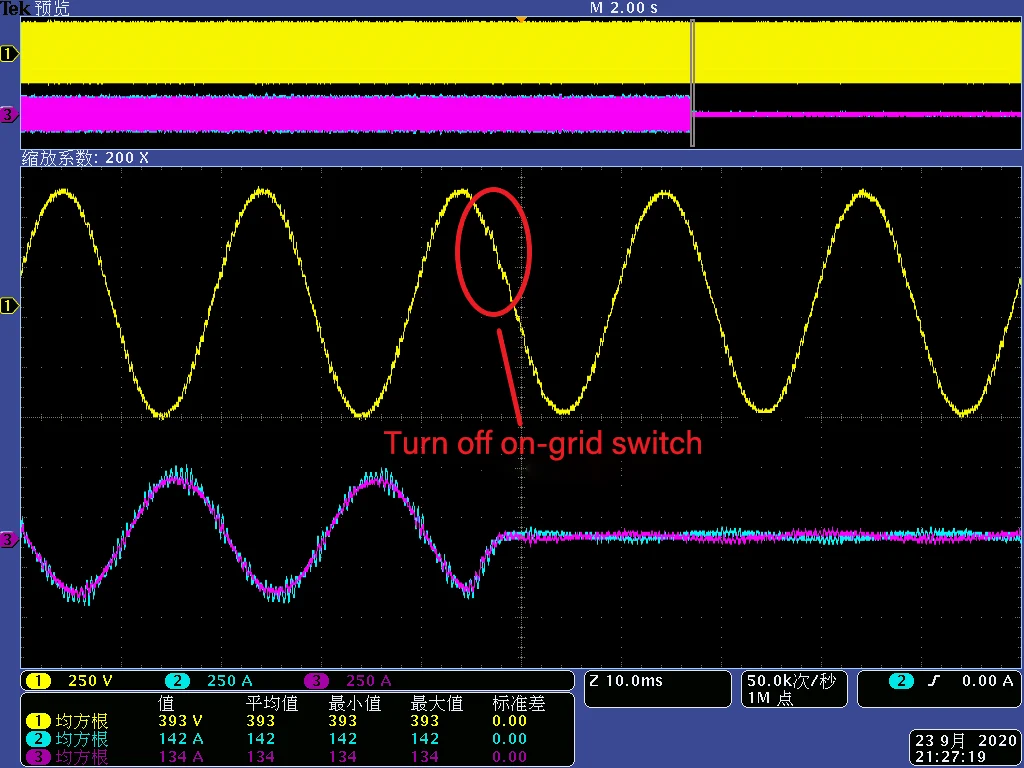

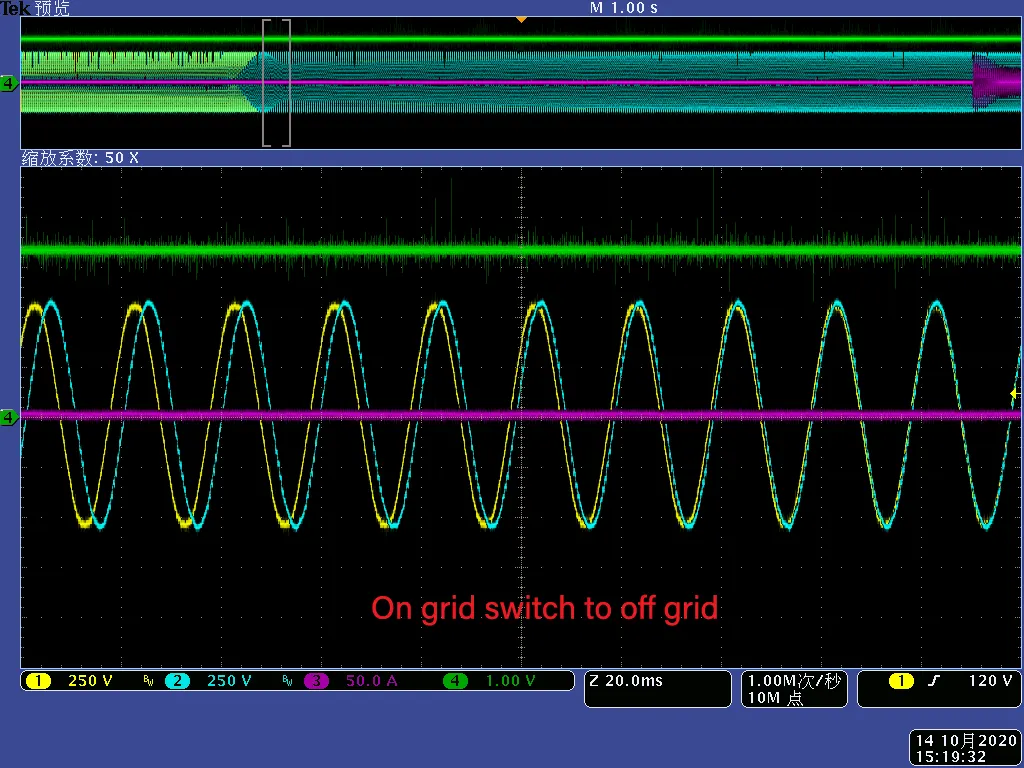

◎Power supply + seamless switching
◎And seamlessly switch from the network
◎UPS type energy storage, uninterrupted power supply
◎Off grid switch to on grid

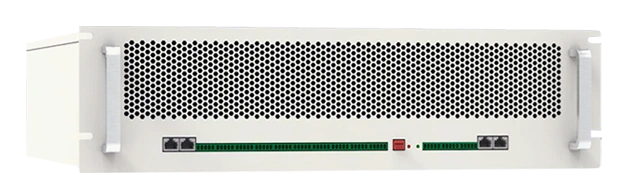

HT STS Power Module Appearance
① Signal interface ② Grid interface(From left to right, A, B, C) ③ PCS interface(From left to right,A, B, C) ④ Grounding hole ⑤ External power supply interface
FREQUENTLY ASKED QUESTIONS
─── About HT STS Power Module ───
We provide a 3-year warranty, and we can also extend the warranty period according to your needs. Please contact our sales staff
Generally, we recommend that the STS power be 1.5 times the PCS output power
For example, for a 300kW PCS, we recommend that the STS power be no less than 450kW
