DC DC Power Supply Module Features
High efficiency and energy saving
The three-level circuit design of the dc dc power supply module has high conversion efficiency and improves the utilization rate of electric energy; through the maximum power point tracking (MPPT), the photovoltaic modules always work at the maximum power point to improve the power generation efficiency
Flexible and convenient
Adaptive access to various types of batteries or photovoltaic modules, with MPPT function; modular rack design, flexible configuration, convenient expansion and maintenance; multi-module parallel operation, easy maintenance, single module failure, other modules can still work normally
Safe and reliable
staggered control advanced technology, small ripple current, extended battery life; there are two types of indoor and outdoor cabinets to meet the needs of various installation sites, strong environmental adaptability
Cloud intelligence

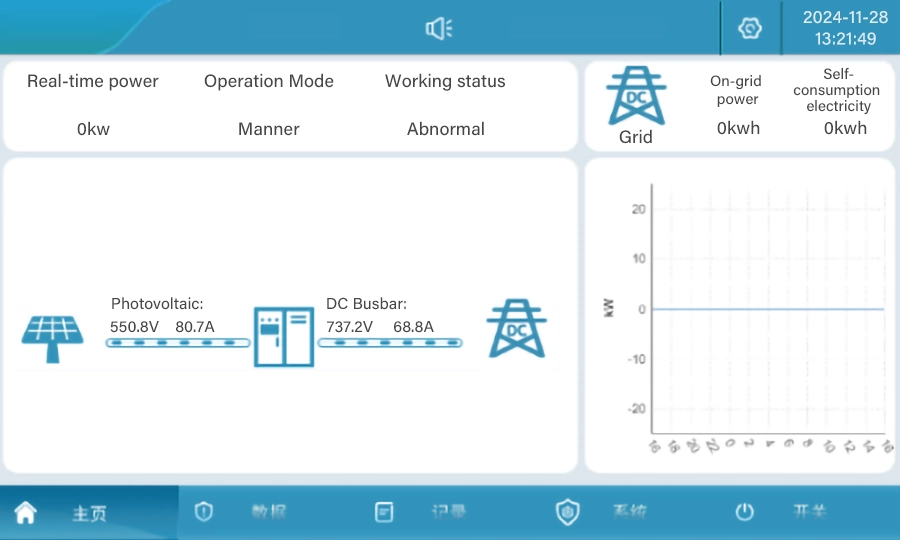

The local control panel can realize the operation monitoring of the converter, energy management strategy formulation, remote equipment upgrade and other diversified functions; cloud platform matching, remote monitoring and management, automatic identification of module quantity and function

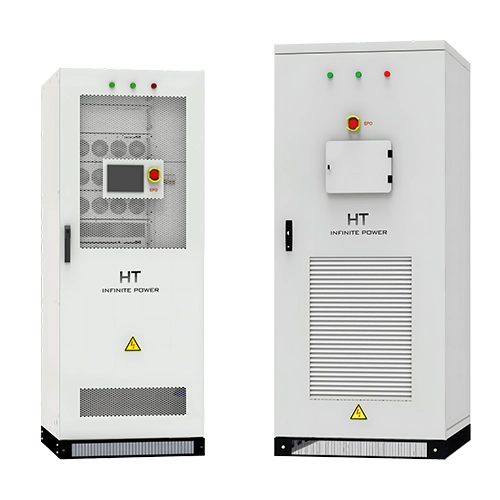

DC DC Power Supply Module Cabinet Parameter
Photovoltaic(PV)port
PV input voltage
Max.PV input current
MPPT quantity
Battery port
Battery voltage range
DC side bus power
Number of DC side inputs
General Parameters
Degree of protection
Protective class
Isolation mode
Shutdown self-discharge
Display
Relative humidity
Noise
Ambient temperature
Cooling mode
Altitude
BMS Communication
EMS Communication
Dimensions（W*D*H）
Weight(approx.)
315-550V（Minimum battery voltage-50V）
5*160A
1/5
600~950V
250kW
1
IP21（Indoor）；IP54（Outdoor）
/
Non-Isolation
＜0.1%Rated Power（Without transformer）
LCD
0~95%(No condensation)
＜78DB
-25℃ to+60℃(Derating above 45℃)
Intelligent air-cooled
3000m(>2000m reduction)
CAN
RS485/CAN/Ethernet
800*800*2100mm（Indoor）；900*1000*2150mm（Outdoor）
450kg（Indoor）；650kg(Outdoor)
※Note: The DC DC power supply module cabinet uses the HT-50DC DC module, which can be expanded according to customer needs. The DC cabinet supports parallel operation.

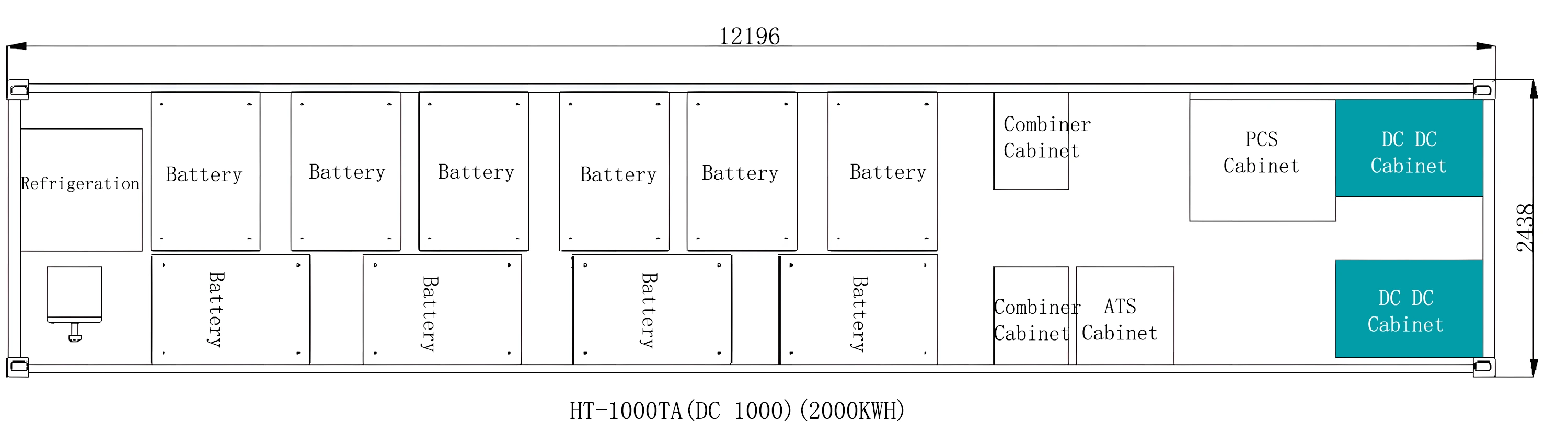

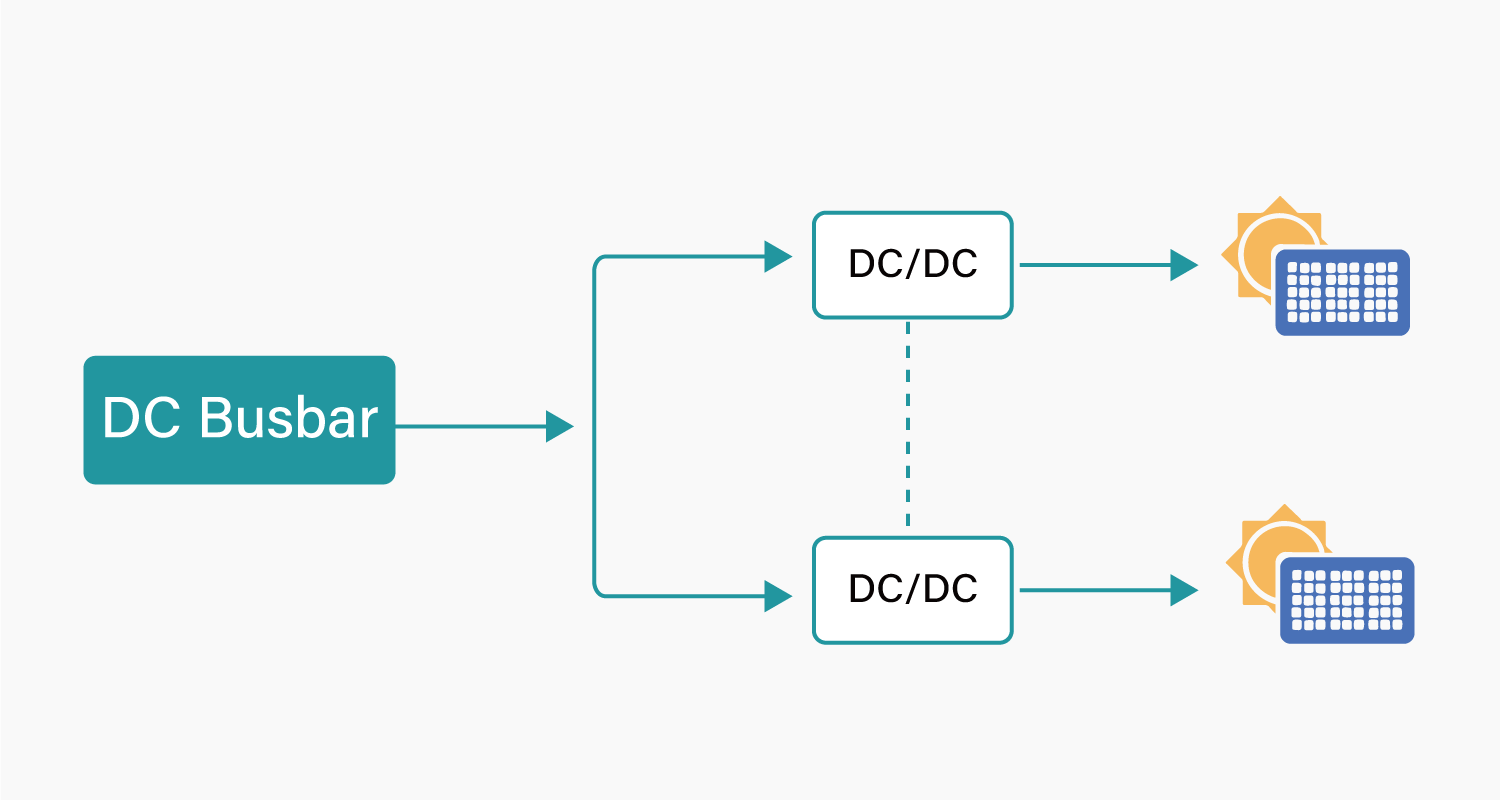

Application of HT Series DC DC Power Supply Module In Energy Storage Container
Electrical Primary Diagram

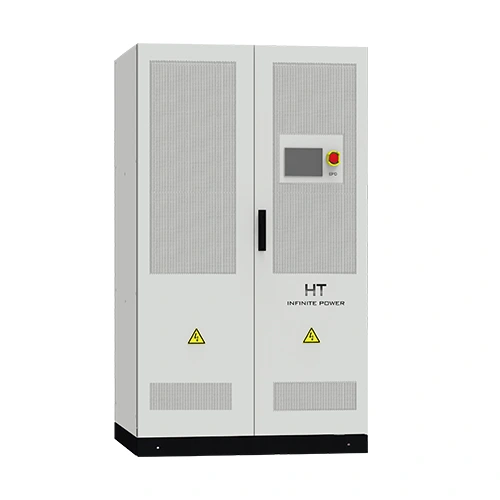

For more information about HT modular PCS products, please refer to HT AC DC PCS cabinet◥ product introduction
For more information about energy storage containers, please refer to HT 1MWh Energy Storage Container◥ Product Introduction.
FREQUENTLY ASKED QUESTIONS
─── About HT DC DC power supply module integrated cabinet ───
3-year free warranty, which can be extended upon request
Our PV inverter cabinet uses 50kW DC DC power supply module, you can expand the capacity according to your needs. For example, 150kW 300kW 500kW or larger capacity
TUV CE EN 62109 IEC 62109 EN IEC 61000,More certifications coming soon
For More Questions Please Contact Us
+86 18722386248
Building 1, 1980 technology and Culture Industrial Park , Longhua, Shenzhen , China
