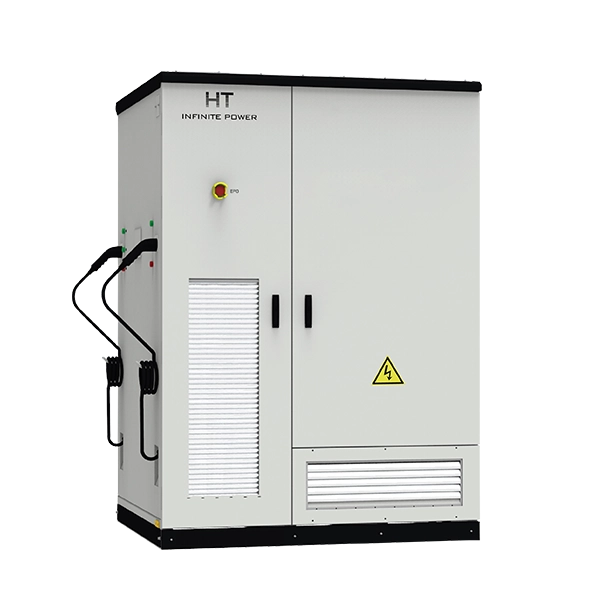

Product Features
Photovoltaic charging environmental protection
make full use of solar energy resources to maximize the use of clean energy and self-sufficiency
Compatible with a wide range of vehicles
wide range of constant power to meet the power requirements of both low-voltage charging for small vehicles and high-voltagecharging for buses
One machine with multiple guns
the dual-gun model is designed for independent communication between the two charging circuits, which is simple and reliable; it supports simultaneous charging of two vehicles, which improves the utilization efficiency of the charging pile.
Multiple charging modes
supports multiple charging modes such as charging by time charging by power, charging by amount, automatic full, etc. to meet the charging needsof different users.
Intelligent control
through the advanced energy management monitoring system,intelligent scheduling and control is realized to optimize energy utilization and improve system economy
High-efficiency liquid-coolingy heat dissipation system
Integrating advanced liquid-cooling heat dissipation technology, compared with the traditional air-cooling system, it can more effectively reduce the working temperature of the energy storage battery and the PCS module, improve the overall operating efficiency and stability of the system, and extend the service life of the battery.

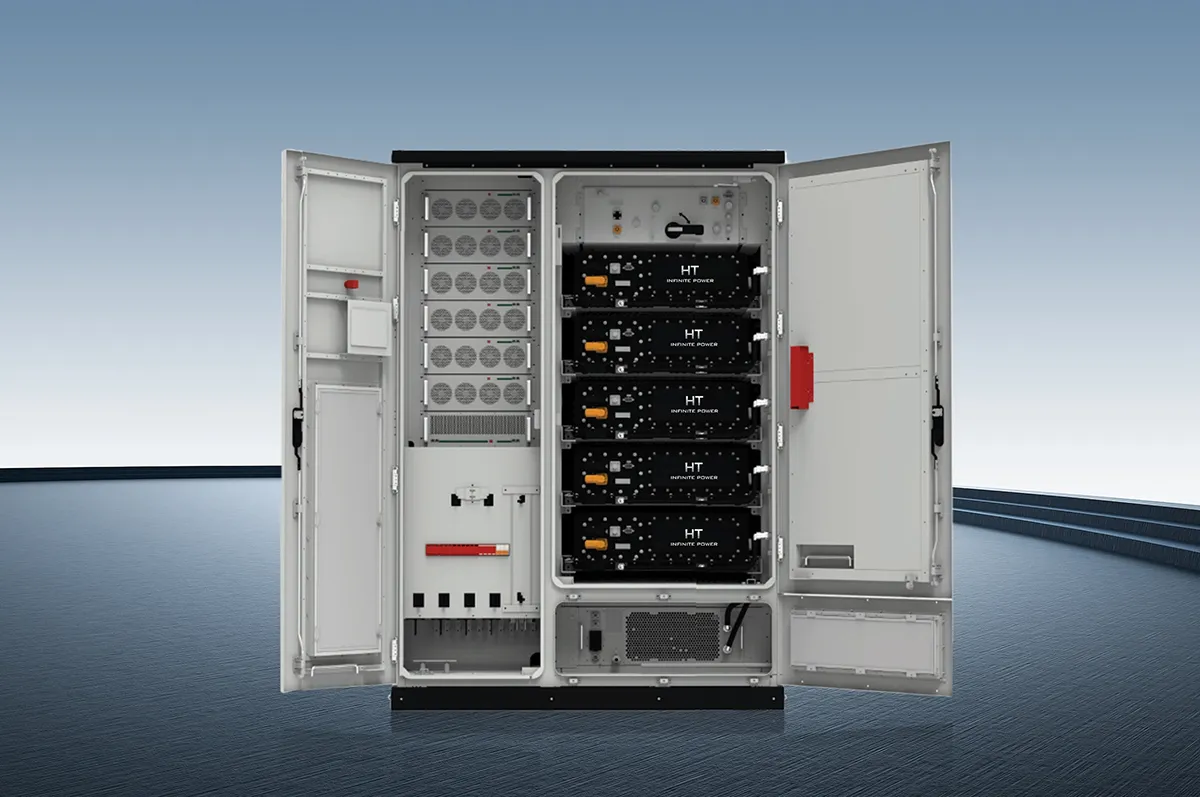

Highly integrated
Highly integrated multiple systems such as energy storage battery.modular PCS◥,DC Charging module, and energy management monitoring system into one, reducing footprint and improving system efficiency

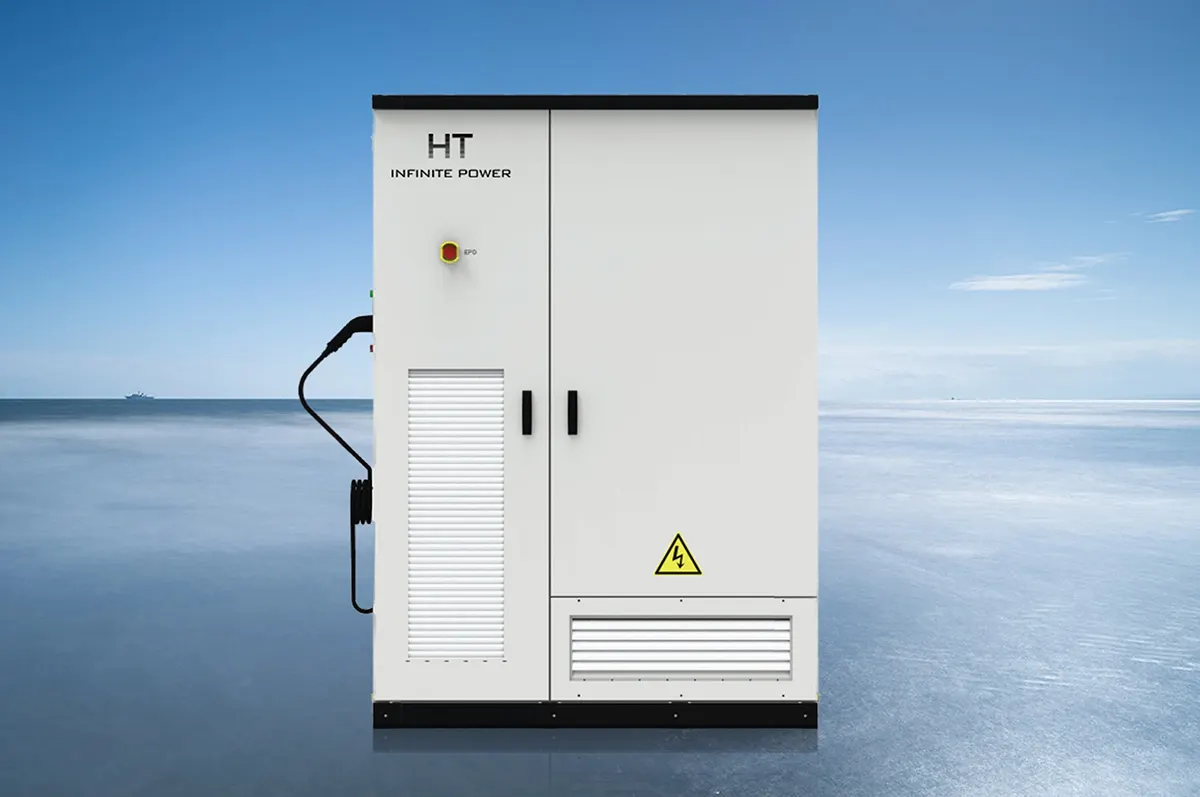

Product Introduction Model Description
※Note:The DC power module are optional components, and the rated output power and battery capacity can be flexibly configured according to project requirements.
Product Parameters
Certifications: CE IEC61000 IEC50549 UN IEC62619
Model:
Grid Port
Rated /Max.AC power:
Rated current:
Max.current:
Rated voltage:
Rated frequency:
PV Port
Max.PV input voltage:
PV input power:
MPPT channels:
Battery Port
Battery rated capacity:
Battery rated voltage:
Battery voltage range:
Battery type:
Battery cell capacity:
Series of Battery:
Maximum charge and discharge current:
Charging Port
Rated input power:
Rated input current:
Measurement accuracy:
Number of charging guns:
Gunline length:
Activation method:
Charging method:
Display Mode:
General Parameters
Cooling mode:
Degree of protection:
Shutdown self-discharge:
Relative humidity:
Noise:
Ambient temperature:
Altitude:
Display:
BMS Communication:
EMS Communication:
Size (W * D * H):
Weight (approx.):
Emergency stop protection:
Protection features:
HT-100（DC100）（232kWh）(EV120)
100kW/110kW
144A
158A
400Vac，3W+PE
50/60Hz（±5Hz）
Minimum battery voltage -30V
100kW
1/2/4
232kWh
832V
728V~936V
Lithium iron phosphate battery (LFP)
280Ah
1P*52S*5S
140A
60kW*2
120A*2（500Vdc）
＜±0.1％
2
5m
Scanning, swiping, APP
Auto-fill, by amount, by power, by time
LED
Intelligent air-cooled
IP54
＜0.1%Rated power（Without transformer）
0 ~ 95% (no condensation)
＜78dB
-25℃ to +60℃(with derating at temperatures above 45℃)
3000m (> 2000m reduction)
LCD
CAN
Ethernet / 485
1612*1350*2300mm
2700kg
Equipped with emergency stop button, with emergency stop protection function
Input over-under-voltage protection, input over-current protection, anti-surge protection, output short-circuit protection, over-temperature protection, anti-backflooding protection, battery active protection, emergency shutdown and other protection functions.
Product Function
HT series Outdoor Cabinet liquid cooling ESS For PV &Storage & Charging integrates energy storage battery, modular PCS, DC Charging module, energy management monitoring system, power distribution system, environmental control system and fire control system.
Adopting modularized PCS, it is easy to maintain and expand capacity, and the outdoor cabinet adopts front maintenance, which can reduce the floor space and maintenance access, and is characterized by safety and reliability, rapid deployment, low cost, high energy efficiency and intelligent management.
The Operation Strategies Of The Optical Storage And Charging System Under Common Application Scenarios Are As Follows

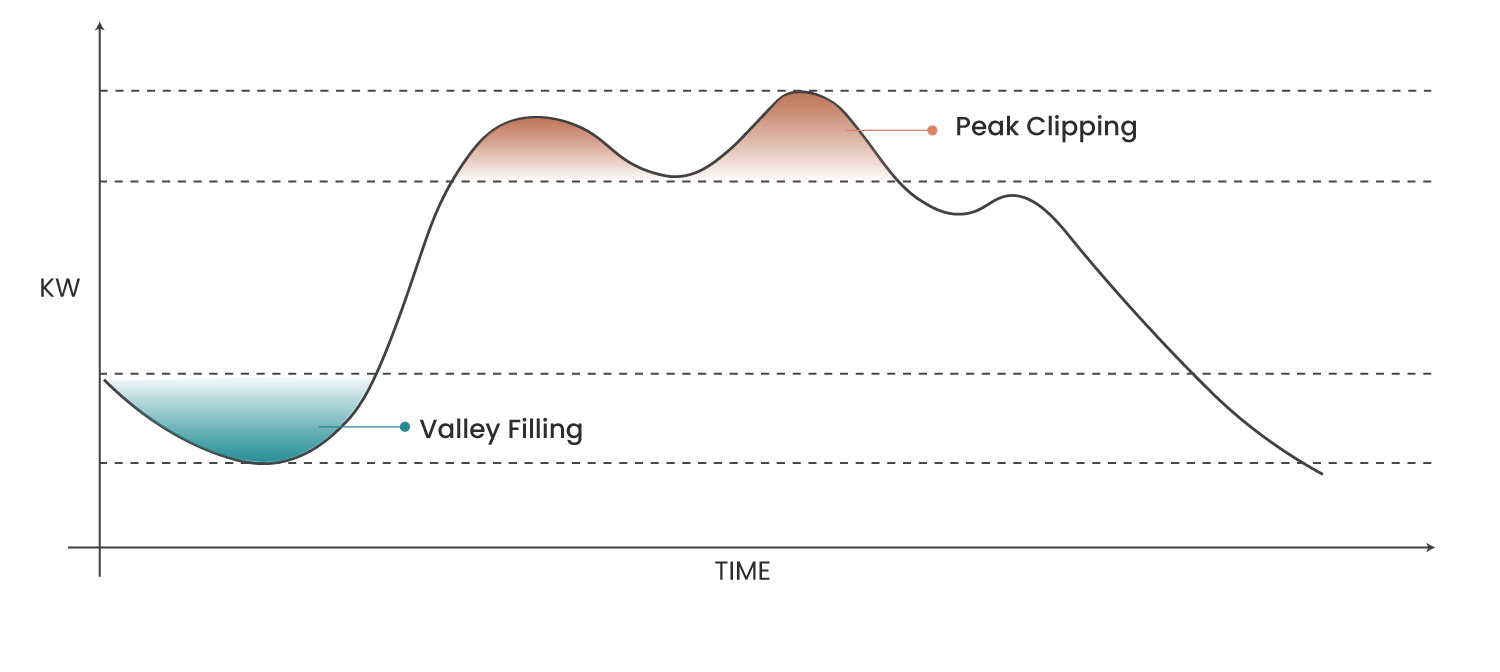

◎Peak Shaving And Valley Filling:
when the time-sharing tariff is in the valley: the energy storage cabinet automatically charges and stands by after being filled; when the time-sharing tariff is in the peak: the energy storage cabinet automatically discharges, realizing the arbitrage of the tariff difference, and improving the economic benefits of the optical storage charging system.
◎Combined pV storage & charging:
During the day, the photovoltaic power is directly supplied to the charging pile, and the excess power is stored in the energy storage system. At night or when the light is insufficient, the energy storage system supplements the power supply to achieve24-hour uninterrupted power supply.
◎Electrical Wiring Diagram
