Modular high-voltage lithium iron phosphate rack battery design
Full support for grid-connected and off-grid energy storage operation
Air-cooled battery cabinet with IP55 protection
Built-in support for CAN, RS485, Ethernet integration with EMS
Suitable for deployment in temperature extremes (–20 °C to +55 °C)
Product Specifications
Specification
Value
System Capacity
Rated Output Power
AC Output
DC Voltage Range
Battery Type
Nominal Battery Voltage
Max Discharge Current
Cycle Life
Cooling
Protection Rating
Communication
Operating Temperature
PCS Cabinet Dimensions (W×D×H)
Battery Rack Weight (approx.)
100.3kWh
50kW (55kW peak)
3-phase, 400VAC
580–950VDC
LFP, rack-mounted (112s1p)
719VDC
140–250A
≥6000 cycles (at 90% DOD)
Air cooling (PCS and battery)
PCS: IP54, Battery Rack: IP55
RS485, CAN, Ethernet
–20 °C to +55 °C
900 × 1000 × 2150 mm
850kg

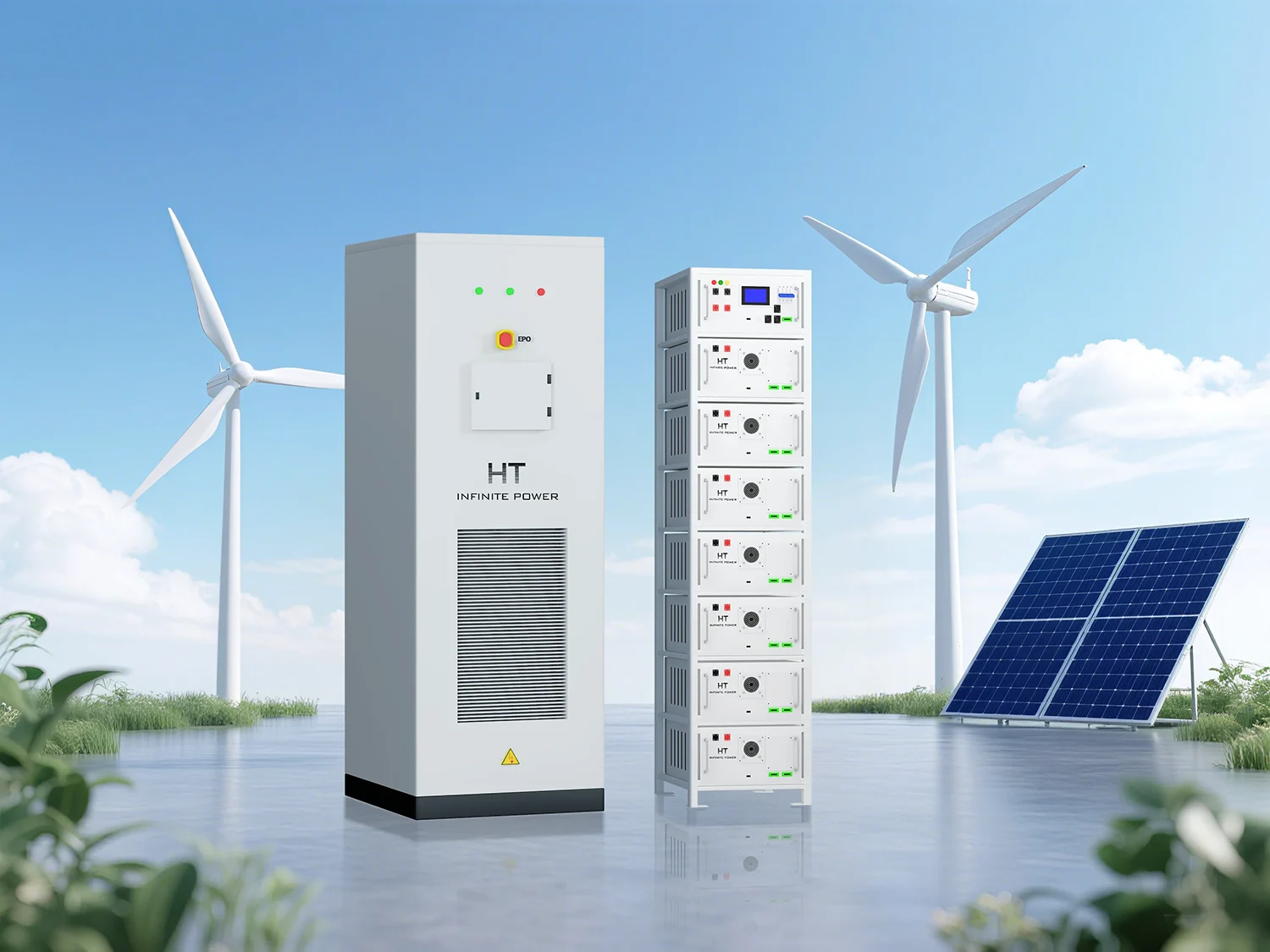

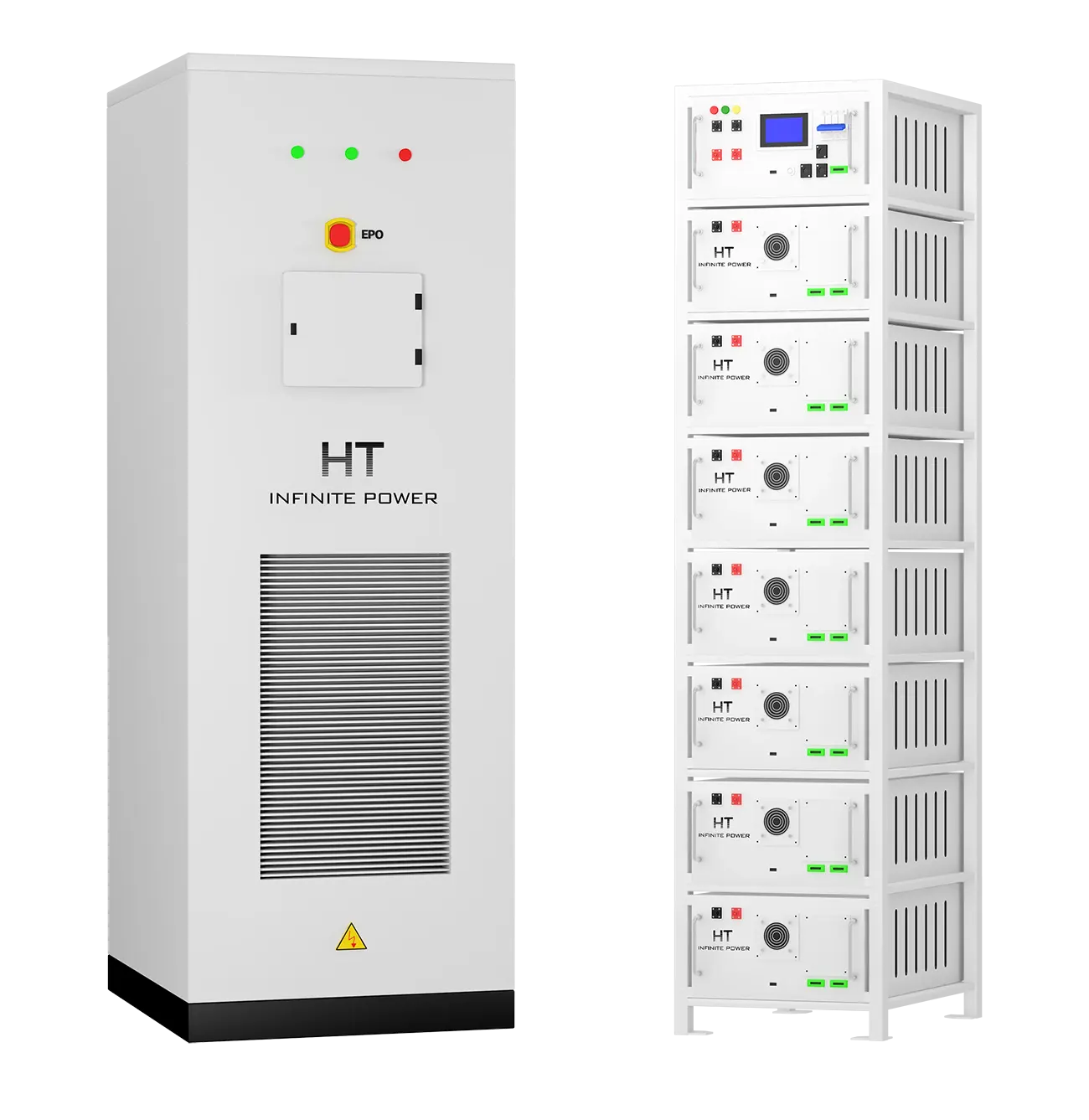

System Architecture of the Energy Storage Commercial Solution
This complete energy storage commercial solution combines a energy storage converter with a high-voltage rack battery system—configured to deliver reliable performance across varied environments.
Whether grid-tied or islanded, its control flexibility allows for constant power, constant current, and MPPT-based charge/discharge.
Deployment Scenarios of Energy Storage Commercial Solutions
●C&I rooftop PV storage
●Factory load peak shaving
●Microgrid buffer in semi-isolated regions
●Warehouse or logistics energy optimization
●Industrial backup power with dynamic switching
This compact yet powerful energy storage commercial solution provides a versatile building block for distributed energy systems, EV-ready microgrids, and backup-critical operations.
Key Benefits of Choosing an Energy Storage Commercial Solution
●Stable Output Under Load Fluctuations
In commercial sites where power usage changes throughout the day, the system ensures reliable delivery of stored energy with minimal harmonic interference—crucial for sensitive industrial equipment.
●Long-Term Cycle Stability
The 100kWh battery pack supports daily cycling at 90% depth of discharge. This makes it well-suited for high-duty energy shifting or time-of-use arbitrage strategies in commercial storage use cases.
●Fast Response & Grid Support
With dynamic control logic and a wide voltage window, this energy storage commercial solution reacts quickly to grid events and supports seamless transition between modes.
●Simplified Installation & Commissioning
Standard cabinet dimensions and plug-and-play communication reduce commissioning time—making this battery + PCS solution ideal for repeatable project templates.
Operation and Maintenance of Commercial Energy Storage Systems
To ensure reliable performance with minimal manual intervention, the system adopts a clear and maintainable structure:
●Monitoring & Communication:The rack battery features a built-in BMS responsible for real-time monitoring, cell balancing, and protection. Communication through CAN, RS485, or Ethernet ensures compatibility with mainstream EMS and inverter platforms. The PCS includes standard alarm reporting and system status monitoring.
●Cooling & Thermal Management:Both the battery rack and the PCS are air-cooled. The PCS uses intelligent fan control for dynamic cooling based on load, while the battery rack is cooled with fixed airflow channels designed for thermal balance and reduced acoustic impact.
●Daily Operation:No manual interaction is required under normal conditions. Operators can access live data remotely through the system’s communication ports
● Routine Inspection:Regular tasks include visual inspection of terminals and connectors, reviewing event logs, and verifying ambient ventilation. Depending on site usage, inspections are typically scheduled quarterly.
FREQUENTLY ASKED QUESTIONS
─── About 50kW/100kWh Energy Storage Commercial Solution ───
Yes. This solution includes a 100kWh high-voltage rack battery system, engineered to work seamlessly with the 50kW PCS as a turnkey energy storage commercial solution.
The system supports parallel expansion on the battery rack level. You can scale up this commercial energy storage system by adding additional cabinet units based on PCS capacity and project design.
Absolutely. The Monet-50TS converter supports seamless switching between on-grid and off-grid operation, making it suitable for hybrid storage deployments.
With lithium iron phosphate chemistry and proper thermal control, the rack battery system offers over 6,000 cycles—ensuring long-term performance in commercial energy storage environments.
Yes. The PCS cabinet is IP54-rated for outdoor use, while the IP55-rated battery rack is suitable for semi-outdoor or protected enclosures in commercial storage installations.
