Why Choose This Industrial Energy Storage Solution?
This 516kWh industrial energy storage solution offers the best of both DC modularity and AC dispatch flexibility. Built on proven 280Ah lithium iron phosphate cells and paired with a robust 250kW hybrid PCS, it balances storage density, high-voltage stability, and seamless grid integration. For industrial users, energy developers, or EPCs, this system represents a fully integrated answer to today’s complex energy demands
Dispatch flexibility
Balances storage
density
High-voltage
stability
Seamless grid
integration
Technical Parameters of Industrial Energy Storage Solution
516kWh Industrial Energy Storage Solution
Parameter
Value
Total Usable Capacity
Rated Output Power (AC)
Battery Voltage Range
Max Output Power (AC)
AC Output Voltage
Operating Temperature Range
Cooling Method
Communication Interfaces
Enclosure Protection
Approx. System Dimensions
Total System Weight
516kWh
250kW
600–950V
275kW
400Vac, 3-phase
–25°C to +60°C
Intelligent air-cooled
CAN / RS485 / Ethernet
IP21 / IP54
PCS+3×battery racks
6380kg

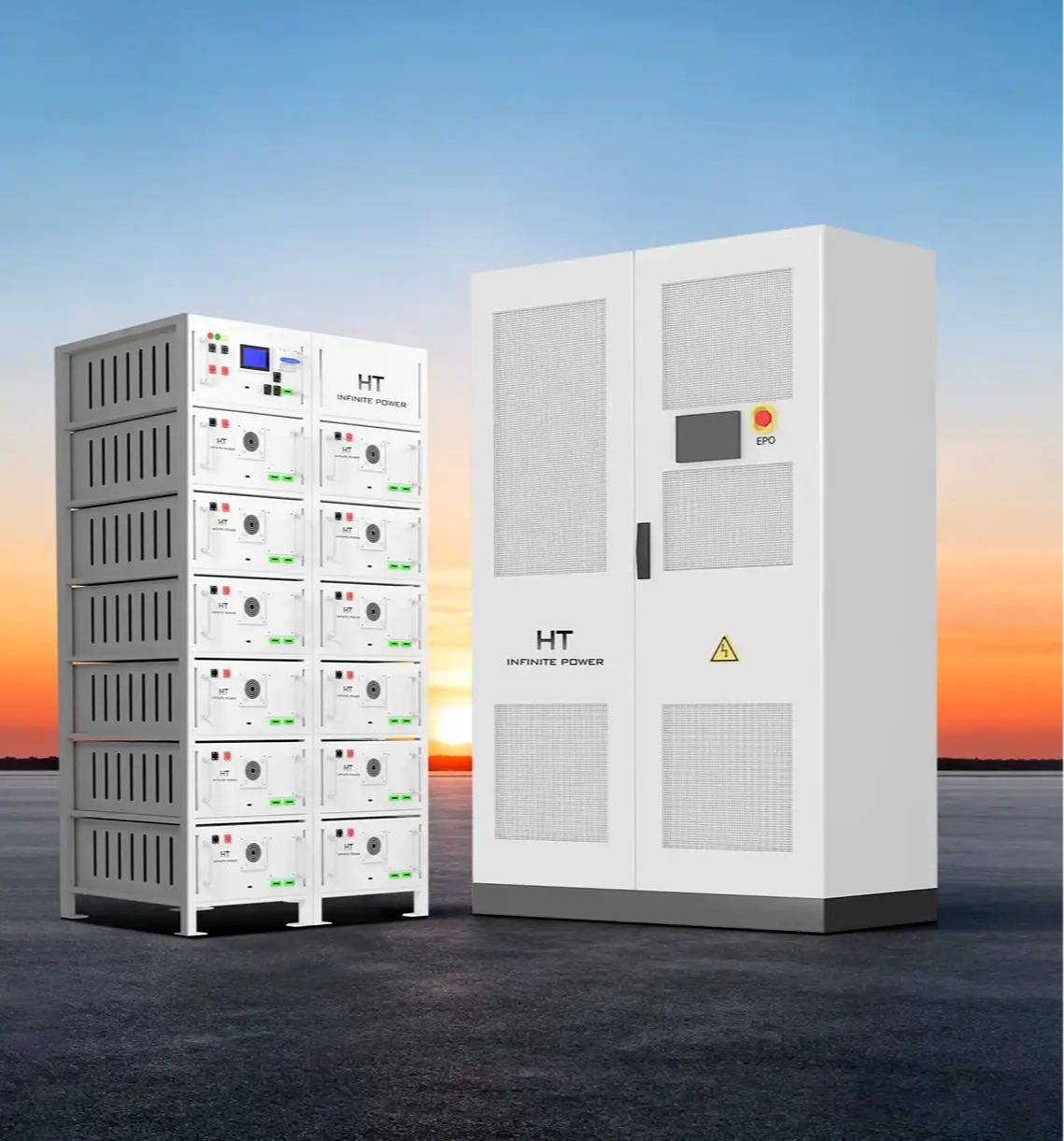

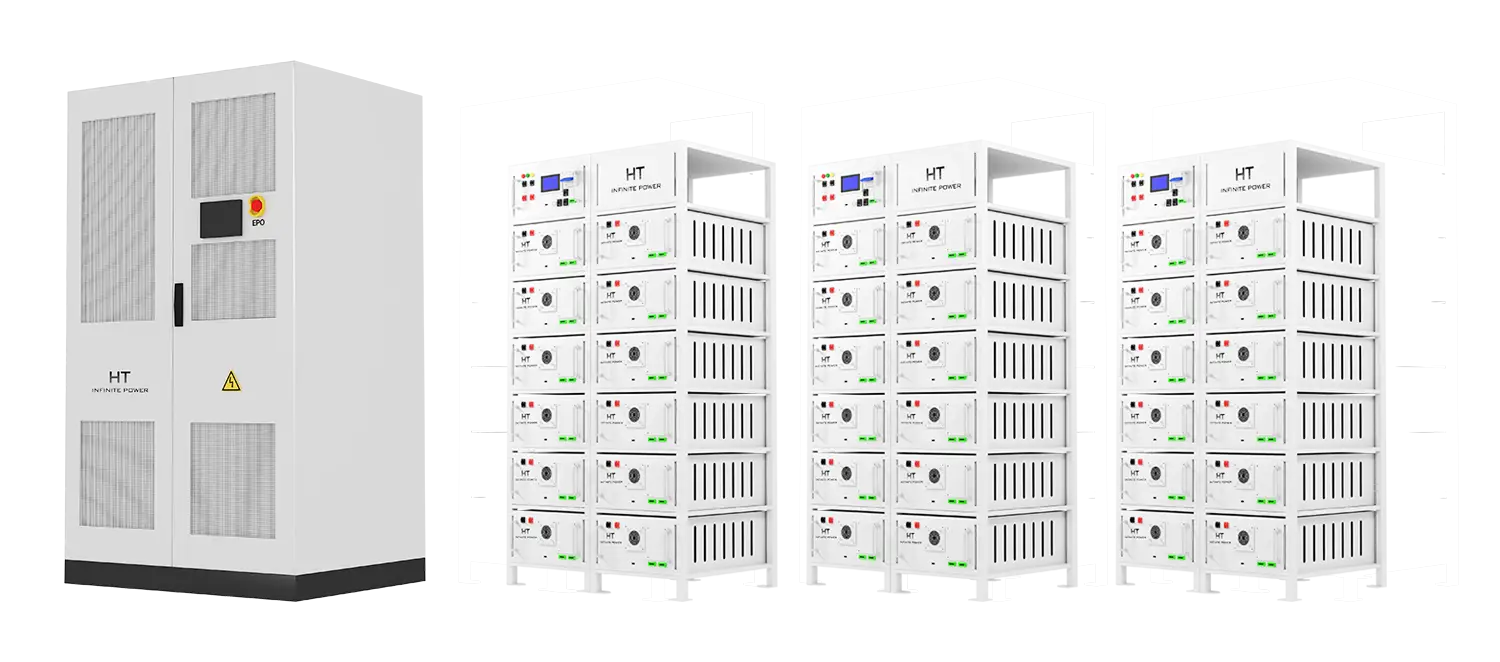

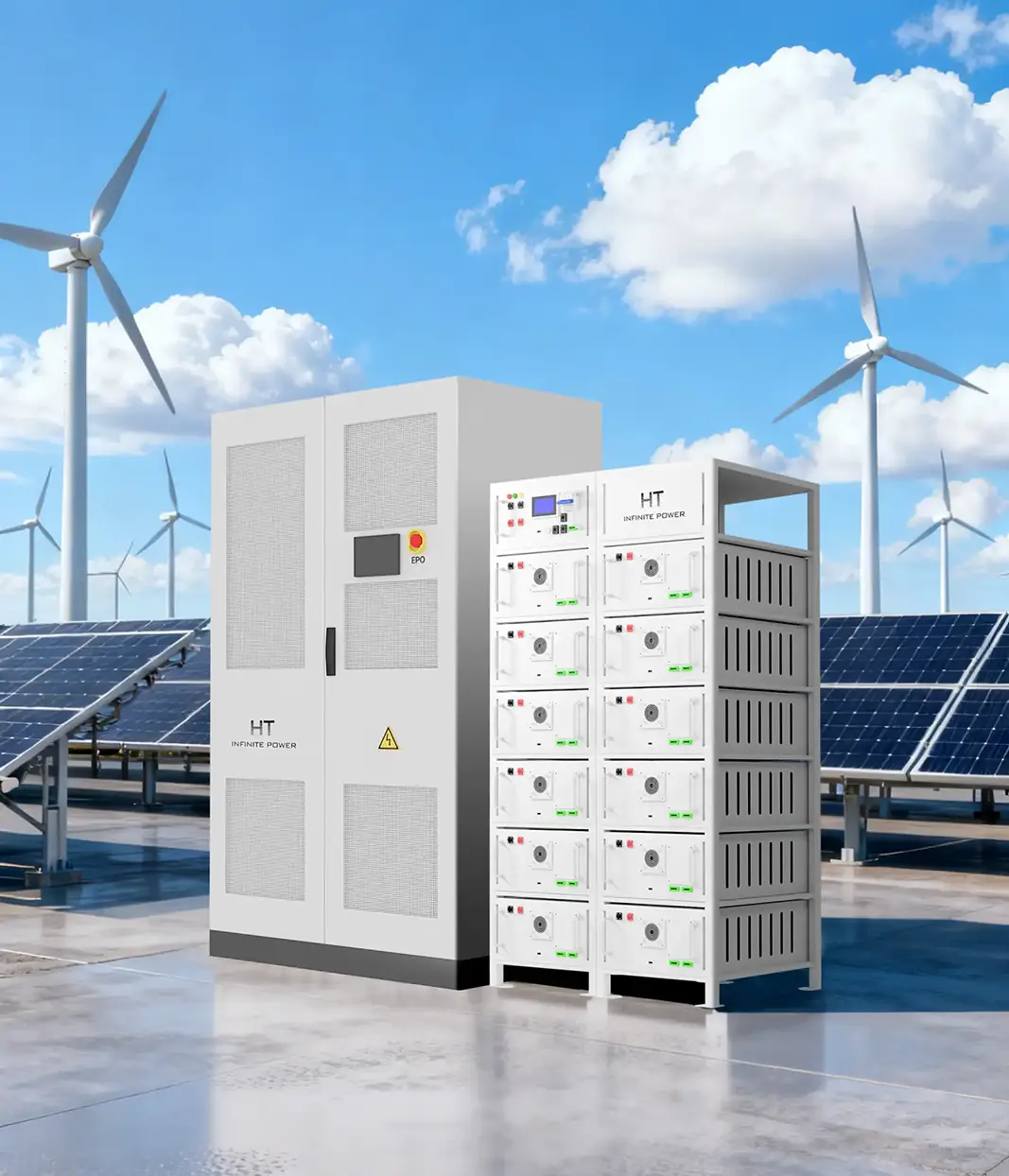

System Overview Of Industrial Energy Storage Solution
At its core, this industrial energy storage system features:
●Energy capacity: 516kWh total, based on three identical high-voltage racks
●Output power: 250 kW rated, expandable to 275 kW peak through PCS
●Voltage range: 600–950V at battery side; 400Vac 3-phase output
●Hybrid control: Supports both PV and battery input, grid-tied and islanded operation
The PCS supports multiple MPPT channels for solar input, while its modular cabinet design allows fast maintenance and future expansion.

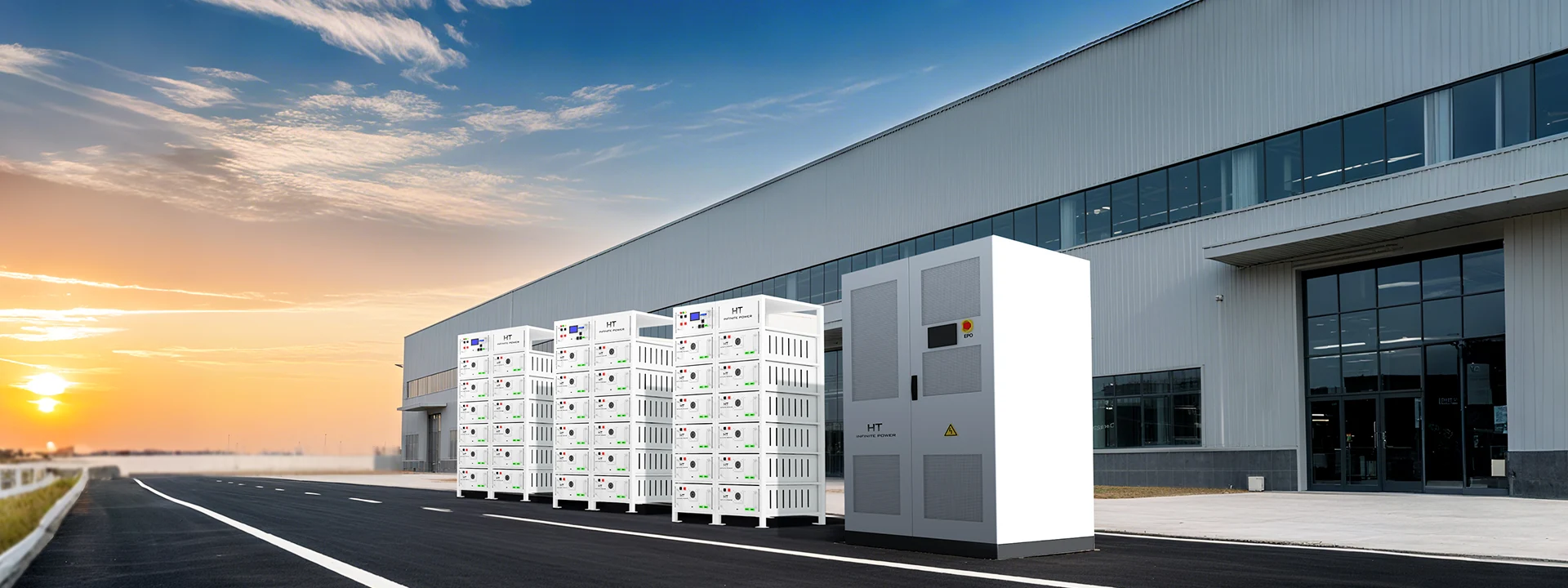

Application Scenarios for Industrial Energy Storage Solutions
This industrial energy storage solution is built to adapt. Typical deployments include:
●Commercial & industrial sites looking to offset peak energy costs
●PV+Storage configurations for solar smoothing and energy arbitrage
●Microgrids and isolated zones needing autonomous off-grid operation
The PCS supports multiple MPPT channels for solar input, while its modular cabinet design allows fast maintenance and future expansion.

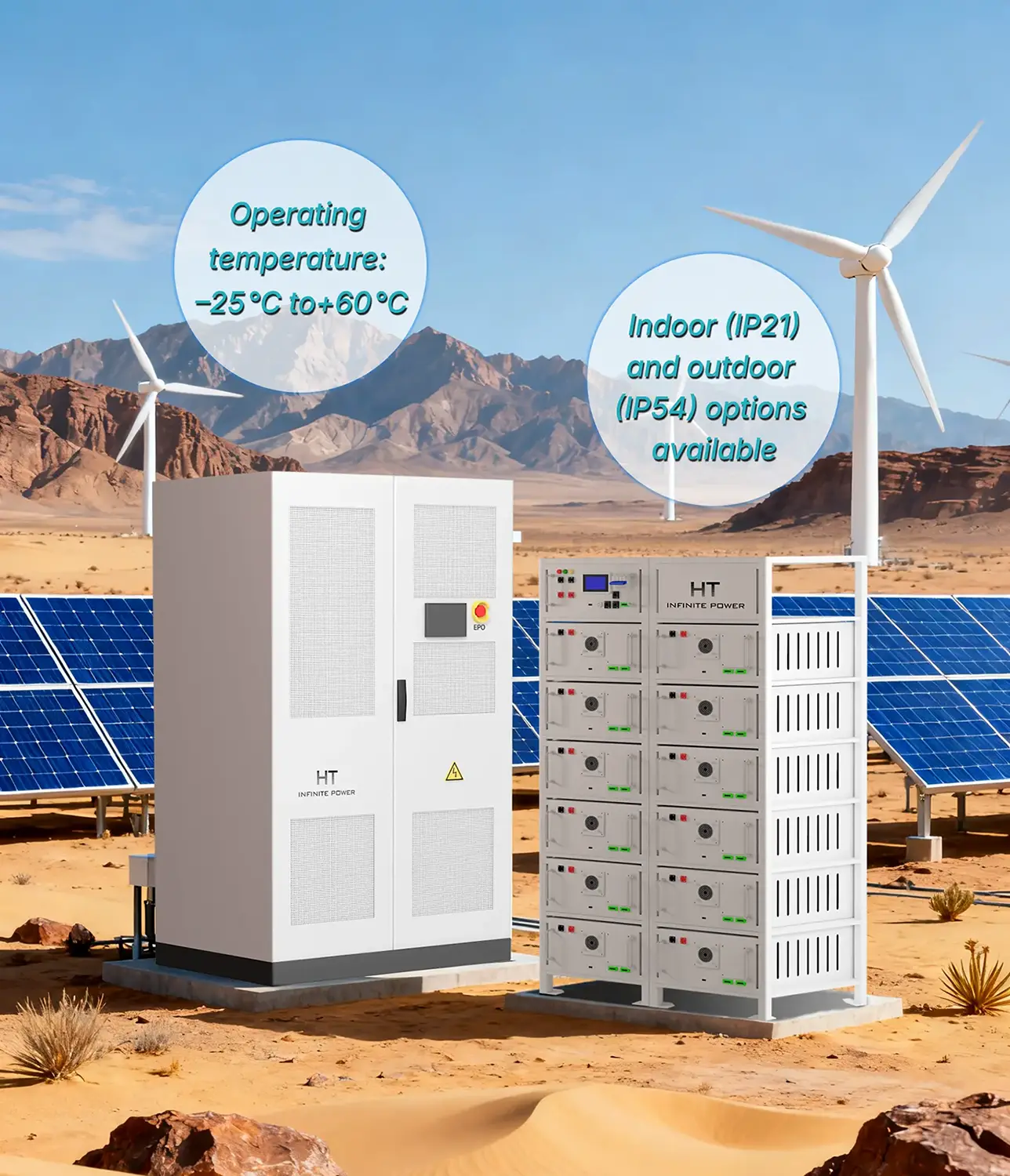

Environmental Durability of Industrial Energy Storage Solution
Built for durability in diverse environments:
●Operating temperature: –25°C to +60°C, derated above 45°C
●Altitude: Operable up to 3000m (de-rating above 2000m)
●Cooling: Intelligent air-cooled system for stable thermal management
●Enclosure: Indoor (IP21) and outdoor (IP54) options available
Electrical specs remain robust across conditions, ensuring reliable energy delivery regardless of climate or elevation.
Use Cases of Industrial Energy Storage Solutions
●Factory peak demand management during production cycles
●EV charging depots with fluctuating DC load profiles
●Backup for sensitive data centers where downtime is not an option
●Islanded renewable microgrids requiring 24/7 autonomy
This industrial energy storage solution ensures round-the-clock performance without relying on complex, multi-layer conversions.
FREQUENTLY ASKED QUESTIONS
─── About 250kW/516kWh industrial energy storage solutions ───
Yes. The PCS supports both on-grid and islanded modes, making it ideal for flexible deployment.
The lithium iron phosphate battery is designed for a long cycle life—typically over 6,000 cycles at 80% DOD.
Absolutely. The PCS includes MPPT inputs for direct PV integration in hybrid setups.
With prefabricated cabinets and modular design, most installations can be completed in under a week, assuming site readiness.
Regular inspection and software monitoring are recommended. The system is designed with air cooling and low-maintenance architecture.
