Commercial-Ready Capacity
50kWh gives you a five-hour runtime at 10KW or supports up to 50KW peak discharge.
Fully Integrated Cabinet
Battery modules, inverter, EMS, and BMS come pre-configured inside a single enclosure.
High Round-Trip Efficiency
Achieves up to 98.9%, reducing energy loss and improving operating ROI.
Smart Power Management
The system's EMS enables scheduling, real-time monitoring, and remote access via standard interfaces.
Proven Longevity
Over 6,000 cycles at 90% DoD, with LiFePO₄ stability ideal for long-term commercial energy storage.

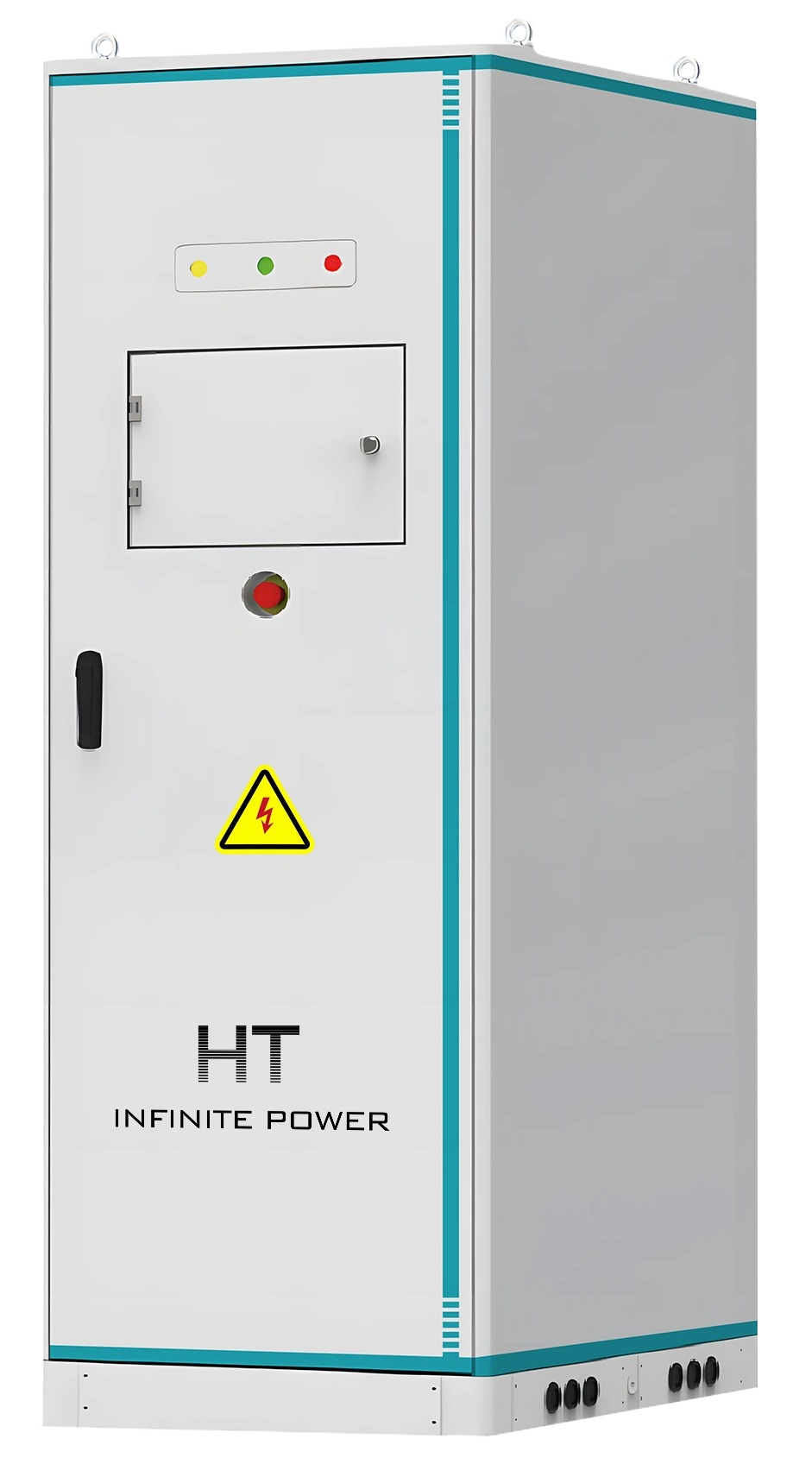

Technical Specifications 50kWh Commercial Energy Storage Batteries
50kW/50kWh
Commercial Energy Storage Batteries
Battery Parameters
Number of battery packs:
Rated voltage:
Voltage range:
Rated energy:
Max. continuous dischargi ng current:
Max. charging current:
Cycle life:
PV Parameters
Max.PV input power:
Rated input voltage:
Max.input voltage:
MPPT voltage range:
PV input current:
AC Side Parameters
AC rated input/output power:
Voltage:
Power Factor:
THDi:
System Parameters
Dimension（W*D*H）:
Weight:
Enclosure protection rating:
Cooling:
10
512V
480~584
51.2kWh
100A
90%
6000 times
40A*4W
620VDC
1000VDC
150~850VDC
40A*4
50kVA
3L/N/PE; 230/400V
0.8 leading to 0.8 lagging
≤5%
680*900*2090mm
about 820kg
IP54
Air cooling

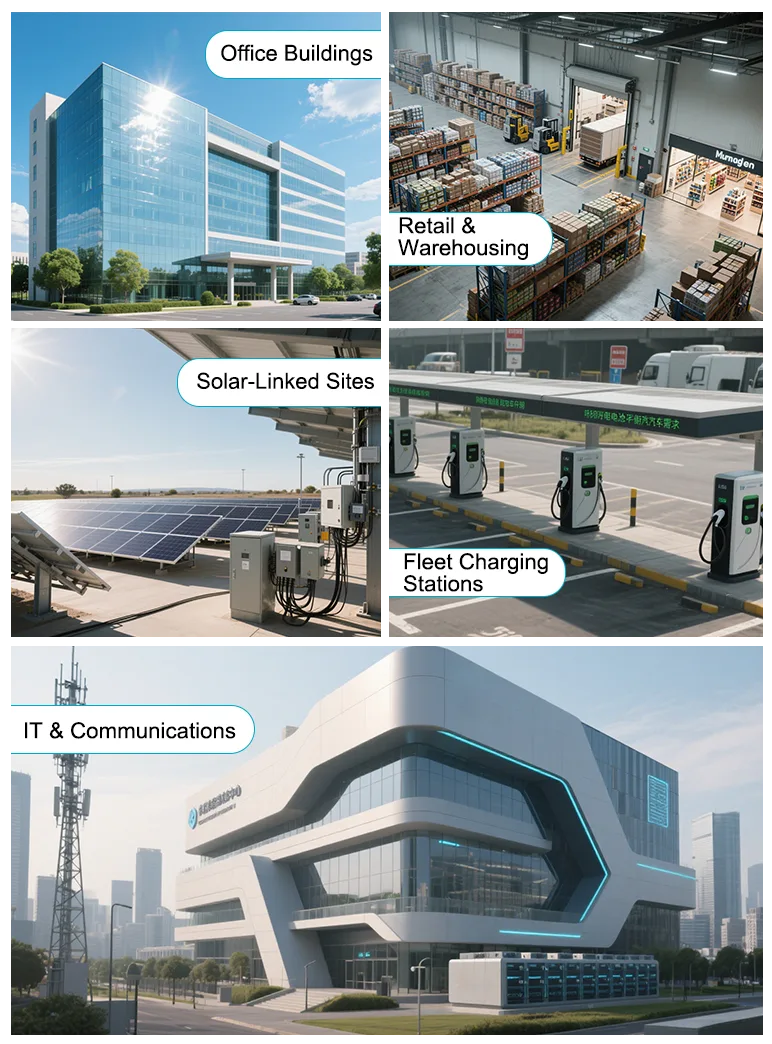

Use Cases for the 50kWh Battery
These systems are ideal for commercial and institutional applications requiring consistent and intelligent power support:
● Office Buildings
Reduce grid demand charges during peak periods.
● Retail & Warehousing
Power essential equipment with clean energy.
● Solar-Linked Sites
Store surplus daytime generation for evening loads.
● Fleet Charging Stations
Balance EV demand without grid strain.
● IT & Communications
Provide uninterruptible backup for critical networks.
Across these use cases, our 50kWh commercial energy storage batteries offer dependable capacity with smart energy flow management.
Environmental Adaptability & Protection
● IP54-Rated Enclosure – Protected against dust and splashing water.
● Wide Operating Conditions – Functions reliably from –20 °C to +55 °C.
● Humidity & Altitude Resilience – 10–95% RH and up to 2,000 meters.
● BMS Oversight – Continuous monitoring of voltage, temperature, and safety thresholds.

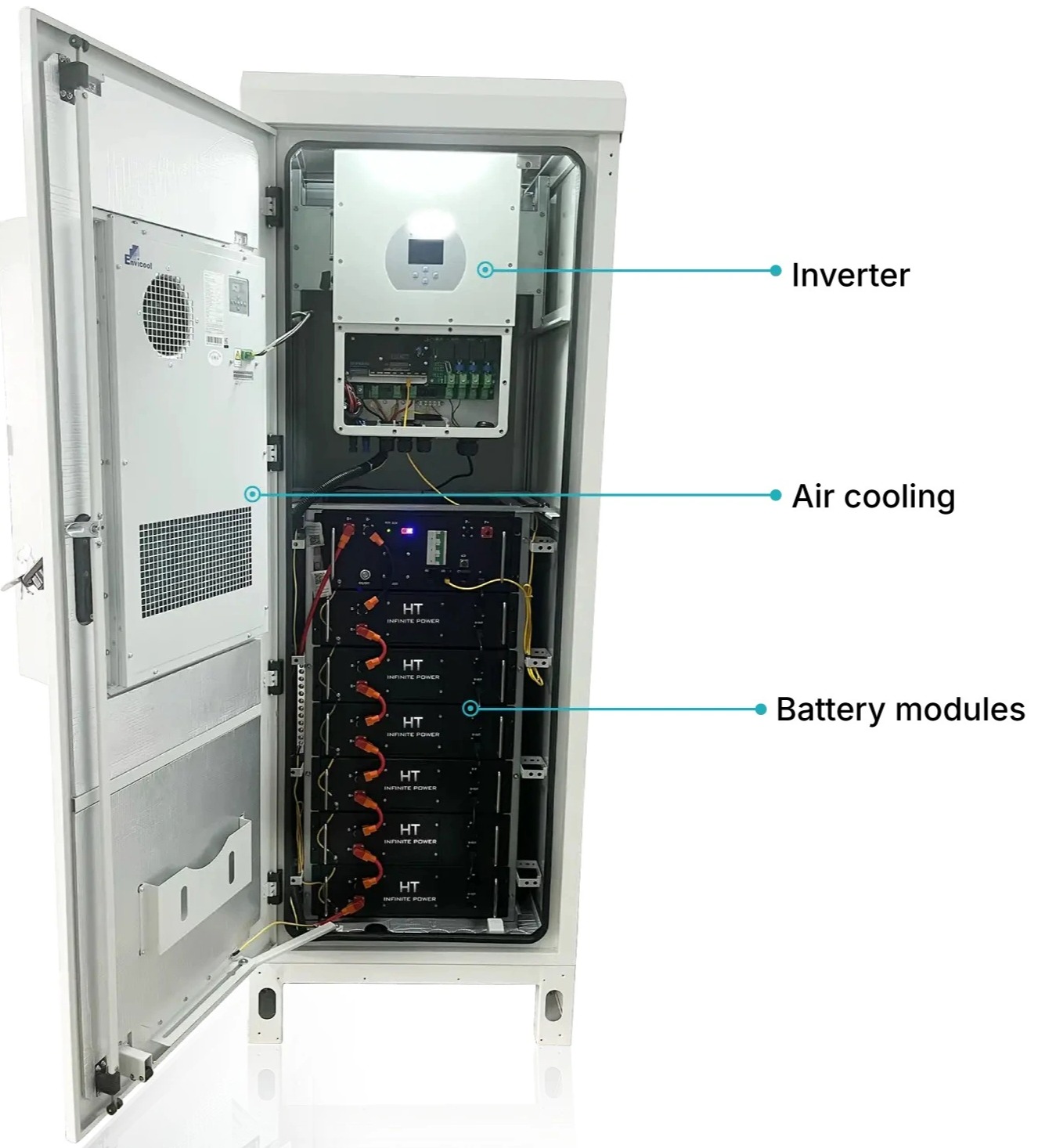

System Design of the 50kWh Battery
●Each cabinet integrates ten LiFePO₄ battery modules, totaling 50kWh of usable energy. The modules, inverter, and embedded control systems are pre-installed within a sealed IP54 enclosure, simplifying deployment and ensuring internal consistency.
●The system supports standard communication interfaces including CAN, RS-485, Ethernet, and WiFi, allowing integration with building energy management systems, remote monitoring platforms, or microgrid controllers.
●Parallel connection is supported, enabling multiple units to operate together under coordinated control. The total number of connectable units depends on EMS configuration and project requirements.
How To Get A Suitable BESS Project ？
Collect Projets Information
Contact Us
Our Engineers Make Solutions And Quotation For You
Install
Use
FREQUENTLY ASKED QUESTIONS
── About 50kWh Commercial Energy Storage Batteries ──
It depends on your load profile. Many small to mid-sized facilities find a 50kWh battery ideal for offsetting daily peak demand, running backup for key systems, or capturing daytime solar for evening use—all without over-investing in oversized capacity.
Unlike residential units, 50kWh commercial energy storage batteries are built to support higher power loads (50kW), continuous cycling, and industrial-grade monitoring. They’re designed for commercial operations—whether it’s managing machines, stabilizing solar input, or protecting critical infrastructure.
Yes. The cabinet is self-contained and can be relocated as site demands change. Many clients deploy the same 50kWh battery system at different sites during expansions, upgrades, or lease transitions.
While the 50kWh commercial energy storage battery runs autonomously, connecting it to your local network enables full EMS functionality—remote monitoring, load scheduling, and firmware updates for optimal long-term performance.
ROI varies by use case, but clients using 50kWh commercial energy storage batteries for peak shaving or solar optimization often see payback within 3–5 years—especially in areas with demand charges or feed-in tariffs.
