Outdoor-Ready Design
IP54-rated cabinet resists dust, moisture, and temperature extremes down to –30°C.
Flexible PV Integration
Three MPPT channels (36 A each) handle up to 48 kW of PV input, supporting hybrid energy setups.
Advanced EMS
Supports time-of-use shifting, self-use mode, emergency discharge, and forced charging strategies.
High Capacity, Stable Power
Delivers 30 kW continuous AC output; peak rated at 33 kVA with a smooth 0.8 lag/lead power factor.
Seamless Parallel Expansion
Expandable up to 90kW / 252.9kWh under unified EMS logic—no extra controller required

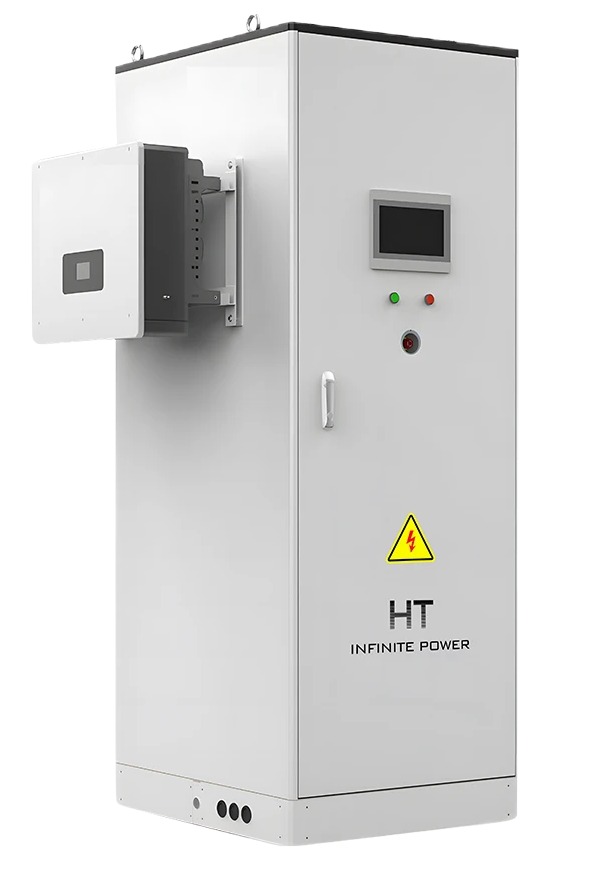

Technical Specifications 80kWh Outdoor Energy Storage Cabinet
30kW/80kWh
Outdoor Energy Storage Cabinet
Battery Parameters
Number of battery packs:
Rated voltage:
Voltage range:
Rated energy:
Communication:
Cycle life:
PV Parameters
Max.PV input power:
Rated input voltage:
Max.input voltage:
Max.input voltage:
PV input current:
AC Side Parameters
AC rated input/output power:
AC Max. input/output power:
AC rated input/output current:
AC Max. input/output power:
System Parameters
Dimension(W*H*D):
Weight:
Enclosure protection rating:
Cooling:
8
409.6V
320~467.2V
84.3kWh
RS485/CAN
8000 times
48kW
600VDC
1000VDC
150~850VDC
36+36+36(A)
30kVA
33kVA
45.6A
50A
W790*H2148*D920mm
907kg
IP54
Air cooling
Use Cases for the 80kWh
Outdoor Energy Storage System
● Commercial Solar+Storage Projects
Capture PV energy during the day and use it when tariffs spike.
● EV Charging Support
Stabilize grid demand for fleet or public charging sites.
● Small Factories & Remote Stations
Provide stable, dispatchable energy where the grid is weak or intermittent.
● Telecom or Utility Sites
Serve as a buffer for core equipment or control rooms in outdoor conditions.
● Microgrid Applications
Deploy in energy islands or rural zones needing stable backup.
Environmental Durability & System Protection
●Rugged Steel Cabinet (IP54) withstands dust, rain, and fluctuating temperatures.
●Air-Cooling System maintains safe operating range from –30°C to +50℃.
●Internal BMS & EMS monitor thermal status, current, and voltage in real time.
●High-Humidity Ready: Operates reliably in environments up to 95% RH.
●Altitude Support: Stable performance up to 2,000 meters without derating.
Energy Control Strategies for Outdoor Storage Systems
An 80kWh outdoor energy storage system isn’t just a container of power—it’s an intelligent resource that actively responds to how and when your facility uses energy. At the heart of this system lies a fully integrated EMS (Energy Management System) that enables flexible, policy-driven control over charge and discharge behavior.

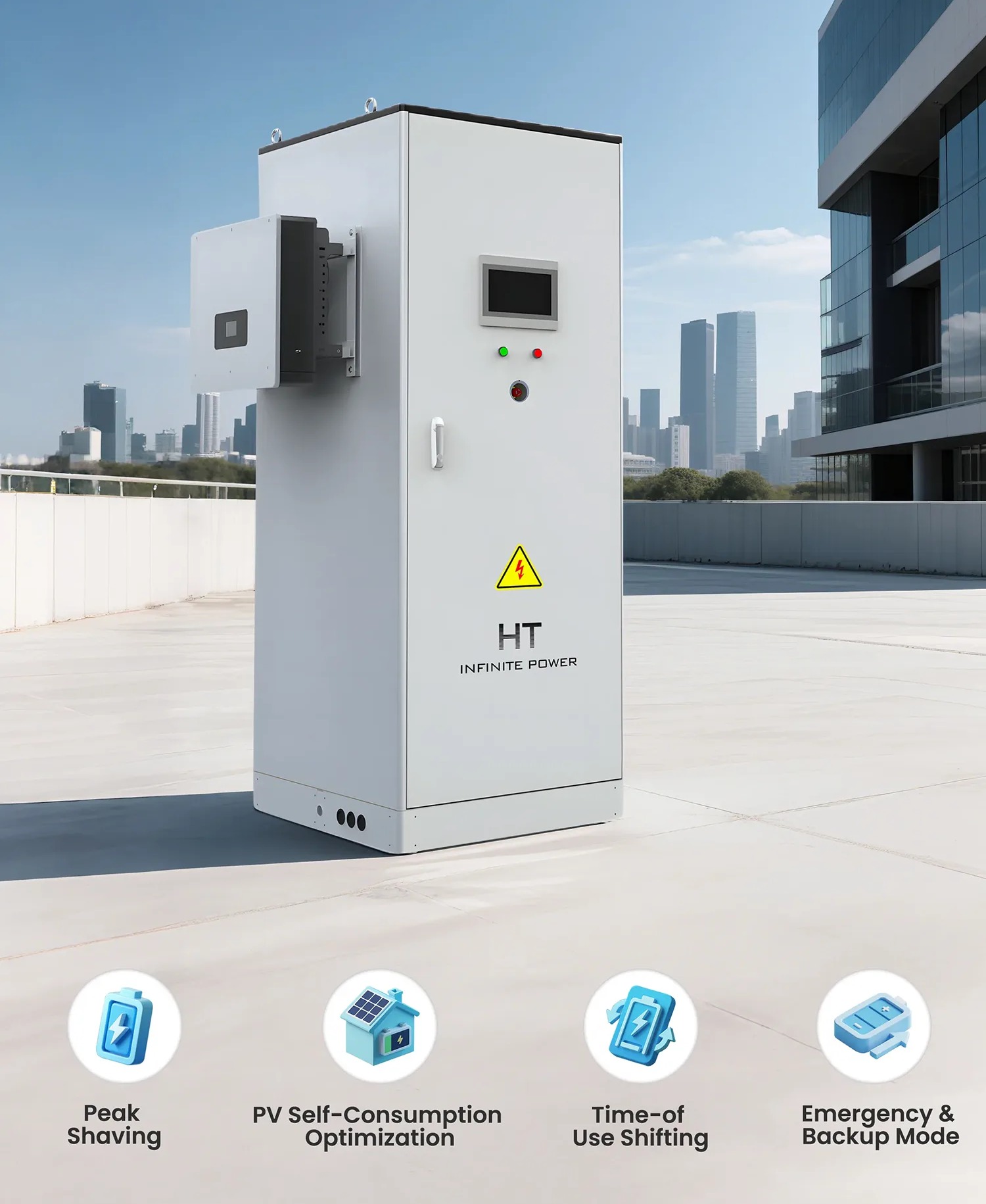

Smart Operational Strategies Built into Our Outdoor Storage Systems
● Peak Shaving
When loads spike, the system instantly discharges to offset grid usage—helping you avoid demand penalties and reduce electricity bills.
● PV Self-Consumption Optimization
Paired with rooftop or ground-mount solar, the EMS captures excess daytime generation and deploys it later.
● Time-of-Use Shifting
Charge during off-peak hours and discharge when prices are high—ideal for tariff-based savings.
● Emergency & Backup Mode
Switches instantly to backup power mode in case of a grid outage.
How To Get A Suitable BESS Project ？
Collect Projets Information
Contact Us
Our Engineers Make Solutions And Quotation For You
Install
Use
FREQUENTLY ASKED QUESTIONS
─── About 80kWh Outdoor Energy Storage System ───
At 10 kW, it runs for about 8 hours. At higher loads, runtime decreases proportionally.
Yes—three MPPT inputs support up to 48 kW of solar, with full EMS integration.
It's built for outdoor deployment but can also function indoors if required.
It features IP54 weather protection, a broader temperature range, and direct PV inputs for field use.
Yes—up to three units can be connected in parallel for a total of 90 kW / 252.9 kWh, managed through a unified EMS.
