Model No: 50kW/106kWh
Air Cooling Energy Storage System
Quantity :
Subscribe to our Newsletter
1. What is HT Air cooling 50kw 106kwh ess industrial cabinet?
HT Infinite Power 50kw 106kwh ess industrial cabinet integrated with Inverter, BMS, fire protection system, temperature control system, distribution system. Built-in high-voltage battery cluster, high-voltage box. It can connect to the solar panels,grid and diesel generator.In the 50kW 106kwh ess industrial cabinet, regulating the temperature of the batteries by air conditioner. With integrated and modular designs, it is easy for installation and maintenance. The matching and performance tests have been completed before the system is shipped out which can let you install it easier and save your installation cost.
2. How Air cooling 50kw 106kwh ess industrial cabinet Work？
HT Air cooling 50kw 106 kwh ess industrial cabinet is an energy storage system independently developed by HT and applied in industrial and commercial scenarios.it can be directly connected to the AC low—voltage side to provide reliable power support for various equipment and systems.The energy storage system adopts lithium iron phosphate battery,which has high energy density and long cycle life.The ess industrial cabinet,which can be flexibly expanded,and the system is easy to maintain and repair.The local data monitoring is configured in the cabinet to realize the comprehensive management of the equipment in the system,which can be controlled independently or connected to the station-level control system to realize multi-machine linkage. Through the status monitoring and data recording of the equipment in the cabinet,early warning and rapid positioning of system failures are realized.HT Air cooling 50kw 106 kwh ess industrial cabinet has an intelligent temperature control function,which can improve system efficiency and battery cycle life;the modular design is easy for system expansion and flexible deployment.

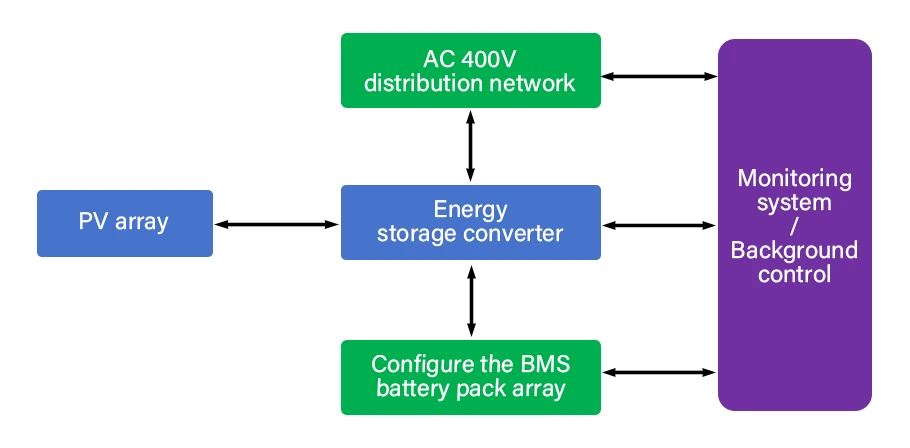

The application topology of medium-sized energy storage products is shown in the figure below.
The application topology of medium-sized energy storage products is shown in the figure below.
3. The Advantages of 50kw 106kwh ess industrial cabinet
1.All in one,save space
2.Module integrated design, easy extension&easy maintenance
3.Pre-installation, easy transportation and installation
4.Plug and play
5.Seamless switch，0 interrupt
6.Intelligent Logic Control
7.Rapid deployment,0 civil engineering
8.High efficiency,94% conversion efficiency
9.Intelligent EMS management system
4. Product Parameters
| Product specification | HVS-R16P100-M |
|---|---|
| System parameter | |
| DC side voltage rage | 432V~584V |
| Output voltage | 380V@AC |
| System configuration | 1P160S |
| Rated power | 50kW |
| Match PCS | 50kW |
| Nominal energy of the battery system | 106kWh |
| Battery upload request value | 5%-95% |
| Battery protection value | 2.7V-3.6V |
| Discharge energy | 95.4kWh |
| Battery cycle efficiency | ≥90%@AC |
| Dimensions( L* W* H) | 1950*1180*2160mm |
| Weight | 1500kg |
| IP Grade | IP54 |
| Temperature range | -10-50℃ |
| Humidity range | ≤95% (non-condensing) |
| Maximum working altitude | 3000m ( > 2000m need to derate) |
| Battery temperature control method | Air cooling |
| Fire fighting system | Aerosol |
5. Applicable scenarios
HT Air cooling 50kw 106kwh ess industrial cabinet is widely used in many different industrial and commercial area. Such as it could be used for Farm,Mall,School,Hospital,Hotel,Bank,Office,Restauran,Home,Factory,Providing stable power support and reduce operating costs.
6. 50kw 106kwh ess industrial System composition
■ Power Conversion System,PCS
The energy storage converter is an important part of the smart grid,and it is a bidirectional converter that realizes the charge and discharge control of the energy storage battery.On the one hand,the converter can invert the direct current of the energy storage battery into alternating current to supply power to the load or input it into the grid;on the other hand,the converter can rectify the alternating current of the grid into direct current to charge the energy storage battery.Photovoltaic storage DC coupling,directly connected to photovoltaic panels.
■Battery Cluster
The battery assembly is a battery assembly that is connected in series,parallel or series-parallel by battery modules,and is connected to energy storage converters and auxiliary facilities to realize independent operation.It should also include battery management systems,monitoring and protection circuits,electrical and communication interfaces,etc.part.
■ Battery Management System,BMS
Manage a unit of energy storage,including all battery clusters in the battery system,be able to monitor and control all battery clusters in the system,and perform battery cluster capacity estimation,battery cluster remaining capacity(SOC)estimation,battery cluster fault diagnosis, balance control strategy,security Control strategies,etc.,can upload battery system information,status and battery alarm information.
■Energy Management System,EMS
The energy management system is a computer system,including software and hardware platforms that provide battery system management and PCS control,as well as application software that ensures the safe and economical operation of power distribution and electrical equipment in the energy storage system.
■ Fire Fighting System,FFS
Detect the fire signal of the battery system in real time,and can send out a fire alarm signal to prevent the fire from spreading and start automatically.
■ Temperature control system
With Air conditioner
7. Installation and Maintenance
1)When using this ess industrial cabinet for the first time,please check whether the device is damaged or in other dangerous states;and check and confirm whether other external devices or circuit connections are in a safe state;
2)When using the ess industrial cabinet for the first time,you should conduct visual inspection,wiring inspection,control power inspection,and communication inspection. If you find that the product shell is seriously damaged or has abnormal phenomena such as peculiar smell,you cannot continue to use it,and you should return the product to the manufacturer;
3)Before any installation and maintenance work,first disconnect the circuit breaker on the grid side,then disconnect the DC switch on the battery side,and use relevant equipment for testing;
4)During the use of this ess industrial cabinet,do not p lug or unplug the connector at will;
5)During the use of the ess industrial cabinet,do not modify the important parameters on the control panel at will,so as not to affect the normal use of the product;
6)Long-term unused:When the ess industrial cabinet is unused for a long time,the main circuit breaker and DC miniature circuit breaker on the distribution box should be disconnected,and the system should be charged every 3 months to make the SOC reach more than 30%. When the product is stored in a low charge state,it will cause the battery to be over-discharged, which will seriously affect the life of the product or even damage the product;
8. FAQ
1. Is the installation of the 50kw 106kwh ess industrial cabinet difficult?
HT 50kw 106kwh ess industrial cabinet is an all in one integrated outdoor cabinet. Integrated design,all of commissioning and cable pre-integrated,reducing 80% installation time,cabling time and commission time than the traditional energy storage systme.
2. Can the ess industrial cabinet meet all industrial and commercial electricity needs?
HT ess industrial cabinet are customized by professional engineers depend on different customer needs, so it fully meets every customer's industrial and commercial use
3. Is the maintenance cost of ess industrial cabinet high?
The maintenance cost is relatively low, and regular inspection of the wiring and cleaning of the panels are sufficient.
4. Does a 50kw 106kwh ess industrial cabinet have any impact on the environment?
The 50kw 106kwh ess industrial cabinet uses a safe and environmentally friendly lithium iron phosphate battery, which will not cause environmental pollution
