IP55
Higher energy efficiency
Space-Saving
EMS Local Data Management
Easy Installation And Maintenance

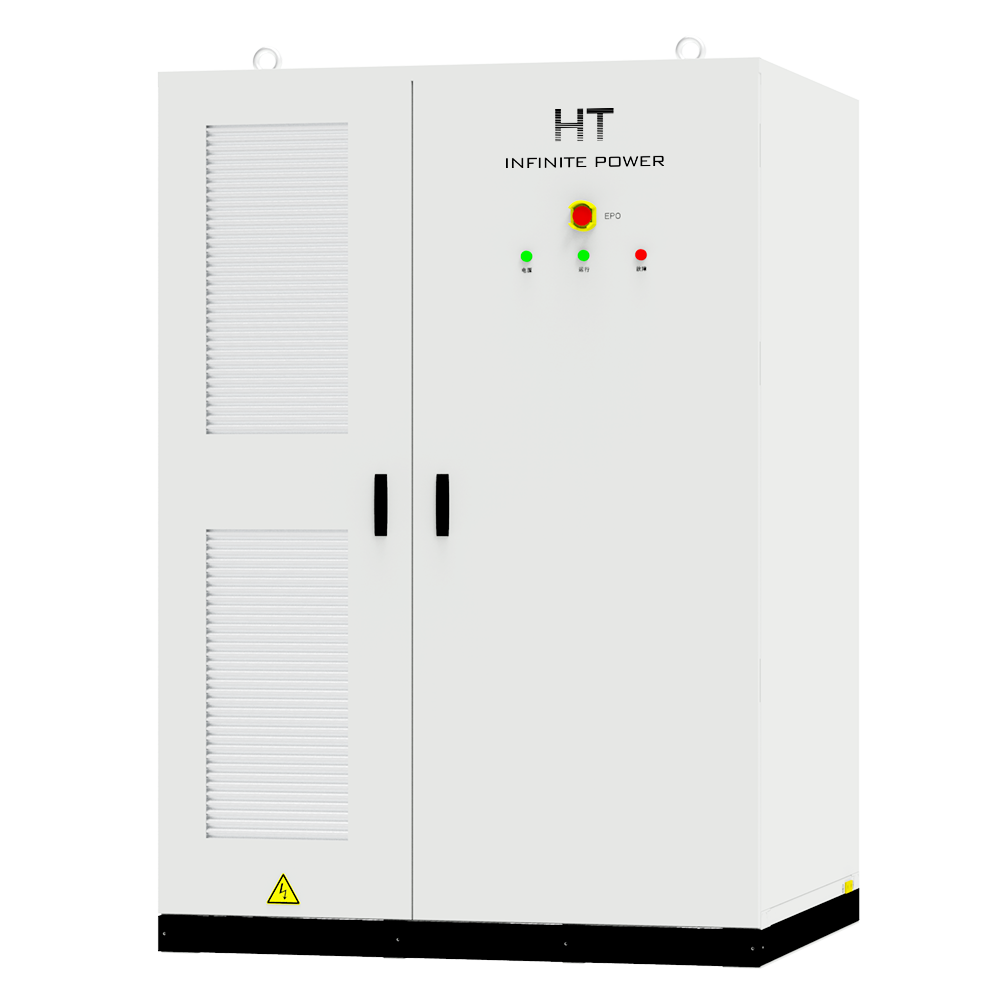

Features of 215kW PCS 418kWh outdoor BESS
● Highly integrated：The system has been commercialized, integrating energy storage batteries, energy storage converters, photovoltaic converters, energy management monitoring systems, power distribution systems, control systems, and fire environmental control systems. lt can fully control the operation status and risks of the system.
● High scalability:Supports 10 units operating in parallel
● Space saving: It adopts door-mounted embedded integrated air conditioning, which does not occupy cabinet space, improves the available space of outdoor cabinets, has better structural integrity at the top, and has good waterproof performance.
● Intelligent management: Real-time liquidleakage monitoring, reducing on-site operation and maintenance work, supporting local control or cloud platform management intelligent esystem, equalization strategy, real-time system warning, to ensure the consistency of the whole life cycle of the battery.
● High efficiency and safety: The local control screen can achieve diversified functions such as system operation monitoring, energy management strategy development, equipment remote upgrading, etc.

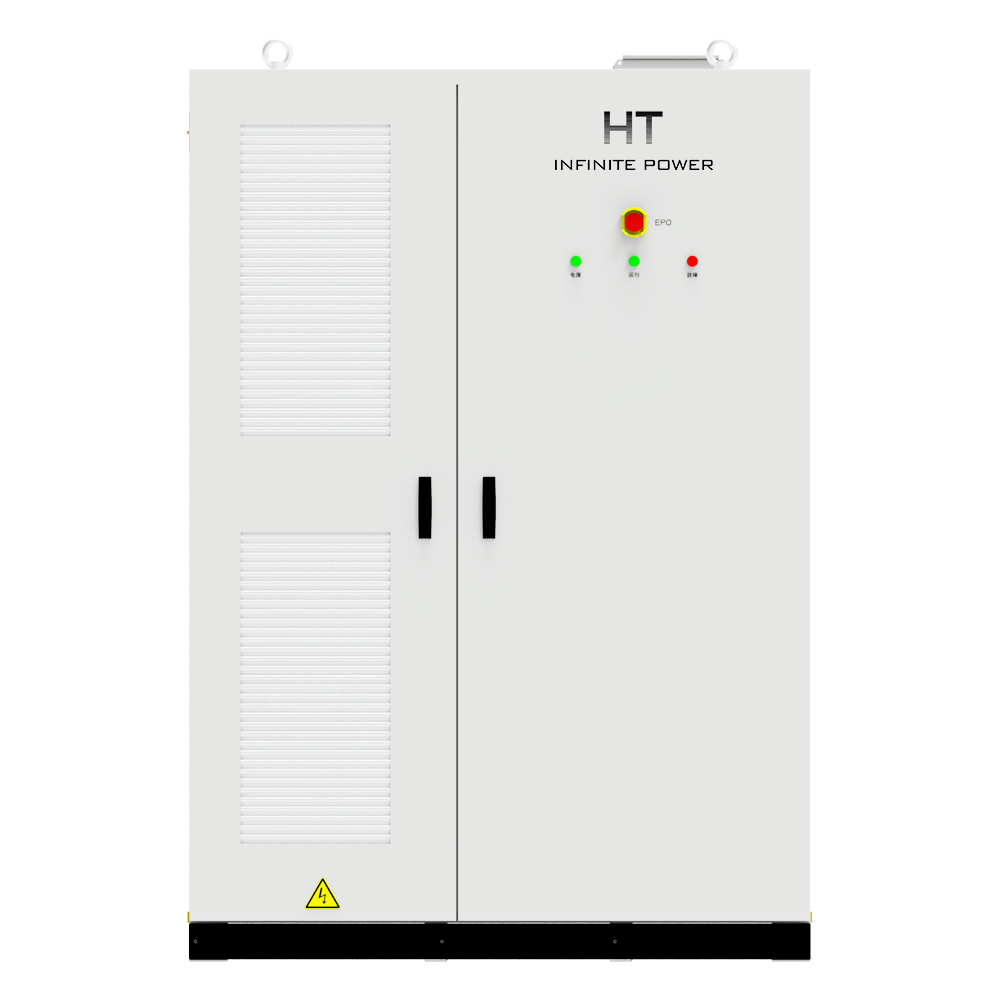

Specification Of 215kW 418kWh outdoor BESS
Model
Battery Parameters
Battery rated capacity
Battery rated voltage
Battery voltage range
Battery type
Cell Capacity
AC Parameters
Rated AC power
Rated AC current
Rated AC voltage
Rated AC frequency
Power Factor
General Parameters
Protection level
Cooling mode
Dimension (W* D* H)
Weight (approx.)
HT -215（418kWh）
418kWh
1331.2V
1164.8V~1497.6V
LFP
314Ah
215kW
180A
690V，3W+PE
50/60Hz
-1leading to+1 lagging
IP55
Liquid-cooled
1600*1350*2300mm
3900kg
CE Certification
Energy Storage System-EMC
Energy Storage System-LVD
Energy Storage Converter-LVD
Energy Storage Converter-EMC
EN 50549-1:2019+A1
EN 50549-10:2022
Key functional components of 215kW 418kWh BESS

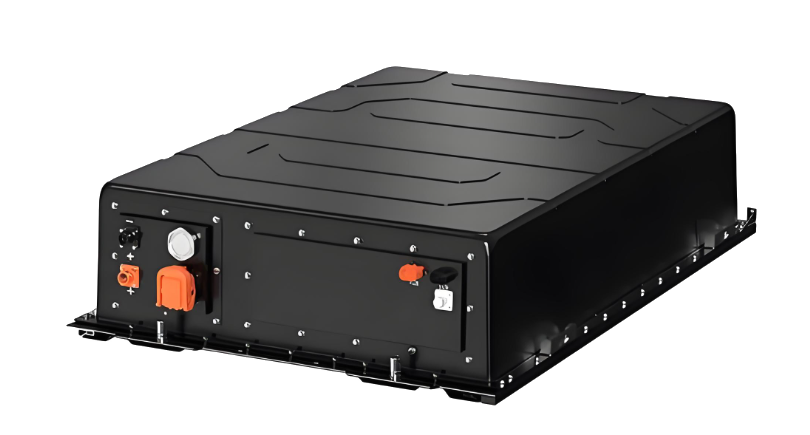

Battery Compartment
●EVE brand A-grade 314Ah cell
●Liquid Pack :52S *314Ah
●Cluster: 52S*314Ah*8unit 418kWh
●Nominal voltage: 1331V

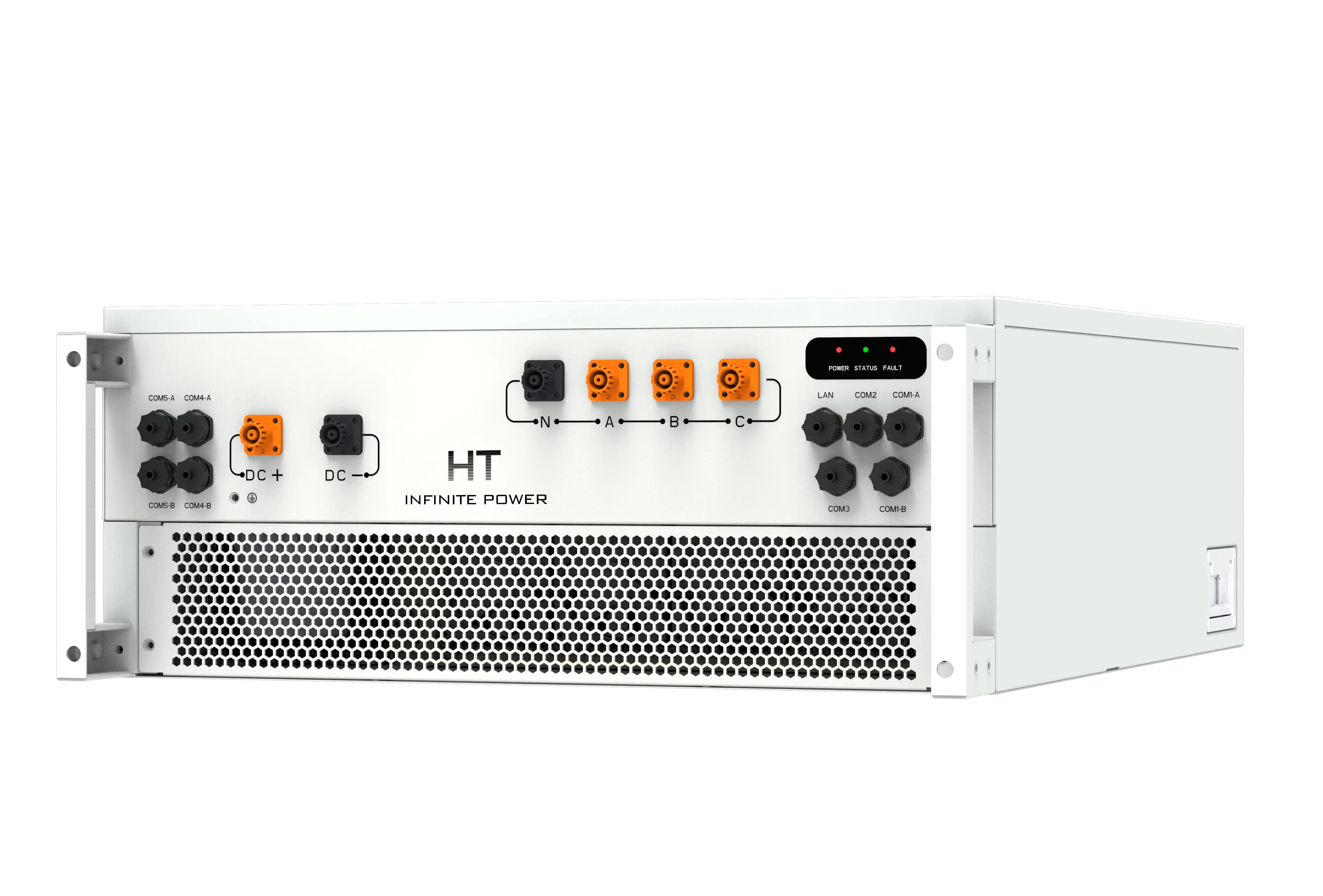

215kW AC DC module
●Support 690V/800V AC output
●99% high efficiency
●1000V-1500V widely voltage range
Local and remote monitoring system (EMS)
The monitoring system software is a comprehensive monitoring system that integrates local control panel, cloud platform and station-level EMS (Energy Management System).
●Real-time monitoring: collects and displays equipment operation status, key data and alarm information, ensuring that users can grasp the equipment status at any time
●Alarm maintenance: local sound and light alarm prompts, support failure prediction, alarm push and maintenance management, improve system operation efficiency and reliability.
●Remote management: support the switching operation, mode switching and parameter setting of the equipment, realize remote control and parameter configuration of the equipment through the network to improve management efficiency.
●Energy efficiency optimization: trend analysis and energy efficiency assessment based on cloud data, dynamically adjusting the equipment operation mode according to the set strategy and real-time load conditions to achieve energy optimization.
