Can I add battery backup to my existing solar system?
2024-11-16
In recent years, more and more households or businesses have installed solar systems, which not only improves the utilization of clean energy, but also reduces the electricity costs of households or businesses.
However, photovoltaic power generation is unstable due to the influence of time and weather. At the same time, the increasing number of photovoltaic power generation systems has caused excessive pressure on the power grid.
Whether for the user's own consideration or for the national grid, requiring photovoltaic power stations to be equipped with backup battery for solar system has become a future development trend.
Whether for the user's own consideration or for the national grid, requiring photovoltaic power stations to be equipped with backup battery for solar system has become a future development trend.
In this article, we will introduce how to add a backup battery to an already existing solar system and what benefits the addition of backup battery for solar system can bring.
Yes, you can certainly add backup battery for solar system. However, the installed PV inverter needs to be replaced. The backup battery needs to be matched with a grid-connected energy storage inverter, and the existing PV inverter cannot be used.
There are two solutions on the market now. One is to add a controller to the original PV inverter toz control the backup battery. The other is to replace the original PV inverter with a grid-connected energy storage inverter.
1. Precautions for adding a backup battery for solar system
1.1 Selection of energy storage type

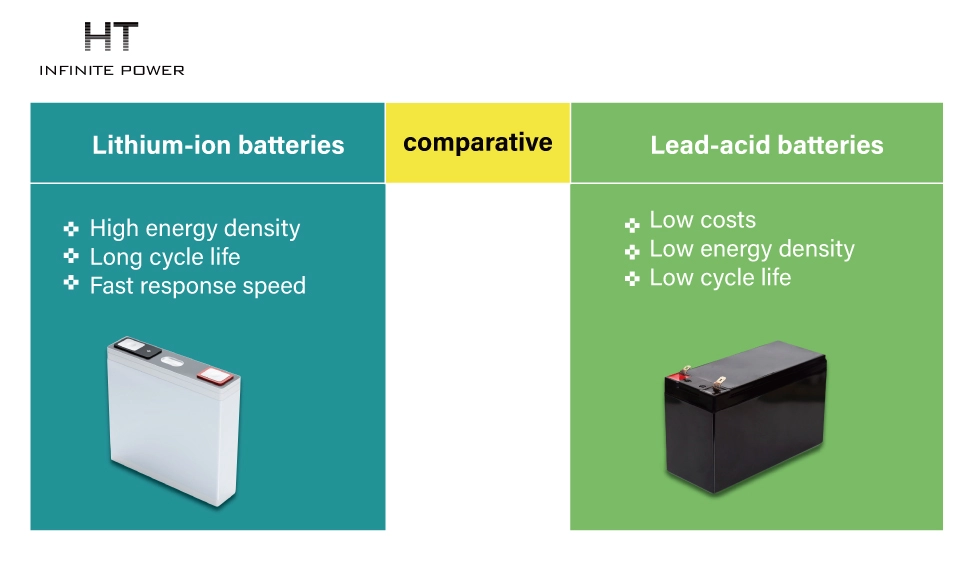

At present, common backup battery for solar system include lithium-ion batteries, lead-acid batteries, and flow batteries. Lithium-ion batteries have the advantages of high energy density, long cycle life, and fast response speed, and are one of the most commonly used energy storage technologies.
Lead-acid batteries have low costs, but relatively low energy density and cycle life.
Flow batteries are suitable for large-scale energy storage scenarios and have the characteristics of high safety and long life.
At present, energy storage batteries mainly use lithium iron phosphate batteries, which are highly safe, pollution-free, and have a long life.
When choosing the type of energy storage, it is necessary to make a comprehensive consideration based on actual needs and budget.
When choosing the type of energy storage, it is necessary to make a comprehensive consideration based on actual needs and budget.
1.2 Determination of energy storage capacity
Determination of backup battery capacity is a key link in increasing energy storage in photovoltaic systems.
Generally speaking, backup battery capacity needs to be calculated based on factors such as the installed capacity of the photovoltaic system, power load, and local weather conditions.
If the power load is large or the local weather is changeable, a larger capacity backup battery system is required. At the same time, factors such as the charging and discharging efficiency and self-discharge rate of the backup battery system need to be considered to ensure that the backup battery system can meet actual needs.
1.3 Selective inverter
Adding backup battery for solar system requires consideration of multiple factors. First, it is necessary to select a suitable inverter to ensure that the photovoltaic system and the backup battery system can work together.
Secondly, a reasonable electrical design is required to ensure the safety and reliability of the system. Finally, the installation and commissioning of the system must be considered to ensure that the system can operate normally.
In short, adding backup battery for solar system to an existing photovoltaic system can be an important means to achieve stable power supply and improve energy efficiency.
In short, adding backup battery for solar system to an existing photovoltaic system can be an important means to achieve stable power supply and improve energy efficiency.
When selecting the type of energy storage, determining the energy storage capacity, controlling and managing, and realizing system integration, multiple factors need to be considered comprehensively to ensure that the backup battery system can meet actual needs.
I believe that in the future, the combination of photovoltaic systems and backup battery will bring us cleaner and more reliable energy solutions.
I believe that in the future, the combination of photovoltaic systems and backup battery will bring us cleaner and more reliable energy solutions.
2. Centralized working mode after adding backup battery for solar system.
Common solution: the backup battery system is mainly used in conjunction with photovoltaic grid-connected power generation applications.
The entire system is a power generation system including photovoltaic module arrays, photovoltaic controllers, battery packs, battery management systems (BMS), inverters, and corresponding energy storage power station joint control and dispatching systems.
The entire system is a power generation system including photovoltaic module arrays, photovoltaic controllers, battery packs, battery management systems (BMS), inverters, and corresponding energy storage power station joint control and dispatching systems.

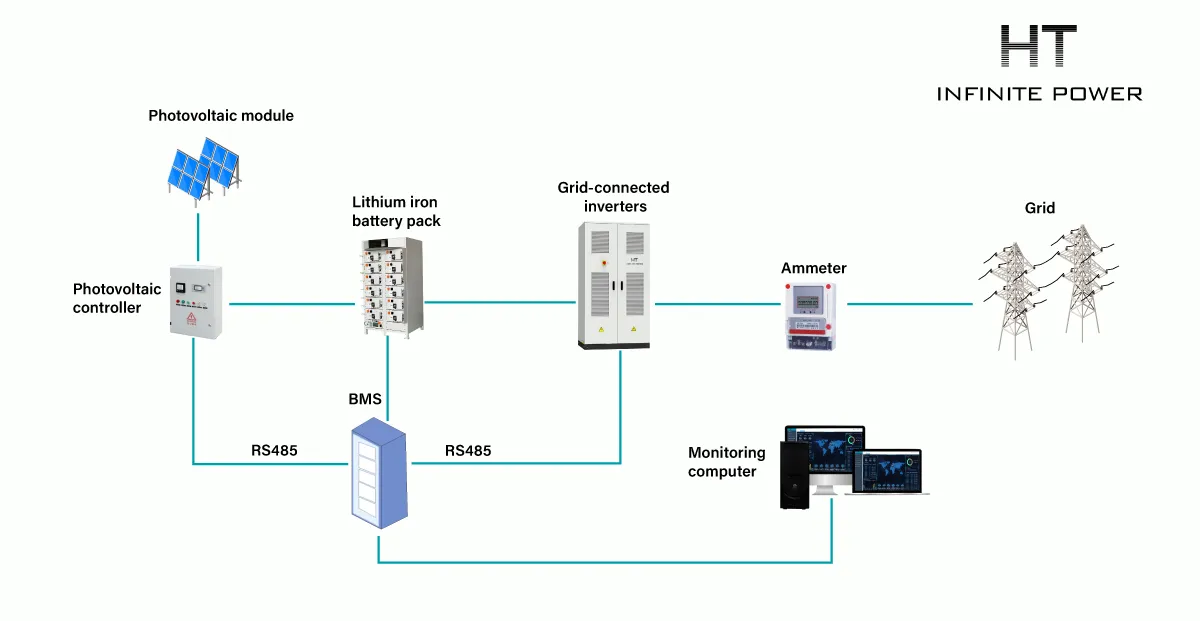

The system architecture is shown in Figure 1-1.
(1).Photovoltaic module arrays
Photovoltaic module arrays use the photovoltaic effect of solar panels to convert light energy into electrical energy, which is then used to charge backup battery packs and to convert direct current into alternating current through inverters to power the load.
(2).Photovoltaic controllers
The intelligent controller continuously switches and adjusts the working state of the backup battery pack according to the changes in sunlight intensity and load: on the one hand, the adjusted electric energy is directly sent to the DC or AC load.
On the other hand, the excess electric energy is sent to the backup battery pack for storage. When the power generation cannot meet the load requirements, the controller sends the battery power to the load, ensuring the continuity and stability of the entire system.
(3).Inverter
The grid-connected inverter system consists of several inverters, which convert the DC power in the backup battery into standard 220V/380V AC power and connect it to the user's low-voltage grid or send it to the high-voltage grid through a step-up transformer.
(4).Battery Packs
The backup battery pack plays two roles in the system: energy regulation and load balancing. It converts the electrical energy output by the photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient.

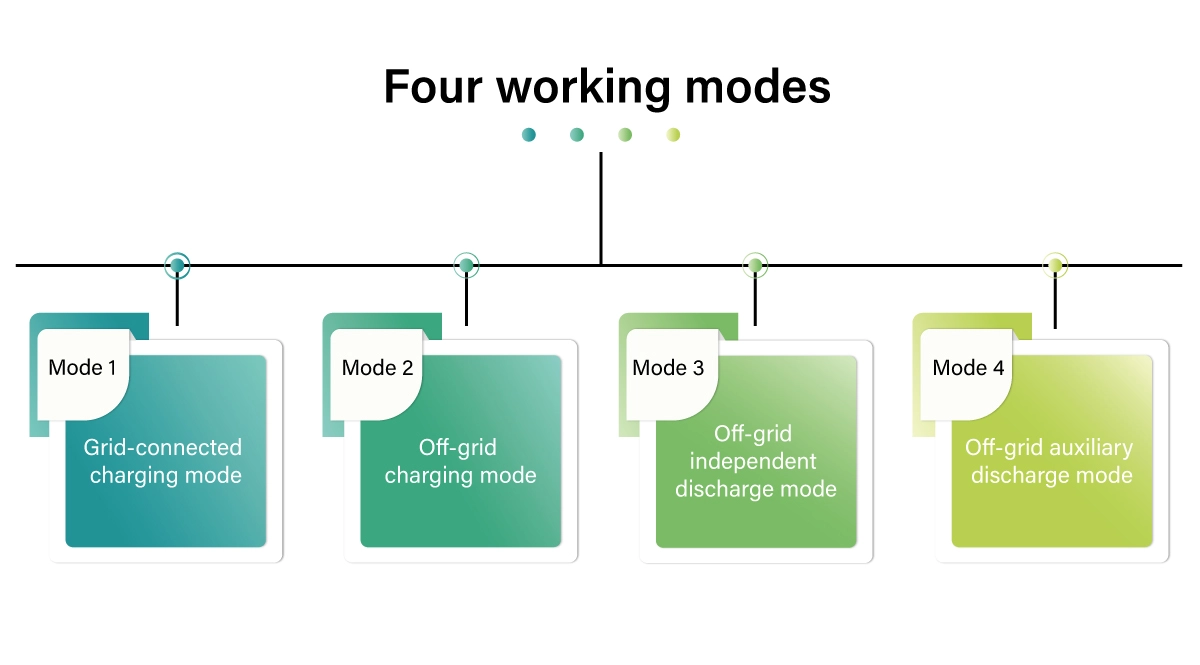

The working mode of the backup battery unit has different operating modes according to the photovoltaic power generation system, which can be divided into four working modes: grid-connected charging, off-grid charging, off-grid independent discharge and off-grid auxiliary discharge.
Mode 1: Grid-connected charging mode.
In the grid-connected operation mode, when the backup battery capacity is insufficient, it is charged through the grid to provide energy reserve for the photovoltaic power generation system in the off-grid operation mode.
Mode 2: Off-grid charging mode.
In the off-grid operation mode, when the backup battery capacity is insufficient and the photovoltaic power generation unit has excess energy output, the battery charging is controlled.
Mode 3: Off-grid independent discharge mode.
In the off-grid operation mode, when the photovoltaic power generation unit stops working due to insufficient energy to provide voltage and frequency support, the backup battery alone provides the required power for the load and supports the voltage and frequency on the photovoltaic system AC bus.
Mode 4: Off-grid auxiliary discharge mode.
In the off-grid operation mode, the output power of the photovoltaic power generation unit is not enough to meet the power demand of the load, but it can provide a stable AC bus voltage and frequency. At this time, the backup battery energy storage unit assists in discharge to maintain the energy balance of the system.
3.The advantage of adding a backup battery for solar system
3.1. Improve energy efficiency
Adding a backup battery for solar system greatly improve the energy efficiency of photovoltaic power generation projects by storing excess electricity generated by photovoltaic power generation when there is sufficient sunshine, and releasing electricity when demand peaks or solar energy is insufficient. This not only balances the supply and demand relationship, but also extends the service life of the backup battery by avoiding the battery being in a low or fully charged state for a long time.
3.2. Adding a backup battery for solar system can ensure the stability of the power system
Energy storage can be used as a regulator of the power system. When the system frequency or voltage fluctuates, it can quickly release or absorb energy to maintain the stable operation of the power system. Especially when a high proportion of renewable energy is connected to the power grid, the energy storage system plays a vital role in ensuring the stability of the grid frequency and voltage.
3.3. Smoothing photovoltaic output
Since photovoltaic power generation is greatly affected by meteorological conditions, there will be rapid fluctuations in power output. Adding a backup battery for solar system can smooth out this output and reduce the impact on the power grid. Storage equipment can absorb the short-term excess power of the photovoltaic power generation system to avoid pressure on the power grid due to sudden increases in power. At the same time, it can also provide the required additional power when power demand peaks
3.4. Adding a backup battery for solar system can optimize the power structure
With the increasing pressure of energy transformation and emission reduction, backup battery technology can increase the penetration rate of renewable energy such as photovoltaics, so as to optimize the energy structure. At night or in rainy weather, the backup battery system can release energy to supply the power grid, reduce dependence on fossil energy, and help build a low-carbon, environmentally friendly energy system.
3.5. Enhanced power supply reliability
When there is a problem with the power supply, such as a grid failure or natural disaster, photovoltaic power generation equipped with backup battery can continue to supply power as an independent power system, greatly enhancing the reliability of power supply. In addition, the backup battery system can also provide necessary auxiliary services for the power grid, such as frequency regulation and backup power, which is crucial to ensure the smooth operation of the power grid.
The application of backup battery systems is not limited to electric energy storage. Its flexibility and rapid response performance also have important strategic significance in the power market.
By participating in peak load regulation, backup and other services in the power market, energy storage systems bring additional benefits to photovoltaic power generation projects, making the return on investment more substantial.
It is not difficult to find that adding a backup battery for solar system is not only conducive to improving the efficiency and stability of photovoltaic power generation, but also plays a vital role in achieving clean energy transformation and building a modern energy system. With the continuous development of energy storage technology and the reduction of costs, it is believed that the combination of photovoltaic energy storage will become more popular in the future and become an important part of the power system.
