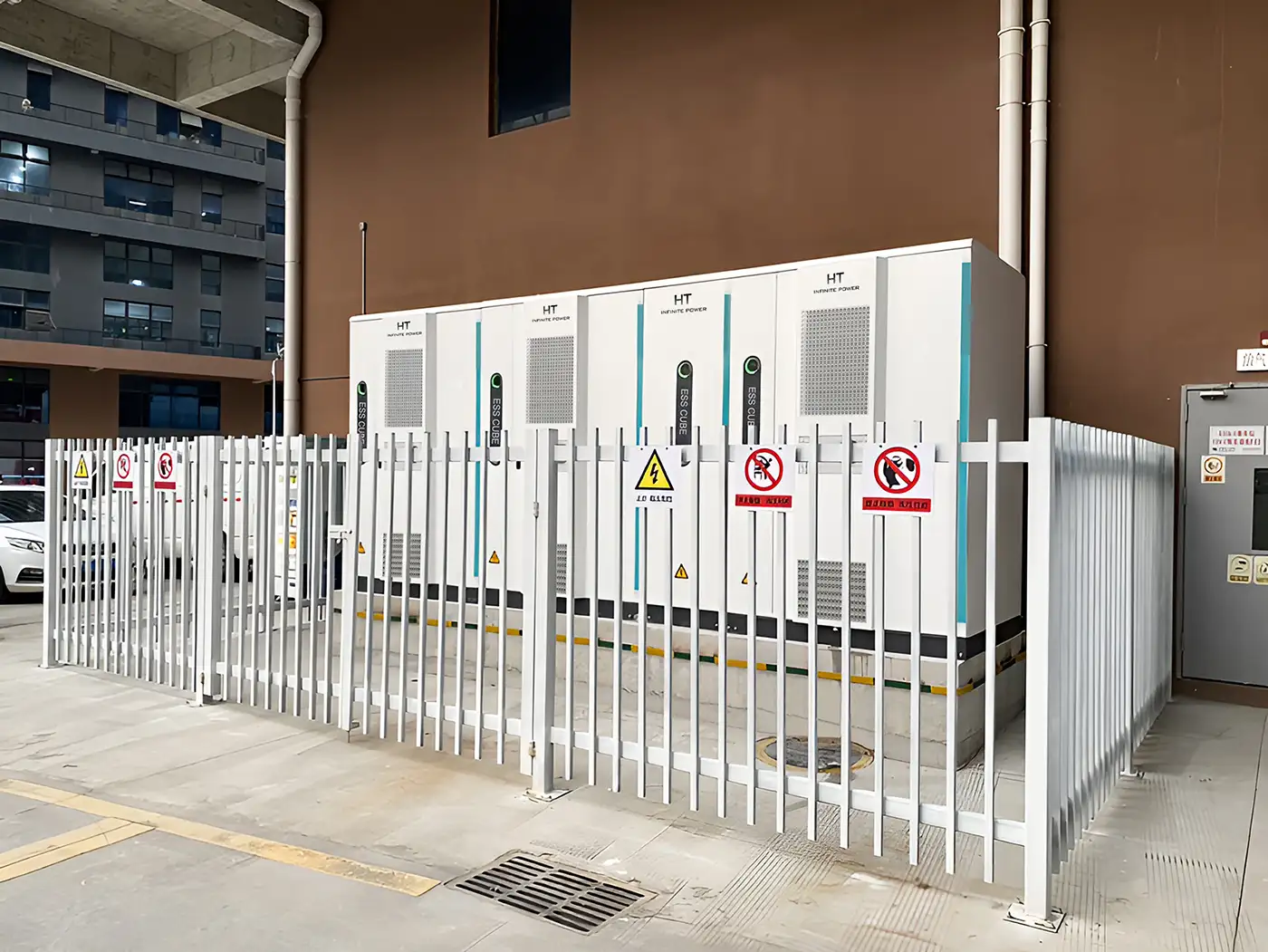

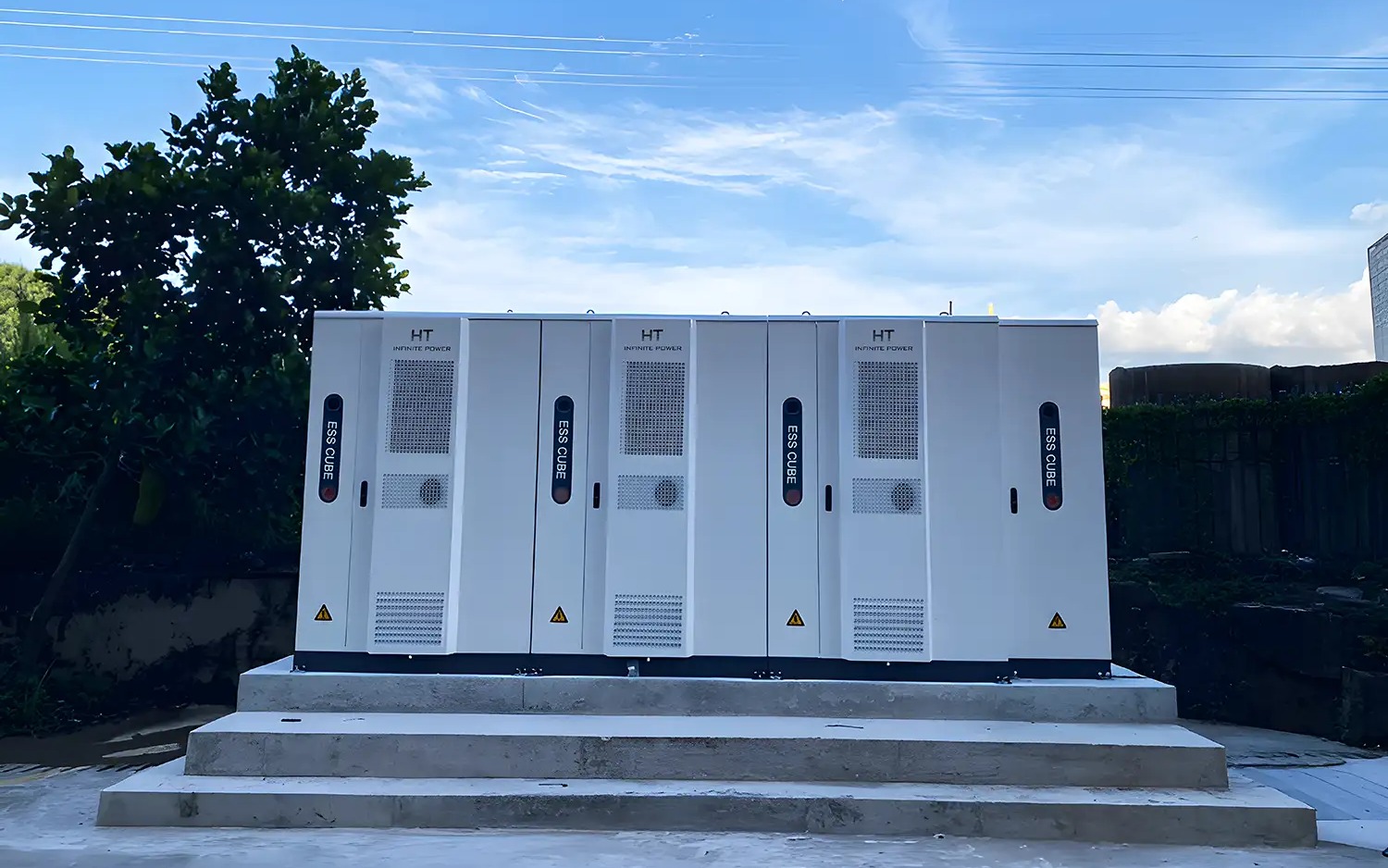

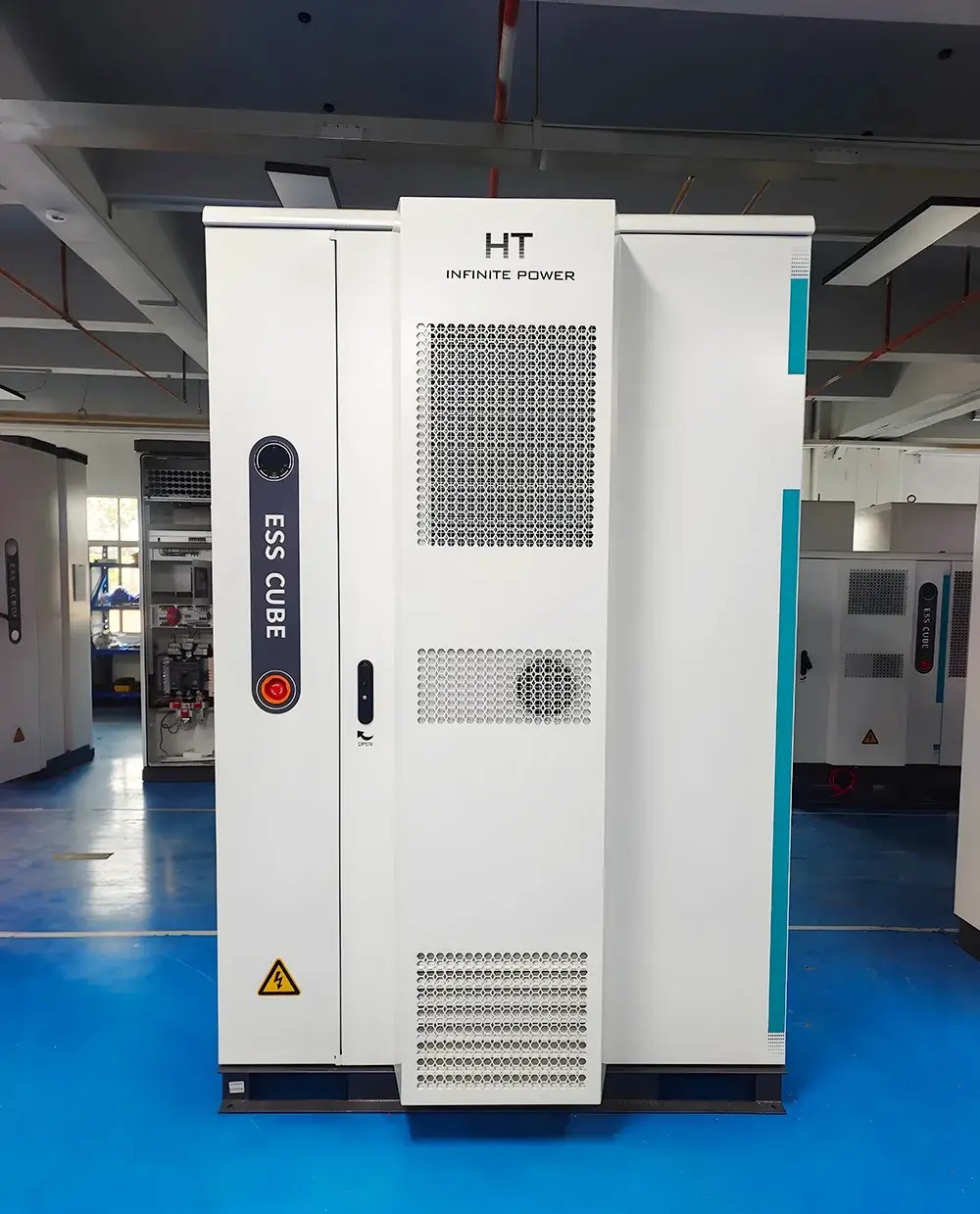

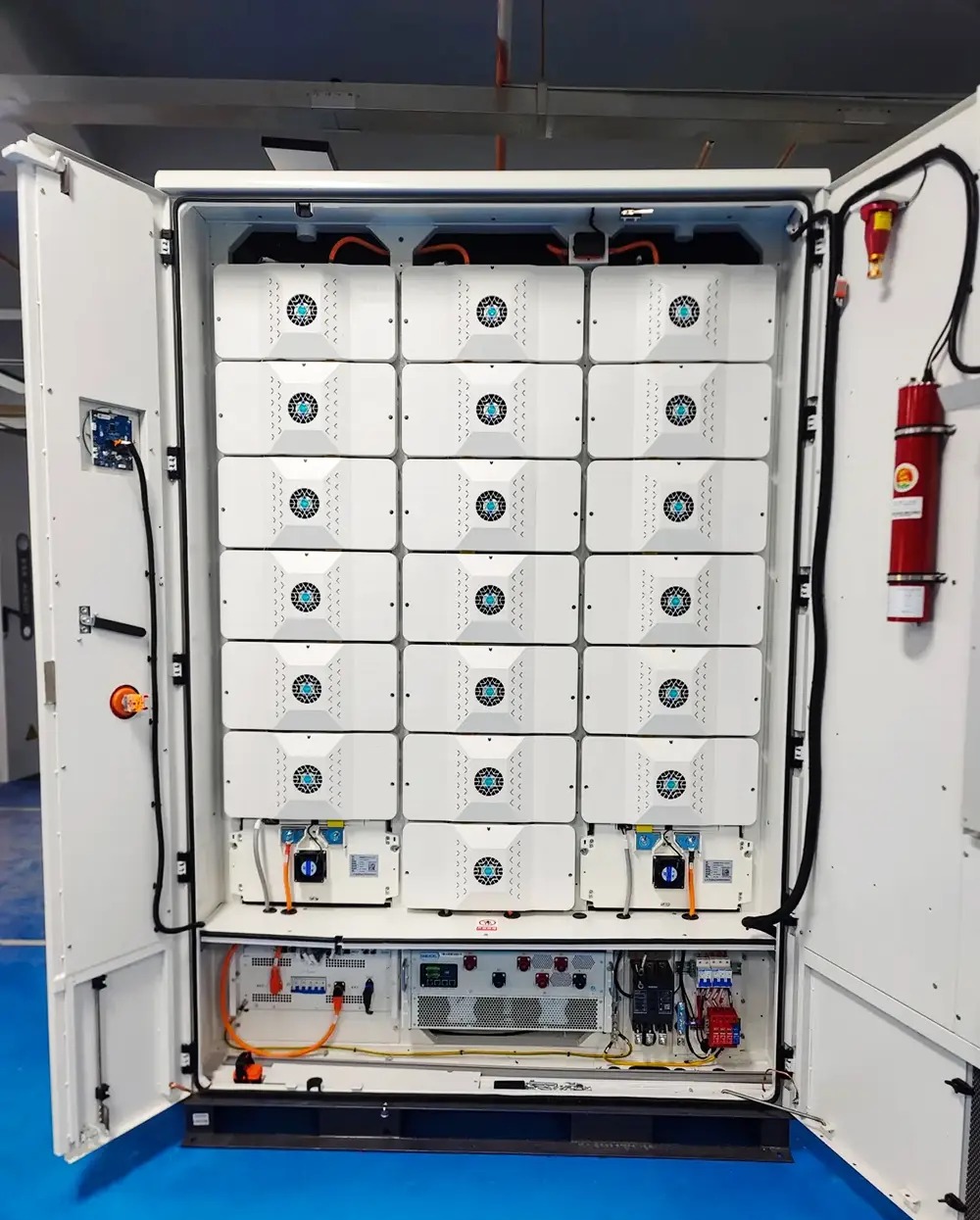

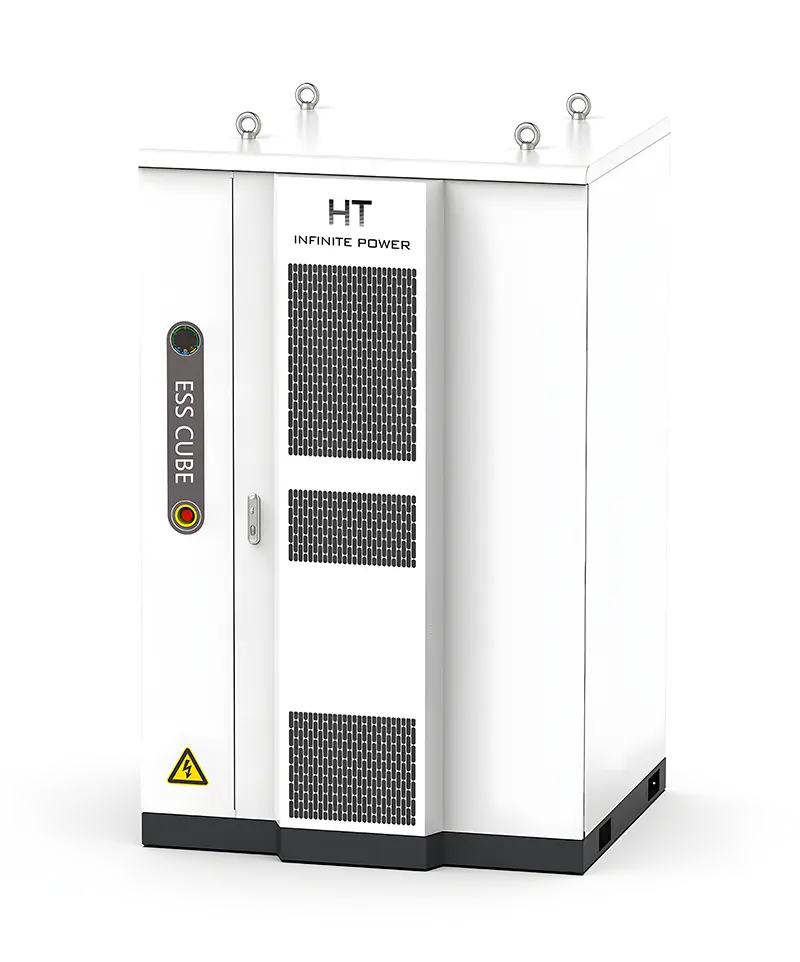

500kWh Battery Air Cooling System

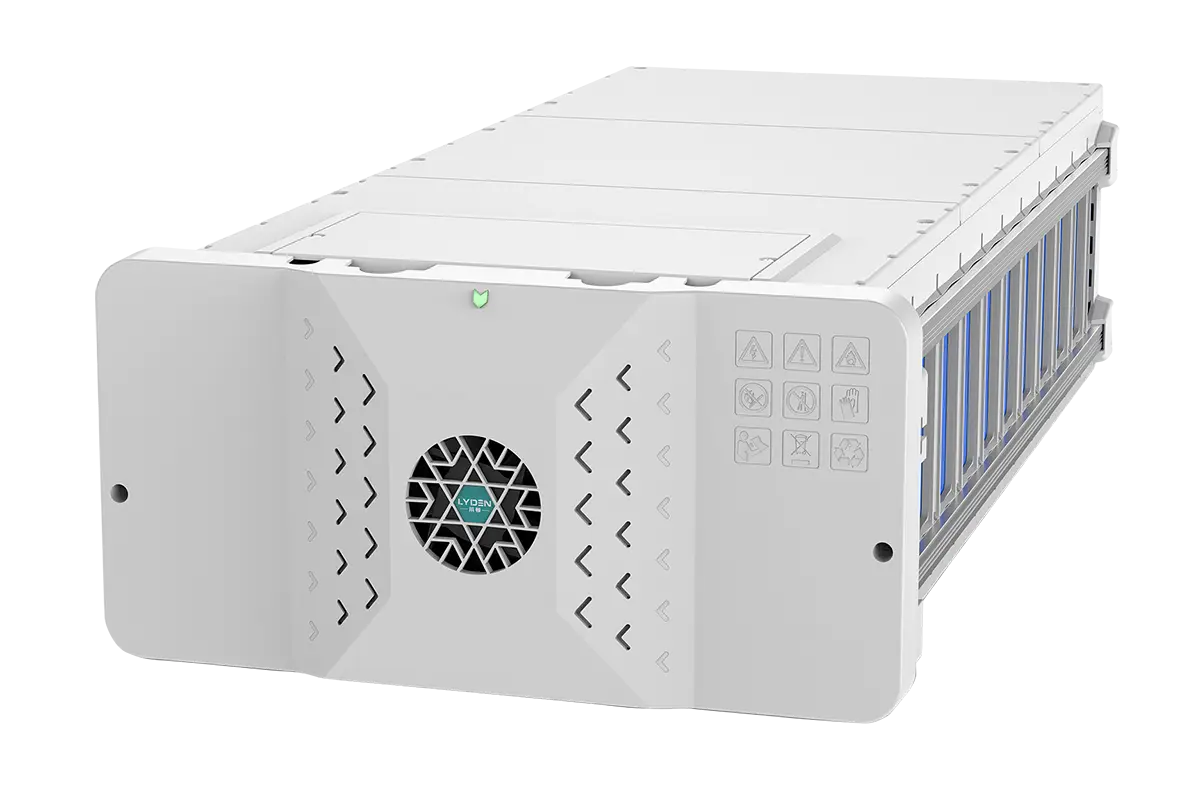

Battery Module

●Long-life battery, with a cycle life over 8,000 times;

●Precise temperature control design, built-in air duct design, intelligent constant temperature control;

●The shell material is all fiber-reinforced plastic material, A1 non-combustible fireproof grade, excellent insulation performance;

●Intelligent operation and monitoring, advanced fault warning

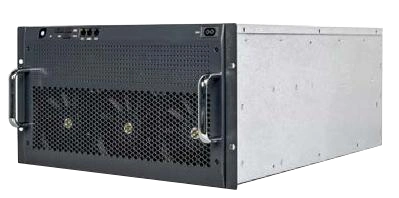

PCS Of 500kWh Battery Air Cooling System

●Active and reactive power are adjusted independently to improve power quality;

●Three-level topology, maximum conversion efficiency> 98.5%;

●Supports multi-machine parallel connection to meet different configuration scenarios;

●High dynamic response, full load switching response as low as 10ms;Accept grid dispatc;

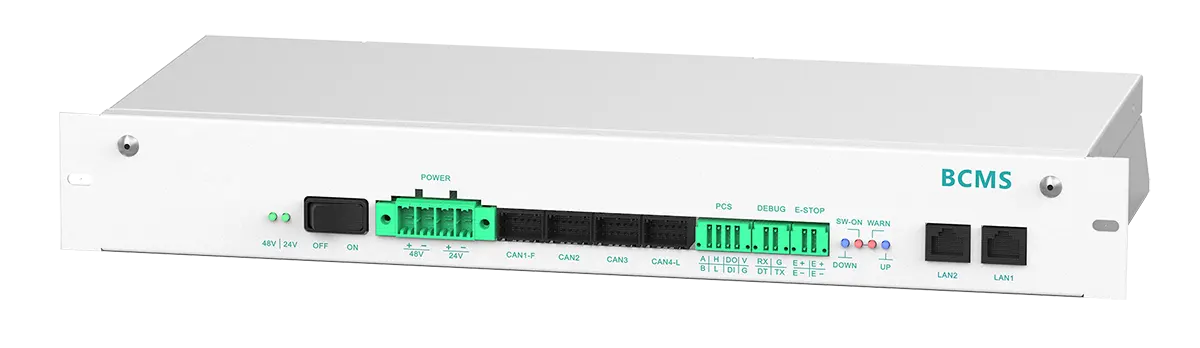

BMS Of 500kWh Battery Air Cooling System

●Communication function: communicate with energy management system, BMU, PCS and other components;

●Calculation function: calculate the SOC, SOH, charge and discharge capacity in the battery system, count the extreme value information of cluster monomers, etc;

●Control function: control the opening and closing of the battery system;

●Alarm protection: battery system abnormality alarm and protection;

●Balancing function: Active balancing to ensure the consistency of battery cells in the battery system;

●Temperature control strategy: intelligent temperature control;

●Storage function: real-time recording of important logs, events, collected data, etc;
