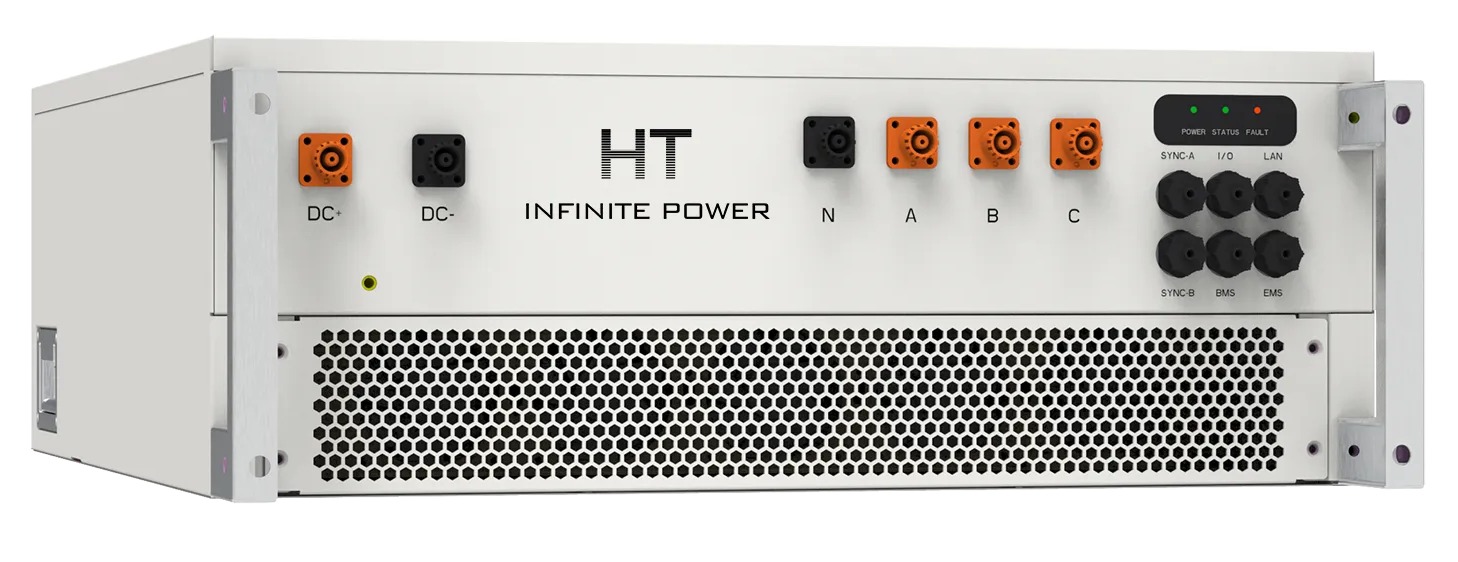

Features Of 215kW AC To DC Converter Module
High efficiency and energy saving
Adopting three-level topology, the highest efficiency can reach 99%, modular design, easy to install, easy to maintain, high on-line rate of energy storage system,integrated cluster-level battery man-agement function, high battery availability rate.
Safe and reliable
High protection level design, adapt to various application environments. IGBT made in Germany, ensure high performance and stability.
Multifunctional
Supports multiple types of energy storage batteries (lead-acid/lithium) or photovoltaics; Support blackstart, can be applied to peak shaving andvalley filling, demand regulation, pureoff-grid system of light storage, etc.
Flexible Configuration
Compatible with three-phase four-wire system, meets off-grid and grid-connected; DC 1500V energy storage system, suitable for 52s Pack, meets various battery pack requirements.
Parameters Of 215kW AC To DC Converter Module
Operating voltage range:
Full load voltage range:
Maximum DC current:
Maximum AC power:
Rated AC power:
Rated AC current:
Maximum AC current:
Rated AC voltage:
Operating temperature:
Cooling method:
Relative humidity:
Communication method:
Protection rating:
Maximum efficiency:
Dimensions (W*D*H):
Weight (approx.):
1000 - 1500Vdc
1150 - 1500Vdc
206A
236.5kW
215kW
180A
198A
690Vac, (3W+PE)
-30°C to +60°C （derate above 45℃)
Forced air cooling
0 to 100% (non-condensing)
RS485/CAN/Ethernet
IP66
99%
700*800*260mm
78kg
CE Certification
Energy Storage Converter-LVD
Energy Storage Converter-EMC
EN 50549-1:2019+A1
EN 50549-10:2022

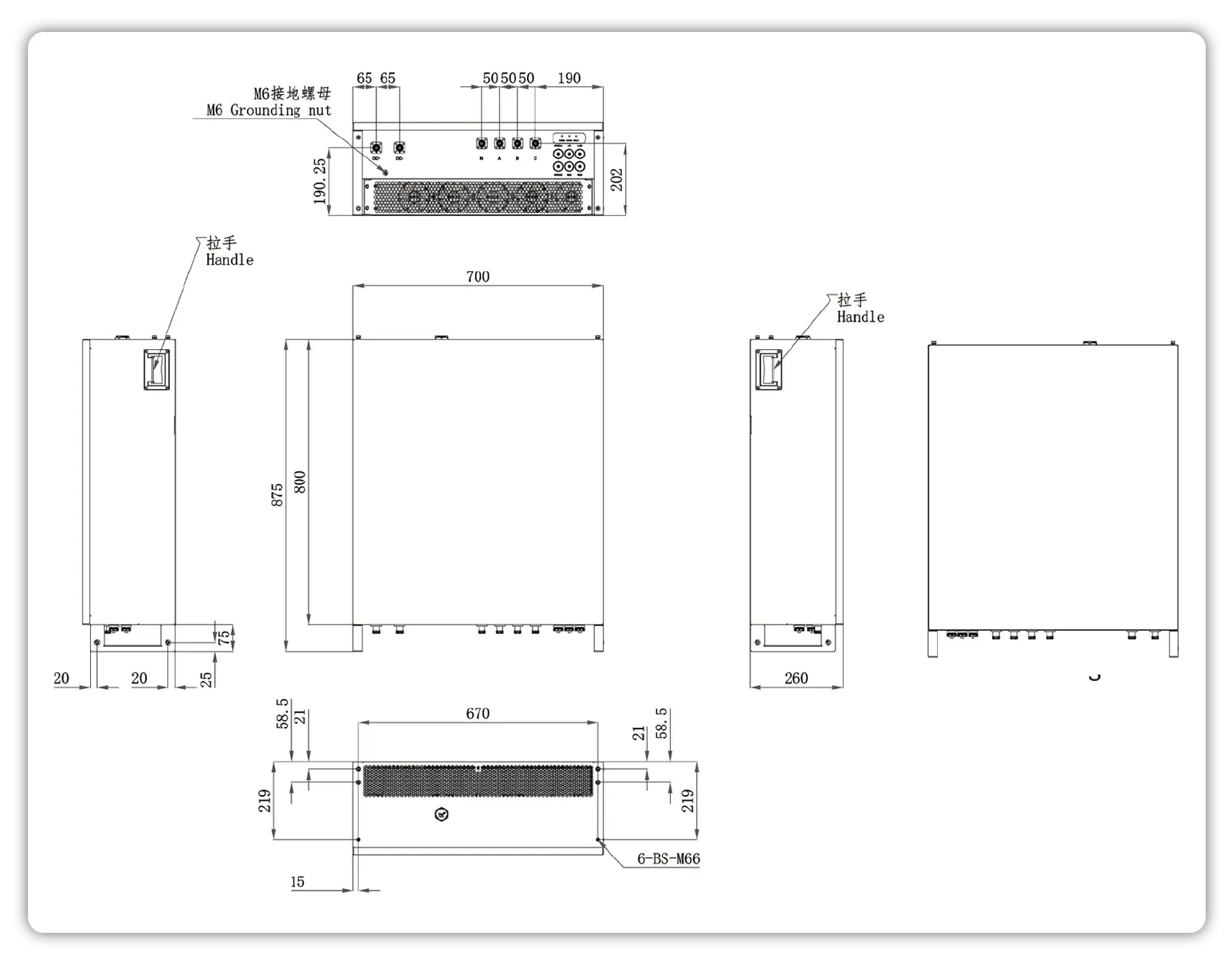

Dimension Of 215kW AC To DC Converter Module

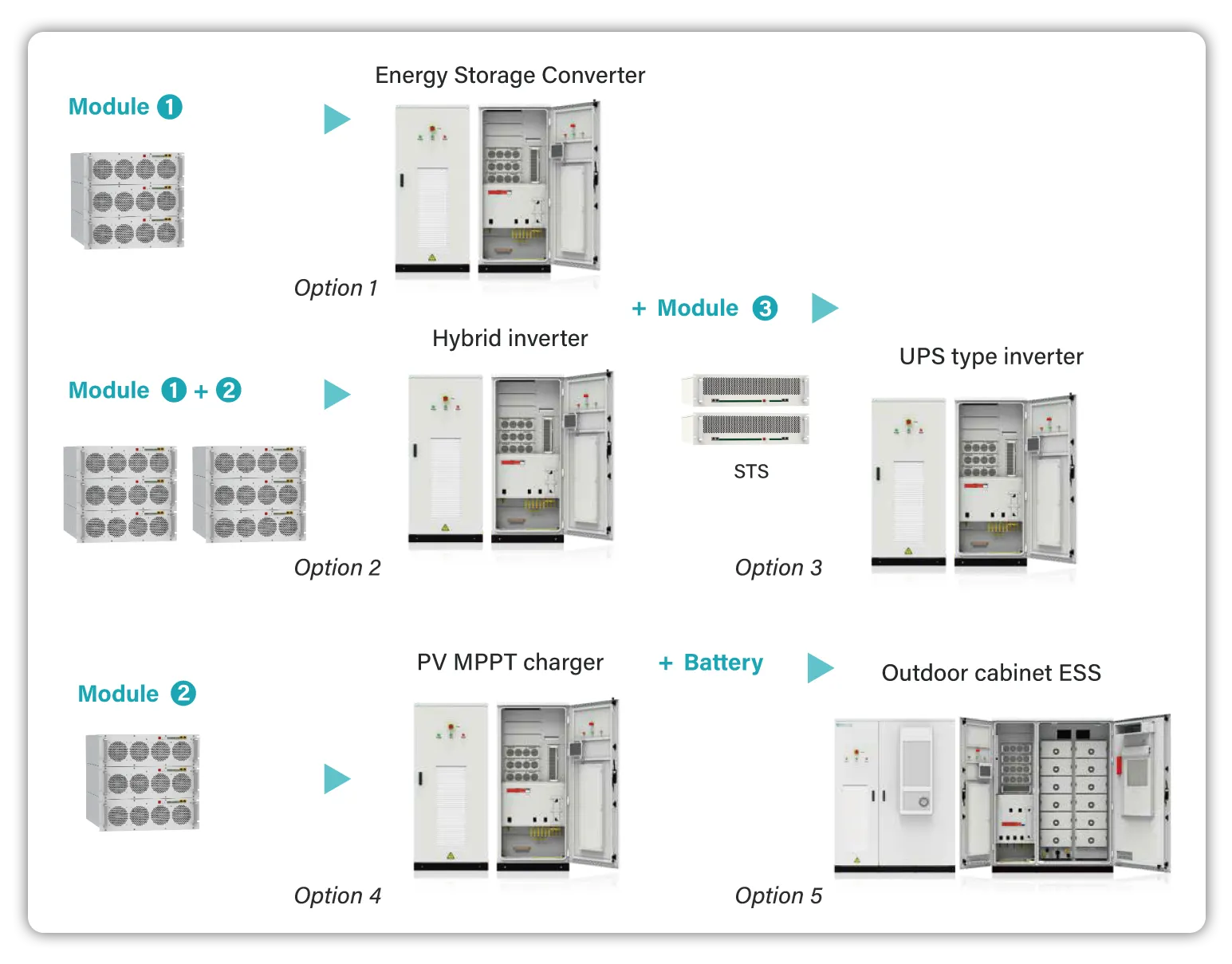

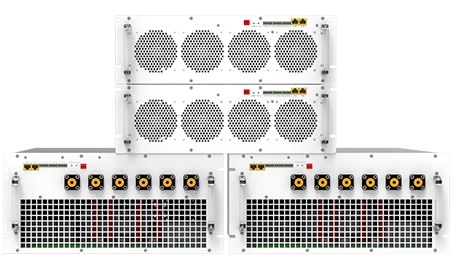

Modular Solution with 215kW AC to DC converter module
With PQ/VF, VSG, CV, MPPT multiple operating modes ; Three - level topology , high conversion efficiency; Compatible with 3-phase 3/4-wire outputs.

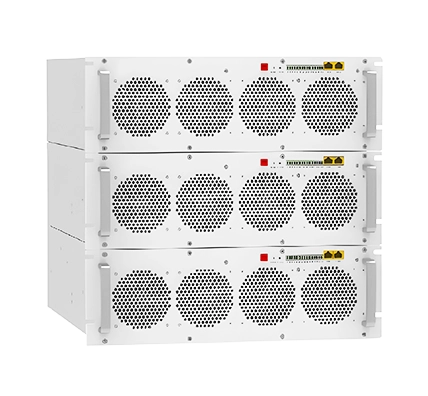

DC/DC Module
Both photovoltaic charging and energy storage charging and discharging functions; Three-level topology, high conversion efficiency; Dual interleaved parallel control reduces ripple current.

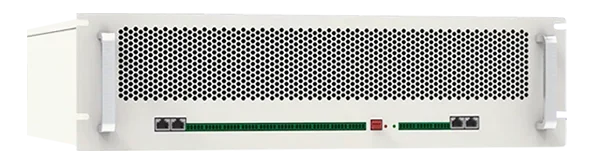

STS Module
With voltage, current, amplitude, frequency, and phase synchronization detection, and communication, it can realize seamless switching of microgrid system and off-grid to ensure power supply reliability.

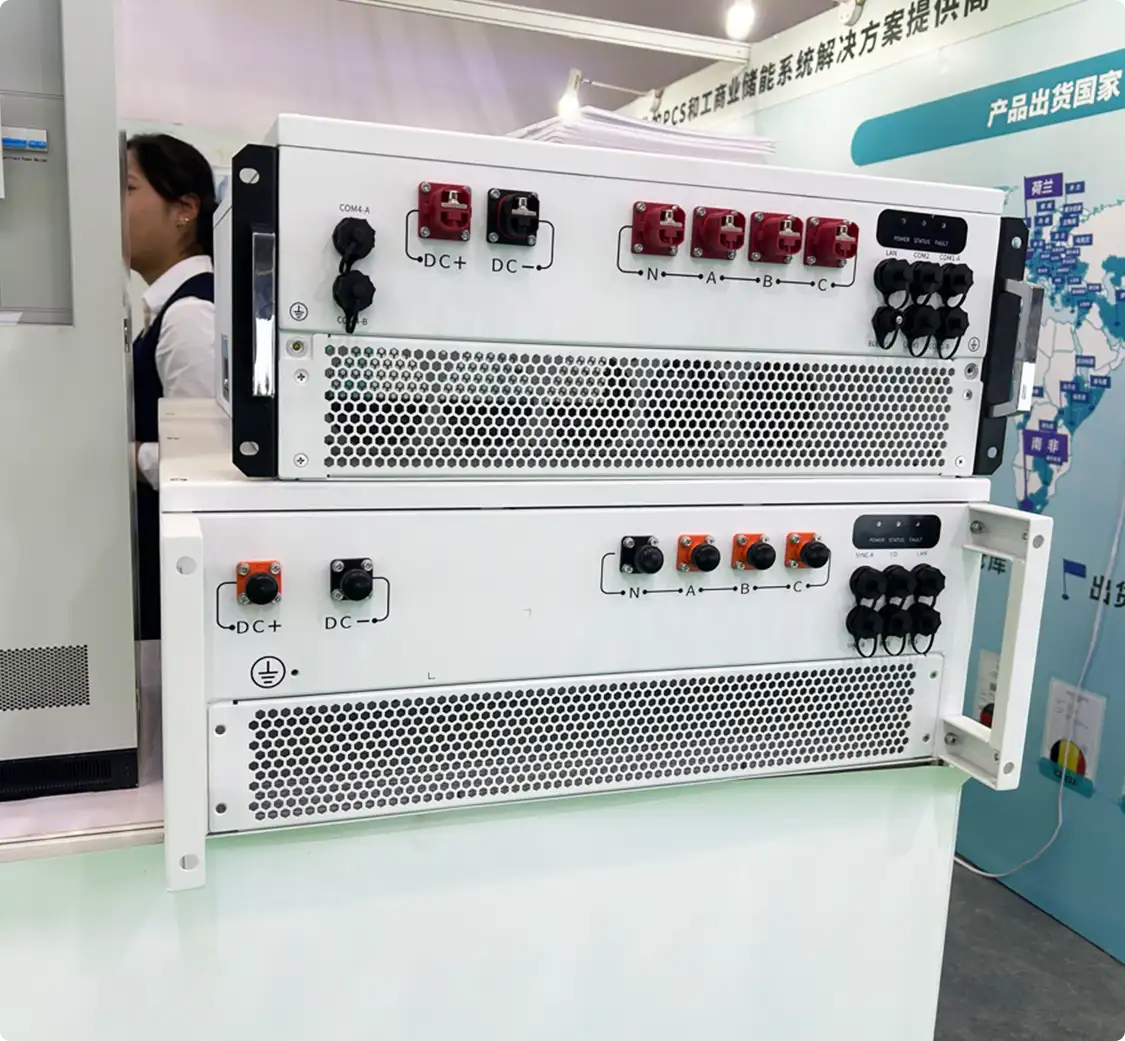

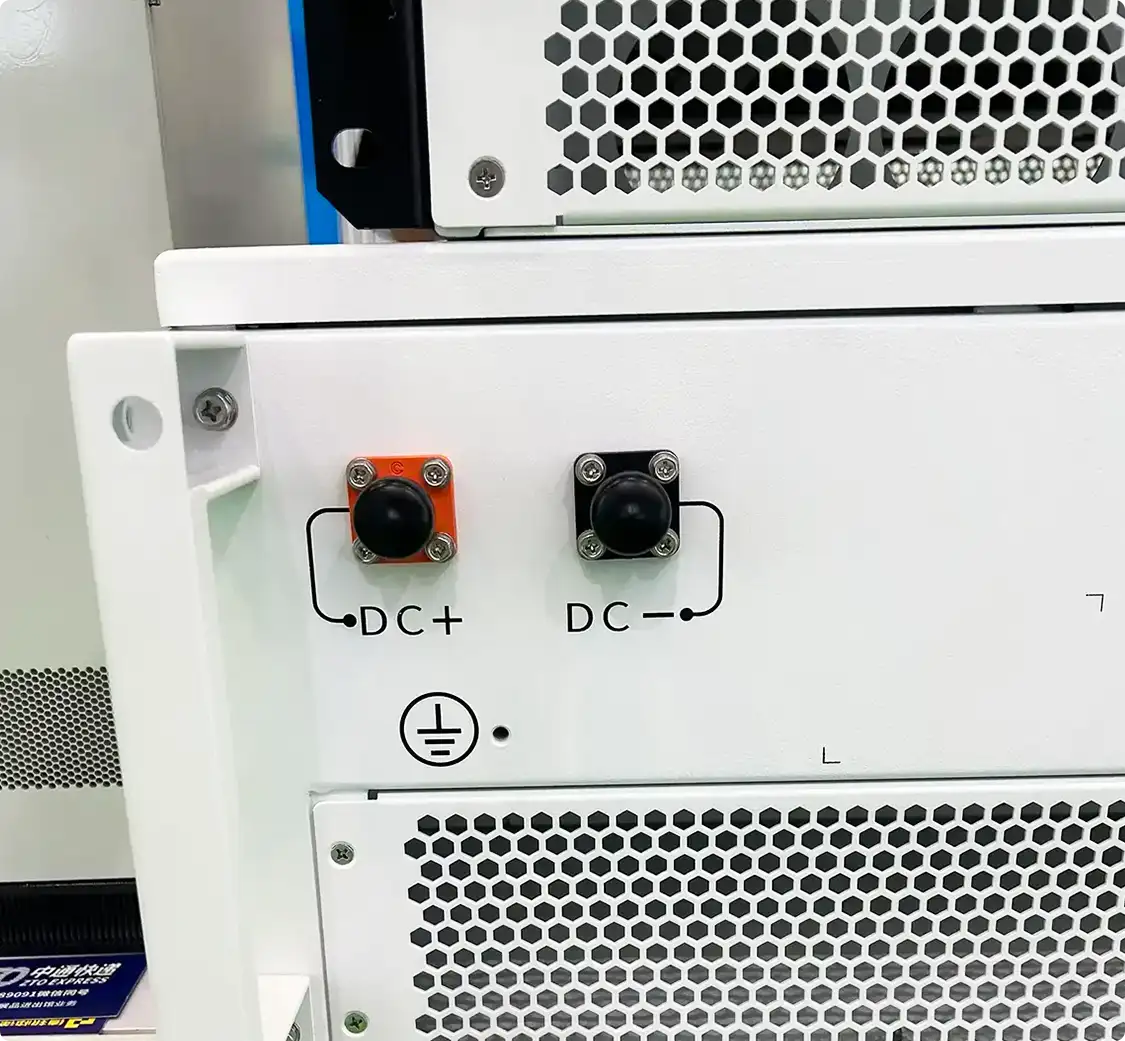

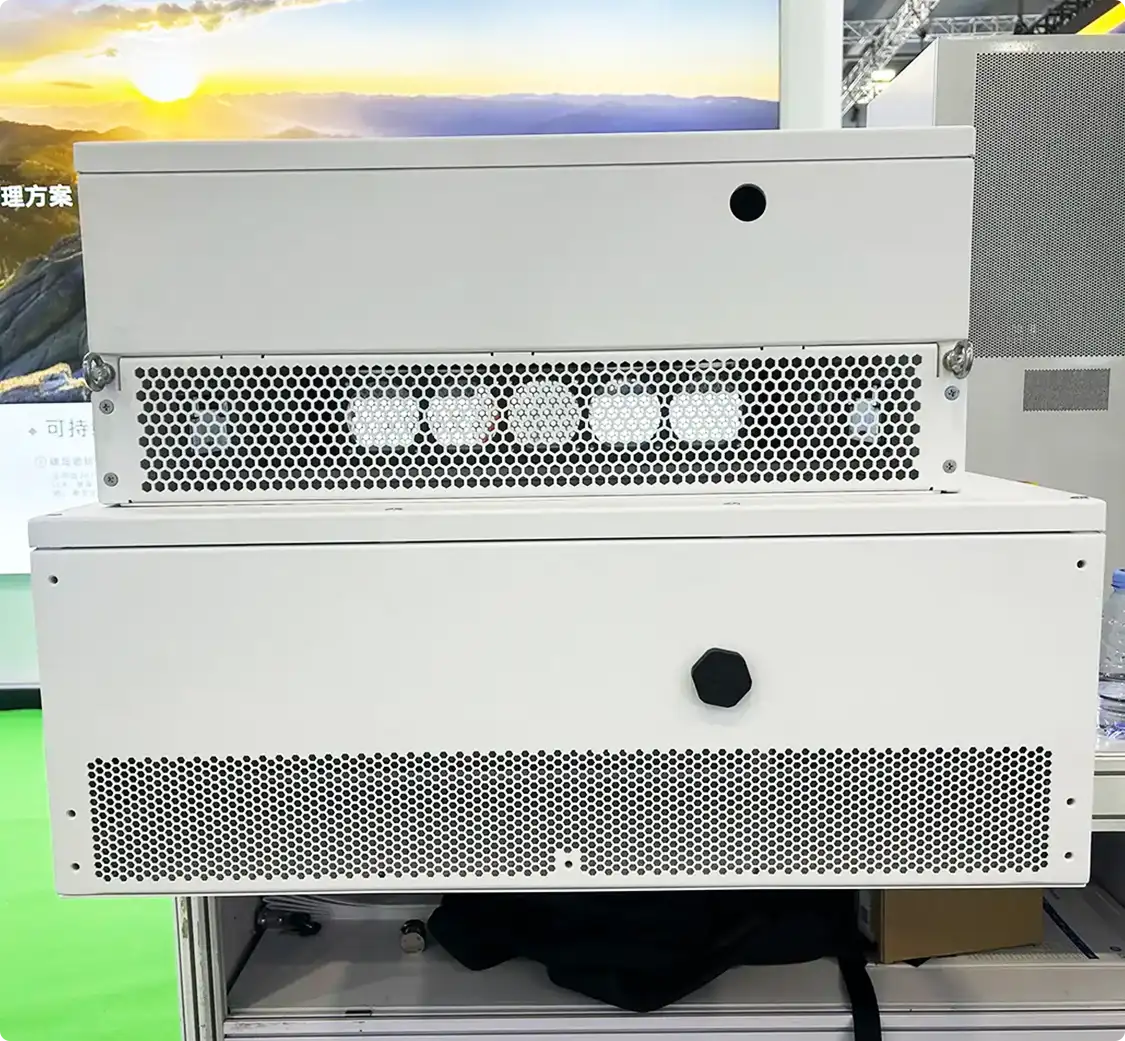

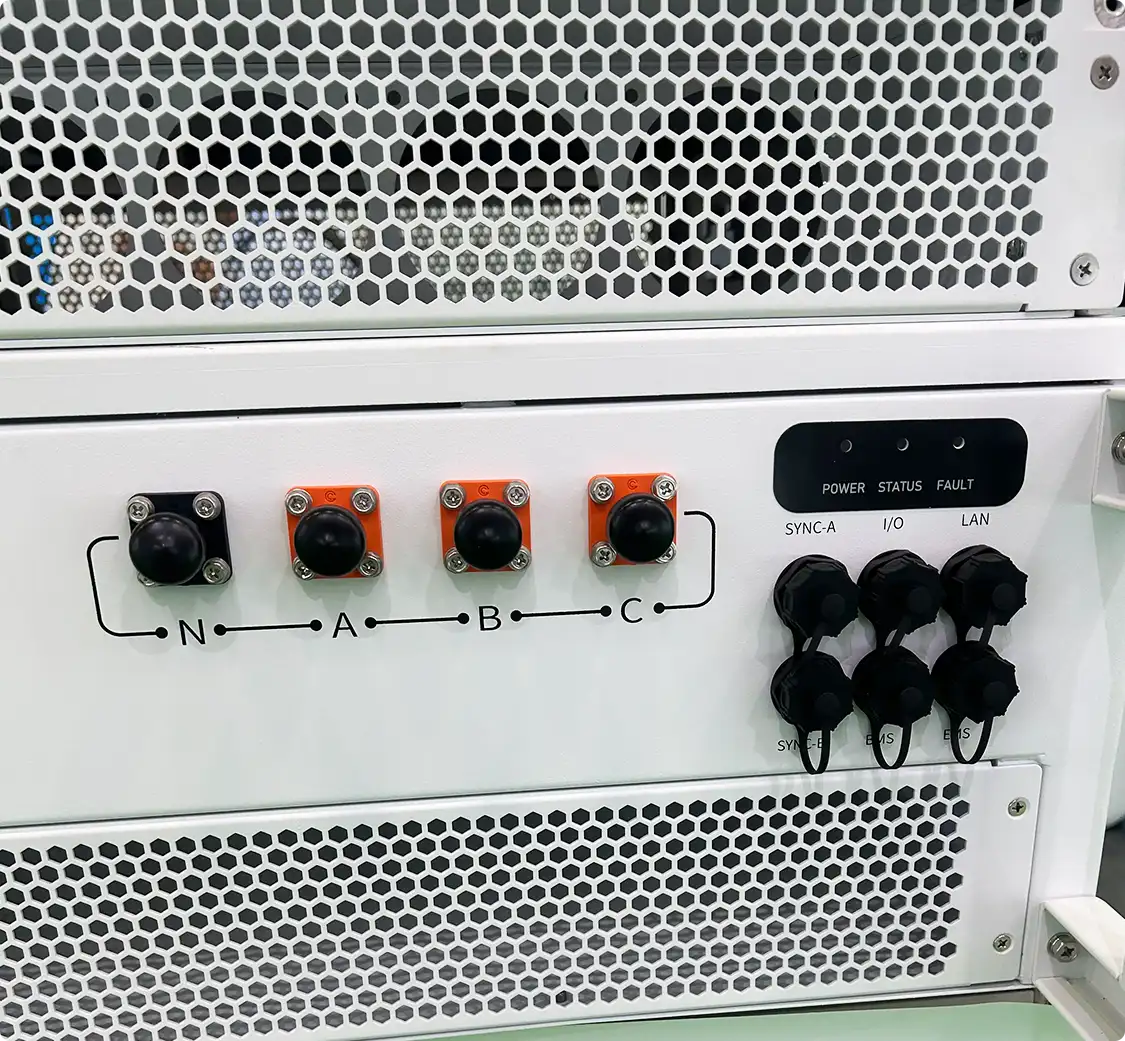

HT 150kW And 215kW AC To DC Converter Module
For More Questions Please Contact Us
we also supply AC-to-DC converter modules in different capacities to meet various project requirements. Contact us for modules with different specifications and tailored solutions.
