High Cycle Life
And Deep Cycle Ability
Intelligent
Communication Function
Light Weight, High
Energy Density Backup Power
Intelligent
Battery Management System
Safety And Reliability

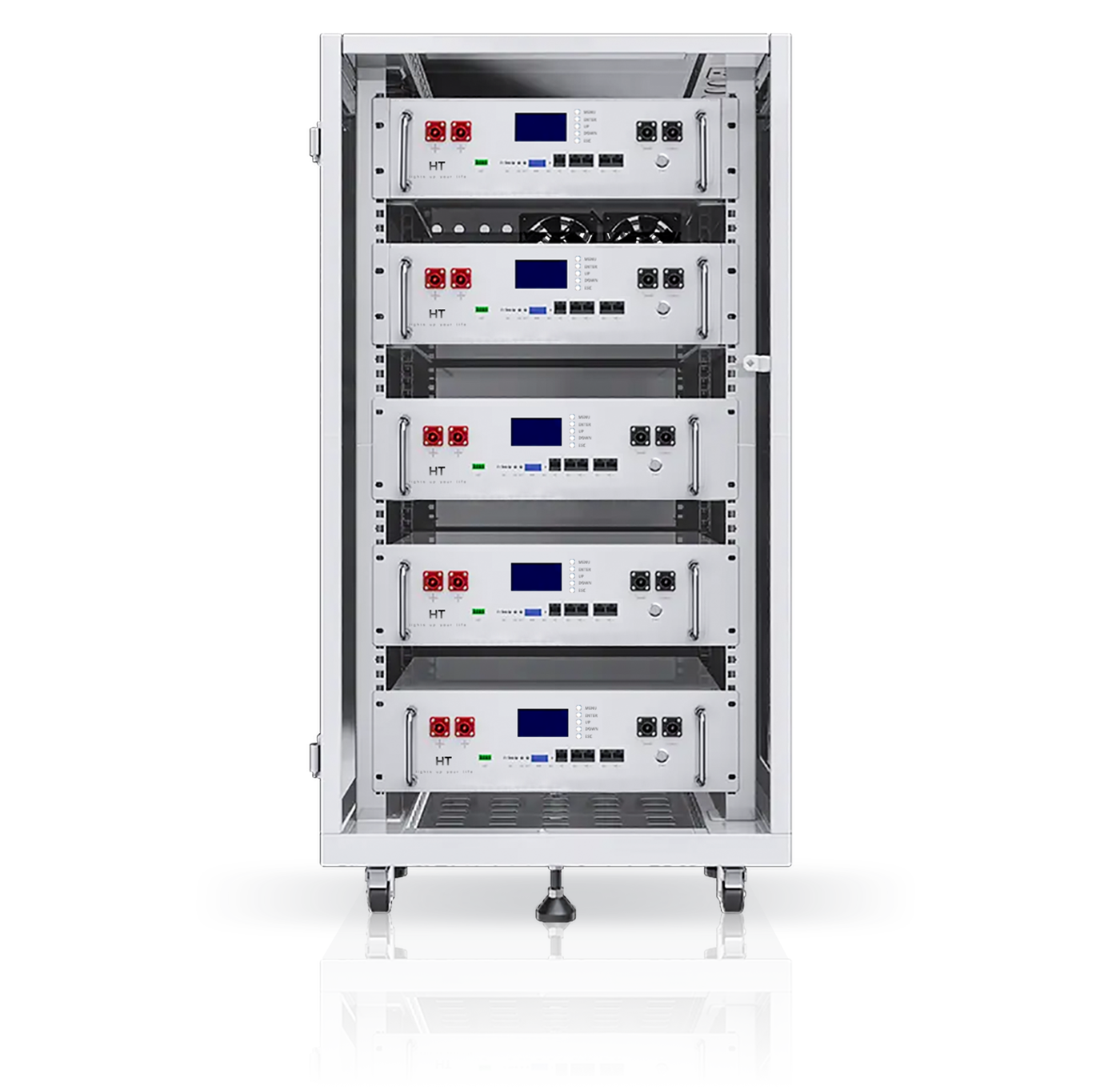

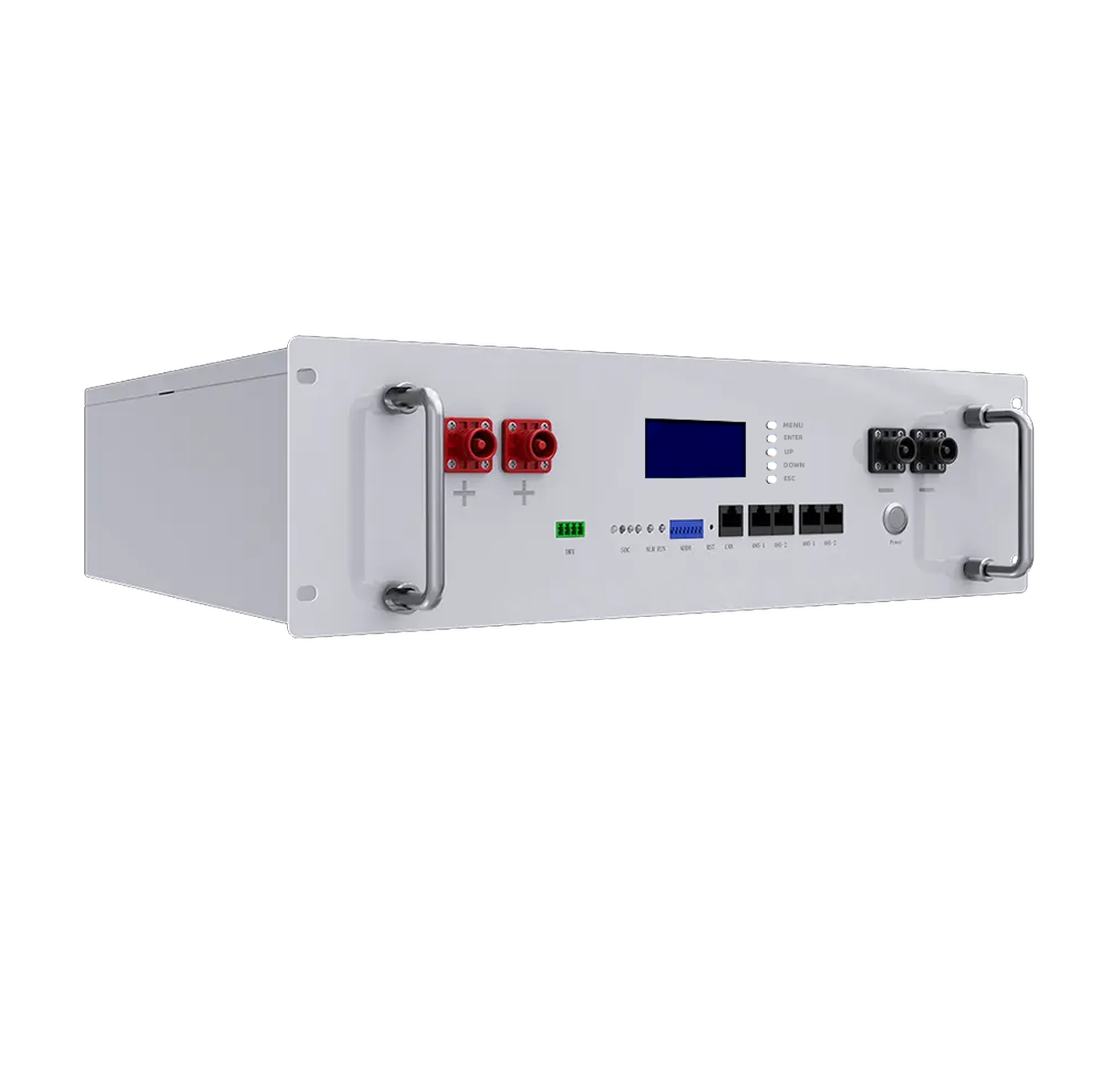

Rack Mounted 5 KWH Battery
Model ： HT 51100R
Nominal Voltage ： 51.2V
Nominal Capacity ： 100Ah
Nominal Energy ： 5.12kWh(Can Be Expanded To 51.2kWh)
Cycle Life ： ≥6000Cycles@80%DOD,25℃,0.5C
Dimensions (W x D x H) ： 483*480*178 MM
Weight ： Approx 48 KG
Operating Temperature ： -40~55°C
Communication Protocol ： RS232,RS485,CAN
Warranty ： 10 Years Product Warranty
Product Advantage
Compatible With Tier1 Inverters
The All Batteries Adopt
Approved Grate A Cells
Free Extension To
Meet Customer Needs
Obtain Multiple Certifications：CE,UL,UN38.3,MSDS,ROHS,IEC
FREQUENTLY ASKED QUESTIONS
The capacity of 5 kWh battery is 5.12kWh.
If the power of your appliance is 2.5kW, this 5 kWh battery can charge you 5120Wh/2500W=2.04h.
Depending on your inverter charging current, if the charging current is 100A, it only takes 1 hour to fully charge this 5 kWh battery.
We can provide you with 24-hour online service, if you have any problems with the 5 kWh battery, feel free to contact me.
The 5 kWh battery should be stored according to the requirements, You need to be completed a charge and discharge operation per 3 months and charge to 70%.
When you use it normally, the 5 kWh battery life can reach more than 15 years.
