IP55
On/Off Grid Switching Function
Space-Saving
EMS Local Data Management
Easy Installation And Maintenance

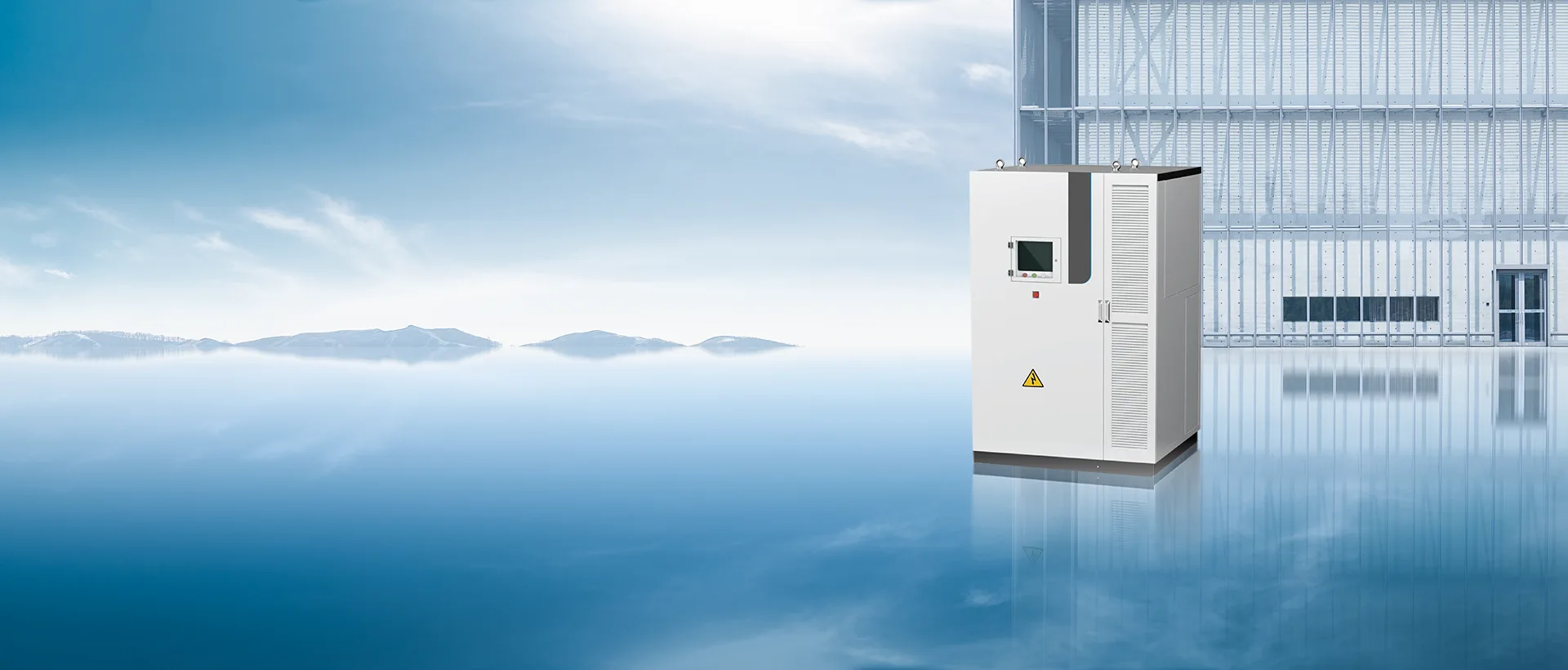

What Is Liquid Cooling 186kW 372kWh Energy Storage Systems?
HT Infinite Power 186kW 372kWh energy storage systems cabinet adopts advanced 6S intelligent management technology, including EMS, PCS, BMS, fire protection system, temperature control system, distribution system. Built-in high-voltage battery cluster, high-voltage box, isolation transformer, STS module, DC power module, and it can connect to the solar panels, with integrated design, easy for installation and maintenance.
186kW/372kWh
Liquid-Cooling System
Model : HT 186kW-372kWh-L
Max. PV Input Power : 186kW
Max. PV Input Voltage : 900V
STS : STS optional
Transformer : Transformer Inside Or Optional
Rated Battery Capacity : 372kWh
Rated Battery Voltage : 1334V
Battery Type : Lithium iron phosphate battery 280Ah(LFP)
Rated AC Power : 186kW
Rated AC Current : 144A
Rated AC Voltage : 400V,3P+N+PE,50/60Hz
Protection Level : IP55
How To Get A Suitable BESS Project ？
Collect Projets Information
Contact Us
Our Engineers Make Solutions And Quotation For You
Install
Use
FREQUENTLY ASKED QUESTIONS
The 186kw 372kWh energy storage systems is a digital integrated system include energy storage batteries, PCS, EMS, fire protection systems, and temperature control systems. The 186kW 372kWh energy storage systems
means the AC output is 186kW and batteries energy is 372kWh.
Due to the 186kW 372kWh energy storage systems use higher integration and higher capacity LFP cells, the unit cost is lower than traditional solutions.
Yes, the 186kW 372kWh energy storage systems is with environmental monitoring, fire protection systems and temperature control system,so it is very safe.
Yes, You can set parameters of 186kW 372kWh energy storage systems according to your own needs in EMS.
Yes, the 186kW 372kWh battery storage systems can be connected to solar panels.
Yes, the 186kW 372kWh battery storage systems can be connected to diesel generator.
No. The 186kW 372kWh energy storage systems are pre-installed before shipment, making transportation and usage very simple
For More Questions Please Contact Us
