Save More Installation,
Commissioning Costs And Time
Less Fossil Fuel Use, More Environmentally Friendly
Increase The Utilization Rate Of Renewable Energy
Continuous And Stable Power Supply
Photovoltaic Expansion Is More Convenient
─── 500kW ───
Power Conversion System(PCS)
Model : IFS-500
Max. Input Power : 500kW
Max. Input voltage : 900V
Battery Type : Lithium Battery/Lead-Acid Battery
AC Output Topology : 3W+N/3W
Dimensions (Wx Dx H) : 4400*1000*2160
Temperature Range : Temperature Range
Protection Class : IP20
Certificates : TUV CE
Advantages
─── IFS 500kW bess power conversion system ───

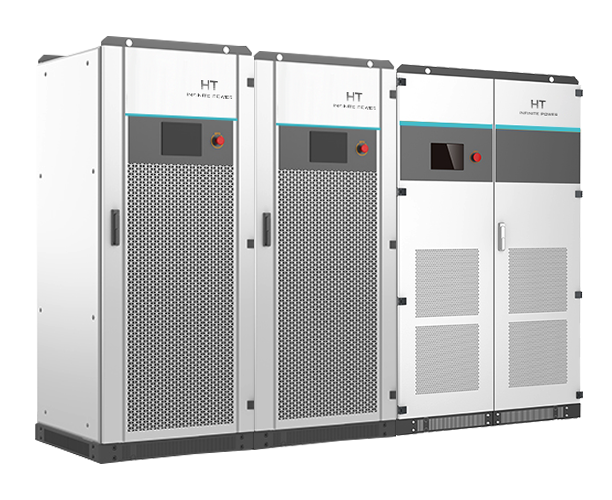

HT IFS 500kW bess power conversion system adopts integrated all-in-one design, integrating photovoltaic modules, energy storage inverters, automatic on/off-grid switching, isolation transformers, EMS, greatly improving installation efficiency and cost, suitable for farms, hospitals, and remote weak electricity areas or no power grid.
Saftey & reliable
Passed EN62109-1/-2, EN62477-1,EN61000-6-2, EN61000-64. South Africa NRSO97-2-1:2017, Pakistan & India IEC61727,IEC62116IEC 61683 test certification;
Flexible Configuration
Support PV, diesel generator, battery, load access at the same time, but also has strong environmental adaptability, support black start; A variety of working modes can be flexibly set;
Convenient operation & maintenance
Support unattended, standard HMI digital display panel, can directly monitor power, current, voltage and other core parameters, quickly judge the operating status and health of the device, combined with the cloud EMS, can achieve remote monitoring
FREQUENTLY ASKED QUESTIONS
─── 500kW Bess Power Conversion System ───
Both of inverters and 500kW Bess power conversion system can convert DC to AC,
but 500kW Bess power conversion system adds some functions such as energy storage,
regulation of grid demand, and reactive power control which make the
500kW Bess power conversion system be a more comprehensive electricity management system
The efficiency of the 500kW bess power conversion system depends on the environment used, uaually it will be over than 98%.
Yes, we can ajust some functions of the 500kW bess power conversion system according to your needs.
Yes, we can supply our HMI protocol of the 500kW bess power conversion system to you when you need.
The efficiency of the 500kW bess power conversion system depends on the environment used, uaually it will be over than 91%
