True rack-mount modularity
Integrated battery management
IP54 protection for indoor/outdoor racks
Wide –20°C to +60°C operating window
Cell-level safety and balancing
What Is The Advantage Of 200kWh High-Voltage Lithium Battery Rack
The high-voltage 200kWh lithium ion battery rack is a flexible, scalable storage building block—ideal for integrators and developers who require high-density, stable energy delivery without extra complexity. Whether in grid-connected or remote applications, this rack offers a dependable DC core to build resilient power infrastructure.

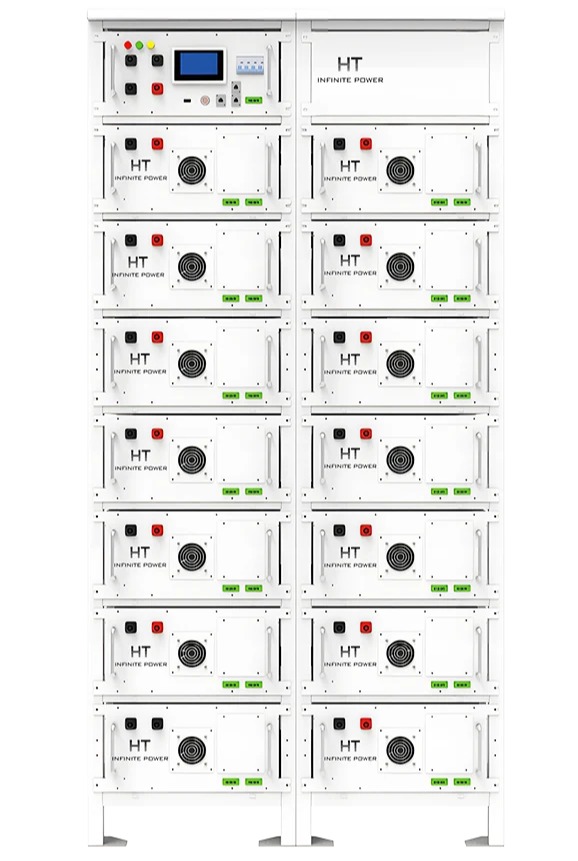

200kWh
High-Voltage Lithium Battery Rack
Rated capacity:
Factory voltage:
Voltage at end of discharge:
Charging voltage:
Internal lmpedance:
Max charging current(Icm):
Imited charging voltage(Ucl):
Discharge cut-off voltage(Udo):
Operation Temperature Range:
Storage Temperature Range:
Main control boxsize/weight:
Single module Size/weight:
System size/weight:
Typical:280Ah Min:276Ah
716.8-739.2V
≤604.8V
784V
≤170mΩ
140A
817.6V
560V
Charge:0~55°C Discharge: -20~55°C
-20°C~25°C
620*442*222mm/About 22Kg
778.5*442*230mm/About125Kg
550*776*2250mm/About 1978Kg

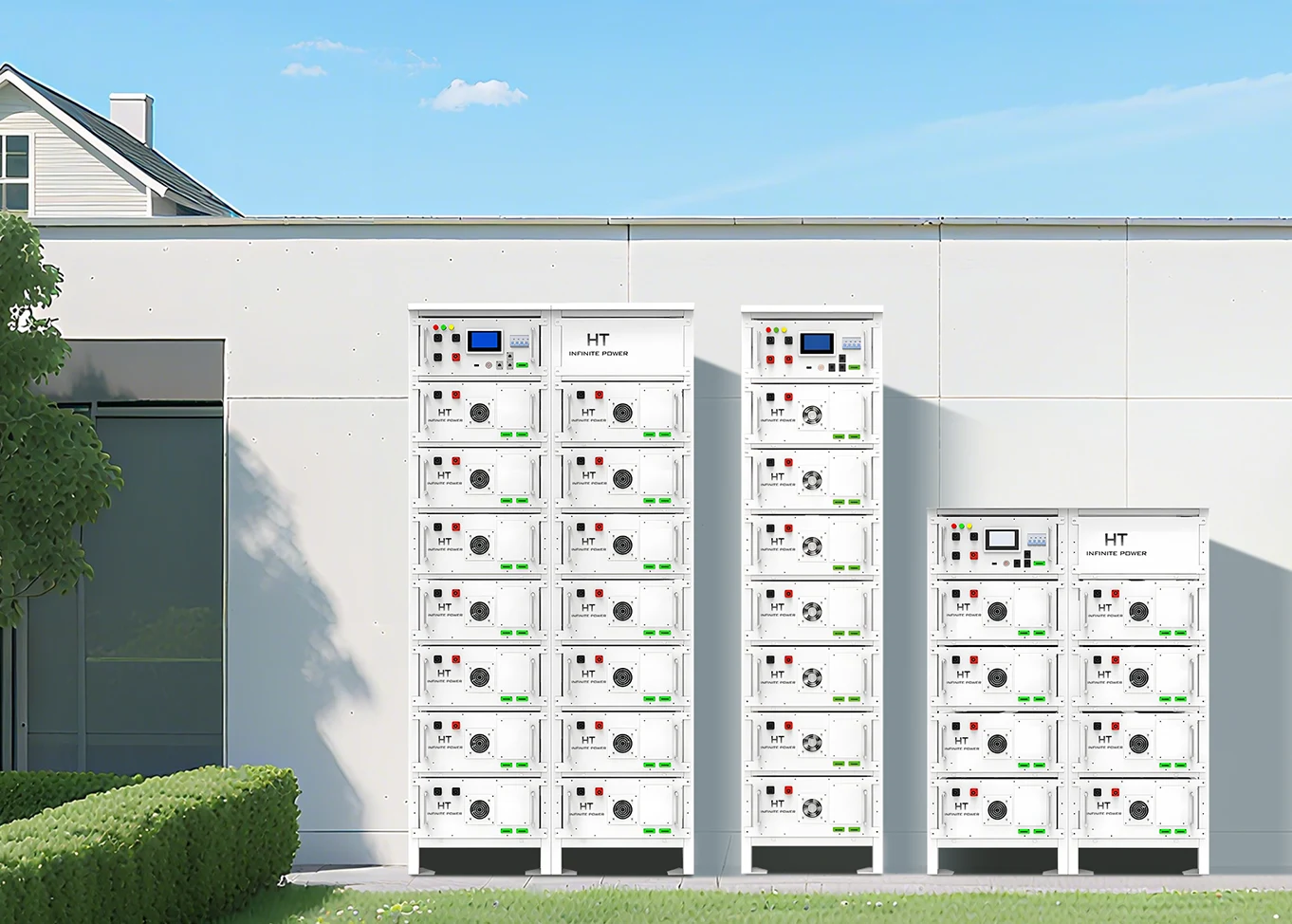

Flexible System Integration with the 200kWh Lithium Ion Battery
The rack's high-voltage output and modular nature allow integrators to:
●Parallel multiple racks for increased capacity
●Connect with PCS or hybrid inverters
●Implement within both grid-tied and off-grid energy strategies
Its open-ended design gives system architects full control over how power is processed, managed, and deployed.
Application-Driven Design Enabled by the 200kWh Lithium Ion Battery
This rack is not a one-size-fits-all solution. It was built specifically for:
●Commercial and industrial storage systems
●Distributed energy infrastructure
●Renewable energy buffering
●Emergency backup for critical loads
The 200kWh lithium ion battery configuration is especially well-suited for scenarios requiring compact, scalable, and reliable DC energy delivery.

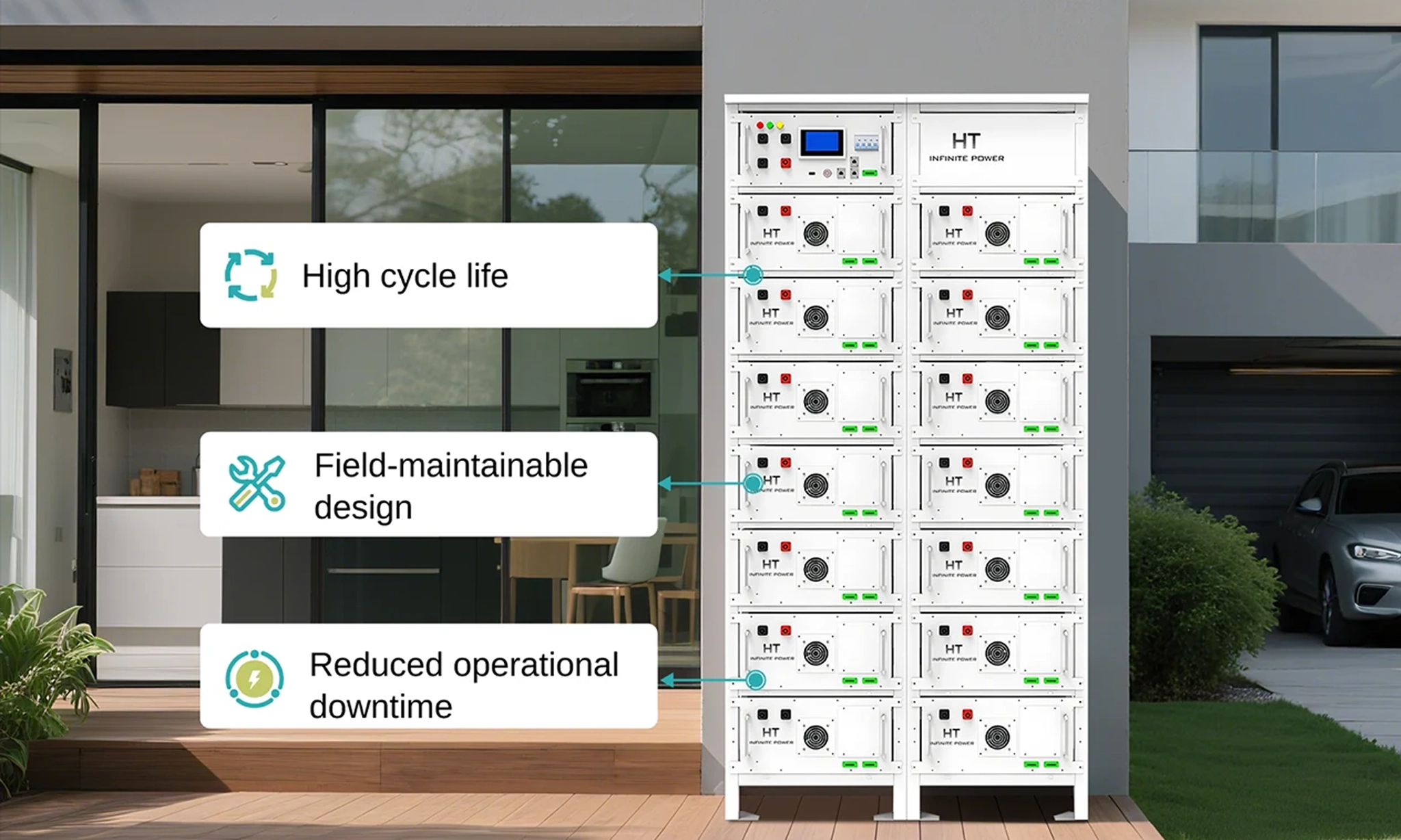

Maximizing Lifecycle and Service Value of Your 200kWh Lithium Ion Battery
This rack is built for longevity—mechanically and electrically. Integrators benefit from:
● High Cycle Life
LFP chemistry ensures long-term stability with minimal degradation.
● Field-Maintainable Design
Each module is accessible for inspection or replacement.
● Reduced operational downtime
Internal protections minimize risk of emergency shut-off.
With proper energy management strategies, this battery system delivers consistent value year after year.

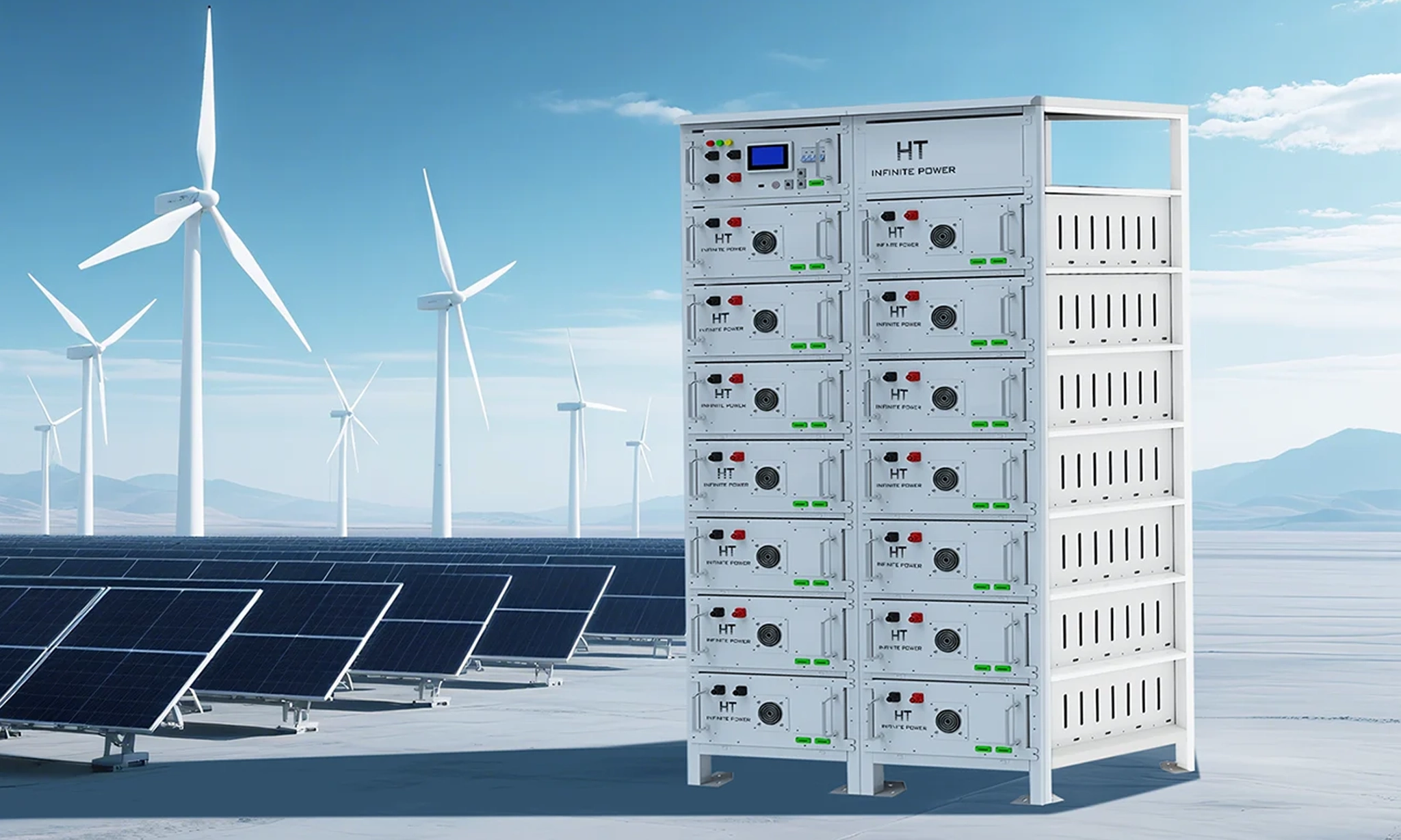

The 200kWh Lithium Ion Battery: A Natural Fit for Renewable Systems
When installed alongside photovoltaic or wind systems, the 200 kWh lithium ion battery:
● Stores excess generation during low-demand hours
● Feeds energy back during peak periods to offset consumption
● Helps flatten output variability for cleaner load profiles
It enables site owners to improve self-consumption, lower grid dependence, and stabilize onsite supply.

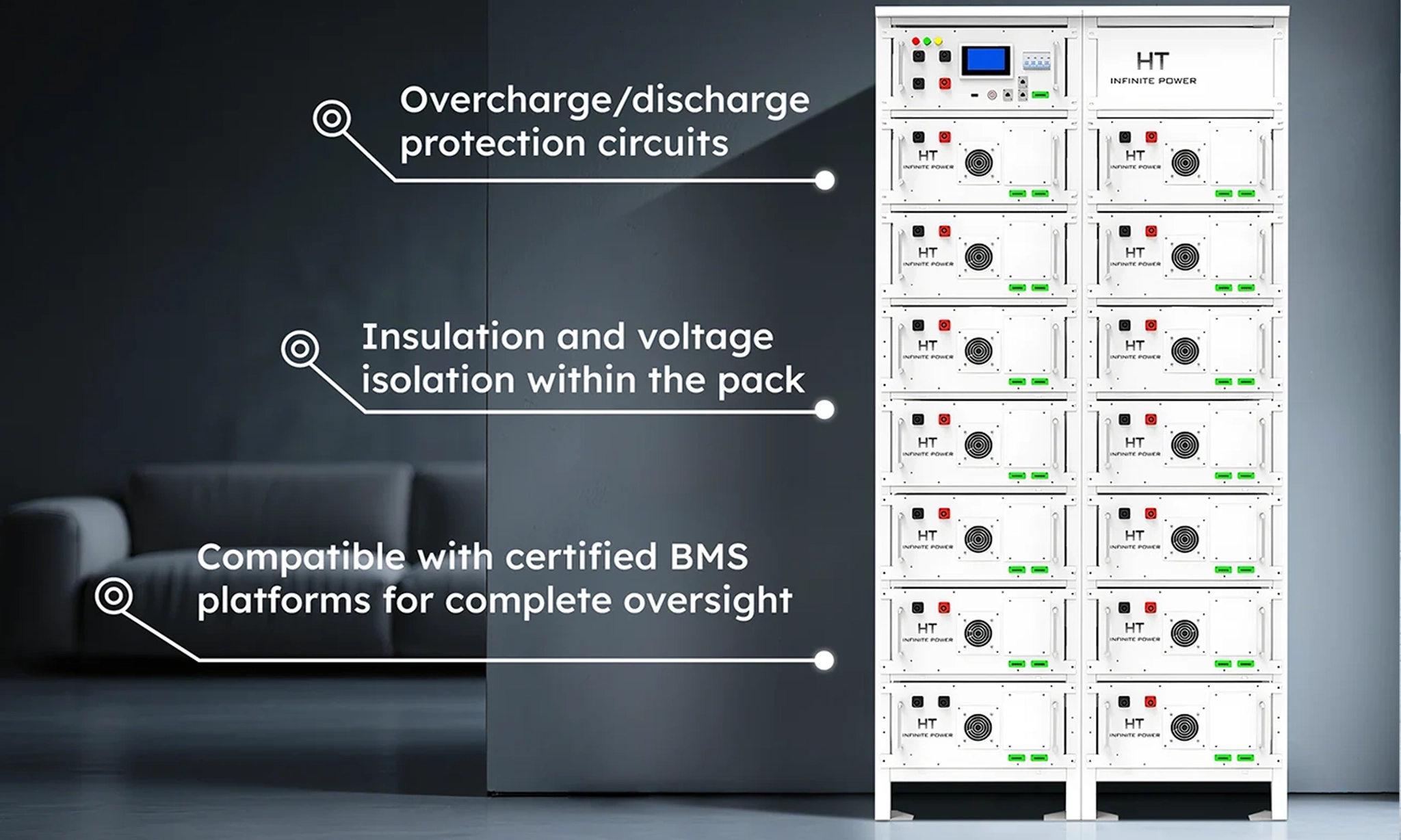

Safety and Compliance Built into Every 200kWh Lithium Ion Battery
All rack modules are designed to meet industrial-grade safety expectations. Key attributes include:
● Overcharge/discharge protection circuits
● Insulation and voltage isolation within the pack
● Compatible with certified BMS platforms for complete oversight
How To Get A Suitable BESS Project ？
Collect Projets Information
Contact Us
Our Engineers Make Solutions And Quotation For You
Install
Use
FREQUENTLY ASKED QUESTIONS
─── About High-Voltage 200kWh lithium ion battery ───
No, this product is a 200kWh lithium ion battery rack only. It’s designed for integration with external PCS and BMS units, chosen based on your system architecture.
The rack supports parallel configuration. You can connect multiple units to scale your storage from 200kWh to multi-megawatt-hour systems, depending on the PCS and energy management system in place.
Yes. The 200kWh battery rack can be deployed in either configuration, as long as the inverter and protection settings match your application needs.
With lithium iron phosphate chemistry and proper thermal control, this battery pack typically delivers 10+ years of service at stable performance.
The rack includes internal safeguards against overcharge, over-discharge, and overheating. However, a coordinated BMS is essential to ensure full-system fault response and protection logic.
Each rack is manufactured to support integration with region-compliant systems. For specific certificates or documentation, please contact our technical support team.
