Flexible installation format
Low-maintenance structure
Fast system matching
Built-in BMS

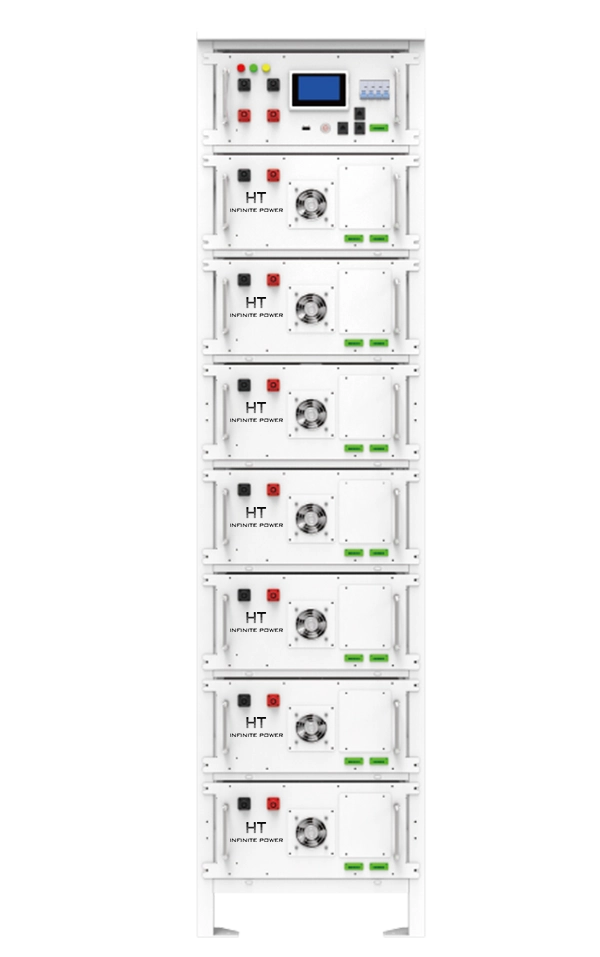

100 kWh Battery Pack Specifications
Rated capacity:
Factory voltage:
Voltage at end of discharge:
Charging voltage:
Internal lmpedance:
Max charging current(Icm):
Limited charging voltage(Ucl):
Discharge cut-off voltage(Udo):
Storage Temperature Range:
Operation Temperature Range:
Single module Size/weight:
Main control box size/weight:
System size/weight:
Typical:280Ah Min:276Ah
358.4-369.6V
≤302.4V
392V
≤110mΩ
140A
408.8V
280V
-20°C~25°C
Charge:0~55°C Discharge: -20~55°C
778.5*442 230mm/About 125Kg
620*442*222mm/About 22Kg
550*776*1985mm/About 850Kg
100 kWh Battery Pack Performance and Efficiency

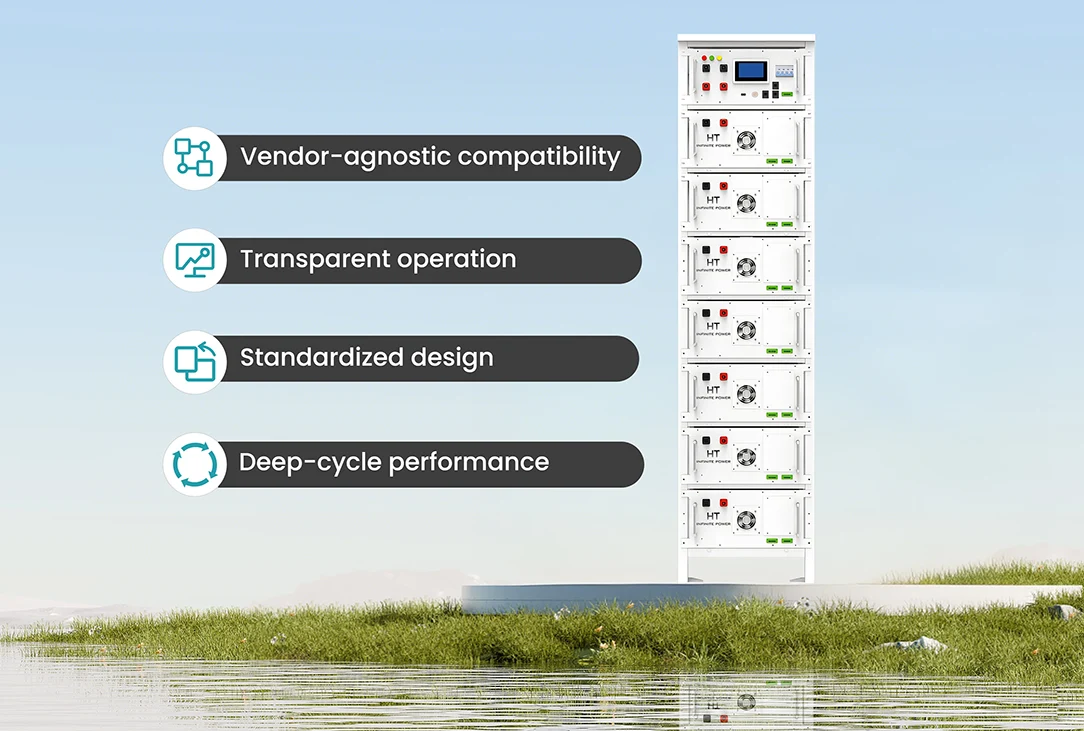

This 100 kWh battery pack is designed with integrators in mind. Every detail—from voltage window to communication interface—follows clear, consistent design principles that simplify engineering.
●Vendor-Agnostic Compatibility
Works with mainstream PCS, hybrid inverters, and EMS platforms.
●Transparent Operation
Real-time data access via built-in BMS for precise system monitoring.
●Standardized Design
Dimensions, connectors, and protocols optimized for seamless cabinet or container integration.
●Deep-Cycle Performance
Retains high efficiency and stability, even under daily 90% depth-of-discharge cycles.
Applications for a 100 kWh Battery Pack
●Behind-the-meter storage in industrial buildings
●Solar smoothing in off-grid and hybrid microgrids Cold-climate energy reserves, with low-temperature charging enabled
●Battery cabinets or ESS skids in commercial deployments
●Behind-the-meter storage in industrial buildings Remote infrastructure backup for utility or telecom sites
FREQUENTLY ASKED QUESTIONS
─── 100kWh Battery Pack – High Voltage Power───
This pack is ideal for commercial storage systems, off-grid setups, and industrial energy buffering. It can be integrated into cabinets, containers, or rack-based installations.
Yes. The battery pack is designed with open communication standards (CAN, RS485, Ethernet), making it compatible with most high-voltage inverters and PCS.
Absolutely. Each 100 kWh battery pack is equipped with a built-in BMS that handles voltage balancing, temperature protection, and real-time system diagnostics.
Yes. The modular design allows you to connect multiple packs in parallel, enabling larger capacity configurations without redesigning your system.
With a rated cycle life of 6,000+ cycles at 90% DoD, this 100kWh battery pack delivers stable long-term performance for years of continuous operation.
